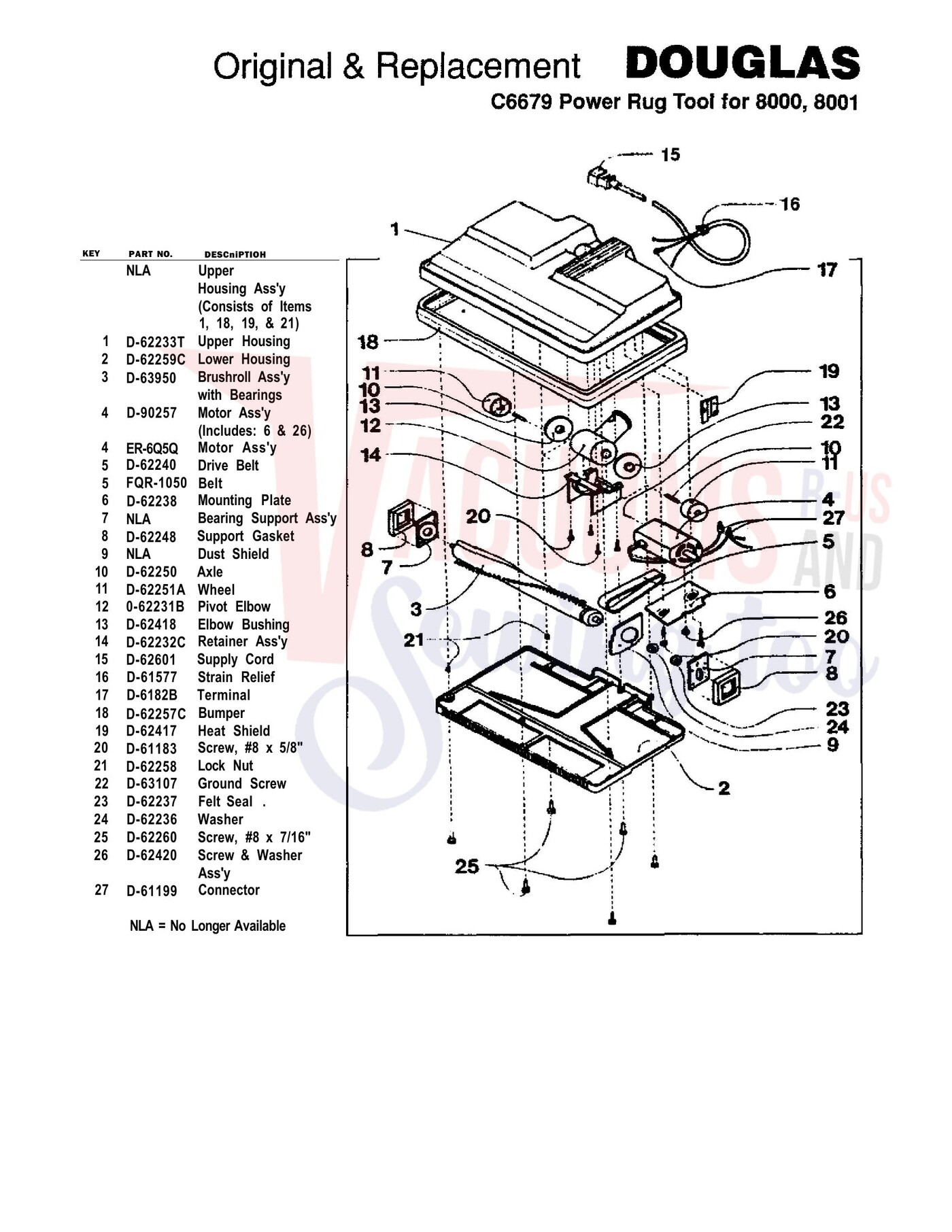

Schematic and parts book for Douglas C6679 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Upper Housing | D-62233T | Not Available |
| 2 | Not Available | Lower Housing | D-62259C | Not Available |
| 3 | Not Available | Brushroll Ass'y | D-63950 | Not Available |
| 4 | Not Available | Motor Ass'y | D-90257 | Not Available |
| 4 | Not Available | Motor Ass'y | ER-6Q5Q | Not Available |
| 5 | Not Available | Drive Belt | D-62240 | Not Available |
| 5 | Not Available | Belt | FQR-1050 | Not Available |
| 6 | Not Available | Mounting Plate | D-62238 | Not Available |
| 7 | Not Available | Bearing Support Ass'y | NLA | Not Available |
| 8 | Not Available | Support Gasket | D-62248 | Not Available |
| 9 | Not Available | Dust Shield | NLA | Not Available |
| 10 | Not Available | Axle | D-62250 | Not Available |
| 11 | Not Available | Wheel | D-62251A | Not Available |
| 13 | Not Available | Elbow Bushing | D-62418 | Not Available |
| 14 | Not Available | Retainer Ass'y | D-62232C | Not Available |
| 15 | Not Available | Supply Cord | D-62601 | Not Available |
| 16 | Not Available | Strain Relief | D-61577 | Not Available |
| 17 | Not Available | Terminal | D-6182B | Not Available |
| 18 | Not Available | Bumper | D-62257C | Not Available |
| 19 | Not Available | Heat Shield | D-62417 | Not Available |
| 20 | Not Available | Screw #8 x 5/8" | D-61183 | Not Available |
| 21 | Not Available | Lock Nut | D-62258 | Not Available |
| 22 | Not Available | Ground Screw | D-63107 | Not Available |
| 23 | Not Available | Felt Seal . | D-62237 | Not Available |
| 24 | Not Available | Washer | D-62236 | Not Available |
| 25 | Not Available | Screw #8 x 7/16" | D-62260 | Not Available |
| 26 | Not Available | Screw & Washer | D-62420 | Not Available |
| 27 | Not Available | Connector | D-61199 | Not Available |
