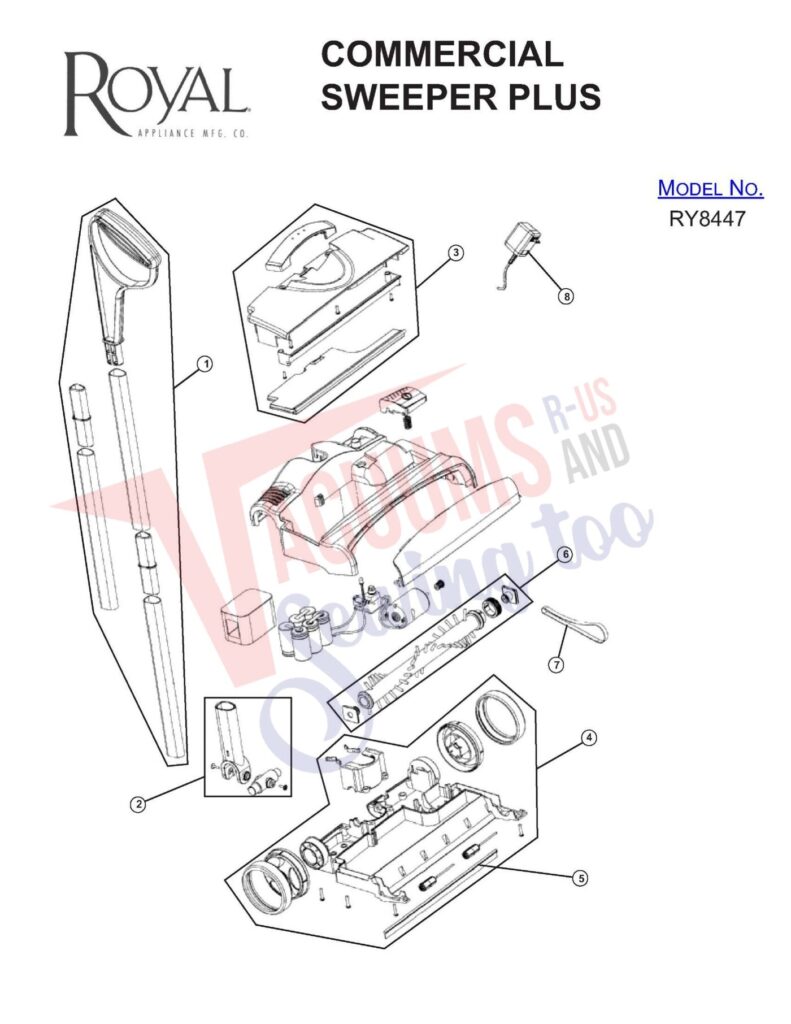

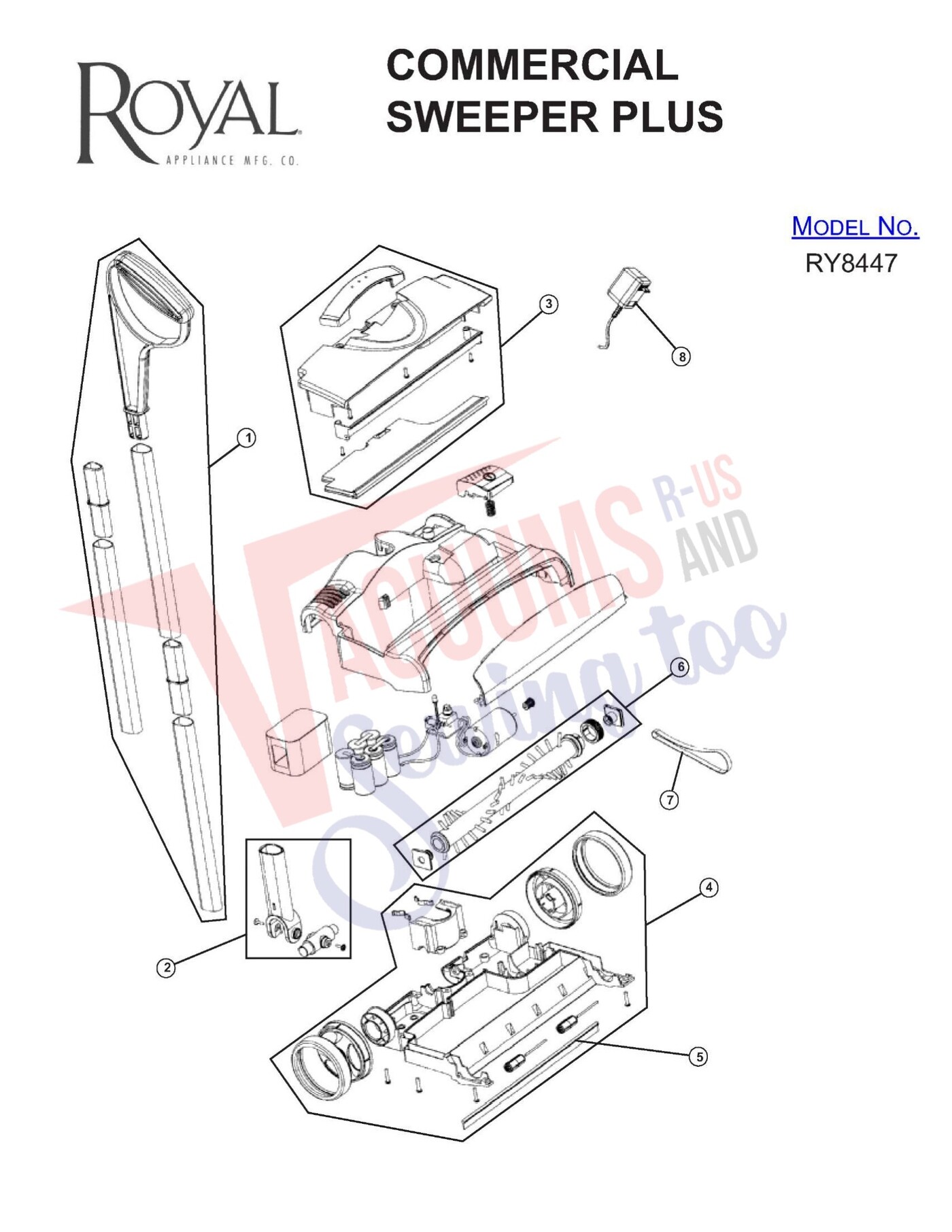

Schematic and parts book for Dirt Devil RY8447 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE ASSEMBLY | 2SU1102000 | Not Available |
| 2 | Not Available | PIVOT ASSEMBLY | 2SU1101000 | Not Available |
| 3 | Not Available | DIRT CUP ASSEMBLY | 2SU1103000 | Not Available |
| 4 | Not Available | NOZZLE BASE ASSEMBLY | 2SU2000000 | Not Available |
| 5 | Not Available | RUBBER STRIP | 1SU1101000 | Not Available |
| 6 | Not Available | BRUSH ROLL ASSEMBLY | 2SU1000000 | Not Available |
| 7 |  | Belt-Royal - Geared - Ry8447 - Commercial Sweeper Plus For: royal | 1SU1000000 | $6.00Read more |
| 8 | Not Available | CHARGER ASSEMBLY - 7-25 VDC 130mA newly revised 2013 | 440004453 | Not Available |
