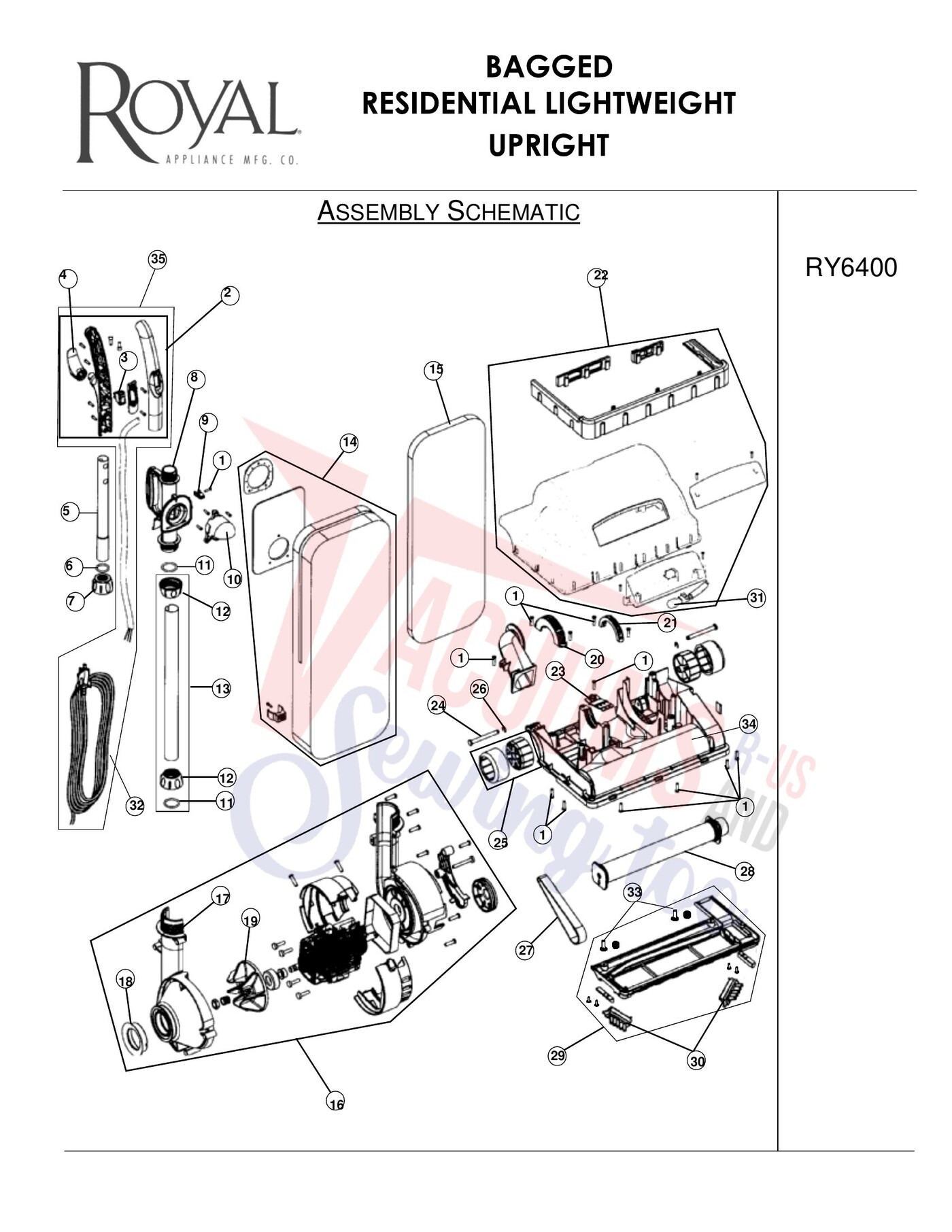

Schematic and parts book for Dirt Devil RY6400 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 |  | Screw, :( Handle - Machine 6200 Series Part Number: 1503819000 for Royal | 1503819000 | $0.41Read more |
| 2 | Not Available | UPPER HANDLE GRIP ASSEMBLY | 1JR0017000 | Not Available |
| 3 | Not Available | SWITCH | 1JR0010000 | Not Available |
| 4 | Not Available | CORD HOOK | 1JR0012000 | Not Available |
| 5 |  | Upper Handle Tube For: hoover | 1JR0018000 | $10.62Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | HANDLE O-RING GASKET - SMALL | 1JR0027000 | Not Available |
| 7 |  | Upper Handle Collar - Hoover U4707/U4730 For: hoover | 1JR0026000 | $1.77Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Handle Tube Grip For: hoover | 1JR0028000 | $16.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | CORD CLIP | 1JR0029000 | Not Available |
| 10 | Not Available | DIRT INLET | 1JR0035000 | Not Available |
| 11 |  | O Ring - V-Type - Royal Ry6500 Upright For: royal | 1RYV650000 | $0.84Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Collar - Handle Tube-Royal Ry6500 Upright For: royal | 1JR0025000 | $2.07Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | LOWER HANDLE TUBE ASSEMBLY | 2JR1000000 | Not Available |
| 15 | Not Available | TYPE B BAG | 1671075001 | Not Available |
| 16 | Not Available | COMPLETE MOTOR ASSEMBLY | 001248011 | Not Available |
| 17 | Not Available | MOTOR FAN COVER | 1JR0015000 | Not Available |
| 18 | Not Available | FAN COVER SEAL | 1JR0014000 | Not Available |
| 19 | Not Available | FAN | 1JR0013000 | Not Available |
| 20 | Not Available | LEFT CLAMP | 1JR0031000 | Not Available |
| 21 | Not Available | RIGHT CLAMP | 1JR0030000 | Not Available |
| 23 | Not Available | HANDLE STOPPER | 1JR0022000 | Not Available |
| 24 | Not Available | WHEEL PIN | 1JR0021000 | Not Available |
| 25 | Not Available | WHEEL ASSEMBLY | 1JR0019000 | Not Available |
| 26 | Not Available | WHEEL E-CLIP | 1JR0020000 | Not Available |
| 27 | Not Available | STYLE 18 BELT | 1JR0091X00 | Not Available |
| 28 | Not Available | BRUSH ROLL ASSEMBLY | 2JR0010000 | Not Available |
| 29 | Not Available | NOZZLE GUARD ASSEMBLY | 1JR0032000 | Not Available |
| 30 | Not Available | EDGE CLEANER ASSEMBLY | 1JR0033000 | Not Available |
| 31 | Not Available | BULB #906 | 1920906000 | Not Available |
| 32 | Not Available | POWER CORD | 1LV1101000 | Not Available |
| 33 |  | Nozzle Guard Screw For: royal | 1JV0103000 | $0.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | NOZZLE BASE | 513175009 | Not Available |
| 35 | Not Available | UPPER HANDLE ASSEMBLY - ON/OFF ROCKER SWITCH | 2RY641000 | Not Available |
