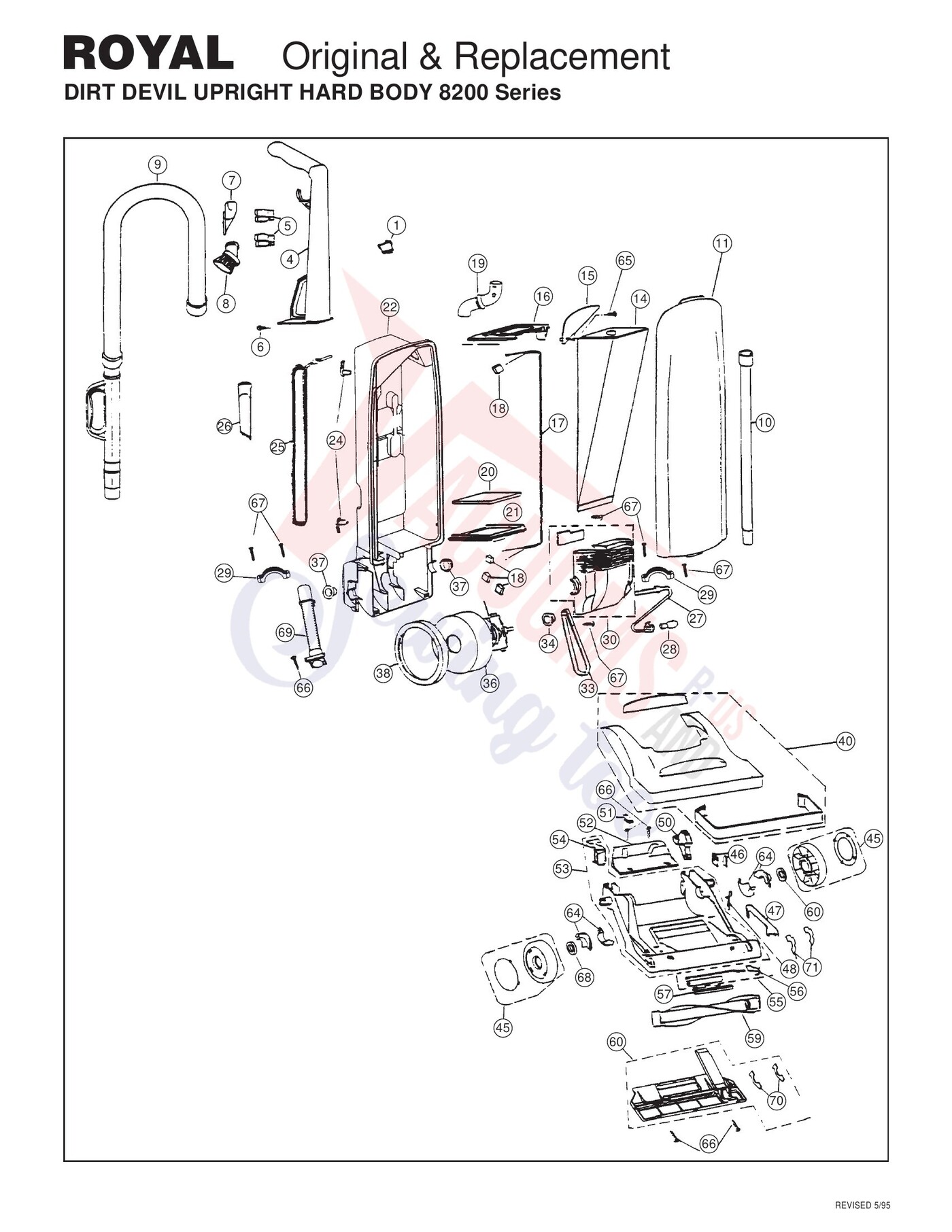

Schematic and parts book for Dirt Devil 8200 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | No Image | Hose, Drain Complete Assembly | 720125 | $156.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Handle | NLA | Not Available |
| 5 | Not Available | Attachment Clip 8200 8211PR 8232 8232WC | NLA | Not Available |
| 6 | Not Available | screw | 720410 | Not Available |
| 7 | Not Available | Upholstery Tool Black | 098584 | Not Available |
| 7 | Not Available | Upholstery tool Black | FA-5200-3 | Not Available |
| 8 | Not Available | dust Brush Black | 050282 | Not Available |
| 8 | Not Available | Dust Brush Black | FA-5300-3 | Not Available |
| 9 | Not Available | Hose Ass’y With Twist Lock | NLA | Not Available |
| 10 | Not Available | Telescopic Wand | NLA | Not Available |
| 11 | Not Available | Front Panel Ass’y 8200 Red | NLA | Not Available |
| 11 | Not Available | Front Panel Ass’y 8100 Red | NLA | Not Available |
| 11 | Not Available | Front Panel Ass’y 8211PR Red | NLA | Not Available |
| 11 | Not Available | Front Panel Ass’y 8232 Green 8200 8232 8232WC | NLA | Not Available |
| 11 | Not Available | Front Panel Ass’y 8232WC Green | NLA | Not Available |
| 14 | Not Available | Paper Bag Type C 3 Pk 8100 8211PR | 700147 | Not Available |
| 14 | Not Available | paper Bag type c 3 pk | ROR-1420 | Not Available |
| 14 | Not Available | Paper Bag Type C Micro Fresh 3 Pk | 727075 | Not Available |
| 15 | Not Available | switch Compartment Cover 8200 8232 8232WC | NLA | Not Available |
| 16 | Not Available | Bag Holder | NLA | Not Available |
| 17 | Not Available | internal Cord 8100 8211PR | 720285 | Not Available |
| 18 | Not Available | Wire Nut – Blue | 259762 | Not Available |
| 19 | Not Available | Hose inlet | NLA | Not Available |
| 20 | Not Available | Filter Micro Fresh | 747130 | Not Available |
| 21 | Not Available | Filter screen | 720135 | Not Available |
| 22 | Not Available | Back Panel Ass’y | NLA | Not Available |
| 24 | Not Available | Cord Hook | 720120 | Not Available |
| 25 | Not Available | Power Cord 32' | 720280 | Not Available |
| 25 | Not Available | Power Cord 35' 8232 | 830283 | Not Available |
| 25 | Not Available | Power Cord 40' 8232WC | 830284 | Not Available |
| 25 | Not Available | power cord 32' Black | NLA | Not Available |
| 26 | Not Available | Crevice Tool Black | 502801-3 | Not Available |
| 26 | Not Available | crevice tool Black | FA-5400-3 | Not Available |
| 27 | Not Available | socket Ass’y | NLA | Not Available |
| 28 | Not Available | Headlight Bulb 12 volt | 725629 | Not Available |
| 28 | Not Available | headlight Bulb 12 volt | ROR-3500 | Not Available |
| 29 | Not Available | Pivot Clamp | 820351 | Not Available |
| 30 | Not Available | Motor Cover Ass’y | NLA | Not Available |
| 33 | Not Available | Belt | 720310 | Not Available |
| 33 |  | Belt, dirt devil 4/5 royal 4 & 5 Fantom Fury Regina Housekeeper Plus | ROR-1010 | $6.00Add to cart |
| 33 |  | Compatible alternateBelt, Dirt Devil Upright Style 4/5 2 Pk Part Number: 3720310001 for Royal More Product Details | 3720310001 | $12.96Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Compatible alternateRoyal dirt devil Belt 2pk type 4/5, 4 and 5 DVC OEM 720310P 1720410001 More Product Details | ROR-1025 | $6.00Add to cart |
| 34 | Not Available | Motor Grommet | 720325 | Not Available |
| 36 | Not Available | Motor Ass’y | NLA | Not Available |
| 36 | Not Available | Motor Ass’y 8100 | NLA | Not Available |
| 37 | Not Available | Pivot Bushing | 720355 | Not Available |
| 38 | Not Available | Motor Gasket | 200121 | Not Available |
| 40 | Not Available | Nozzle Cover Ass’y 8200 8211PR Red | NLA | Not Available |
| 40 | Not Available | Nozzle Cover Ass’y 8100 Red | 810207 | Not Available |
| 40 | Not Available | Nozzle Cover Ass’y 8232 Green | 822206 | Not Available |
| 40 | Not Available | Nozzle Cover Ass’y 8232WC Green | 823206 | Not Available |
| 45 | Not Available | Wheel & Hubcap Ass’y | NLA | Not Available |
| 46 | Not Available | Belt Guide Clip | NLA | Not Available |
| 47 | Not Available | Height Adjustment Lever (4 Pos.) | NLA | Not Available |
| 47 | Not Available | Height Adjustment Lever (3 Pos.) | NLA | Not Available |
| 48 | Not Available | spring | NLA | Not Available |
| 50 | Not Available | Height Adjustment Pedal (4 Pos.) | NLA | Not Available |
| 50 | Not Available | Height Adjustment Pedal (3 Pos.) | NLA | Not Available |
| 51 | Not Available | Lamp Cushion | 720445 | Not Available |
| 52 | Not Available | socket Holder & Lamp Ass’y | 720371 | Not Available |
| 53 | Not Available | Nozzle Base | NLA | Not Available |
| 54 | Not Available | Handle Lock Pedal | NLA | Not Available |
| 55 | Not Available | Wire Form & Roller Ass’y | NLA | Not Available |
| 56 | Not Available | Roller Lifter | NLA | Not Available |
| 57 | Not Available | Wire-Form Bracket | NLA | Not Available |
| 59 | Not Available | Brushroll Ass’y | 820215 | Not Available |
| 59 | Not Available | Brushroll Ass’y Ball Bearing | 820216 | Not Available |
| 60 | Not Available | Nozzle Guard Ass’y | NLA | Not Available |
| 64 | Not Available | Wheel sleeve | NLA | Not Available |
| 65 | Not Available | screw switch Cover | 720435 | Not Available |
| 66 | Not Available | screw Body | 250100 | Not Available |
| 67 | Not Available | screw Body | 503819 | Not Available |
| 68 | Not Available | dust seal | NLA | Not Available |
| 69 | Not Available | Hose Lower | NLA | Not Available |
| 70 | Not Available | Felt Guard | NLA | Not Available |
| 71 | Not Available | Felt Base-Brush | NLA | Not Available |
