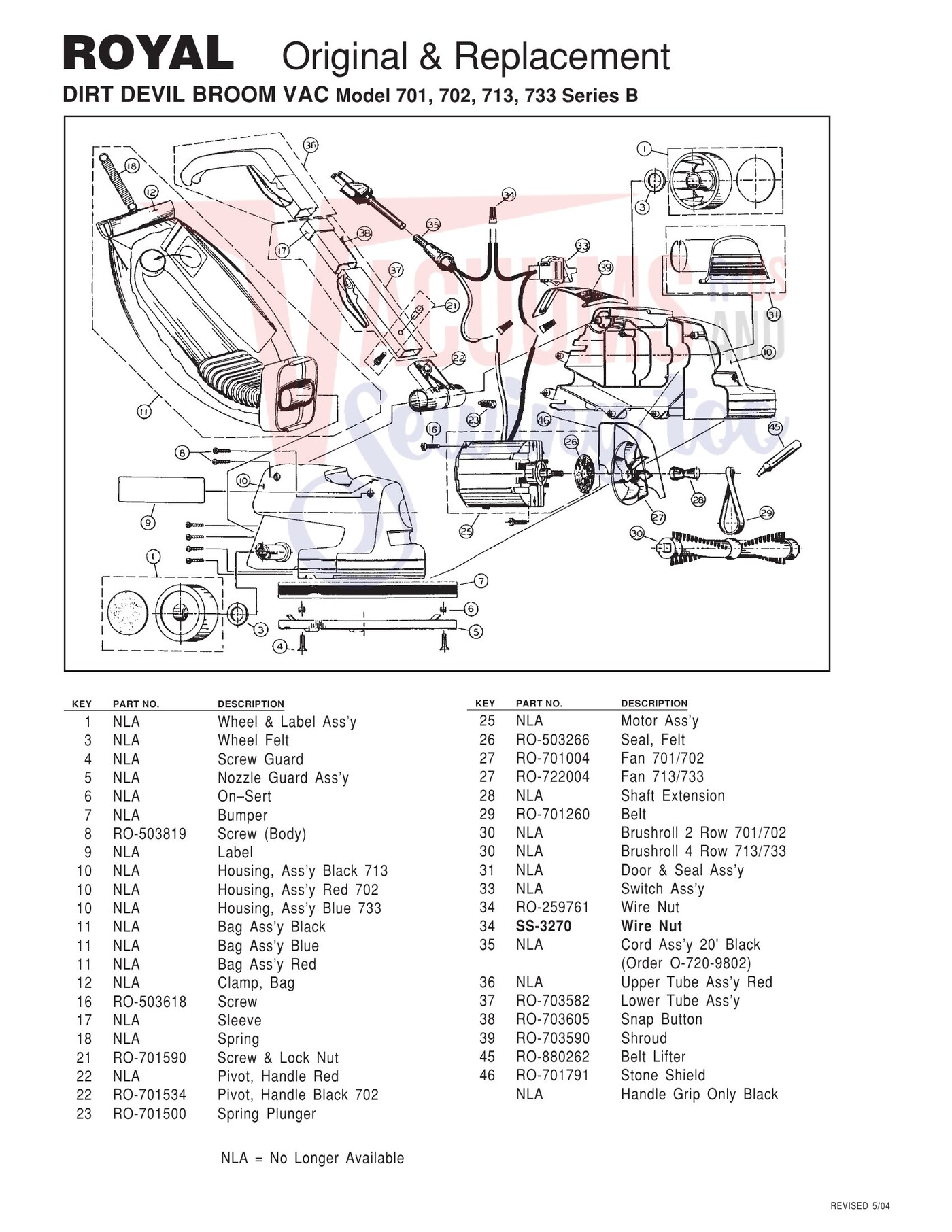

Schematic and parts book for Dirt Devil 701, 702, 713, 733 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Wheel & Label Ass’y | NLA | Not Available |
| 3 | Not Available | Wheel Felt | NLA | Not Available |
| 4 | Not Available | Screw Guard | NLA | Not Available |
| 5 | Not Available | Nozzle Guard Ass’y | NLA | Not Available |
| 6 | Not Available | On–Sert | NLA | Not Available |
| 7 | Not Available | Bumper | NLA | Not Available |
| 8 | Not Available | Screw (Body) | 503819 | Not Available |
| 9 | Not Available | Label | NLA | Not Available |
| 10 | Not Available | Housing Ass’y Black 713 | NLA | Not Available |
| 10 | Not Available | Housing Ass’y Red 702 | NLA | Not Available |
| 10 | Not Available | Housing Ass’y Blue 733 | NLA | Not Available |
| 11 | Not Available | Bag Ass’y Black | NLA | Not Available |
| 11 | Not Available | Bag Ass’y Blue | NLA | Not Available |
| 11 | Not Available | Bag Ass’y Red (Order O-720-9802) | NLA | Not Available |
| 12 | Not Available | Clamp Bag | NLA | Not Available |
| 16 | Not Available | Screw | 503618 | Not Available |
| 17 | Not Available | Sleeve | NLA | Not Available |
| 18 | Not Available | Spring | NLA | Not Available |
| 21 | Not Available | Screw & Lock Nut | 701590 | Not Available |
| 22 | Not Available | Pivot Handle Red | NLA | Not Available |
| 22 | Not Available | Pivot Handle Black | 701534 | Not Available |
| 23 | Not Available | Spring Plunger | 701500 | Not Available |
| 25 | Not Available | Motor Ass’y | NLA | Not Available |
| 26 | Not Available | Seal Felt | 503266 | Not Available |
| 27 | Not Available | Fan 701/702 | 701004 | Not Available |
| 27 | Not Available | Fan 713/733 | 722004 | Not Available |
| 28 | Not Available | Shaft Extension | NLA | Not Available |
| 29 | Not Available | Belt | 701260 | Not Available |
| 30 | Not Available | Brushroll 2 Row 701/702 | NLA | Not Available |
| 30 | Not Available | Brushroll 4 Row 713/733 | NLA | Not Available |
| 31 | Not Available | Door & Seal Ass’y | NLA | Not Available |
| 33 | Not Available | Switch Ass’y | NLA | Not Available |
| 34 | Not Available | Wire Nut | 259761 | Not Available |
| 34 | Not Available | Wire Nut | SS-3270 | Not Available |
| 35 | Not Available | Cord Ass’y 20' Black | NLA | Not Available |
| 36 | Not Available | Upper Tube Ass’y Red | NLA | Not Available |
| 37 | Not Available | Lower Tube Ass’y | 703582 | Not Available |
| 38 | Not Available | Snap Button | 703605 | Not Available |
| 39 | Not Available | Shroud | 703590 | Not Available |
| 45 | Not Available | Belt Lifter | 880262 | Not Available |
| 46 | Not Available | Stone Shield | 701791 | Not Available |
