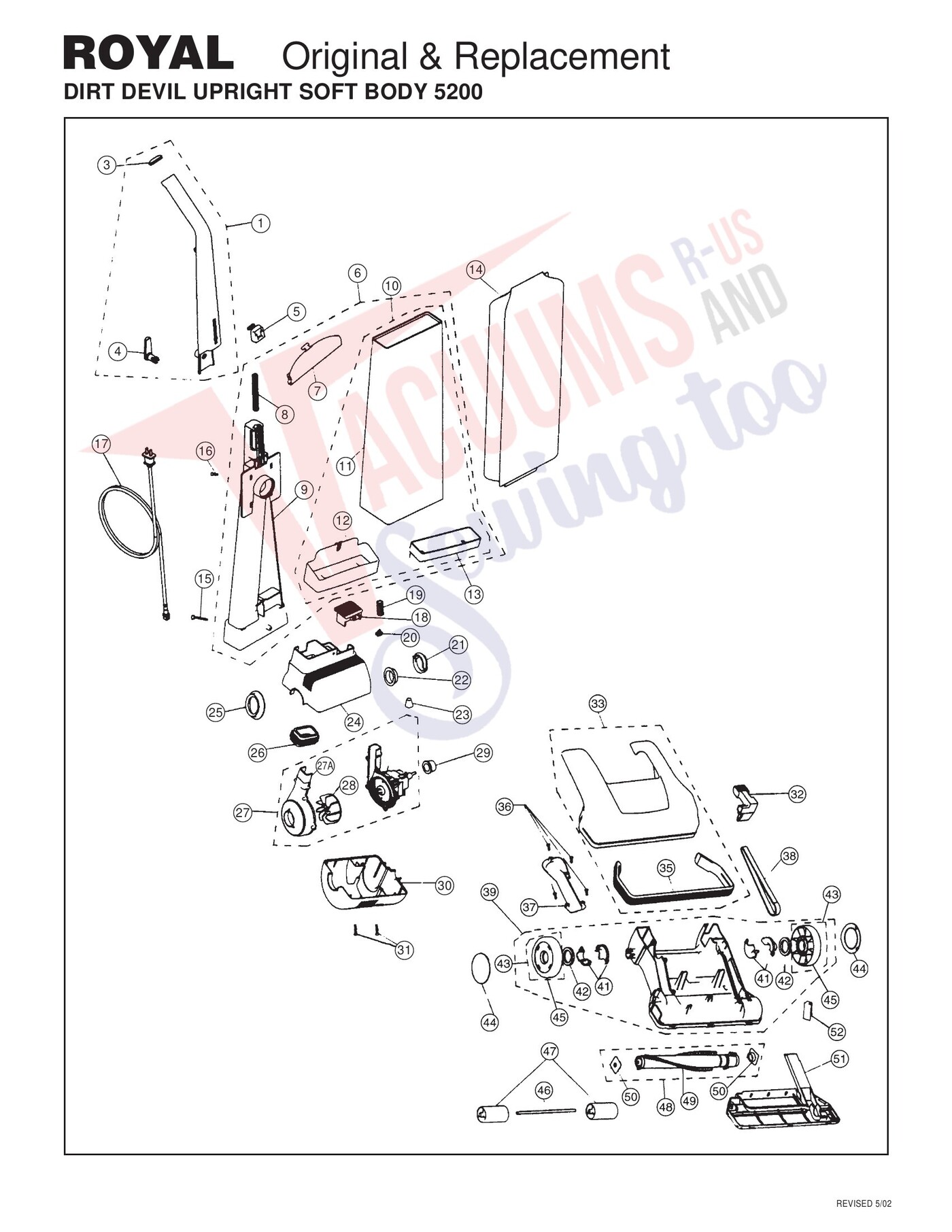

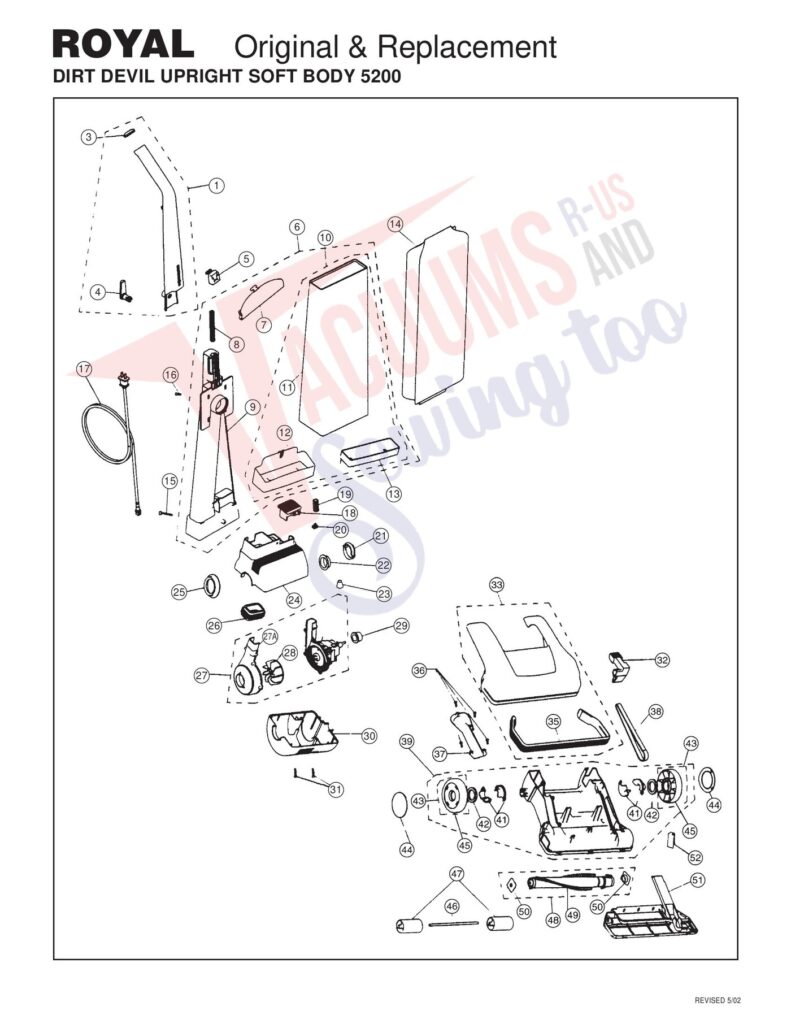

Schematic and parts book for Dirt Devil 5200 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle Ass’y – Upper | 520005 | Not Available |
| 3 | Not Available | Plug – Handle | 620275 | Not Available |
| 4 | Not Available | Cord Hook | 720120 | Not Available |
| 5 | Not Available | Guide Bag | 520135 | Not Available |
| 6 | Not Available | Handle & Bag Ass’y – Lower | 520010 | Not Available |
| 7 | Not Available | Clip Upper Bag | NLA | Not Available |
| 8 | Not Available | spring Bag Guide | NLA | Not Available |
| 9 | Not Available | Handle Ass’y – Lower | NLA | Not Available |
| 10 | Not Available | Bag Ass’y Complete | 520046 | Not Available |
| 11 | Not Available | Hinged Bag with Upper Retainer Ass’y | 520045 | Not Available |
| 12 | Not Available | support Lower Bag | NLA | Not Available |
| 13 | Not Available | Retainer Lower Bag | NLA | Not Available |
| 14 | Not Available | Paper Bag Type d 3 Pk | 620147 | Not Available |
| 14 | Not Available | paper Bag type D 3 pk | ROR-1425 | Not Available |
| 14 | Not Available | Paper Bag Type d Micro Fresh 3 Pk | 620075 | Not Available |
| 15 | Not Available | screw Handle | NLA | Not Available |
| 16 | Not Available | screw Handle | 720430 | Not Available |
| 17 | Not Available | Cord and Plug Ass’y Order RO-520105 | NLA | Not Available |
| 18 | Not Available | Pedal – switch | NLA | Not Available |
| 19 | Not Available | spring – switch | NLA | Not Available |
| 20 | Not Available | switch Ass’y | 210385 | Not Available |
| 21 | Not Available | Collar Pivot | NLA | Not Available |
| 22 | Not Available | Bushing Pivot | NLA | Not Available |
| 23 | Not Available | Wire Connector Blue | 259762 | Not Available |
| 24 | Not Available | Housing Ass’y Upper Motor | NLA | Not Available |
| 25 | Not Available | Pivot seal | NLA | Not Available |
| 26 | Not Available | Gasket Handle | NLA | Not Available |
| 27 | Not Available | Motor Ass’y | 520075 | Not Available |
| 27A | Not Available | Fan Cover | NLA | Not Available |
| 28 | Not Available | Fan 3 1/4 dia. | 520145 | Not Available |
| 29 | Not Available | Grommet Motor | 720325 | Not Available |
| 30 | Not Available | Housing Lower Motor | NLA | Not Available |
| 31 | Not Available | screw Plastic Thread Forming | 520180 | Not Available |
| 32 | Not Available | Pedal Handle Release | NLA | Not Available |
| 33 | Not Available | Nozzle Cover Ass’y Red | NLA | Not Available |
| 35 | Not Available | Bumper Order RO-520100 | NLA | Not Available |
| 36 | Not Available | screw Body | 250100 | Not Available |
| 37 | Not Available | dirt Passage Cover | 520110 | Not Available |
| 38 | Not Available | Belt | 720310 | Not Available |
| 38 |  | Belt, dirt devil 4/5 royal 4 & 5 Fantom Fury Regina Housekeeper Plus | ROR-1010 | $6.00Add to cart |
| 38 |  | Compatible alternateBelt, Dirt Devil Upright Style 4/5 2 Pk Part Number: 3720310001 for Royal More Product Details | 3720310001 | $12.96Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Compatible alternateRoyal dirt devil Belt 2pk type 4/5, 4 and 5 DVC OEM 720310P 1720410001 More Product Details | ROR-1025 | $6.00Add to cart |
| 39 | Not Available | Nozzle Base Ass’y | 520105 | Not Available |
| 41 | Not Available | Use RO-520105 | NLA | Not Available |
| 42 | Not Available | dust seal | NLA | Not Available |
| 43 | Not Available | Wheel and Hubcap Ass’y | NLA | Not Available |
| 44 | Not Available | Hubcap | NLA | Not Available |
| 45 | Not Available | Wheel Order RO-520105 | NLA | Not Available |
| 46 | Not Available | Front Wheel Axle | 520142 | Not Available |
| 47 | Not Available | Front Wheel | NLA | Not Available |
| 48 | Not Available | Brushroll Ass’y | 520125 | Not Available |
| 49 | Not Available | Brush dowel | 520126 | Not Available |
| 50 | Not Available | Brush end Cap | NLA | Not Available |
| 51 | Not Available | Nozzle Guard | NLA | Not Available |
| 52 | Not Available | Belt Guide Clip | NLA | Not Available |
