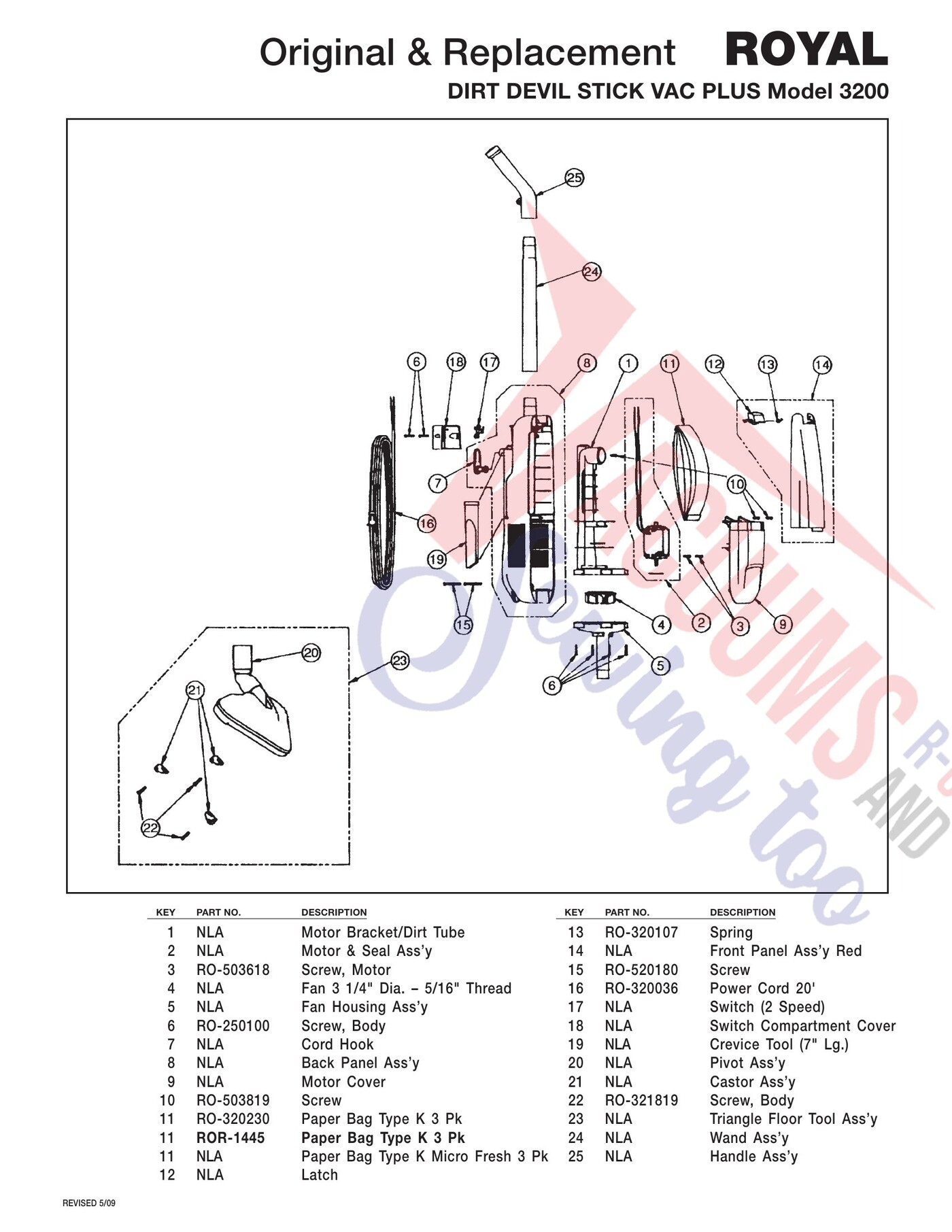

Schematic and parts book for Dirt Devil 3200 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Motor Bracket/dirt Tube | NLA | Not Available |
| 2 | Not Available | Motor & seal Ass’y | NLA | Not Available |
| 3 | Not Available | screw Motor | 503618 | Not Available |
| 4 | Not Available | Fan 3 1/4" dia. – 5/16" Thread | NLA | Not Available |
| 5 | Not Available | Fan Housing Ass’y | NLA | Not Available |
| 6 | Not Available | screw Body | 250100 | Not Available |
| 7 | Not Available | Cord Hook | NLA | Not Available |
| 8 | Not Available | Back Panel Ass’y | NLA | Not Available |
| 9 | Not Available | Motor Cover | NLA | Not Available |
| 10 | Not Available | screw | 503819 | Not Available |
| 11 | Not Available | Paper Bag Type K 3 Pk | 320230 | Not Available |
| 11 | Not Available | paper Bag type K 3 pk | ROR-1445 | Not Available |
| 11 | Not Available | Paper Bag Type K Micro Fresh 3 Pk | NLA | Not Available |
| 12 | Not Available | Latch | NLA | Not Available |
| 13 | Not Available | spring | 320107 | Not Available |
| 14 | Not Available | Front Panel Ass’y Red | NLA | Not Available |
| 15 | Not Available | screw | 520180 | Not Available |
| 16 | Not Available | Power Cord 20' | 320036 | Not Available |
| 17 | Not Available | switch (2 speed) | NLA | Not Available |
| 18 | Not Available | switch Compartment Cover | NLA | Not Available |
| 19 | Not Available | Crevice Tool (7" Lg.) | NLA | Not Available |
| 20 | Not Available | Pivot Ass’y | NLA | Not Available |
| 21 | Not Available | Castor Ass’y | NLA | Not Available |
| 22 | Not Available | screw Body | 321819 | Not Available |
| 23 | Not Available | Triangle Floor Tool Ass’y | NLA | Not Available |
| 24 | Not Available | Wand Ass’y | NLA | Not Available |
| 25 | Not Available | Handle Ass’y | NLA | Not Available |
Report errors on this page HERE
