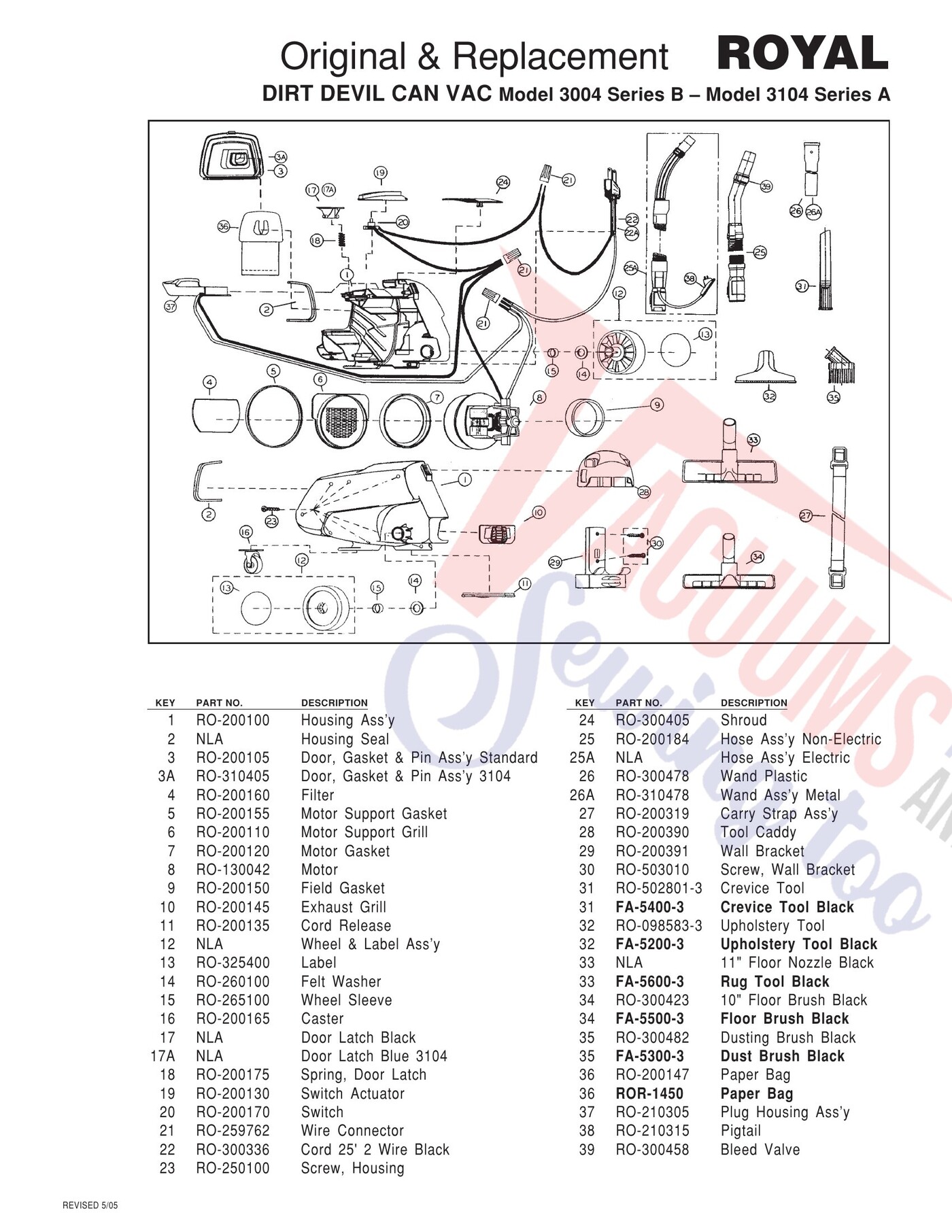

Schematic and parts book for Dirt Devil 3004, 3104 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Housing Ass’y | 200100 | Not Available |
| 2 | Not Available | Housing Seal | NLA | Not Available |
| 3 | Not Available | Door Gasket & Pin Ass’y Standard | 200105 | Not Available |
| 3A | Not Available | Door Gasket & Pin Ass’y 3104 | 310405 | Not Available |
| 4 | Not Available | Filter | 200160 | Not Available |
| 5 | Not Available | Motor Support Gasket | 200155 | Not Available |
| 6 | Not Available | Motor Support Grill | 200110 | Not Available |
| 7 | Not Available | Motor Gasket | 200120 | Not Available |
| 8 | Not Available | Motor | 130042 | Not Available |
| 9 | Not Available | Field Gasket | 200150 | Not Available |
| 10 | Not Available | Exhaust Grill | 200145 | Not Available |
| 11 | Not Available | Cord Release | 200135 | Not Available |
| 12 | Not Available | Wheel & Label Ass’y | NLA | Not Available |
| 13 | Not Available | Label | 325400 | Not Available |
| 14 | Not Available | Felt Washer | 260100 | Not Available |
| 15 | Not Available | Wheel Sleeve | 265100 | Not Available |
| 16 | Not Available | Caster | 200165 | Not Available |
| 17 | Not Available | Door Latch Black | NLA | Not Available |
| 17A | Not Available | Door Latch Blue 3104 | NLA | Not Available |
| 18 | Not Available | Spring Door Latch | 200175 | Not Available |
| 19 | Not Available | Switch Actuator | 200130 | Not Available |
| 20 | Not Available | Switch | 200170 | Not Available |
| 21 | Not Available | Wire Connector | 259762 | Not Available |
| 22 | Not Available | Cord 25' 2 Wire Black | 300336 | Not Available |
| 23 | Not Available | Screw Housing | 250100 | Not Available |
| 24 | Not Available | Shroud | 300405 | Not Available |
| 25 | Not Available | Hose Ass’y Non-Electric | 200184 | Not Available |
| 25A | Not Available | Hose Ass’y Electric | NLA | Not Available |
| 26 | Not Available | Wand Plastic | 300478 | Not Available |
| 26A | Not Available | Wand Ass’y Metal | 310478 | Not Available |
| 27 | Not Available | Carry Strap Ass’y | 200319 | Not Available |
| 28 | Not Available | Tool Caddy | 200390 | Not Available |
| 29 | Not Available | Wall Bracket | 200391 | Not Available |
| 30 | Not Available | Screw Wall Bracket | 503010 | Not Available |
| 31 | Not Available | Crevice Tool | 502801-3 | Not Available |
| 31 | Not Available | Crevice Tool Black | FA-5400-3 | Not Available |
| 32 | Not Available | Upholstery Tool | 098583-3 | Not Available |
| 32 | Not Available | Upholstery Tool Black | FA-5200-3 | Not Available |
| 33 | Not Available | 11" Floor Nozzle Black | NLA | Not Available |
| 33 | Not Available | Rug Tool Black | FA-5600-3 | Not Available |
| 34 | Not Available | 10" Floor Brush Black | 300423 | Not Available |
| 34 |  | Black Curved Metal Neck Floor Brush | FA-5500-3 | $16.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | Not Available | Dusting Brush Black | 300482 | Not Available |
| 35 | Not Available | Dust Brush Black | FA-5300-3 | Not Available |
| 36 | Not Available | Paper Bag | 200147 | Not Available |
| 36 |  | Paper Bag, DVC Royal/Dirt Devil F Can Vac 3Pk | ROR-1450 | $6.60Read more |
| 37 | Not Available | Plug Housing Ass’y | 210305 | Not Available |
| 38 | Not Available | Pigtail | 210315 | Not Available |
| 39 | Not Available | Bleed Valve | 300458 | Not Available |
