Schematic and parts book for Clarke ex40, 16ST, 18LX . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

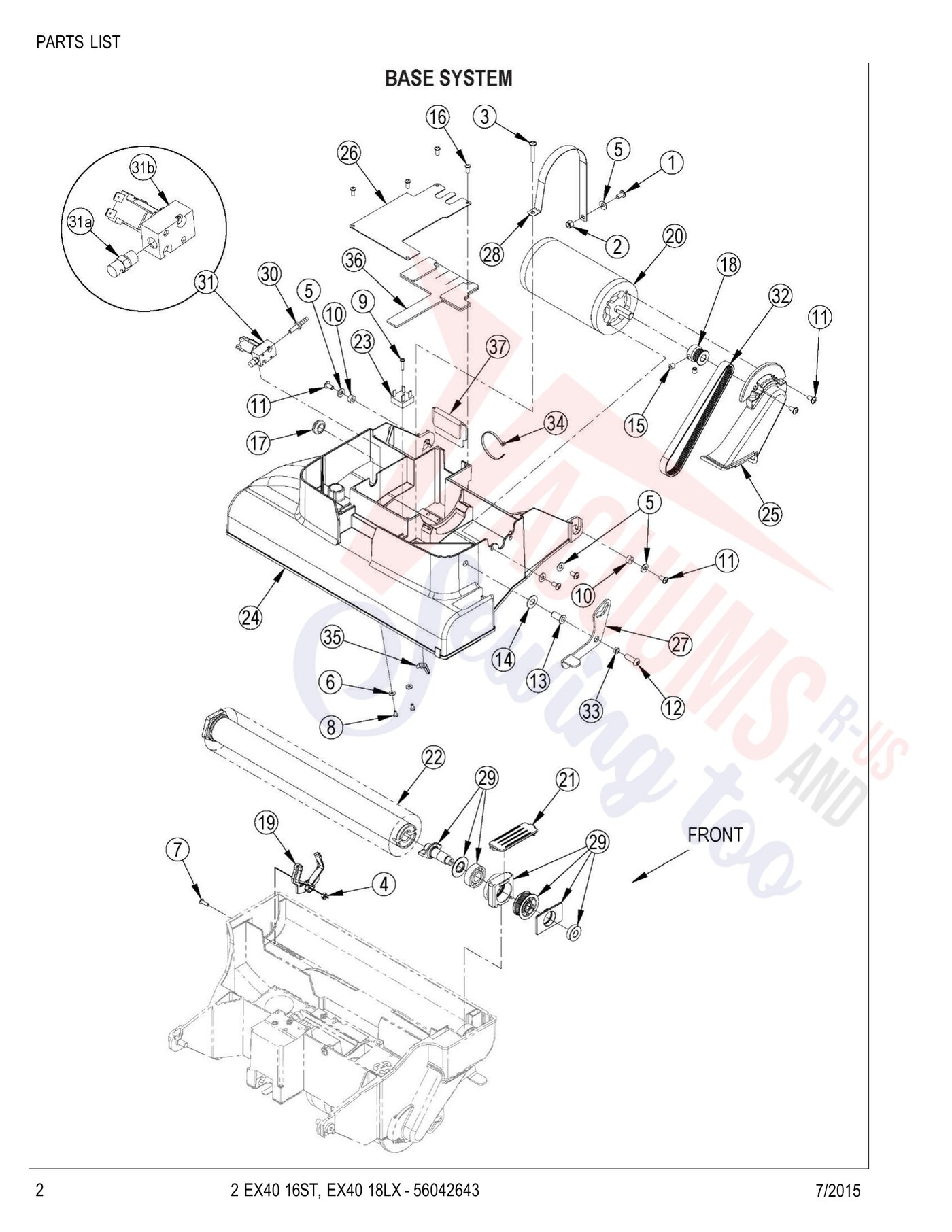

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Scr-Pan Phil 1/4-20 X .50 | 56002145 | Not Available |
| 2 | Not Available | Nut-Hex Nvl Loc Ss 1/4-20 | 56002491 | Not Available |
| 3 | Not Available | Scr-Pan Phil Ss 1/4-20 X 1.50 | 56002905 | Not Available |
| 4 | Not Available | Nut Hex Nvl Loc-Thin Ss 10-24 | 56002849 | Not Available |
| 5 | Not Available | Wsh-Flt Sae Ss 1/4 | 56002859 | Not Available |
| 6 | Not Available | Wsh-Flt Sae Ss #8 | 56002875 | Not Available |
| 7 | Not Available | Scr-Pan Phil Ss 10-24 X .62 | 56002896 | Not Available |
| 8 | Not Available | Scr-Pan Phil Ss 8-32 X .38 | 56003018 | Not Available |
| 9 | Not Available | Scr Pan Phil Plastite 8-10 X .75 | 56003545 | Not Available |
| 10 | Not Available | Bushina-.26x.50x .25 Lona | 56265782 | Not Available |
| 11 | Not Available | Scr-Pan Phil Loc Ss 1/4-20 X .50 | 56003897 | Not Available |
| 12 | Not Available | Scr-Botton Soc Ss 5/16-18x1.00 | 56003963 | Not Available |
| 13 | Not Available | Rivet-Nut 5/16-18 Steel Zinc P | 56003985 | Not Available |
| 14 | Not Available | Wsh Int Shprf 7/16 | 56009037 | Not Available |
| 15 | Not Available | Scr Soc Set Loc 5/16-18 X .31 | 56009131 | Not Available |
| 16 | Not Available | Scr Pan Phil Plastite 10-14 X .50 | 56009191 | Not Available |
| 17 | Not Available | Grommet | 56157376 | Not Available |
| 18 | Not Available | SheavePolv-V | 56262558 | Not Available |
| 19 | Not Available | Clip Brush Retainer | 56265043 | Not Available |
| 20 | No Image | Motor, Clarke EX40 Part Number: 56265075 for Clarke | 56265075 | $669.16Read more |
| 21 | Not Available | Cover Pullev | 56265091 | Not Available |
| 22 | Not Available | Brush Assembly | 56265044 | Not Available |
| 22 | Not Available | 1 Brush 16 | 56265046 | Not Available |
| 22 | Not Available | 1 Brush Assembly 18 | 56265099 | Not Available |
| 22 | Not Available | 1 Brush 18 | 56265065 | Not Available |
| 23 | No Image | RECTIFIER, ADVANCE 20 PLUS MACHINE Part Number: 56265103 for Advance | 56265103 | $64.66Read more |
| 24 | Not Available | Base Extractor 16 (16ST) | 56265620 | Not Available |
| 24 | Not Available | 1 Base-Extractor 18 (18LX) | 56265520 | Not Available |
| 25 | Not Available | Cover-Belt | 56265629 | Not Available |
| 26 | Not Available | Cover-Electrical | 56265657 | Not Available |
| 27 | Not Available | Lever-Brush Storaae | 56265663 | Not Available |
| 28 | Not Available | Strap-Motor | 56265676 | Not Available |
| 29 | Not Available | Bearina-Spindle Kit | 56265690 | Not Available |
| 30 | Not Available | Adapter-.25 Stem-.25 Barb | 56265692 | Not Available |
| 31 | No Image | Valve Nozzle Assembly EX40 16ST Clarke Part Number: 56265746 for Clarke | 56265746 | $226.86Read more |
| 32 | Not Available | Belt Auto Tension | 56315321 | Not Available |
| 33 | Not Available | Bushina .32x.44x.15 | 56381818 | Not Available |
| 34 | Not Available | Tie Cable | 56478246 | Not Available |
| 35 | Not Available | Nut Wina Ss 1/4-20 | 56009111 | Not Available |
| 36 | Not Available | Gasket-Base-Elec Compartment | 56265790 | Not Available |
| 37 | Not Available | Gasket-Base-Rear | 56265788 | Not Available |
| # | Part image | Description | SKU | Price |

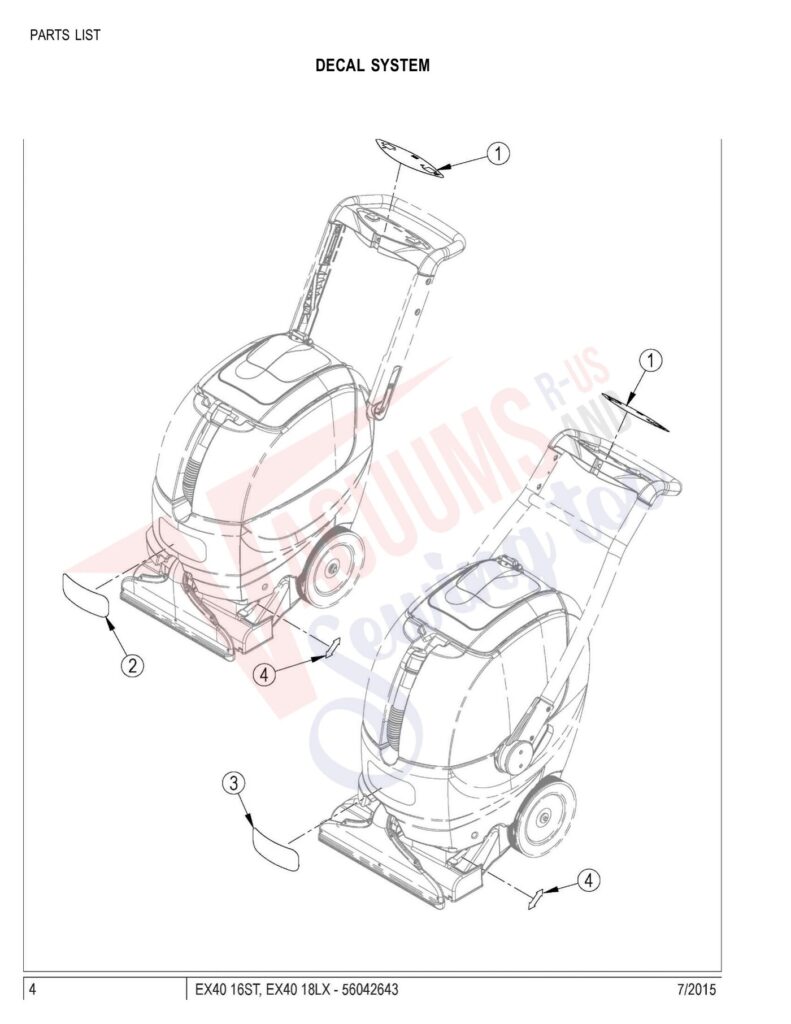

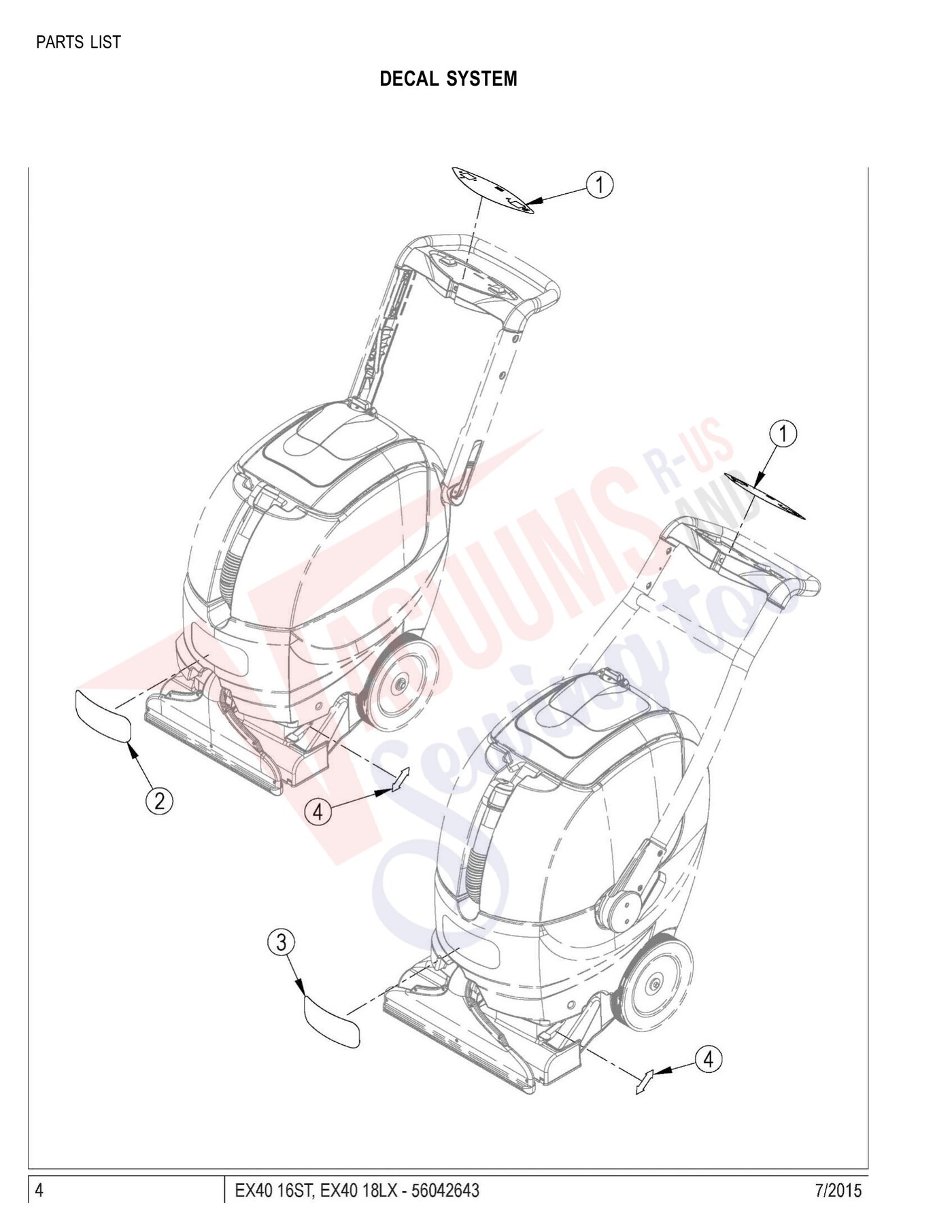

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Decal-Panel-ST (16ST 18LX) | 56265727 | Not Available |
| 2 | Not Available | Decal-Clarke EX40 16ST (16ST) | 56265730 | Not Available |
| 3 | Not Available | Decal-Clarke EX40 18LX (18LX) | 56265731 | Not Available |
| 4 | Not Available | Decal-Storage Lock (16ST 18LX) | 56265750 | Not Available |

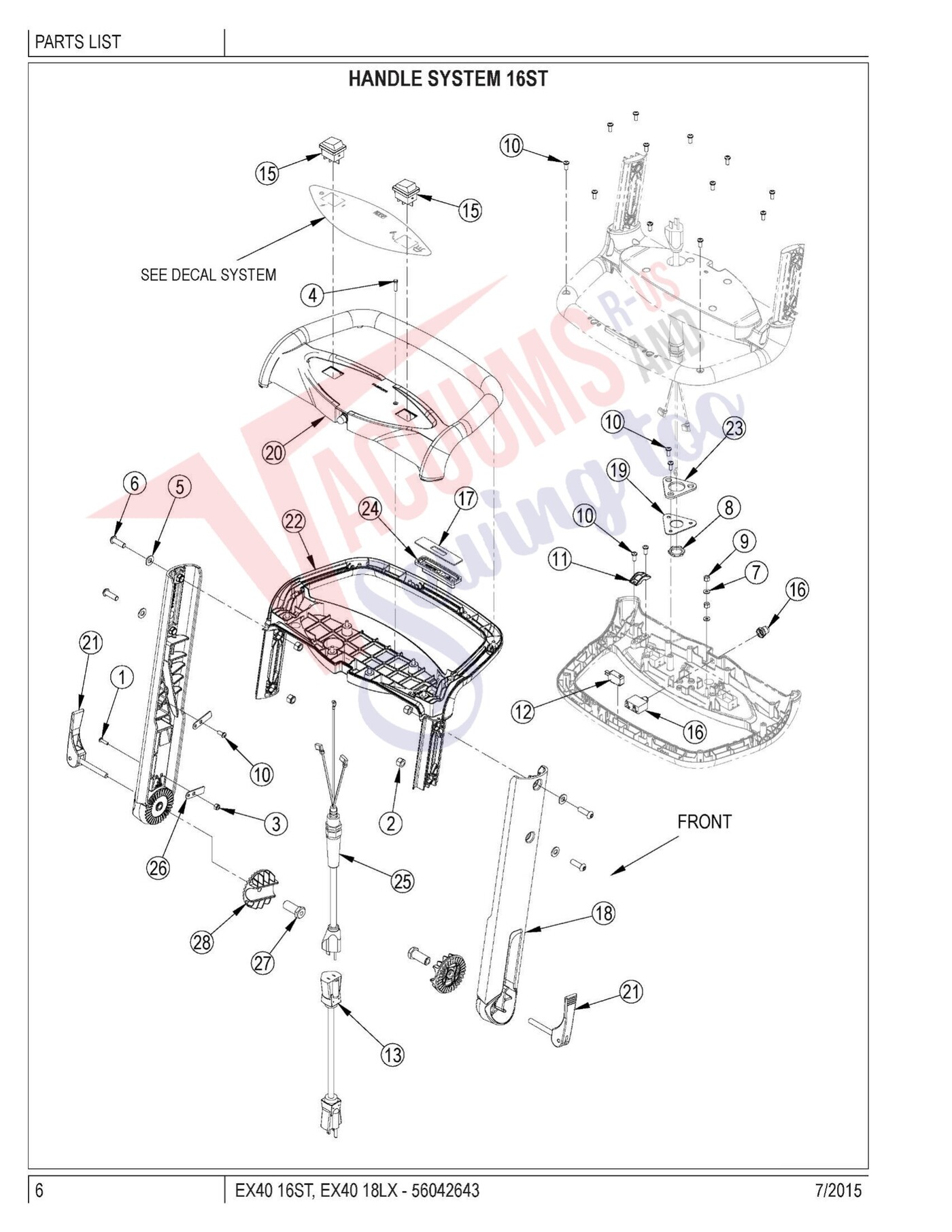

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Scr-Pan Phil 8-32 X .62 | 56002146 | Not Available |
| 2 | Not Available | Nut Hex Nyl Loc 5/16-18 | 56002701 | Not Available |
| 3 | Not Available | Nut Hex Nyl Loc 8-32 | 56002808 | Not Available |
| 4 | Not Available | Scr- Hex Ss 8-32 X .75 | 56002874 | Not Available |
| 5 | Not Available | Wsh-Flt Sae Ss 5/16 | 56002938 | Not Available |
| 6 | Not Available | Scr-Botton Soc Ss 5/16-18x1.00 | 56003963 | Not Available |
| 7 | Not Available | Wsh Int Shprt #8 | 56009010 | Not Available |
| 8 | Not Available | Nut Conduit Lock 1/2-14 | 56009095 | Not Available |
| 9 | Not Available | Nut-Hex Machine 8-32 | 56009148 | Not Available |
| 10 | Not Available | Scr Pan Phil Plastite 10-14 X .50 | 5600919117 | Not Available |
| 11 | Not Available | Clamp Power Cord | 56264119 | Not Available |
| 12 | Not Available | Switch Spdt Snapaction S4 | 56265098 | Not Available |
| 13 | Not Available | Cord Set-14/3x50' Yel | 56265112 | Not Available |
| 15 | No Image | Switch, Rocker EX40 16ST Clarke Part Number: 56265549 for Clarke | 56265549 | $26.22Read more |
| 16 | Not Available | Circuit Breaker-W/Boot-5a CB1 | 56265550 | Not Available |
| 17 | Not Available | Plate-Switch Retainer | 56265564 | Not Available |
| 18 | Not Available | Handle Tube-Ratchet | 56265648 | Not Available |
| 19 | Not Available | Plate-Cord Mounting | 56265659 | Not Available |
| 20 | No Image | Handle, Top Clarke EX40 Part Number: 56265666 for Clarke | 56265666 | $66.97Read more |
| 21 | Not Available | Lever-Locking Assembly | 56265682 | Not Available |
| 22 | No Image | Handle, Bottom Clarke EX40 Part Number: 56265693 for Clarke | 56265693 | $63.47Read more |
| 23 | Not Available | Gasket-Cord Mount | 56265698 | Not Available |
| 24 | Not Available | Button-Handle | 56265715 | Not Available |
| 25 | Not Available | Cord-Pigtail | 56265718 | Not Available |
| 26 | Not Available | Retainer-Harness | 56265748 | Not Available |
| 27 | Not Available | Bushing-Cam Adjustment | 56265752 | Not Available |
| 28 | Not Available | Ratchet Handle Adjuster | 9097228000 | Not Available |

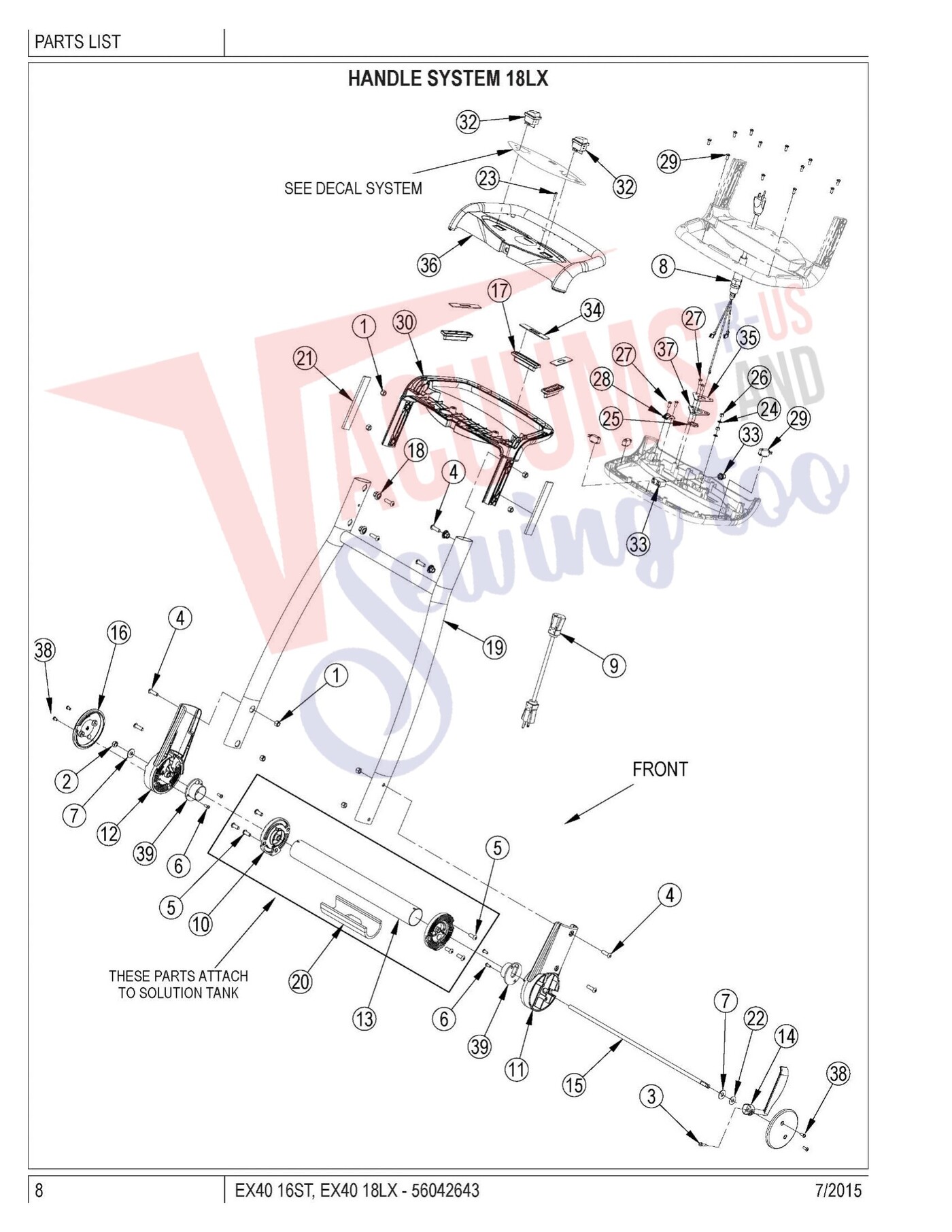

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nut Hex Nyl Loc 5/16-18 | 56002701 | Not Available |
| 2 | Not Available | Nut Hex Nyl Loc-Thin Ss 3/8-16 | 56002852 | Not Available |
| 3 | Not Available | Scr-Soc Shd ..25 X .50 X 10-24 | 56003624 | Not Available |
| 4 | Not Available | Scr-Botton Soc Ss 5/16-18x1.00 | 56003963 | Not Available |
| 5 | Not Available | Scr-Button Soc Ss 5/16-18x.75 | 56003994 | Not Available |
| 6 | Not Available | Scr Pan Phil Plastite 10-14 X .50 | 56009191 | Not Available |
| 7 | Not Available | Washer | 56385358 | Not Available |
| 8 | Not Available | Cord-Pigtail | 56265718 | Not Available |
| 9 | Not Available | Cord Set-14/3x50' Yel | 56265112 | Not Available |
| 10 | Not Available | Mount-Ratchet | 56265525 | Not Available |
| 11 | Not Available | Handle-Socket-W/Hole | 56265526 | Not Available |
| 12 | Not Available | Handle-Socket-W/O Hole | 56265527 | Not Available |
| 13 | Not Available | Sleeve-Steel-2.0 Dia | 56265528 | Not Available |
| 14 | Not Available | Lever-Cam | 56265529 | Not Available |
| 15 | Not Available | Shaft-Cam Lock | 56265530 | Not Available |
| 16 | Not Available | Cap-Ratchet | 56265533 | Not Available |
| 17 | Not Available | Button-Handle | 56265715 | Not Available |
| 18 | Not Available | Bushing-Handle | 56265658 | Not Available |
| 19 | Not Available | Handle Weldment | 56265688 | Not Available |
| 20 | Not Available | Gasket-Handle Tube | 56265744 | Not Available |
| 21 | Not Available | Gasket-Handle-.25 X 1.0 X 6.0 | 56265768 | Not Available |
| 22 | Not Available | Washer 3/8 Pl. Nylon | 56632681 | Not Available |
| 23 | Not Available | Scr- Hex Ss 8-32 X .75 | 56002874 | Not Available |
| 24 | Not Available | Wsh Int Shprt #8 | 56009010 | Not Available |
| 25 | Not Available | Nut Conduit Lock 1/2-14 | 56009095 | Not Available |
| 26 | Not Available | Nut-Hex Machine 8-32 | 56009148 | Not Available |
| 27 | Not Available | Scr Pan Phil Plastite 10-14 X .50 | 5600919116 | Not Available |
| 28 | Not Available | Clamp Power Cord | 56264119 | Not Available |
| 29 | Not Available | Switch Spdt Snapaction S4 / S5 / S6 | 56265098 | Not Available |
| 30 | Not Available | Handle-Bottom Cover | 56265543 | Not Available |
| 32 | No Image | Switch, Rocker EX40 16ST Clarke Part Number: 56265549 for Clarke | 56265549 | $26.22Read more |
| 33 | Not Available | Circuit Breaker-W/Boot-5a CB1 | 56265550 | Not Available |
| 34 | Not Available | Plate-Switch Retainer | 56265564 | Not Available |
| 35 | Not Available | Plate-Cord Mounting | 56265659 | Not Available |
| 36 | No Image | Handle, Top Clarke EX40 Part Number: 56265666 for Clarke | 56265666 | $66.97Read more |
| 37 | Not Available | Gasket-Cord Mount | 56265698 | Not Available |
| 38 | Not Available | Scr Pn Phil Plastite 10-14x.38 | 56009247 | Not Available |
| 39 | Not Available | Guide Ring Assy | 56265786 | Not Available |

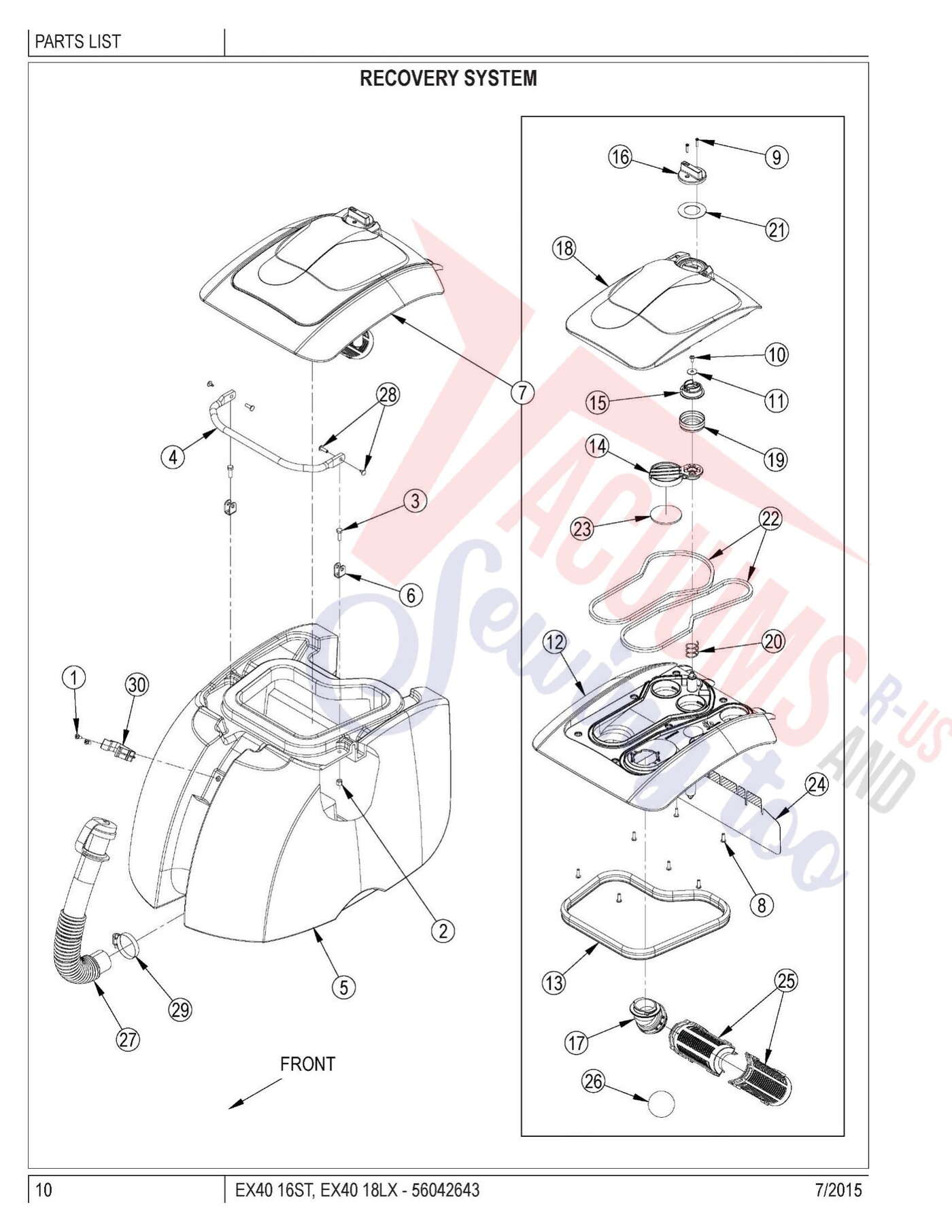

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Scr-Pan Phil Ss 10-24 X .50 | 56002900 | Not Available |
| 2 | Not Available | Nut Hex Nyl Loc Ss M6-1 | 56003426 | Not Available |
| 3 | Not Available | Scr-Hex Thd To Hd Ss M6-1 X 20mm | 56003454 | Not Available |
| 4 | Not Available | Handle-Tank | 56265621 | Not Available |
| 5 | Not Available | Recovery Tank-16-Blue (16ST) | 56265702 | Not Available |
| 5 | Not Available | 1 Recovery Tank-18-Blue (18LX) | 56265699 | Not Available |
| 6 | Not Available | Bracket-Handle Retainer | 56265630 | Not Available |
| 7 | Not Available | Recovery Lid Assembly | 1 | Not Available |
| 8 | Not Available | Scr-Pan Phil Ss 10-24 X .62 | 56002896 | Not Available |
| 9 | Not Available | Scr Pan Phil Plastite 6-18 X .62 | 56003197 | Not Available |
| 10 | Not Available | Scr-Pan Phil Loc Ss 10-24 X .38 | 56003913 | Not Available |
| 11 | Not Available | Wsh-Flt Ss .204 X .750 X .050 | 56009349 | Not Available |
| 12 | Not Available | Lid-Recovery Tank | 56265589 | Not Available |
| 13 | Not Available | Gasket-Recovery Tank | 56265604 | Not Available |
| 14 | Not Available | Paddle-Valve | 56265651 | Not Available |
| 15 | Not Available | Actuator-Valve | 56265652 | Not Available |
| 16 | Not Available | Knob-Valve | 56265653 | Not Available |
| 17 | Not Available | Adapter-Ball Float | 56265654 | Not Available |
| 18 | Not Available | Cover-Recovery Lid | 56265655 | Not Available |
| 19 | Not Available | Seal-Diverter Valve | 56265681 | Not Available |
| 20 | Not Available | Spring-Compression-Ss | 56265709 | Not Available |
| 21 | Not Available | Seal-Selector Knob | 56265710 | Not Available |
| 22 | Not Available | Gasket-Lid-Poron-.25x.25 | 56265737 | Not Available |
| 23 | Not Available | Gasket-Paddle-Poron-. 125x2.38 | 56265738 | Not Available |
| 24 | Not Available | Barrier-Flexible-Lid | 56265783 | Not Available |
| 25 | Not Available | Cage Float | 56324497 | Not Available |
| 26 | Not Available | Ball- Float | 56391690 | Not Available |
| 27 | Not Available | Hose Drain 1.5 Inch | 56265685 | Not Available |
| 28 | Not Available | Binding Post-Quick Install | 56265747 | Not Available |
| 29 | Not Available | Clamp- Hose Sae #24 | 56329145 | Not Available |
| 30 | Not Available | Clamp Plastic | 56331154 | Not Available |

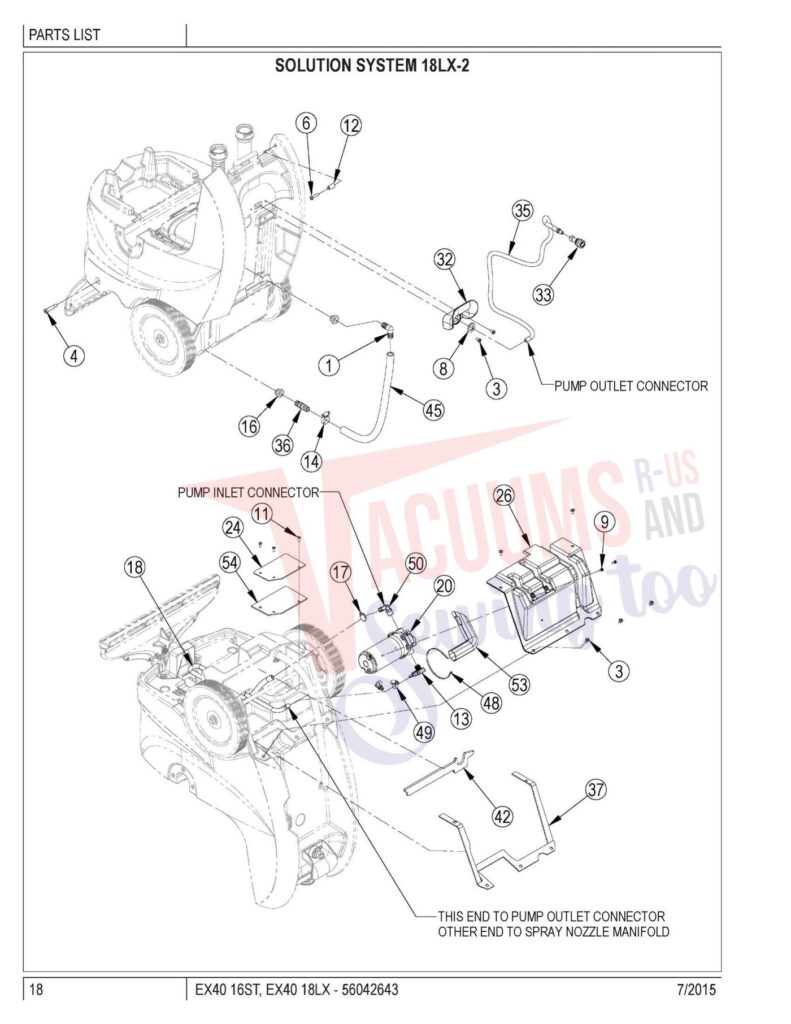

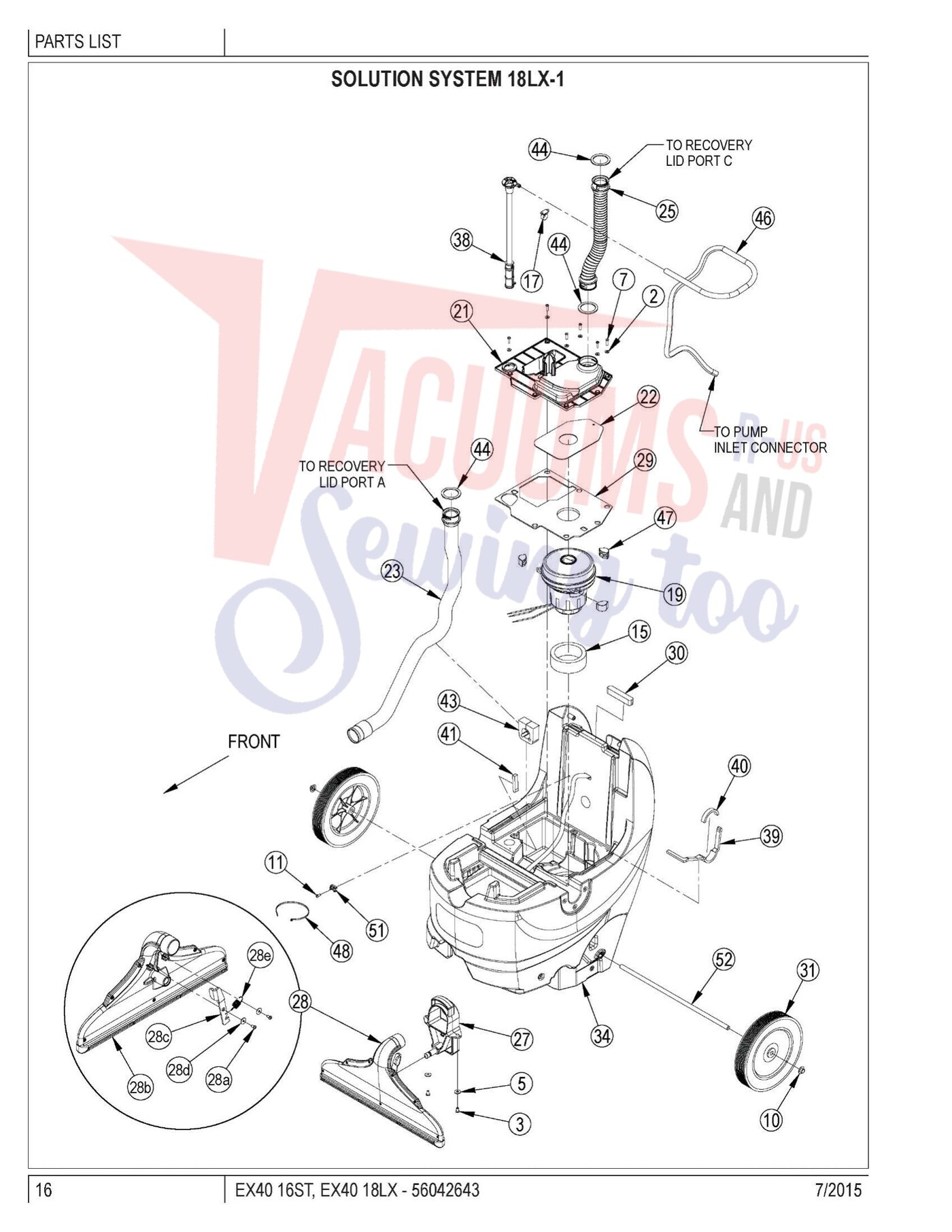

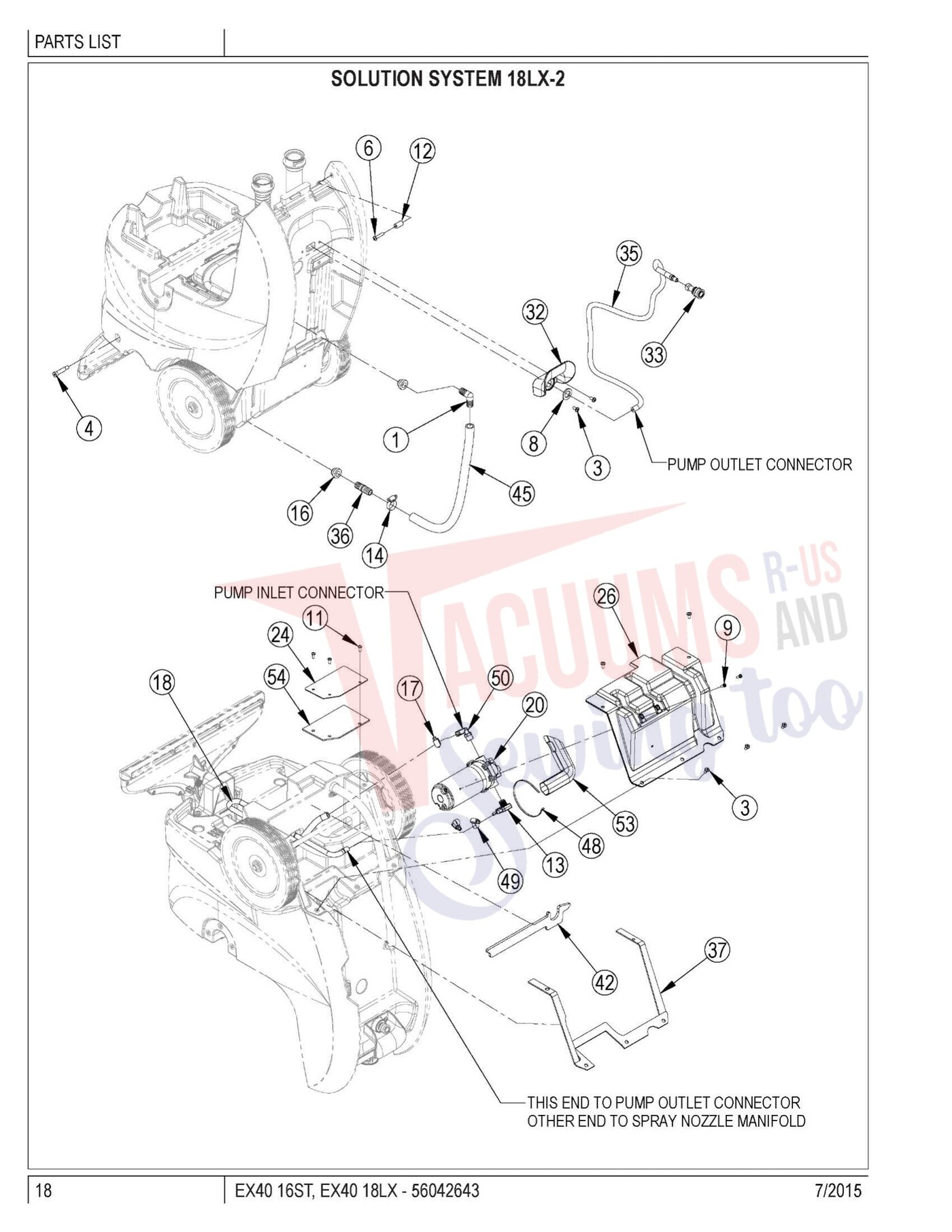

| # | Part image | Description | SKU | Price |

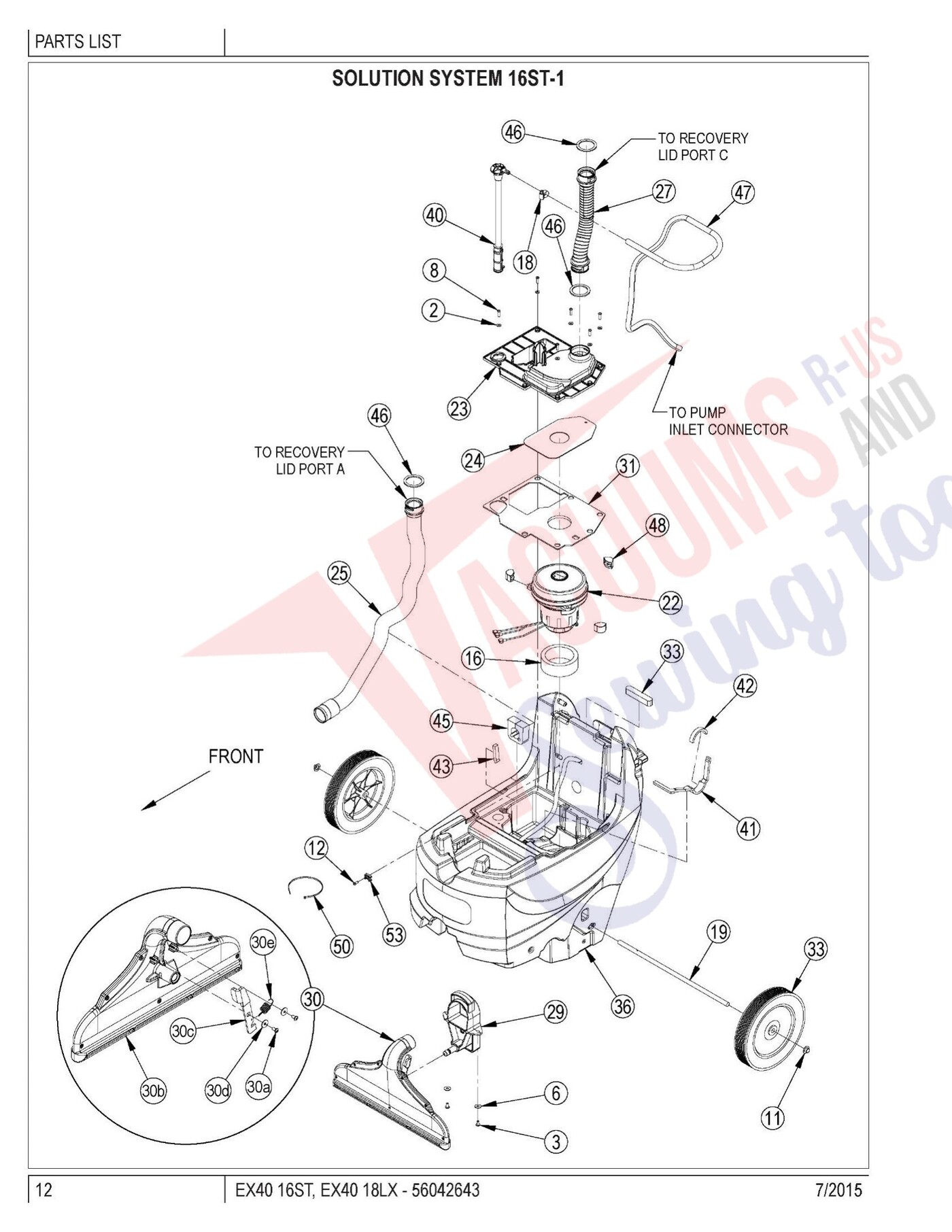

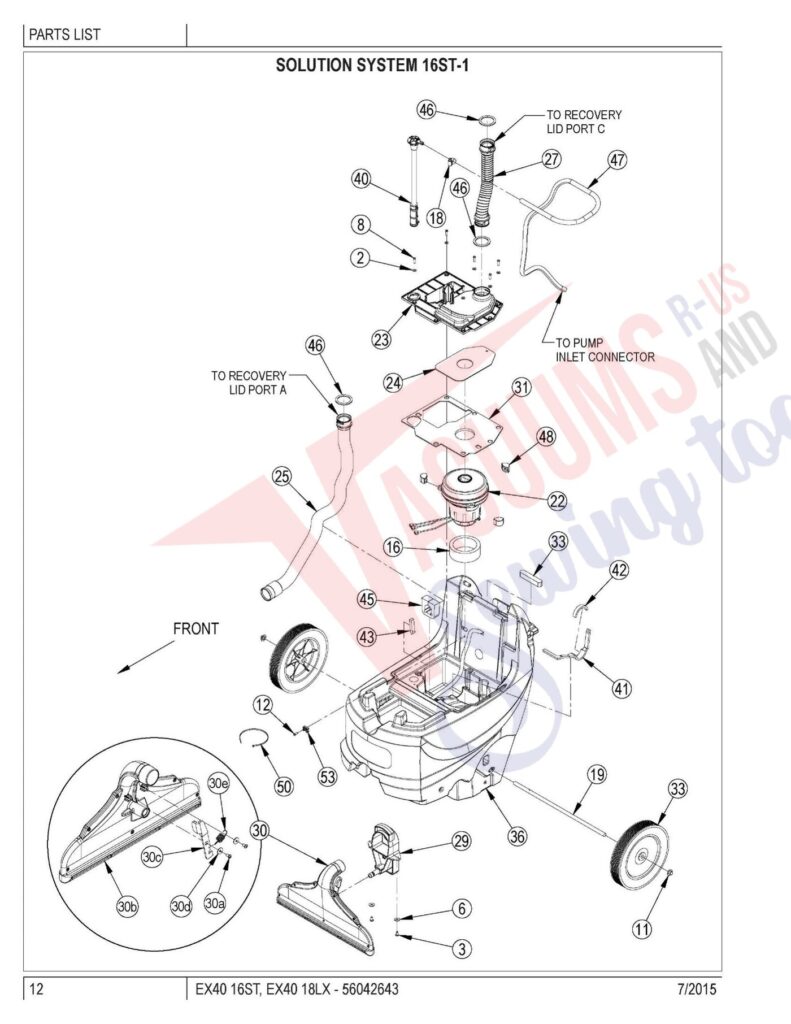

| 1 | Not Available | Elbow-5/8 Hose | 832803 | Not Available |
| 2 | Not Available | Wsh Flt Sae #10 | 56001954 | Not Available |
| 3 | Not Available | Scr-Pan Phil Loc Ss 1/4-20 X .50 | 56003897 | Not Available |
| 4 | Not Available | Scr-Soc Shd .38 X 1.25 X 5/16-18 | 56002624 | Not Available |
| 5 | Not Available | Scr-Pan Phil Loc Ss 10-24 X .38 | 56003913 | Not Available |
| 6 | Not Available | Wsh Flt Std Ss 1/4 | 56002914 | Not Available |
| 7 | Not Available | Scr-Pan Phil Ss 1/4-20 X 1.25 | 56002958 | Not Available |
| 8 | Not Available | Scr Pan Phil Plastite 10-14 X .75 | 56003091 | Not Available |
| 9 | Not Available | Wsh Flt .754 X 1.250 X .120 | 56009022 | Not Available |
| 10 | Not Available | Scr Pan Phil Thd Form 10-24 X .62 | 56009042 | Not Available |
| 11 | Not Available | Nut Push Cap 1/2 | 56009097 | Not Available |
| 12 | Not Available | Scr Pan Phil Plastite 10-14 X .50 | 56009191 | Not Available |
| 13 | Not Available | Spacer Phenolic | 56052237 | Not Available |
| 14 | Not Available | Clamp-P | 56056903 | Not Available |
| 15 | Not Available | Double Barb Assy | 56109503 | Not Available |
| 16 | Not Available | Seal-Inlet | 56116110 | Not Available |
| 17 | Not Available | Grommet-.59x.78x.62 | 56116721 | Not Available |
| 18 | Not Available | Clamp- Hose Sae #6 | 56219932 | Not Available |
| 19 | Not Available | Axle | 56265057 | Not Available |
| 20 | Not Available | Hose .25x21.0 E00160 | 56265373 | Not Available |
| 21 |  | Motor, Main Clarke EX40 16ST Part Number: 56265552 for Clarke | 56265552 | $430.08Read more |
| 21 | Not Available | 1 Carbon Brush Kit-(Set Of 2) for 56265552 | 56265683 | Not Available |
| 22 | No Image | Pump, 115Vac-120PSI Ex40,16St,18LX,ES300,ES400 Part Number: 56265554 for Advance | 56265554 | $487.04Read more |
| 23 | Not Available | Cover-Vac Motor | 56265582 | Not Available |
| 24 | Not Available | Plate-Vac Motor | 56265583 | Not Available |
| 25 | Not Available | Vac Hose Assembly | 56265586 | Not Available |
| 26 | Not Available | Cover-Vac Inlet | 56265617 | Not Available |
| 27 | Not Available | Hose Assembly | 56265625 | Not Available |
| 28 | Not Available | Cover-Back | 56265631 | Not Available |
| 29 | Not Available | Bracket-Shoe | 56265646 | Not Available |
| 30 | Not Available | Shoe/Latch Assembly-16 | 56265650 | Not Available |
| 31 | Not Available | Gasket-Vac Motor Cover | 56265665 | Not Available |
| 32 | Not Available | Gasket-Lid Support | 56265694 | Not Available |
| 33 | Not Available | Wheel-10.00x1.75x.50 | 56265697 | Not Available |
| 34 | Not Available | Hook-Hose Storage | 56265704 | Not Available |
| 35 | Not Available | Socket-Quick Disconnect-1/8 Npt | 56265705 | Not Available |
| 36 | Not Available | Tank-Solution-16-Blue | 56265706 | Not Available |
| 37 | Not Available | Hose Assembly-Solution | 56265708 | Not Available |
| 38 | Not Available | Coupler-Barb-5/8 | 56265712 | Not Available |
| 39 | Not Available | Gasket-Back Panel | 56265722 | Not Available |
| 40 | Not Available | Solution Filter Assembly-16 | 56265725 | Not Available |
| 41 | Not Available | Gasket-Vac Exhaust Chamber | 56265732 | Not Available |
| 42 | Not Available | Gasket-Vac Exhaust Port | 56265733 | Not Available |
| 43 | Not Available | Gasket-Vac Chamber-Side | 56265734 | Not Available |
| 44 | Not Available | Gasket-Backpanel-Bottom | 56265735 | Not Available |
| 45 | Not Available | Gasket-Sound-Vac Hose | 56265739 | Not Available |
| 46 | Not Available | Gasket-Ring-Hose Cuff | 56265743 | Not Available |
| 47 | Not Available | Hose-Spiral-.500 X 52.00 | 56265766 | Not Available |
| 48 | Not Available | Mount Vibration | 56315141 | Not Available |
| 49 | Not Available | Hose-Pvc-5/8x19.00 | 56383997 | Not Available |
| 50 | Not Available | Tie Cable | 56478523 | Not Available |
| 51 | Not Available | Clamp- Hose Sae #4 | 56756364 | Not Available |
| 52 | Not Available | Barb 90 Elbow 1/2 X 3/8npt | 56109566 | Not Available |
| 53 | Not Available | Flat Tie Holder | 9096595000 | Not Available |
| 54 | Not Available | Clamp- Hose Sae #10 | 56112771 | Not Available |
| 55 | Not Available | Boot-Pump | 56265787 | Not Available |
| 56 | Not Available | Gasket-Vac-Inlet Cover | 56265789 | Not Available |
| 56 | Not Available | - EX40 16ST EX40 18LX 13 | 56042643 | Not Available |

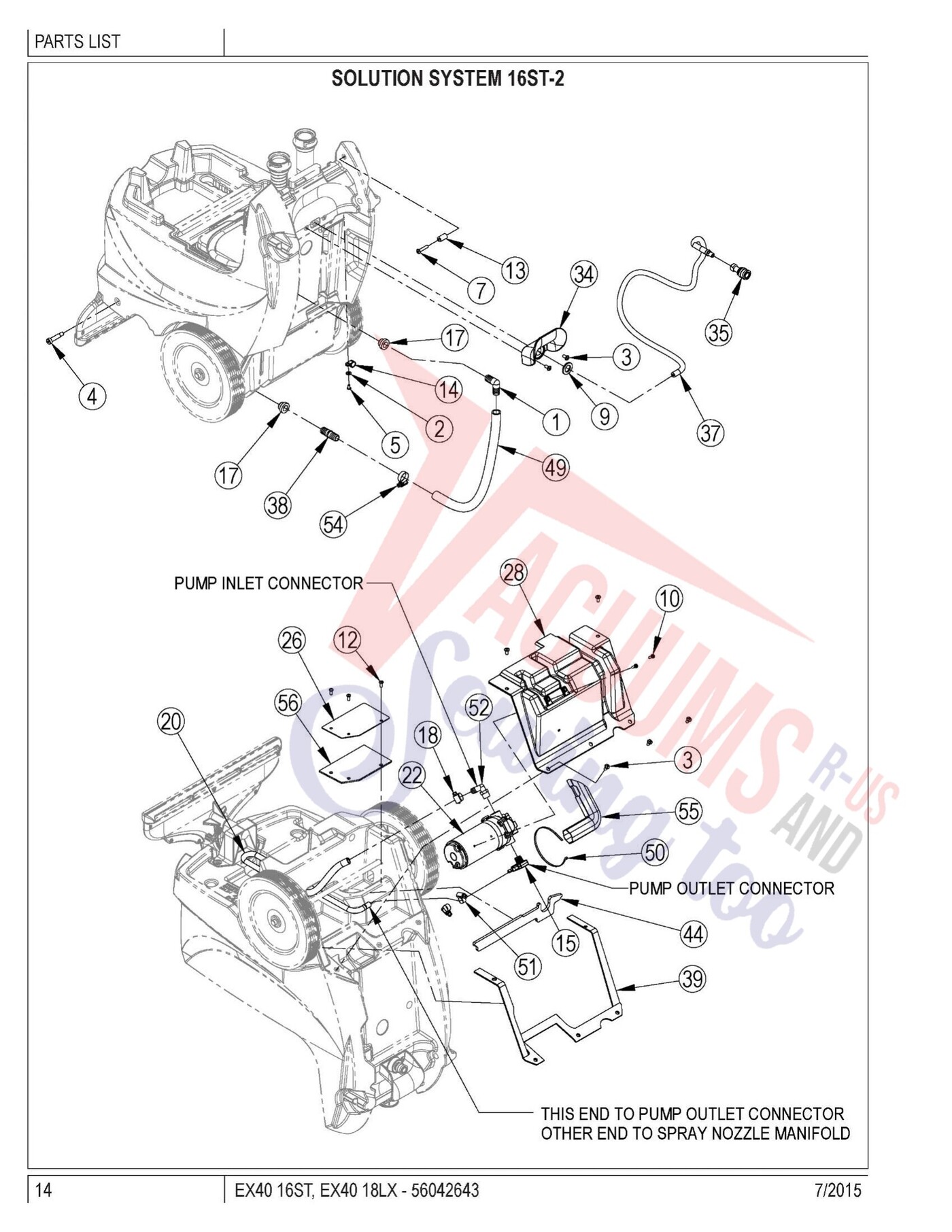

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Elbow-5/8 Hose | 832803 | Not Available |
| 2 | Not Available | Wsh Flt Sae #10 | 56001954 | Not Available |
| 3 | Not Available | Scr-Pan Phil Loc Ss 1/4-20 X .50 | 56003897 | Not Available |
| 4 | Not Available | Scr-Soc Shd .38 X 1.25 X 5/16-18 | 56002624 | Not Available |
| 5 | Not Available | Scr-Pan Phil Loc Ss 10-24 X .38 | 56003913 | Not Available |
| 6 | Not Available | Wsh Flt Std Ss 1/4 | 56002914 | Not Available |
| 7 | Not Available | Scr-Pan Phil Ss 1/4-20 X 1.25 | 56002958 | Not Available |
| 8 | Not Available | Scr Pan Phil Plastite 10-14 X .75 | 56003091 | Not Available |
| 9 | Not Available | Wsh Flt .754 X 1.250 X .120 | 56009022 | Not Available |
| 10 | Not Available | Scr Pan Phil Thd Form 10-24 X .62 | 56009042 | Not Available |
| 11 | Not Available | Nut Push Cap 1/2 | 56009097 | Not Available |
| 12 | Not Available | Scr Pan Phil Plastite 10-14 X .50 | 56009191 | Not Available |
| 13 | Not Available | Spacer Phenolic | 56052237 | Not Available |
| 14 | Not Available | Clamp-P | 56056903 | Not Available |
| 15 | Not Available | Double Barb Assy | 56109503 | Not Available |
| 16 | Not Available | Seal-Inlet | 56116110 | Not Available |
| 17 | Not Available | Grommet-.59x.78x.62 | 56116721 | Not Available |
| 18 | Not Available | Clamp- Hose Sae #6 | 56219932 | Not Available |
| 19 | Not Available | Axle | 56265057 | Not Available |
| 20 | Not Available | Hose .25x21.0 E00160 | 56265373 | Not Available |
| 21 | | Motor, Main Clarke EX40 16ST Part Number: 56265552 for Clarke | 56265552 | $430.08Read more |
| 21 | Not Available | 1 Carbon Brush Kit-(Set Of 2) for 56265552 | 56265683 | Not Available |
| 22 | No Image | Pump, 115Vac-120PSI Ex40,16St,18LX,ES300,ES400 Part Number: 56265554 for Advance | 56265554 | $487.04Read more |
| 23 | Not Available | Cover-Vac Motor | 56265582 | Not Available |
| 24 | Not Available | Plate-Vac Motor | 56265583 | Not Available |
| 25 | Not Available | Vac Hose Assembly | 56265586 | Not Available |
| 26 | Not Available | Cover-Vac Inlet | 56265617 | Not Available |
| 27 | Not Available | Hose Assembly | 56265625 | Not Available |
| 28 | Not Available | Cover-Back | 56265631 | Not Available |
| 29 | Not Available | Bracket-Shoe | 56265646 | Not Available |
| 30 | Not Available | Shoe/Latch Assembly-16 | 56265650 | Not Available |
| 31 | Not Available | Gasket-Vac Motor Cover | 56265665 | Not Available |
| 32 | Not Available | Gasket-Lid Support | 56265694 | Not Available |
| 33 | Not Available | Wheel-10.00x1.75x.50 | 56265697 | Not Available |
| 34 | Not Available | Hook-Hose Storage | 56265704 | Not Available |
| 35 | Not Available | Socket-Quick Disconnect-1/8 Npt | 56265705 | Not Available |
| 36 | Not Available | Tank-Solution-16-Blue | 56265706 | Not Available |
| 37 | Not Available | Hose Assembly-Solution | 56265708 | Not Available |
| 38 | Not Available | Coupler-Barb-5/8 | 56265712 | Not Available |
| 39 | Not Available | Gasket-Back Panel | 56265722 | Not Available |
| 40 | Not Available | Solution Filter Assembly-16 | 56265725 | Not Available |
| 41 | Not Available | Gasket-Vac Exhaust Chamber | 56265732 | Not Available |
| 42 | Not Available | Gasket-Vac Exhaust Port | 56265733 | Not Available |
| 43 | Not Available | Gasket-Vac Chamber-Side | 56265734 | Not Available |
| 44 | Not Available | Gasket-Backpanel-Bottom | 56265735 | Not Available |
| 45 | Not Available | Gasket-Sound-Vac Hose | 56265739 | Not Available |
| 46 | Not Available | Gasket-Ring-Hose Cuff | 56265743 | Not Available |
| 47 | Not Available | Hose-Spiral-.500 X 52.00 | 56265766 | Not Available |
| 48 | Not Available | Mount Vibration | 56315141 | Not Available |
| 49 | Not Available | Hose-Pvc-5/8x19.00 | 56383997 | Not Available |
| 50 | Not Available | Tie Cable | 56478523 | Not Available |
| 51 | Not Available | Clamp- Hose Sae #4 | 56756364 | Not Available |
| 52 | Not Available | Barb 90 Elbow 1/2 X 3/8npt | 56109566 | Not Available |
| 53 | Not Available | Flat Tie Holder | 9096595000 | Not Available |
| 54 | Not Available | Clamp- Hose Sae #10 | 56112771 | Not Available |
| 55 | Not Available | Boot-Pump | 56265787 | Not Available |
| 56 | Not Available | Gasket-Vac-Inlet Cover | 56265789 | Not Available |
| 56 | Not Available | - EX40 16ST EX40 18LX 15 | 56042643 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Elbow-5/8 Hose | 832803 | Not Available |
| 2 | Not Available | Wsh Flt Sae #10 | 56001954 | Not Available |
| 3 | Not Available | Scr-Pan Phil Loc Ss 1/4-20 X .50 | 56003897 | Not Available |
| 4 | Not Available | Scr-Soc Shd .38 X 1.25 X 5/16-18 | 56002624 | Not Available |
| 5 | Not Available | Wsh Flt Std Ss 1/4 | 56002914 | Not Available |
| 6 | Not Available | Scr-Pan Phil Ss 1/4-20 X 1.25 | 56002958 | Not Available |
| 7 | Not Available | Scr Pan Phil Plastite 10-14 X .75 | 56003091 | Not Available |
| 8 | Not Available | Wsh Flt .754 X 1.250 X .120 | 56009022 | Not Available |
| 9 | Not Available | Scr Pan Phil Thd Form 10-24 X .62 | 56009042 | Not Available |
| 10 | Not Available | Nut Push Cap 1/2 | 56009097 | Not Available |
| 11 | Not Available | Scr Pan Phil Plastite 10-14 X .50 | 56009191 | Not Available |
| 12 | Not Available | Spacer Phenolic | 56052237 | Not Available |
| 13 | Not Available | Double Barb Assy | 56109503 | Not Available |
| 14 | Not Available | Clamp- Hose Sae #10 | 56112771 | Not Available |
| 15 | Not Available | Seal-Inlet | 56116110 | Not Available |
| 16 | Not Available | Grommet-.59x.78x.62 | 56116721 | Not Available |
| 17 | Not Available | Clamp- Hose Sae #6 | 56219932 | Not Available |
| 18 | Not Available | Hose .25x21.0 E00160 | 56265373 | Not Available |
| 19 | | Motor, Main Clarke EX40 16ST Part Number: 56265552 for Clarke | 56265552 | $430.08Read more |
| 19 | Not Available | 1 Carbon Brush Kit-(Set Of 2) for 56265552 | 56265683 | Not Available |
| 20 | No Image | Pump, 115Vac-120PSI Ex40,16St,18LX,ES300,ES400 Part Number: 56265554 for Advance | 56265554 | $487.04Read more |
| 21 | Not Available | Cover-Vac Motor | 56265582 | Not Available |
| 22 | Not Available | Plate-Vac Motor | 56265583 | Not Available |
| 23 | Not Available | Vac Hose Assembly | 56265586 | Not Available |
| 24 | Not Available | Cover-Vac Inlet | 56265617 | Not Available |
| 25 | Not Available | Hose Assembly | 56265625 | Not Available |
| 26 | Not Available | Cover-Back | 56265631 | Not Available |
| 27 | Not Available | Bracket-Shoe | 56265646 | Not Available |
| 28 | Not Available | Shoe/Latch Assembly-18 | 56265662 | Not Available |
| 29 | Not Available | Gasket-Vac Motor Cover | 56265665 | Not Available |
| 30 | Not Available | Gasket-Lid Support | 56265694 | Not Available |
| 31 | Not Available | Wheel-10.00x1.75x.50 | 56265697 | Not Available |
| 32 | Not Available | Hook-Hose Storaae | 56265704 | Not Available |
| 33 | Not Available | Socket-Quick Disconnect-1/8 Npt | 56265705 | Not Available |
| 34 | Not Available | Tank-Solution-18-Blue | 56265707 | Not Available |
| 35 | Not Available | Hose Assembly-Solution | 56265708 | Not Available |
| 36 | Not Available | Coupler-Barb-5/8 | 56265712 | Not Available |
| 37 | Not Available | Gasket-Back Panel | 56265722 | Not Available |
| 38 | Not Available | Solution Filter Assembly-18 | 56265726 | Not Available |
| 39 | Not Available | Gasket-Vac Exhaust Chamber | 56265732 | Not Available |
| 40 | Not Available | Gasket-Vac Exhaust Port | 56265733 | Not Available |
| 41 | Not Available | Gasket-Vac Chamber-Side | 56265734 | Not Available |
| 42 | Not Available | Gasket-Backpanel-Bottom | 56265735 | Not Available |
| 43 | Not Available | Gasket-Sound-Vac Hose | 56265739 | Not Available |
| 44 | Not Available | Gasket-Rina-Hose Cuff | 56265743 | Not Available |
| 45 | Not Available | Hose-Pvc-5/8x20.60 | 56265745 | Not Available |
| 46 | Not Available | Hose-Spiral-.500 X 52.00 | 56265766 | Not Available |
| 47 | Not Available | Mount Vibration | 56315141 | Not Available |
| 48 | Not Available | Tie Cable | 56478523 | Not Available |
| 49 | Not Available | Clamp- Hose Sae #4 | 56756364 | Not Available |
| 50 | Not Available | Barb 90 Elbow 1/2 X 3/8npt | 56109566 | Not Available |
| 51 | Not Available | Flat Tie Holder | 9096595000 | Not Available |
| 52 | Not Available | Axel Rod Zinc Plated 1/2 Ro | 910-1863 | Not Available |
| 53 | Not Available | Boot-Pump | 56265787 | Not Available |
| 54 | Not Available | Gasket-Vac-Inlet Cover | 56265789 | Not Available |
| 54 | Not Available | - EX40 16ST EX40 18LX 17 | 56042643 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Elbow-5/8 Hose | 832803 | Not Available |
| 2 | Not Available | Wsh Flt Sae #10 | 56001954 | Not Available |
| 3 | Not Available | Scr-Pan Phil Loc Ss 1/4-20 X .50 | 56003897 | Not Available |
| 4 | Not Available | Scr-Soc Shd .38 X 1.25 X 5/16-18 | 56002624 | Not Available |
| 5 | Not Available | Wsh Flt Std Ss 1/4 | 56002914 | Not Available |
| 6 | Not Available | Scr-Pan Phil Ss 1/4-20 X 1.25 | 56002958 | Not Available |
| 7 | Not Available | Scr Pan Phil Plastite 10-14 X .75 | 56003091 | Not Available |
| 8 | Not Available | Wsh Flt .754 X 1.250 X .120 | 56009022 | Not Available |
| 9 | Not Available | Scr Pan Phil Thd Form 10-24 X .62 | 56009042 | Not Available |
| 10 | Not Available | Nut Push Cap 1/2 | 56009097 | Not Available |
| 11 | Not Available | Scr Pan Phil Plastite 10-14 X .50 | 56009191 | Not Available |
| 12 | Not Available | Spacer Phenolic | 56052237 | Not Available |
| 13 | Not Available | Double Barb Assy | 56109503 | Not Available |
| 14 | Not Available | Clamp- Hose Sae #10 | 56112771 | Not Available |
| 15 | Not Available | Seal-Inlet | 56116110 | Not Available |
| 16 | Not Available | Grommet-.59x.78x.62 | 56116721 | Not Available |
| 17 | Not Available | Clamp- Hose Sae #6 | 56219932 | Not Available |
| 18 | Not Available | Hose .25x21.0 E00160 | 56265373 | Not Available |
| 19 | | Motor, Main Clarke EX40 16ST Part Number: 56265552 for Clarke | 56265552 | $430.08Read more |
| 19 | Not Available | 1 Carbon Brush Kit-(Set Of 2) for 56265552 | 56265683 | Not Available |
| 20 | No Image | Pump, 115Vac-120PSI Ex40,16St,18LX,ES300,ES400 Part Number: 56265554 for Advance | 56265554 | $487.04Read more |
| 21 | Not Available | Cover-Vac Motor | 56265582 | Not Available |
| 22 | Not Available | Plate-Vac Motor | 56265583 | Not Available |
| 23 | Not Available | Vac Hose Assembly | 56265586 | Not Available |
| 24 | Not Available | Cover-Vac Inlet | 56265617 | Not Available |
| 25 | Not Available | Hose Assembly | 56265625 | Not Available |
| 26 | Not Available | Cover-Back | 56265631 | Not Available |
| 27 | Not Available | Bracket-Shoe | 56265646 | Not Available |
| 28 | Not Available | Shoe/Latch Assembly-18 | 56265662 | Not Available |
| 29 | Not Available | Gasket-Vac Motor Cover | 56265665 | Not Available |
| 30 | Not Available | Gasket-Lid Support | 56265694 | Not Available |
| 31 | Not Available | Wheel-10.00x1.75x.50 | 56265697 | Not Available |
| 32 | Not Available | Hook-Hose Storage | 56265704 | Not Available |
| 33 | Not Available | Socket-Quick Disconnect-1/8 Npt | 56265705 | Not Available |
| 34 | Not Available | Tank-Solution-18-Blue | 56265707 | Not Available |
| 35 | Not Available | Hose Assembly-Solution | 56265708 | Not Available |
| 36 | Not Available | Coupler-Barb-5/8 | 56265712 | Not Available |
| 37 | Not Available | Gasket-Back Panel | 56265722 | Not Available |
| 38 | Not Available | Solution Filter Assembly-18 | 56265726 | Not Available |
| 39 | Not Available | Gasket-Vac Exhaust Chamber | 56265732 | Not Available |
| 40 | Not Available | Gasket-Vac Exhaust Port | 56265733 | Not Available |
| 41 | Not Available | Gasket-Vac Chamber-Side | 56265734 | Not Available |
| 42 | Not Available | Gasket-Backpanel-Bottom | 56265735 | Not Available |
| 43 | Not Available | Gasket-Sound-Vac Hose | 56265739 | Not Available |
| 44 | Not Available | Gasket-Ring-Hose Cuff | 56265743 | Not Available |
| 45 | Not Available | Hose-Pvc-5/8x20.60 | 56265745 | Not Available |
| 46 | Not Available | Hose-Spiral-.500 X 52.00 | 56265766 | Not Available |
| 47 | Not Available | Mount Vibration | 56315141 | Not Available |
| 48 | Not Available | Tie Cable | 56478523 | Not Available |
| 49 | Not Available | Clamp- Hose Sae #4 | 56756364 | Not Available |
| 50 | Not Available | Barb 90 Elbow 1/2 X 3/8npt | 56109566 | Not Available |
| 51 | Not Available | Flat Tie Holder | 9096595000 | Not Available |
| 52 | Not Available | Axel Rod Zinc Plated 1/2 Ro | 910-1863 | Not Available |
| 53 | Not Available | Boot-Pump | 56265787 | Not Available |
| 54 | Not Available | Gasket-Vac-Inlet Cover | 56265789 | Not Available |
| 54 | Not Available | - EX40 16ST EX40 18LX 19 | 56042643 | Not Available |
Report errors on this page HERE
