Schematic and parts book for Clarke Combivac12, Combivac14 Combivac. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |

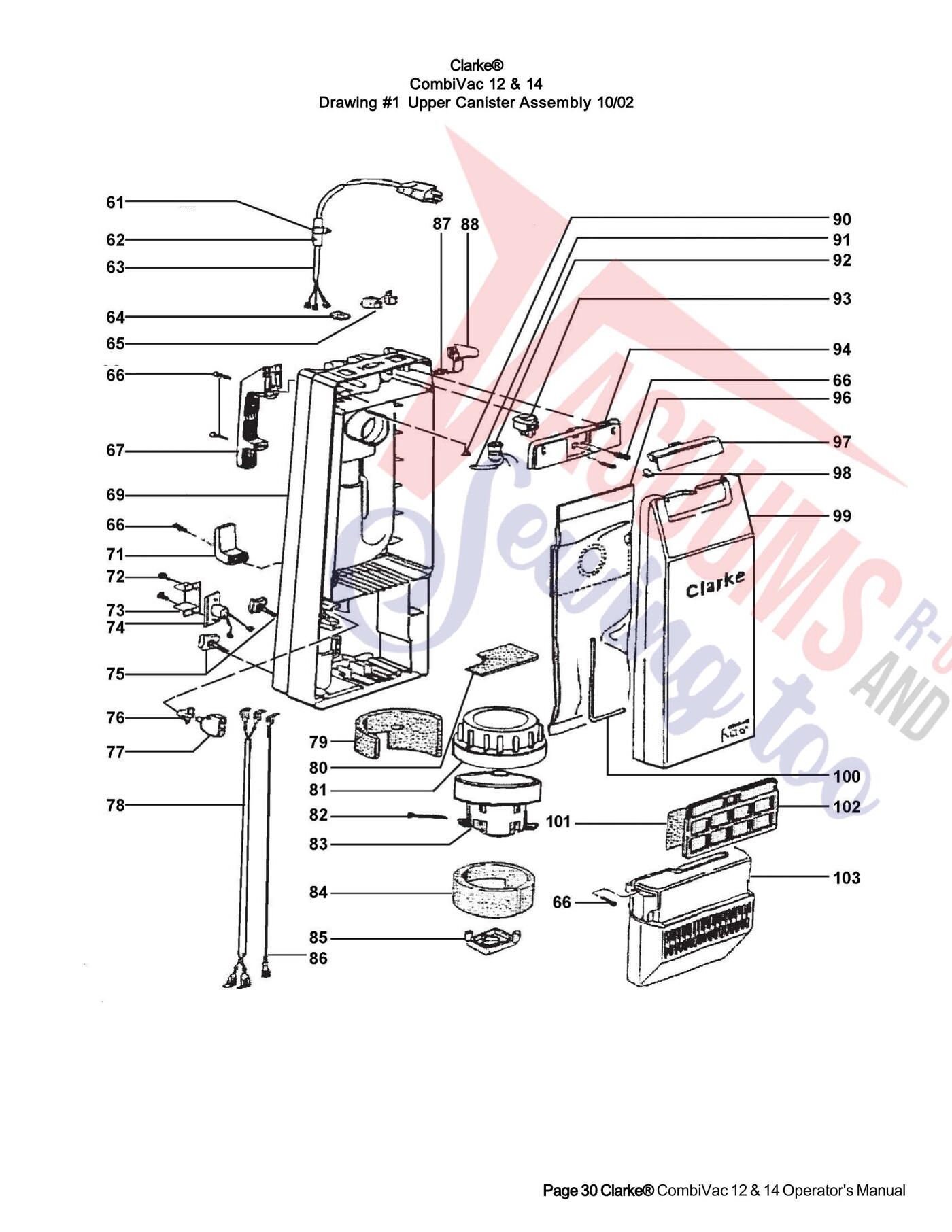

| 61 | Not Available | Cable | 52583A | Not Available |
| 62 | Not Available | Cable | 52584A | Not Available |
| 63 | Not Available | Power | 52585A | Not Available |
| 63 | Not Available | Power | 52586A | Not Available |
| 64 | Not Available | Cover | 52779A | Not Available |
| 65 | Not Available | Clip | 52923A | Not Available |
| 66 | Not Available | Screw | 57951A | Not Available |
| 67 | Not Available | Carry | 52587A | Not Available |
| 69 | Not Available | Canister | 52588A | Not Available |
| 69 | Not Available | Canister | 52589A | Not Available |
| 71 | Not Available | Clip | 52590A | Not Available |
| 72 | Not Available | Screw | 80067A | Not Available |
| 73 | Not Available | Bracket. | 50848A | Not Available |
| 74 | Not Available | Socket | 52591A | Not Available |
| 75 | Not Available | Thumb | 80068A | Not Available |
| 76 | Not Available | Cap | 52008A | Not Available |
| 77 | Not Available | Switch | 57952A | Not Available |
| 78 | Not Available | Flat | 52592A | Not Available |
| 79 | Not Available | Insert | 54734A | Not Available |
| 80 | Not Available | Filter | 52593A | Not Available |
| 81 | Not Available | Adaptor | 52594A | Not Available |
| 82 | Not Available | Carbon | 52595A | Not Available |
| 82 | Not Available | Carbon | 52596A | Not Available |
| 83 | Not Available | Vacuum | 52597A | Not Available |
| 83 | Not Available | Vacuum | 52598A | Not Available |
| 84 | Not Available | Foam | 52599A | Not Available |
| 85 | Not Available | Endcap | 52618A | Not Available |
| 86 | Not Available | Insulated | 52619A | Not Available |
| 87 | Not Available | Spring | 58693A | Not Available |
| 88 | Not Available | Bar | 55658A | Not Available |
| 90 | Not Available | Rivet | 57319A | Not Available |
| 91 | Not Available | Tube | 59302A | Not Available |
| 92 | Not Available | Indicator | 54735A | Not Available |
| 92 | Not Available | Indicator | 52620A | Not Available |
| 93 | Not Available | Switch | 47407A | Not Available |
| 94 | Not Available | Cover | 52381A | Not Available |
| 96 |  | Clarke 50721b Combivac Vacuum Bags Microfiltration with Closure - 10 Pack | 50721B | $64.57Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 96 | Not Available | Cloth | 50747A | Not Available |
| 97 | Not Available | Latch | 55715B | Not Available |
| 98 | Not Available | Spring | 53408A | Not Available |
| 99 | Not Available | Canister | 52621A | Not Available |
| 100 | Not Available | Gasket | 52622A | Not Available |
| 101 | Not Available | Filter | 54025A | Not Available |
| 102 | Not Available | Fitler | 54026A | Not Available |
| 103 | Not Available | Cover | 52386A | Not Available |
| # | Part image | Description | SKU | Price |

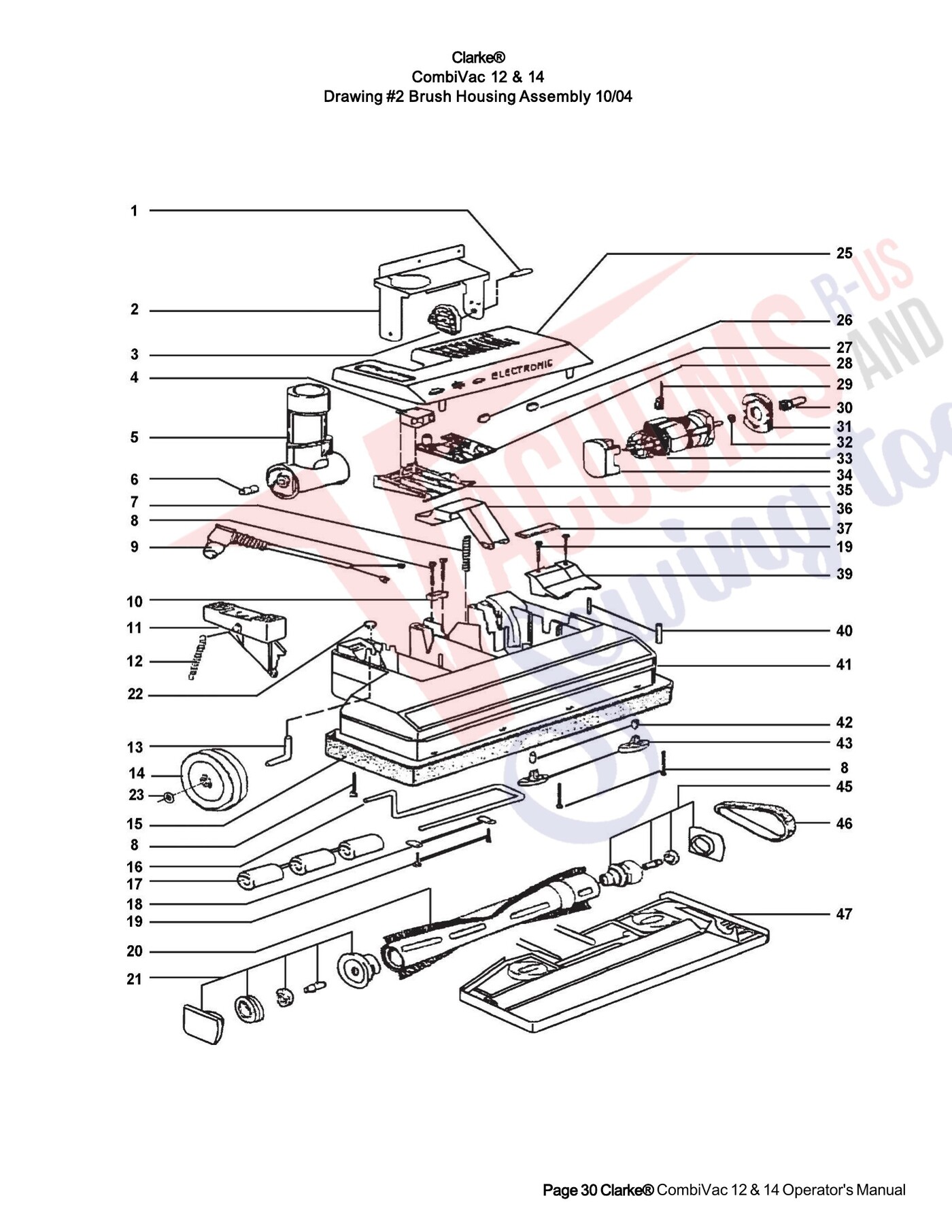

| 1 | Not Available | Rod Latch | 57355A | Not Available |
| 2 | Not Available | Bracket Pivot | 52094A | Not Available |
| 3 | Not Available | Insert Locking | 80071A | Not Available |
| 4 | Not Available | Switch | 912311 | Not Available |
| 5 | Not Available | Pivot Handle | 56859A | Not Available |
| 6 | Not Available | Shaft Pivot | 58309A | Not Available |
| 7 | Not Available | Spring | 58618A | Not Available |
| 8 | Not Available | Screw | 57951A | Not Available |
| 9 | Not Available | Cord Interconnect | 52571A | Not Available |
| 10 | Not Available | Clamp Strain | 51997A | Not Available |
| 11 | Not Available | Pedal Brush | 55805A | Not Available |
| 12 | Not Available | Spring | 58617A | Not Available |
| 13 | Not Available | Axle Wheel | 50160A | Not Available |
| 14 | Not Available | Wheel | 59905A | Not Available |
| 15 | Not Available | Bumper 12" | 52456A | Not Available |
| 15 | Not Available | Bumper 14" | 51603A | Not Available |
| 16 | Not Available | Axle Adjusting | 50127A | Not Available |
| 17 | Not Available | Roller | 57402A | Not Available |
| 18 | Not Available | Clamp | 56860A | Not Available |
| 19 | Not Available | Screw 4 x | 80072A | Not Available |
| 20 | Not Available | Brush Assembly | 52457A | Not Available |
| 20 | No Image | BRUSHROLL, 614 Part Number: 51427A for Clarke | 51427A | $101.42Read more |
| 21 | Not Available | Brg. Assembly | 52572A | Not Available |
| 22 | Not Available | Disc Security | 53010A | Not Available |
| 23 | Not Available | Washer | 59886A | Not Available |
| 25 | Not Available | Motor Cover | 52573A | Not Available |
| 26 | Not Available | Lens Green | 52574A | Not Available |
| 27 | Not Available | Lens Red | 55668A | Not Available |
| 28 | Not Available | Electronics | 52575A | Not Available |
| 28 | Not Available | Electronics | 52576A | Not Available |
| 30 | Not Available | Shaft Pinion | 58310A | Not Available |
| 31 | Not Available | Motor Mount | 56027A | Not Available |
| 32 | Not Available | Washer | 59886A | Not Available |
| 33 | Not Available | Brush Motor | 52578A | Not Available |
| 33 | Not Available | Brush Motor | 52579A | Not Available |
| 34 | Not Available | Endcap Motor | 52454A | Not Available |
| 35 | Not Available | Mounting | 56024A | Not Available |
| 36 | Not Available | Latch Foot | 55705A | Not Available |
| 37 | Not Available | Rail Stop | 56402A | Not Available |
| 39 | Not Available | Plate Re-enforcing | 50451A | Not Available |
| 40 | Not Available | Pin | 56863A | Not Available |
| 41 | Not Available | Housing | 52580A | Not Available |
| 41 | Not Available | Housing | 52581A | Not Available |
| 42 | Not Available | Pin | 50476A | Not Available |
| 43 | Not Available | Lever Tension | 55801A | Not Available |
| 45 | Not Available | Brg. Assembly | 52582A | Not Available |
| 46 |  | Belt, CombiVac 614/618 Part Number: 50906A for Clarke | 50906A | $28.66Read more |
| 47 | Not Available | Bottom Plate | 52458A | Not Available |
| 47 | Not Available | Bottom Plate | 57149A | Not Available |
| # | Part image | Description | SKU | Price |
