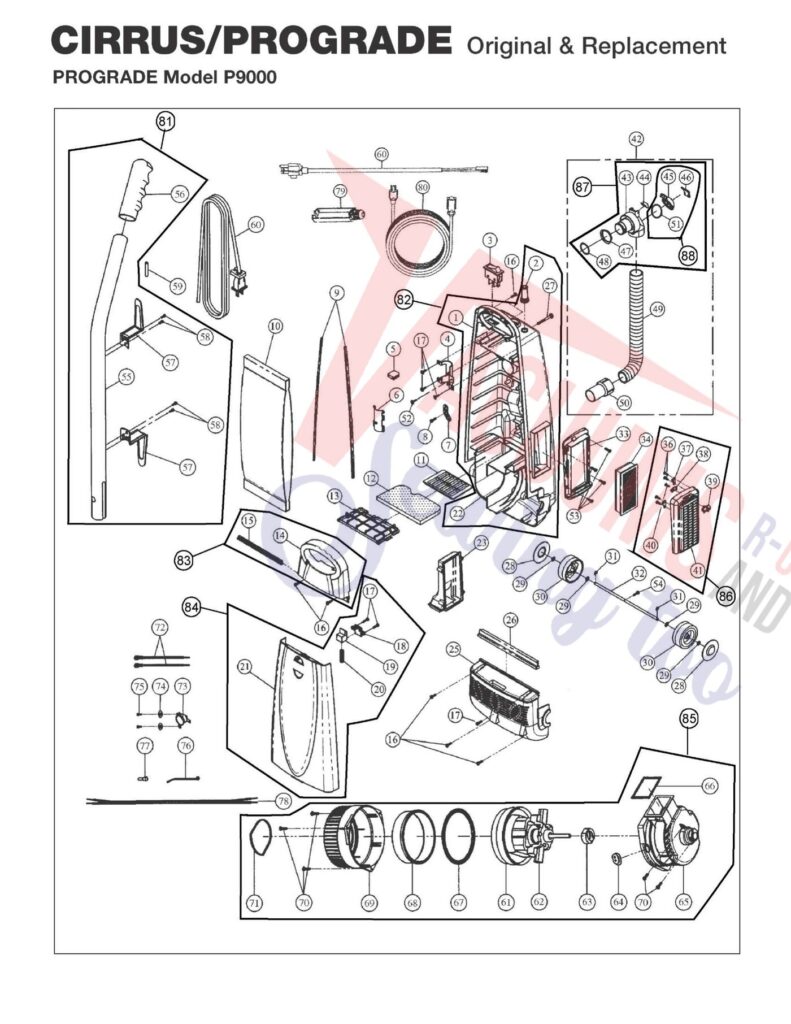

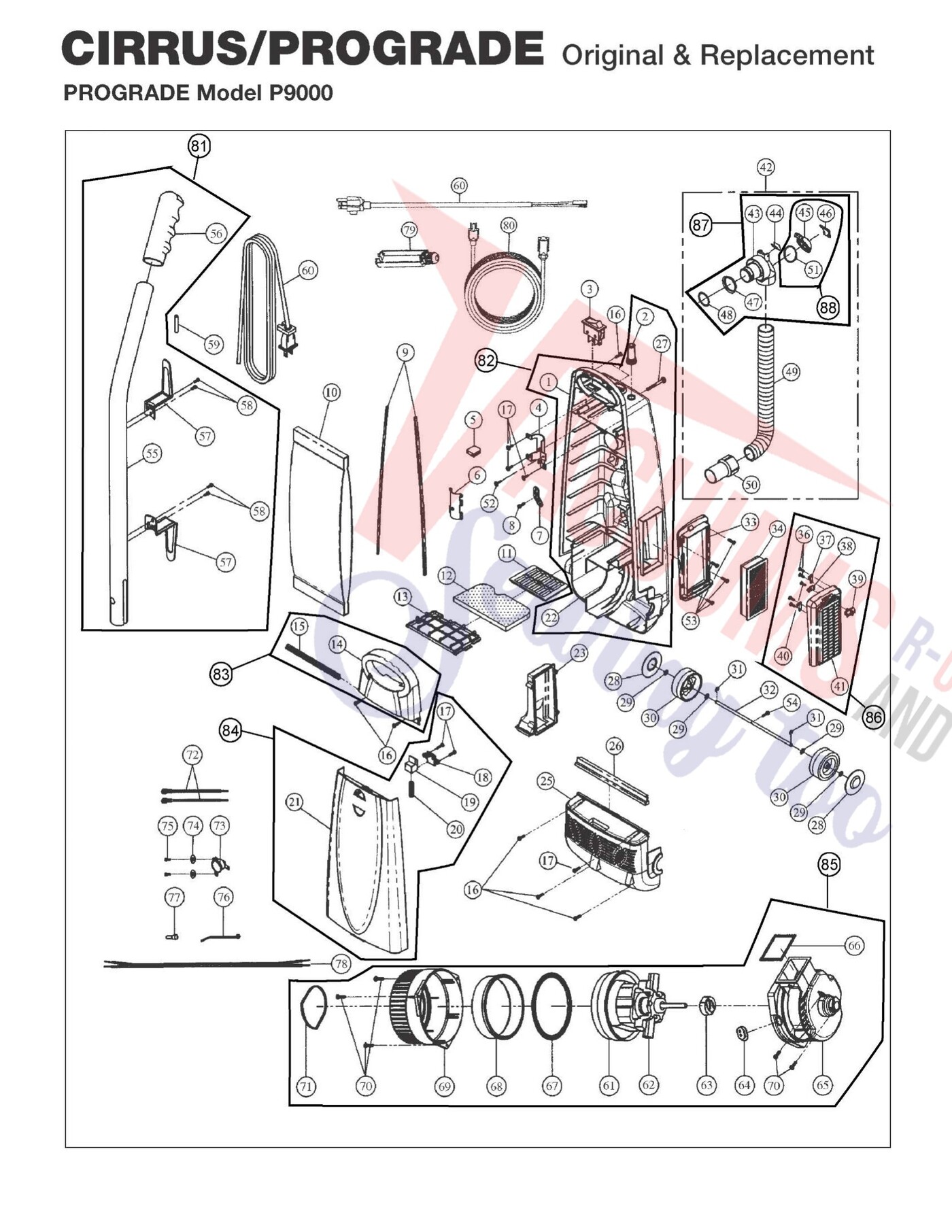

Schematic and parts book for Cirrus P9000 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment Red | PRO-75000 | Not Available |
| 2 | Not Available | Large Rubber Boot Black | C-32605 | Not Available |
| 3 | Not Available | Switch Black | C-34005 | Not Available |
| 4 | Not Available | Handle Fitting Rear | C-70590 | Not Available |
| 5 | Not Available | Vented Support Rubber | C-75900 | Not Available |
| 6 | Not Available | Handle Fitting Front | C-70591 | Not Available |
| 7 | Not Available | Cord Holder Black | C-32002 | Not Available |
| 8 | Not Available | Screw | C-77032 | Not Available |
| 9 | Not Available | Dust Compartment Side Seals | C-76900 | Not Available |
| 10 | Not Available | Paper Bag HEPA Type 6 Pk | C-14000 | Not Available |
| 10 | Not Available | Paper Bag Micro Filtration 12 Pk | C-14005 | Not Available |
| 10 | Not Available | Cloth Dump Bag | C-12250 | Not Available |
| 11 | Not Available | Filter Supporter Screen | C-18420 | Not Available |
| 12 | Not Available | Secondary Carbon Filter | C-18007 | Not Available |
| 13 | Not Available | Bag Supporter Red | C-18422 | Not Available |
| 14 | Not Available | Switch Housing Cover Red | PRO-75100 | Not Available |
| 15 | Not Available | Dust Cover Seal | C-76902 | Not Available |
| 16 | Not Available | Screw | C-77026 | Not Available |
| 17 | Not Available | Screw | C-77021 | Not Available |
| 18 | Not Available | Latch Bracket Black | C-75802 | Not Available |
| 19 | Not Available | Cover Latch Black | C-75025 | Not Available |
| 20 | Not Available | Cover Latch Spring | C-77027 | Not Available |
| 21 | Not Available | Dust Cover Red | PRO-75250 | Not Available |
| 22 | Not Available | Motor Compartment Seals | C-76022 | Not Available |
| 23 | Not Available | Motor Exhaust W/Gasket | C-75899 | Not Available |
| 25 | Not Available | Motor Cover Ass'y Red | PRO-75050 | Not Available |
| 26 | Not Available | Motor Cover Seal | C-76010 | Not Available |
| 27 | Not Available | Handle Screw | C-77030 | Not Available |
| 28 | Not Available | Rear Wheel Hubcap | C-71500 | Not Available |
| 29 | Not Available | Washer | C-77029 | Not Available |
| 30 | Not Available | Rear Wheel Black | C-71000 | Not Available |
| 31 | Not Available | E-Clip | C-77028 | Not Available |
| 32 | Not Available | Rear Wheel Shaft | C-71002 | Not Available |
| 33 | Not Available | Filter Holder Red | PRO-75200 | Not Available |
| 34 | Not Available | HEPA Filter | C-18054 | Not Available |
| 36 | Not Available | Screw | C-77036 | Not Available |
| 37 | Not Available | Filter Cover Fitting | C-75890 | Not Available |
| 38 | Not Available | Filter Cover Knob Fitting | C-75895 | Not Available |
| 39 | Not Available | Filter Cover Knob Black | C-75892 | Not Available |
| 40 | Not Available | Screw 50' 16/3 Yellow | C-77036 | Not Available |
| 41 | Not Available | Filter Cover Red | PRO-75150 | Not Available |
| 42 | Not Available | Stretch Hose Complete Black | C-40005 | Not Available |
| 43 | Not Available | Suction Inlet Black | C-75060 | Not Available |
| 44 | Not Available | Suction Inlet Lid Spring | C-77031 | Not Available |
| 45 | Not Available | Suction Inlet Lid Black | C-75051 | Not Available |
| 46 | Not Available | Suction Control Dial Black | C-75052 | Not Available |
| 47 | Not Available | Suction Inlet Seal Large | C-76080 | Not Available |
| 48 | Not Available | Suction Inlet Seal Small | C-76081 | Not Available |
| 49 | Not Available | Stretch Hose Blank | C-40050 | Not Available |
| 50 | Not Available | Hose Cuff | C-45005 | Not Available |
| 51 | Not Available | Suction Inlet Cover Seal | C-76020 | Not Available |
| 52 | Not Available | Screw | C-77059 | Not Available |
| 53 | Not Available | Screw | C-77003 | Not Available |
| 54 | Not Available | Screw | C-77025 | Not Available |
| 55 | Not Available | Handle Tube | C-70008 | Not Available |
| 56 | Not Available | Soft Grip Black | C-70255 | Not Available |
| 57 | Not Available | Metal Cord Hook | C-70508 | Not Available |
| 58 | Not Available | Screw | C-77012 | Not Available |
| 59 | Not Available | Cord Protector | C-32092 | Not Available |
| 60 |  | Bissell Switch for BGC3000 Canister Vacuum clean obsessed CO711 switch | C30007 | $5.06Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | Power Cord 12" 16/3 Yellow | C-30006 | Not Available |
| 61 | Not Available | Lamb Motor 1000W | C-60000 | Not Available |
| 62 | Not Available | Carbon Brush | C-63005 | Not Available |
| 63 | Not Available | Motor Mount Rear | C-62003 | Not Available |
| 64 | Not Available | Cord Clip Rubber | C-32600 | Not Available |
| 65 | Not Available | Motor Support Cover | C-62020 | Not Available |
| 66 | Not Available | Motor Support Cover Foam | C-76030 | Not Available |
| 67 | Not Available | Motor Mount Rear | C-62025 | Not Available |
| 68 | Not Available | Motor Bushing | C-62036 | Not Available |
| 69 | Not Available | Motor Support Housing | C-62033 | Not Available |
| 70 | Not Available | Screw | C-77000 | Not Available |
| 71 | Not Available | Motor Support Housing Foam | C-76033 | Not Available |
| 72 | Not Available | Lead Black | C-36908 | Not Available |
| 73 | Not Available | Thermal Switch | C-36005 | Not Available |
| 74 | Not Available | Washer | C-77005 | Not Available |
| 75 | Not Available | Screw | C-77047 | Not Available |
| 76 | Not Available | Cord Clip | C-32003 | Not Available |
| 77 | Not Available | Wire Nut | SS-3270 | Not Available |
| 78 | Not Available | Motor Lead Black | C-36916 | Not Available |
| 79 | Not Available | Power Cord Holder | C-32005 | Not Available |
| 80 | Not Available | Extension Power Cord | C-30008 | Not Available |
| 81 | Not Available | Handle Assembly | C-70010 | Not Available |
| 82 | Not Available | Dust Compartment Assembly Red | PRO-75001 | Not Available |
| 83 | Not Available | Switch Cover Assembly Red | PRO-75101 | Not Available |
| 84 | Not Available | Door Assembly Red | PRO-75260 | Not Available |
| 85 | Not Available | Motor Assembly | C-60001 | Not Available |
| 86 | Not Available | Filter Cover Assembly Red | PRO-75160 | Not Available |
| 87 | Not Available | Suction Inlet Assembly Black | C-75048 | Not Available |
| 88 | Not Available | Suction Inlet Lid Assembly Black | C-75058 | Not Available |

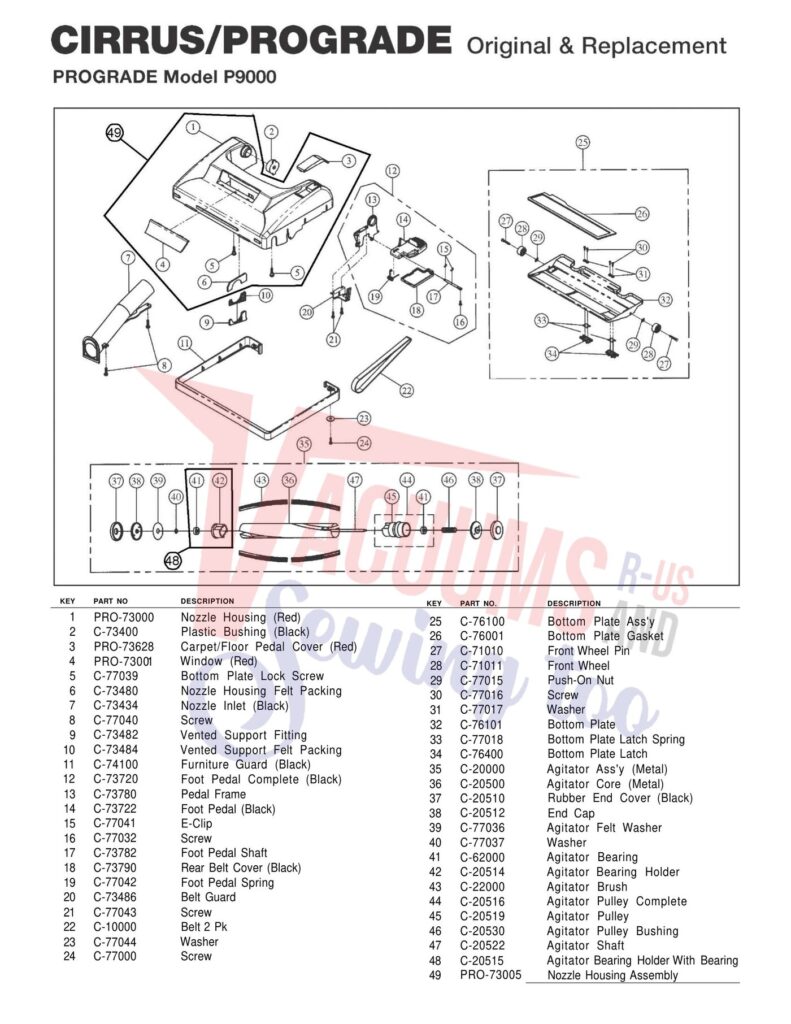

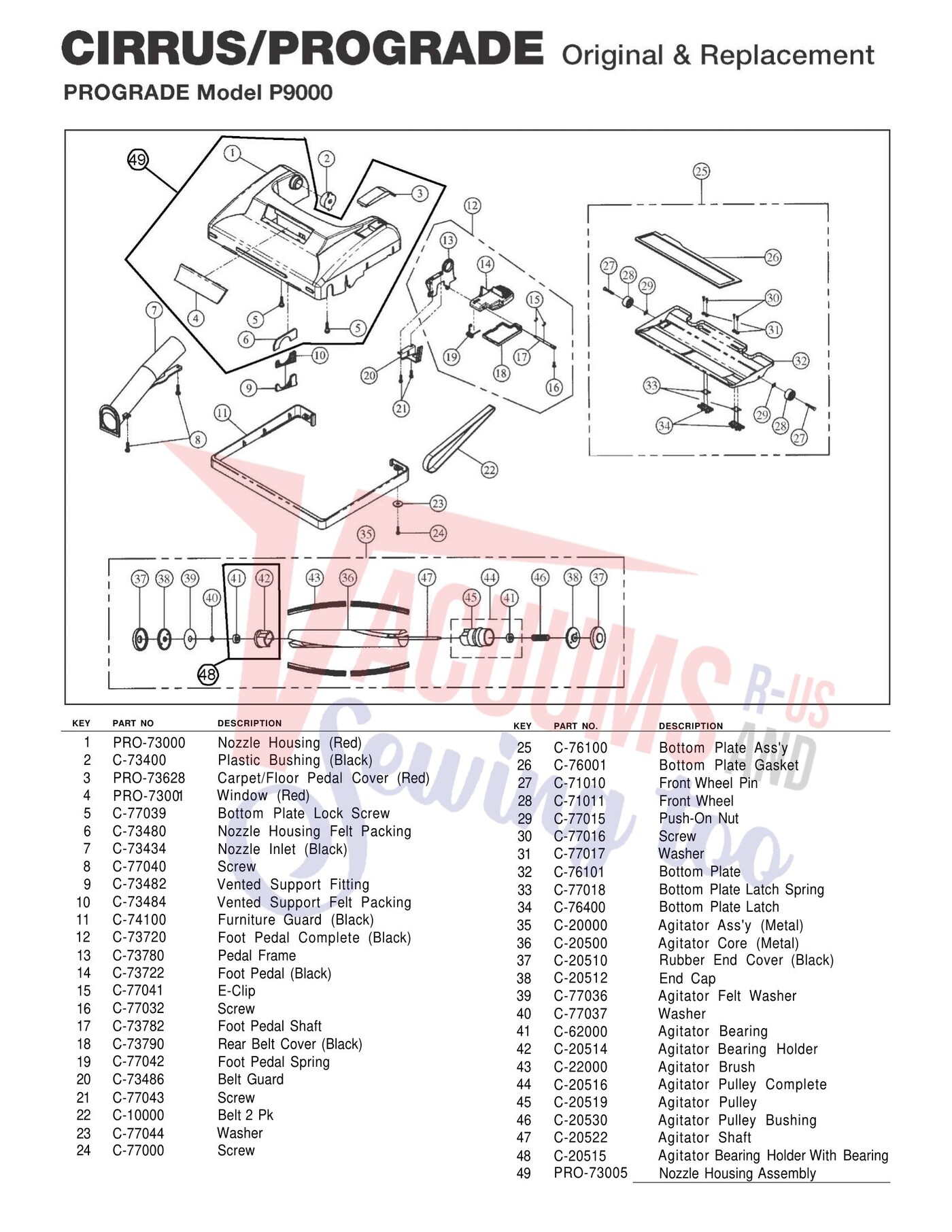

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing (Red) | PRO-73000 | Not Available |
| 2 | Not Available | Plastic Bushing (Black) | C-73400 | Not Available |
| 3 | Not Available | Carpet/Floor Pedal Cover (Red) | PRO-73628 | Not Available |
| 4 | Not Available | Window (Red) | PRO-73001 | Not Available |
| 5 | Not Available | Bottom Plate Lock Screw | C-77039 | Not Available |
| 6 | Not Available | Nozzle Housing Felt Packing | C-73480 | Not Available |
| 7 | Not Available | Nozzle Inlet (Black) | C-73434 | Not Available |
| 8 | Not Available | Screw | C-77040 | Not Available |
| 9 | Not Available | Vented Support Fitting | C-73482 | Not Available |
| 10 | Not Available | Vented Support Felt Packing | C-73484 | Not Available |
| 11 | Not Available | Furniture Guard (Black) | C-74100 | Not Available |
| 12 | Not Available | Foot Pedal Complete (Black) | C-73720 | Not Available |
| 13 | Not Available | Pedal Frame | C-73780 | Not Available |
| 14 | Not Available | Foot Pedal (Black) | C-73722 | Not Available |
| 15 | Not Available | E-Clip | C-77041 | Not Available |
| 16 | Not Available | Screw | C-77032 | Not Available |
| 17 | Not Available | Foot Pedal Shaft | C-73782 | Not Available |
| 18 | Not Available | Rear Belt Cover (Black) | C-73790 | Not Available |
| 19 | Not Available | Foot Pedal Spring | C-77042 | Not Available |
| 20 | Not Available | Belt Guard | C-73486 | Not Available |
| 21 | Not Available | Screw | C-77043 | Not Available |
| 22 | Not Available | Belt 2 Pk | C-10000 | Not Available |
| 23 | Not Available | Washer | C-77044 | Not Available |
| 24 | Not Available | Screw | C-77000 | Not Available |
| 25 | Not Available | Bottom Plate Ass'y | C-76100 | Not Available |
| 26 | Not Available | Bottom Plate Gasket | C-76001 | Not Available |
| 27 | Not Available | Front Wheel Pin | C-71010 | Not Available |
| 28 | Not Available | Front Wheel | C-71011 | Not Available |
| 29 | Not Available | Push-On Nut | C-77015 | Not Available |
| 30 | Not Available | Screw | C-77016 | Not Available |
| 31 | Not Available | Washer | C-77017 | Not Available |
| 32 | Not Available | Bottom Plate | C-76101 | Not Available |
| 33 | Not Available | Bottom Plate Latch Spring | C-77018 | Not Available |
| 34 | Not Available | Bottom Plate Latch | C-76400 | Not Available |
| 35 | Not Available | Agitator Ass'y (Metal) | C-20000 | Not Available |
| 36 | Not Available | Agitator Core (Metal) | C-20500 | Not Available |
| 37 | Not Available | Rubber End Cover (Black) | C-20510 | Not Available |
| 38 | Not Available | End Cap | C-20512 | Not Available |
| 39 | Not Available | Agitator Felt Washer | C-77036 | Not Available |
| 40 | Not Available | Washer | C-77037 | Not Available |
| 41 | Not Available | Agitator Bearing | C-62000 | Not Available |
| 42 | Not Available | Agitator Bearing Holder | C-20514 | Not Available |
| 43 | Not Available | Agitator Brush | C-22000 | Not Available |
| 44 | Not Available | Agitator Pulley Complete | C-20516 | Not Available |
| 45 | Not Available | Agitator Pulley | C-20519 | Not Available |
| 46 | Not Available | Agitator Pulley Bushing | C-20530 | Not Available |
| 47 | Not Available | Agitator Shaft | C-20522 | Not Available |
| 48 | Not Available | Agitator Bearing Holder With Bearing | C-20515 | Not Available |
| 49 | Not Available | Nozzle Housing Assembly | PRO-73005 | Not Available |

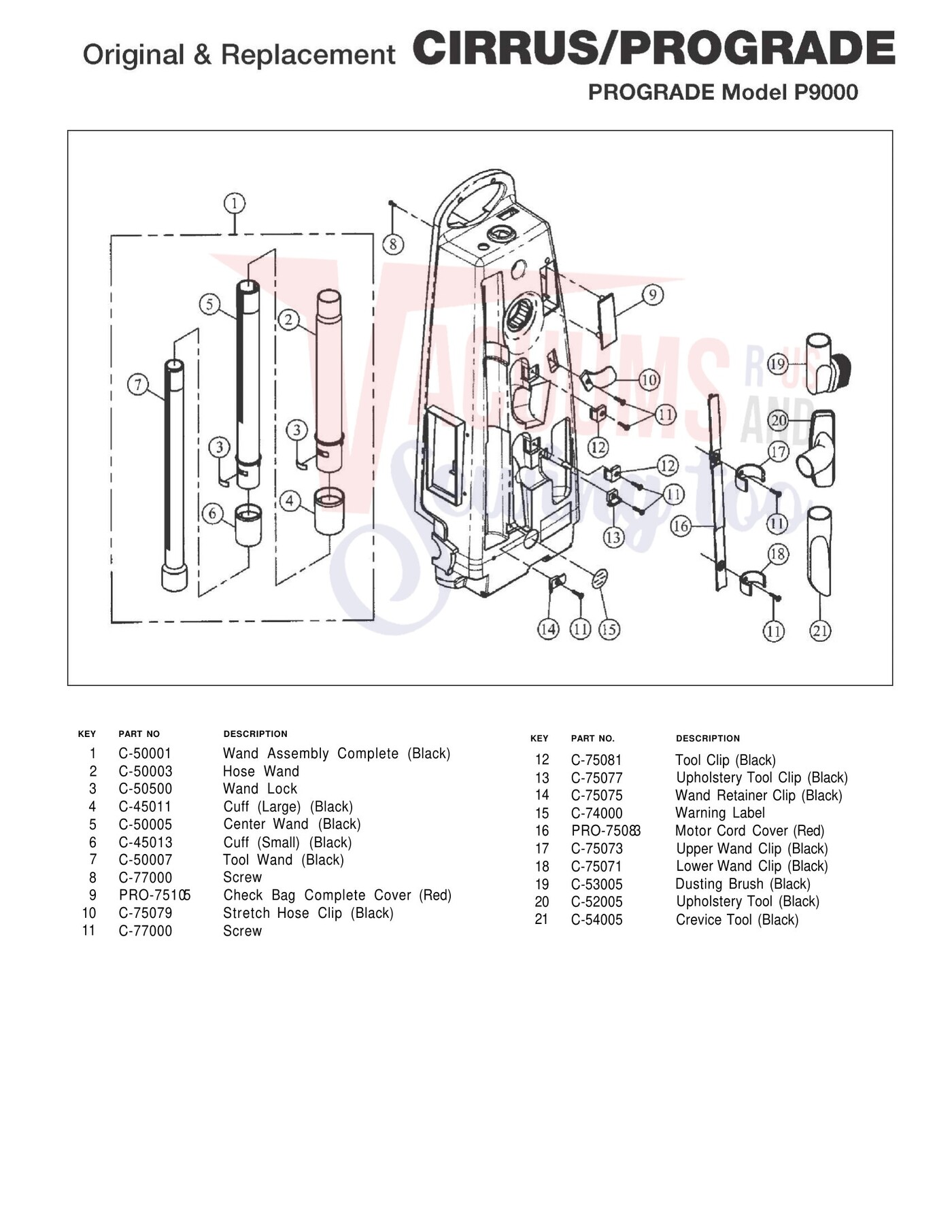

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Wand Assembly Complete (Black) | C-50001 | Not Available |
| 2 | Not Available | Hose Wand | C-50003 | Not Available |
| 3 | Not Available | Wand Lock | C-50500 | Not Available |
| 4 | Not Available | Cuff (Large) (Black) | C-45011 | Not Available |
| 5 | Not Available | Center Wand (Black) | C-50005 | Not Available |
| 6 | Not Available | Cuff (Small) (Black) | C-45013 | Not Available |
| 7 | Not Available | Tool Wand (Black) | C-50007 | Not Available |
| 8 | Not Available | Screw | C-77000 | Not Available |
| 9 | Not Available | Check Bag Complete Cover (Red) | PRO-75105 | Not Available |
| 10 | Not Available | Stretch Hose Clip (Black) | C-75079 | Not Available |
| 11 | Not Available | Screw | C-77000 | Not Available |
| 12 | Not Available | Tool Clip (Black) | C-75081 | Not Available |
| 13 | Not Available | Upholstery Tool Clip (Black) | C-75077 | Not Available |
| 14 | Not Available | Wand Retainer Clip (Black) | C-75075 | Not Available |
| 15 | Not Available | Warning Label | C-74000 | Not Available |
| 16 | Not Available | Motor Cord Cover (Red) | PRO-75083 | Not Available |
| 17 | Not Available | Upper Wand Clip (Black) | C-75073 | Not Available |
| 18 | Not Available | Lower Wand Clip (Black) | C-75071 | Not Available |
| 19 | Not Available | Dusting Brush (Black) | C-53005 | Not Available |
| 20 | Not Available | Upholstery Tool (Black) | C-52005 | Not Available |
| 21 | Not Available | Crevice Tool (Black) | C-54005 | Not Available |
