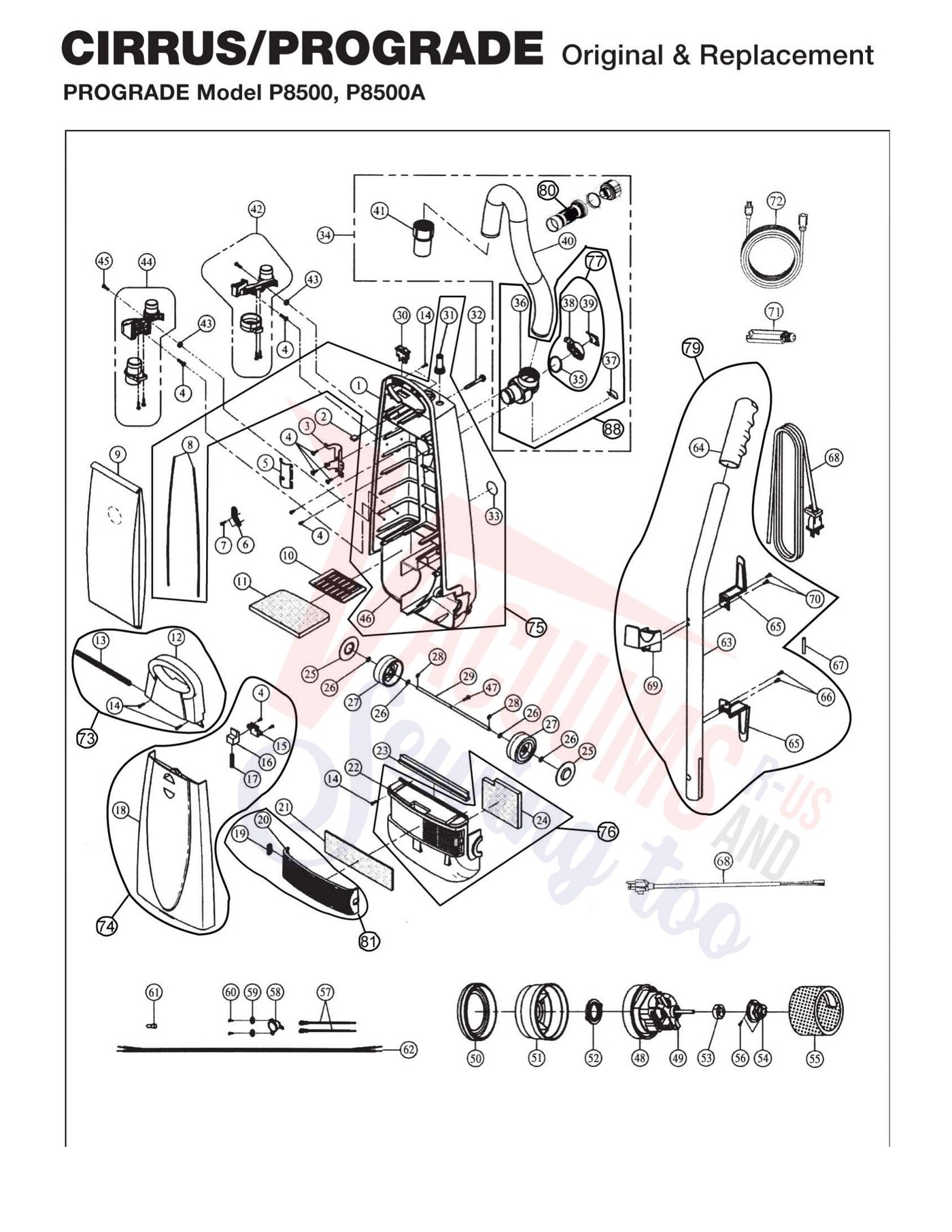

Schematic and parts book for cirrus P8500, p8500a . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment Red | PRO-75005 | Not Available |
| 2 | Not Available | Vented Support Rubber | C-75900 | Not Available |
| 3 | Not Available | Handle Fitting Rear | C-70590 | Not Available |
| 4 | Not Available | Set Screw | C-77000 | Not Available |
| 5 | Not Available | Handle Fitting Front | C-70591 | Not Available |
| 6 | Not Available | Cord Holder Black | C-32025 | Not Available |
| 7 | Not Available | Set Screw | C-77032 | Not Available |
| 8 | Not Available | Dust comnpartment Side Seals | C-76900 | Not Available |
| 9 | Not Available | Paper Bag HEPA Type 6 Pk | C-14000 | Not Available |
| 9 | Not Available | Paper Bag Micro Filtration 12 Pk | C-14005 | Not Available |
| 9 | Not Available | Cloth Dump Bag | C-12250 | Not Available |
| 10 | Not Available | Filter Supporter Screen | C-18420 | Not Available |
| 11 | Not Available | Secondary Carbon Filter | C-18002 | Not Available |
| 12 | Not Available | Switch Housing Cover Red | PRO-75100 | Not Available |
| 13 | Not Available | Dust Cover Seal | C-76902 | Not Available |
| 14 | Not Available | Set Screw | C-77026 | Not Available |
| 15 | Not Available | Release Button Cover Black | C-75802 | Not Available |
| 16 | Not Available | Cover Release Button Black | C-75025 | Not Available |
| 17 | Not Available | Cover Release Button Spring | C-77027 | Not Available |
| 18 | Not Available | Dust Cover Red | PRO-75250 | Not Available |
| 19 | Not Available | Post Cover Knob Black | C-75950 | Not Available |
| 20 | Not Available | Post Cover | PRO-75350 | Not Available |
| 21 | Not Available | Electrostatic Filter | C-18051 | Not Available |
| 22 | Not Available | Motor Cover Red | PRO-75051 | Not Available |
| 23 | Not Available | Motor Cover Seal | C-76010 | Not Available |
| 24 | Not Available | Exhaust | C-18050 | Not Available |
| 25 | Not Available | Rear Wheel Hubcap | C-71500 | Not Available |
| 26 | Not Available | Washer | C-77029 | Not Available |
| 27 | Not Available | Rear Wheel Black | C-71000 | Not Available |
| 28 | Not Available | E-Clip | C-77028 | Not Available |
| 29 | Not Available | Rear Wheel Shaft | C-71002 | Not Available |
| 30 | Not Available | Switch | C-34005 | Not Available |
| 31 | Not Available | Large Rubber Boot Black | C-32605 | Not Available |
| 32 | Not Available | Handle Screw | C-77030 | Not Available |
| 33 | Not Available | Warning Label | C-74000 | Not Available |
| 34 | Not Available | Long Stretch Hose Complete Black P8500 | PRO-40000 | Not Available |
| 34 | Not Available | Long Stretch Hose Complete Black P8500A | PRO-40001 | Not Available |
| 35 | Not Available | Suction Inlet Cover Seal | C-76020 | Not Available |
| 36 | Not Available | Attachment Connecting Device Black | C-75060 | Not Available |
| 37 | Not Available | Suction Inlet Lid Spring | C-77031 | Not Available |
| 38 | Not Available | Suction Inlet Lid Black | C-75051 | Not Available |
| 39 | Not Available | Suction Control Dial Black | C-75052 | Not Available |
| 40 | Not Available | Stretch Hose | C-40052 | Not Available |
| 41 | Not Available | Hose Cuff Black | C-45005 | Not Available |
| 42 | Not Available | Tool Holder Ass'y Black P8500 | PRO-75060 | Not Available |
| 42 | Not Available | Tool Holder Ass'y Black P8500A | PRO-75063 | Not Available |
| 43 | Not Available | Nut | PRO-77010 | Not Available |
| 44 | Not Available | Wand Retainer Ass'y Black | PRO-75061 | Not Available |
| 45 | Not Available | Set Screw | PRO-77005 | Not Available |
| 46 | Not Available | Motor Compartment Seals | C-76022 | Not Available |
| 47 | Not Available | Set Screw | C-77025 | Not Available |
| 48 | Not Available | Lamb Motor 1000W | C-60000 | Not Available |
| 49 | Not Available | Lamb Carbon Brush | C-63005 | Not Available |
| 50 | Not Available | Motor Mount Rear | C-62003 | Not Available |
| 51 | Not Available | Motor Support Housing Black | C-62034 | Not Available |
| 52 | Not Available | Suction Inlet Packing Black | C-76025 | Not Available |
| 53 | Not Available | Motor Mount Front | C-62010 | Not Available |
| 54 | Not Available | Motor Pivot Sleeve Black | C-62015 | Not Available |
| 55 | Not Available | Noise Supressor | C-18700 | Not Available |
| 56 | Not Available | Set Screw | C-77000 | Not Available |
| 57 | Not Available | Cord Black | C-36908 | Not Available |
| 58 | Not Available | Thermal Switch | C-36005 | Not Available |
| 59 | Not Available | Washer | C-77005 | Not Available |
| 60 | Not Available | Set Screw | C-77047 | Not Available |
| 61 | Not Available | Wire Connector | SS-3270 | Not Available |
| 62 | Not Available | Motor Cord Black | C-36916 | Not Available |
| 63 | Not Available | Handle Tube | C-70008 | Not Available |
| 64 | Not Available | Soft Grip Black | C-70255 | Not Available |
| 65 | Not Available | Metal Cord Hool | C-70508 | Not Available |
| 66 | Not Available | Set Screw | C-77012 | Not Available |
| 67 | Not Available | Cord Protection Tube | C-32092 | Not Available |
| 68 |  | Bissell Switch for BGC3000 Canister Vacuum clean obsessed CO711 switch | C30007 | $5.06Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 | Not Available | Power Cord 12" 16/3 Yellow | C-30006 | Not Available |
| 69 | Not Available | Hose Rack Black For PRO8500 | PRO-75062 | Not Available |
| 70 | Not Available | Set Screw | PRO-77006 | Not Available |
| 71 | Not Available | Power Cord Holder | C-32005 | Not Available |
| 72 | Not Available | Extension Power Cord | C-30008 | Not Available |
| 73 | Not Available | Switch Cover Assembly Red | PRO-75101 | Not Available |
| 74 | Not Available | Door Assembly Red | PRO-75255 | Not Available |
| 75 | Not Available | Dust Compartment Assembly Red | PRO-75006 | Not Available |
| 76 | Not Available | Motor Cover Assembly Red | PRO-75052 | Not Available |
| 77 | Not Available | Suction Inlet Lid Assembly Black | C-75058 | Not Available |
| 78 | Not Available | Suction Inlet Assembly Black | C-75045 | Not Available |
| 79 | Not Available | Handle Assembly | C-70012 | Not Available |
| 80 | Not Available | Long Cuff Assembly Black | C-45003 | Not Available |
| 81 | Not Available | Filter Cover Assembly Red | PRO-75355 | Not Available |

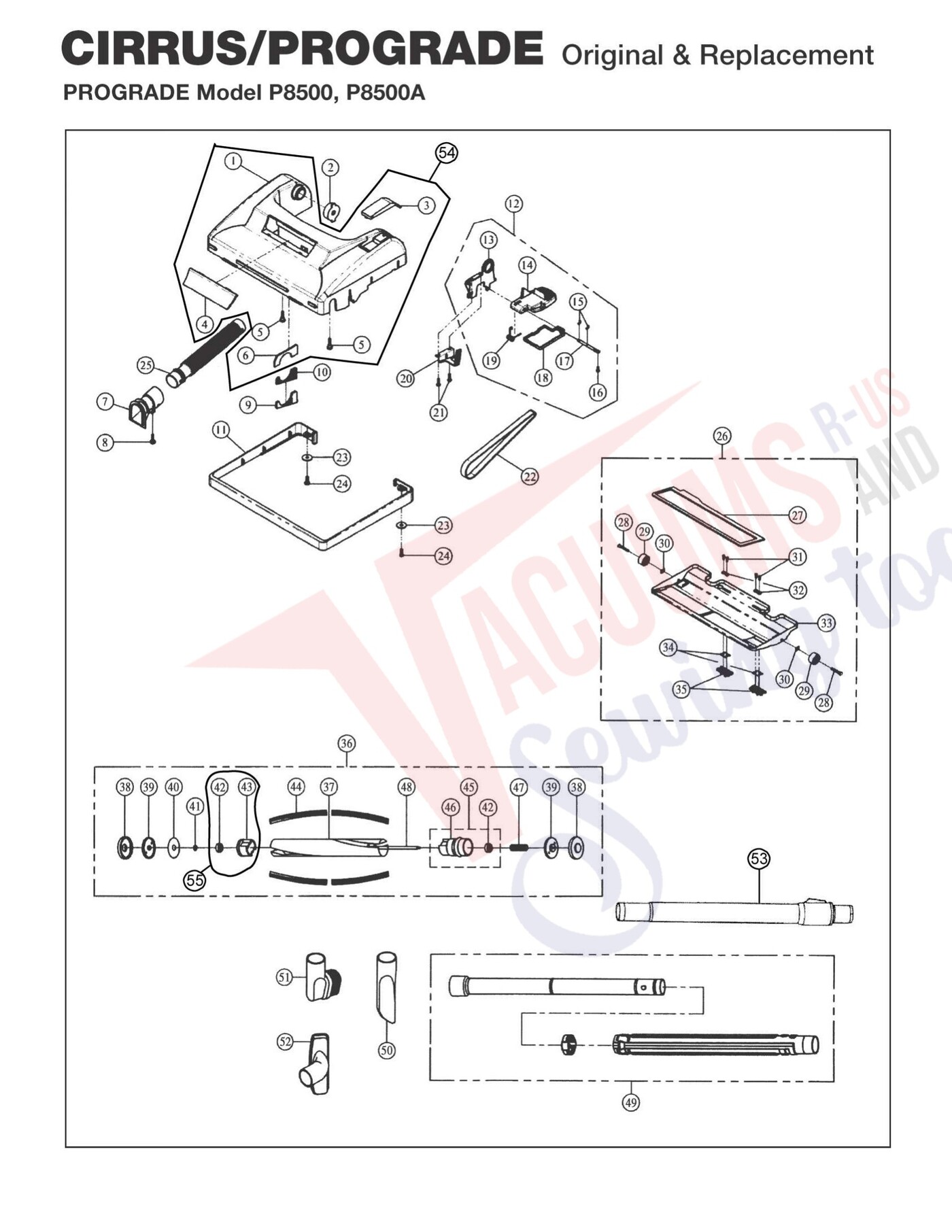

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing Ass'y Red | PRO-73000 | Not Available |
| 2 | Not Available | Plastic Bushing Black | C-73400 | Not Available |
| 3 | Not Available | Carpet/Floor Pedal Cover Red | PRO-73628 | Not Available |
| 4 | Not Available | Window Cover Red | PRO-73001 | Not Available |
| 5 | Not Available | Bottom Plate Lock Screw | C-77039 | Not Available |
| 6 | Not Available | Nozzle Housing Felt Packing | C-73480 | Not Available |
| 7 | Not Available | Hose Inlet Fitting Red | C-73430 | Not Available |
| 8 | Not Available | Set Screw | C-77040 | Not Available |
| 9 | Not Available | Vented Support Fitting | C-73482 | Not Available |
| 10 | Not Available | Vented Support Felt Packing | C-73484 | Not Available |
| 11 | Not Available | Furniture Guard Black | C-74100 | Not Available |
| 12 | Not Available | Foot Pedal Complete Black | C-73720 | Not Available |
| 13 | Not Available | Pedal Frame | C-73780 | Not Available |
| 14 | Not Available | Foot Pedal Black | C-73722 | Not Available |
| 15 | Not Available | E-Clip | C-77051 | Not Available |
| 16 | Not Available | Set Screw | C-77032 | Not Available |
| 17 | Not Available | Foot Pedal Shaft | C-73782 | Not Available |
| 18 | Not Available | Rear Belt Cover Black | C-73790 | Not Available |
| 19 | Not Available | Foot Pedal Spring | C-77042 | Not Available |
| 20 | Not Available | Belt Guard | C-73486 | Not Available |
| 21 | Not Available | Set Screw | C-77043 | Not Available |
| 22 | Not Available | Belt 2 Pk | C-10000 | Not Available |
| 23 | Not Available | Washer | C-77044 | Not Available |
| 24 | Not Available | Set Screw | C-77000 | Not Available |
| 25 | Not Available | Nozzle Hose Black | PRO-40005 | Not Available |
| 26 | Not Available | Bottom Plate Ass'y | C-76100 | Not Available |
| 27 | Not Available | Packing Grip | C-76001 | Not Available |
| 28 | Not Available | Bottom Plate Wheel Pin | C-71010 | Not Available |
| 29 | Not Available | Bottom Plate Wheel Black | C-71011 | Not Available |
| 30 | Not Available | Push-On Nut | C-77015 | Not Available |
| 31 | Not Available | Set Screw | C-77016 | Not Available |
| 32 | Not Available | Bottom Plate Latch Washer | C-77017 | Not Available |
| 33 | Not Available | Bottom Plate | C-76101 | Not Available |
| 34 | Not Available | Bottom Plate Wheel Black | C-77018 | Not Available |
| 35 | Not Available | Bottom Plate Latch Spring | C-76400 | Not Available |
| 36 | Not Available | Agitator Ass'y Metal | C-20000 | Not Available |
| 37 | Not Available | Agitator Core Metal | C-20500 | Not Available |
| 38 | Not Available | Rubber End Cover Black | C-20510 | Not Available |
| 39 | Not Available | End Cap | C-20512 | Not Available |
| 40 | Not Available | Agitator Felt Washer White | C-77036 | Not Available |
| 41 | Not Available | Washer | C-77037 | Not Available |
| 42 | Not Available | Agitator Bearing | C-62000 | Not Available |
| 43 | Not Available | Agitator Bearing Holder | C-20514 | Not Available |
| 44 | Not Available | Agitator Brush | C-22000 | Not Available |
| 45 | Not Available | Agitator Pulley Complete | C-20516 | Not Available |
| 46 | Not Available | Agitator Pulley | C-20519 | Not Available |
| 47 | Not Available | Agitator Pulley Bushing | C-20530 | Not Available |
| 48 | Not Available | Agitator Shaft | C-20522 | Not Available |
| 49 | Not Available | 2-Piece Wand Black P8500 | PRO-50000 | Not Available |
| 50 | Not Available | Crevice Tool Black | C-54005 | Not Available |
| 51 | Not Available | Dusting Brush Black | C-53005 | Not Available |
| 52 | Not Available | Upholstery Tool Black | C-52005 | Not Available |
| 53 | Not Available | Metal Telescopic Wand P8500A | C-50008 | Not Available |
| 54 | Not Available | Nozzle Housing Assembly Red | PRO-73005 | Not Available |
| 55 | Not Available | Bearing Holder With Bearing | C-20515 | Not Available |
