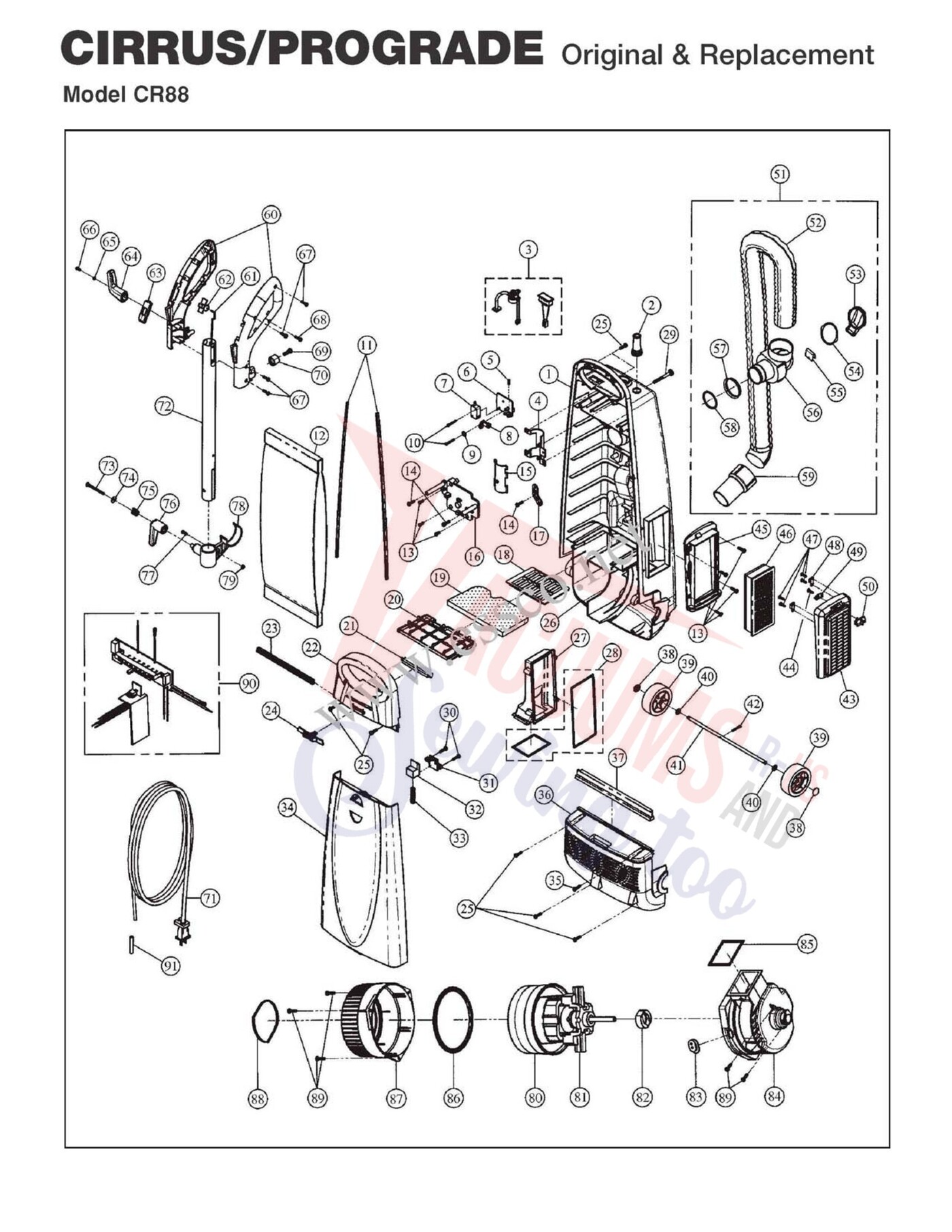

Schematic and parts book for cirrus CR88 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment (Blue) | C-75010 | Not Available |
| 2 | Not Available | Rubber Boot (Gray) | C-32002 | Not Available |
| 3 | Not Available | Vacuum Sensor & Full Bag Indicator | C-36401 | Not Available |
| 4 | Not Available | Handle Fitting (Rear) | C-70590 | Not Available |
| 5 | Not Available | Switch Activator Spring | C-77023 | Not Available |
| 6 | Not Available | Switch Mounting Plate | C-75092 | Not Available |
| 7 | Not Available | Switch | C-36000 | Not Available |
| 8 | Not Available | Switch Activator | C-34520 | Not Available |
| 9 | Not Available | Plastic Washer | C-77024 | Not Available |
| 10 | Not Available | Screw | C-77025 | Not Available |
| 11 | Not Available | Dust Compartment Side Seals | C-76900 | Not Available |
| 12 | Not Available | Paper Bag 6 Pk | C-14000 | Not Available |
| 13 | Not Available | Screw | C-77003 | Not Available |
| 14 | Not Available | Screw | C-77032 | Not Available |
| 15 | Not Available | Handle Fitting (Front) | C-70591 | Not Available |
| 16 | Not Available | Printed Circuit Board Holder | C-75090 | Not Available |
| 17 | Not Available | Cord Holder (Black) | C-32002 | Not Available |
| 18 | Not Available | Filter Supporter Screen | C-18402 | Not Available |
| 19 | Not Available | Secondary Filter | C-18005 | Not Available |
| 20 | Not Available | Bag Support (Red) | C-18422 | Not Available |
| 21 | Not Available | LED Light Window (Clear) | C-75700 | Not Available |
| 22 | Not Available | Switch Housing Cover (Blue) | C-75906 | Not Available |
| 23 | Not Available | Dust Cover Seal | C-76902 | Not Available |
| 24 | Not Available | Slide Knob (Gray) | C-75590 | Not Available |
| 25 | Not Available | Screw | C-77026 | Not Available |
| 26 | Not Available | Motor Compartment Seals | C-76022 | Not Available |
| 27 | Not Available | Motor Exhaust Housing W/Gasket | C-75899 | Not Available |
| 29 | Not Available | Handle Screw | C-77030 | Not Available |
| 30 | Not Available | Screw | C-70000 | Not Available |
| 31 | Not Available | Latch Bracket (Gray) | C-75804 | Not Available |
| 32 | Not Available | Cover Latch (Gray) | C-75027 | Not Available |
| 33 | Not Available | Cover Latch Spring (Gray) | C-77027 | Not Available |
| 34 | Not Available | Dust Compartment Cover (Blue) | C-75504 | Not Available |
| 35 | Not Available | Screw | C-70000 | Not Available |
| 36 | Not Available | Motor Cover Assembly (Blue) | C-75038 | Not Available |
| 37 | Not Available | Motor Cover Seal | C-76010 | Not Available |
| 38 | Not Available | Cap Nut | C-71505 | Not Available |
| 39 | Not Available | Rear Wheel (Black) | C-71001 | Not Available |
| 40 | Not Available | Washer | C-77033 | Not Available |
| 41 | Not Available | Rear Wheel Shaft | C-71003 | Not Available |
| 42 | Not Available | Screw | C-77034 | Not Available |
| 43 | Not Available | Filter Cover (Blue) | C-75824 | Not Available |
| 44 | Not Available | Screw | C-77035 | Not Available |
| 45 | Not Available | Filter Holder (Blue) | C-75828 | Not Available |
| 46 | Not Available | HEPA Filter | C-18054 | Not Available |
| 47 | Not Available | Screw | C-77035 | Not Available |
| 48 | Not Available | Filter Cover Fitting | C-75890 | Not Available |
| 49 | Not Available | Filter Cover Knob Fitting | C-75895 | Not Available |
| 50 | Not Available | Filter Cover Knob (Gray) | C-75898 | Not Available |
| 51 | Not Available | Stretch Hose Complete (Gray) | C-40003 | Not Available |
| 52 | Not Available | Stretch Hose | C-40052 | Not Available |
| 53 | Not Available | Suction Inlet Lid (Gray) | C-75057 | Not Available |
| 54 | Not Available | Suction Inlet Lid Seal | C-76020 | Not Available |
| 55 | Not Available | Suction Inlet Lid Spring | C-77031 | Not Available |
| 56 | Not Available | Suction Inlet (Gray) | C-75055 | Not Available |
| 57 | Not Available | Suction Inlet Seal (Large) | C-76080 | Not Available |
| 58 | Not Available | Suction Inlet Seal (Small) | C-76081 | Not Available |
| 59 | Not Available | Hose Cuff (Gray) | C-45000 | Not Available |
| 60 | Not Available | Handle Grip (Gray) | C-70251 | Not Available |
| 61 | Not Available | Handle Lever Rod | C-34500 | Not Available |
| 62 | Not Available | Switch Knob | C-34505 | Not Available |
| 63 | Not Available | Switch Window (Gray) | C-34511 | Not Available |
| 64 | Not Available | Upper Cord Hook (Gray) | C-70506 | Not Available |
| 65 | Not Available | Spring Washer | C-77014 | Not Available |
| 66 | Not Available | Screw | C-77012 | Not Available |
| 67 | Not Available | Screw | C-77000 | Not Available |
| 68 | Not Available | Screw | C-77000 | Not Available |
| 69 | Not Available | Screw | C-77019 | Not Available |
| 70 | Not Available | Handle Grip Bushing (Gray) | C-70750 | Not Available |
| 71 | Not Available | Power Cord 33' 17/2 (Gray) | C-30005 | Not Available |
| 72 | Not Available | Handle Tube | C-70005 | Not Available |
| 73 | Not Available | Screw | C-77020 | Not Available |
| 74 | Not Available | Washer | C-77005 | Not Available |
| 75 | Not Available | Cord Hook Spring | C-77010 | Not Available |
| 76 | Not Available | Lower Cord Hook (Gray) | C-70505 | Not Available |
| 77 | Not Available | Screw | C-77021 | Not Available |
| 78 | Not Available | Stretch Hose Holder (Gray) | C-70705 | Not Available |
| 79 | Not Available | Nut | C-77022 | Not Available |
| 80 | Not Available | Lamb Motor Twin Fan | C-60010 | Not Available |
| 81 | Not Available | Carbon Brush | C-63000 | Not Available |
| 82 | Not Available | Motor Mount (Front) | C-62010 | Not Available |
| 83 | Not Available | Cord Clip Rubber | C-32600 | Not Available |
| 84 | Not Available | Motor Support Cover (Black) | C-62020 | Not Available |
| 85 | Not Available | Motor Support Cover Foam | C-76030 | Not Available |
| 86 | Not Available | Motor Mount (Rear) | C-62025 | Not Available |
| 87 | Not Available | Motor Support Housing (Black) | C-62033 | Not Available |
| 88 | Not Available | Motor Support Housing Foam | C-76033 | Not Available |
| 89 | Not Available | Screw | C-70000 | Not Available |
| 90 | Not Available | Printed Circuit Board | C-36050 | Not Available |
| 91 | Not Available | Cord Protector | C-32090 | Not Available |

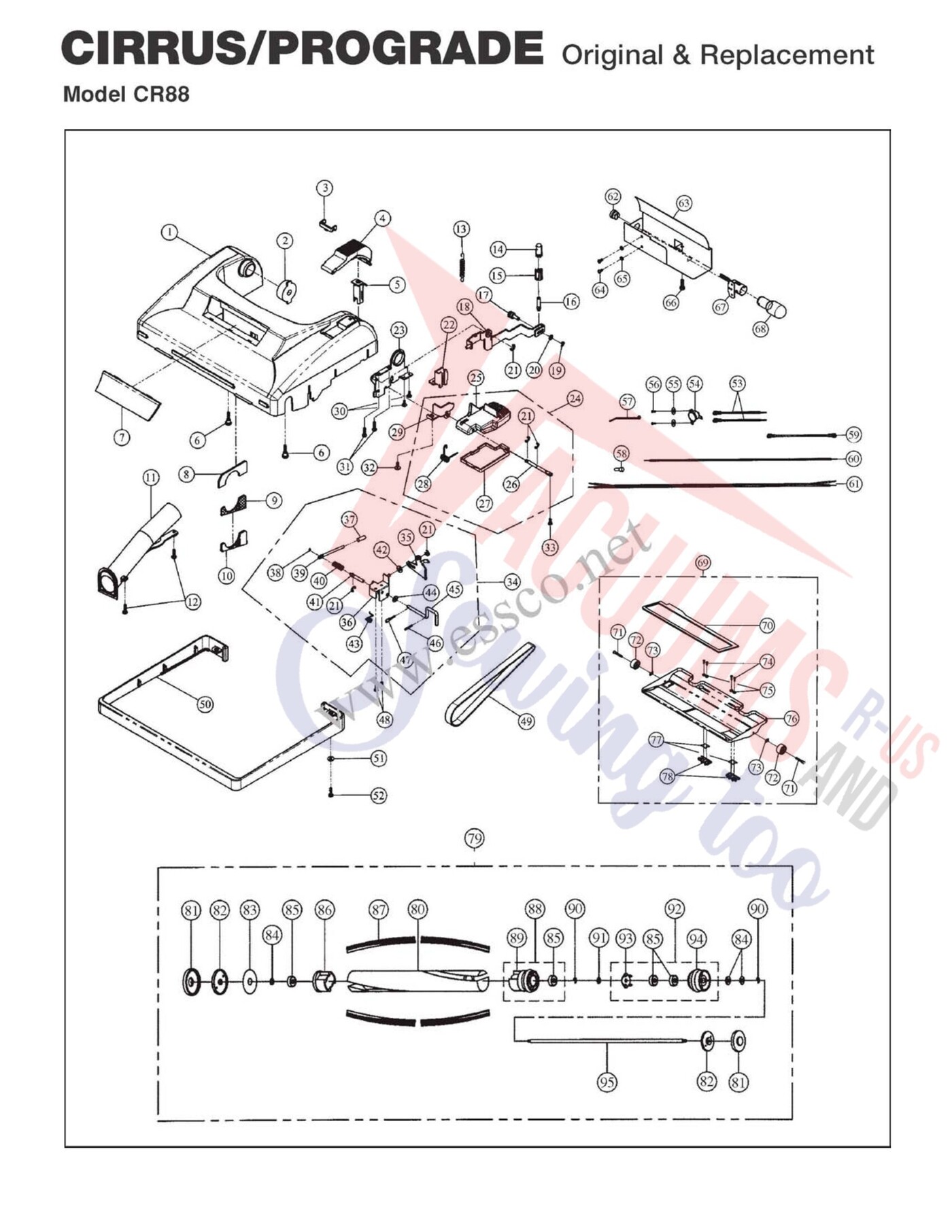

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing (Blue) | C-73004 | Not Available |
| 2 | Not Available | Plastic Bushing (Black) | C-73400 | Not Available |
| 3 | Not Available | Clutch Pedal Pivot (Gray) | C-73630 | Not Available |
| 4 | Not Available | Carpet/Floor Pedal (Gray) | C-73632 | Not Available |
| 5 | Not Available | Clutch Pedal Ring Holder (Black) | C-73634 | Not Available |
| 6 | Not Available | Bottom Plate Lock Screw | C-77039 | Not Available |
| 7 | Not Available | Clear Lens | C-73410 | Not Available |
| 8 | Not Available | Nozzle Housing Felt Packing | C-73480 | Not Available |
| 9 | Not Available | Vented Support Felt Packing | C-73484 | Not Available |
| 10 | Not Available | Vented Support Fitting | C-73482 | Not Available |
| 11 | Not Available | Nozzle Inlet (Gray) | C-73432 | Not Available |
| 12 | Not Available | Screw | C-77040 | Not Available |
| 13 | Not Available | Clutch Crank Rod Spring | C-77048 | Not Available |
| 14 | Not Available | Upper Clutch Pedal Ring (Black) | C-73635 | Not Available |
| 15 | Not Available | Lower Clutch Pedal Ring (Black) | C-73636 | Not Available |
| 16 | Not Available | Clutch Pedal Ring Pin | C-73637 | Not Available |
| 17 | Not Available | Clutch Crank Rod Pin | C-73638 | Not Available |
| 18 | Not Available | Clutch Crank Rod Ass'y | C-73647 | Not Available |
| 19 | Not Available | E-Clip | C-77049 | Not Available |
| 20 | Not Available | Washer | C-77050 | Not Available |
| 21 | Not Available | E-Clip | C-77051 | Not Available |
| 22 | Not Available | Clutch Crank Rod Pin Holder (Order \ | NLA | Not Available |
| 23 | Not Available | Pedal Frame Holder | C-73641 | Not Available |
| 24 | Not Available | Foot Pedal Complete (Gray) | C-73642 | Not Available |
| 25 | Not Available | Foot Pedal (Gray) | C-73643 | Not Available |
| 26 | Not Available | Foot Pedal Shaft | C-73782 | Not Available |
| 27 | Not Available | Rear Belt Cover (Gray) | C-73792 | Not Available |
| 28 | Not Available | Foot Pedal Spring | C-77052 | Not Available |
| 29 | Not Available | Pedal Frame | C-73646 | Not Available |
| 30 | Not Available | Screw | C-77046 | Not Available |
| 31 | Not Available | Screw | C-77043 | Not Available |
| 32 | Not Available | Screw | C-77052 | Not Available |
| 33 | Not Available | Screw | C-77032 | Not Available |
| 34 | Not Available | Clutch Crank Rod Frame Complete | C-73500 | Not Available |
| 35 | Not Available | Clutch Crank Rod | C-73502 | Not Available |
| 36 | Not Available | Clutch Crank Rod Frame | C-73504 | Not Available |
| 37 | Not Available | Clutch Lever Boot (Order C-73500) | NLA | Not Available |
| 38 | Not Available | E-Clip | C-77053 | Not Available |
| 39 | Not Available | Clutch Lever | C-73508 | Not Available |
| 40 | Not Available | Clutch Crank Rod Spring | C-77054 | Not Available |
| 41 | Not Available | Clutch Crank Rod Frame Shaft | C-73501 | Not Available |
| 42 | Not Available | Washer | C-77055 | Not Available |
| 43 | Not Available | Rod Frame Shaft Spring | C-77056 | Not Available |
| 44 | Not Available | Washer | C-77037 | Not Available |
| 45 | Not Available | Clutch Crank Rod | C-73512 | Not Available |
| 46 | Not Available | Spring Pin | C-77057 | Not Available |
| 47 | Not Available | Clutch Crank Rod Pin | C-73514 | Not Available |
| 48 | Not Available | Screw | C-77032 | Not Available |
| 49 | Not Available | Belt 2 Pk | C-10000 | Not Available |
| 50 | Not Available | Furniture Guard (Gray) | C-74102 | Not Available |
| 51 | Not Available | Washer | C-77044 | Not Available |
| 52 | Not Available | Screw | C-77000 | Not Available |
| 53 | Not Available | Lead Wire (Black) | C-36908 | Not Available |
| 54 | Not Available | Thermal Switch | C-36005 | Not Available |
| 55 | Not Available | Washer | C-77005 | Not Available |
| 56 | Not Available | Screw | C-77047 | Not Available |
| 57 | Not Available | Cord Clip | C-32003 | Not Available |
| 58 | Not Available | Wire Nut | SS-3270 | Not Available |
| 59 | Not Available | Lead Wire Black | C-36906 | Not Available |
| 60 | Not Available | Lead Wire White | C-36904 | Not Available |
| 61 | Not Available | Lead Wire White | C-36902 | Not Available |
| 62 | Not Available | Wire Bushing | C-36914 | Not Available |
| 63 | Not Available | Reflector | C-73412 | Not Available |
| 64 | Not Available | Screw | C-77046 | Not Available |
| 65 | Not Available | Spring Washer | C-77045 | Not Available |
| 66 | Not Available | Screw | C-70000 | Not Available |
| 67 | Not Available | Bulb Socket | C-73414 | Not Available |
| 68 | Not Available | Light Bulb | FA-3515 | Not Available |
| 69 | Not Available | Bottom Plate Assembly | C-76100 | Not Available |
| 70 | Not Available | Bottom Plate Seal | C-76001 | Not Available |
| 71 | Not Available | Front Plate Wheel Pin | C-71010 | Not Available |
| 72 | Not Available | Front Wheel (Black) | C-71011 | Not Available |
| 73 | Not Available | Push-On Nut | C-77015 | Not Available |
| 74 | Not Available | Screw | C-77016 | Not Available |
| 75 | Not Available | Bottom Plate Latch Washer | C-77017 | Not Available |
| 76 | Not Available | Bottom Plate | C-76101 | Not Available |
| 77 | Not Available | Bottom Plate Latch Spring | C-77018 | Not Available |
| 78 | Not Available | Bottom Plate Latch (Black) | C-76400 | Not Available |
| 79 | Not Available | Agitator Assembly | C-20002 | Not Available |
| 80 | Not Available | Agitator Core | C-20500 | Not Available |
| 81 | Not Available | Rubber End Cover (Black) | C-20510 | Not Available |
| 82 | Not Available | End Cap | C-20512 | Not Available |
| 83 | Not Available | Agitator Felt Washer | C-77036 | Not Available |
| 84 | Not Available | Washer | C-77037 | Not Available |
| 85 | Not Available | Agitator Bearing | C-62000 | Not Available |
| 86 | Not Available | Agitator Bearing Holder | C-20514 | Not Available |
| 87 | Not Available | Brush Strip | C-22000 | Not Available |
| 88 | Not Available | Clutch Pulley (Large) Complete | C-20524 | Not Available |
| 89 | Not Available | Clutch Pulley (Large) | C-20525 | Not Available |
| 90 | Not Available | E-Clip | C-77028 | Not Available |
| 91 | Not Available | Washer | C-77038 | Not Available |
| 92 | Not Available | Clutch Pulley (Small) Complete | C-20526 | Not Available |
| 93 | Not Available | Clutch Pulley (Small) Cover | C-20528 | Not Available |
| 94 | Not Available | Clutch Pulley (Small) | C-20527 | Not Available |
| 95 | Not Available | Agitator Shaft | C-20522 | Not Available |
| # | Part image | Description | SKU | Price |

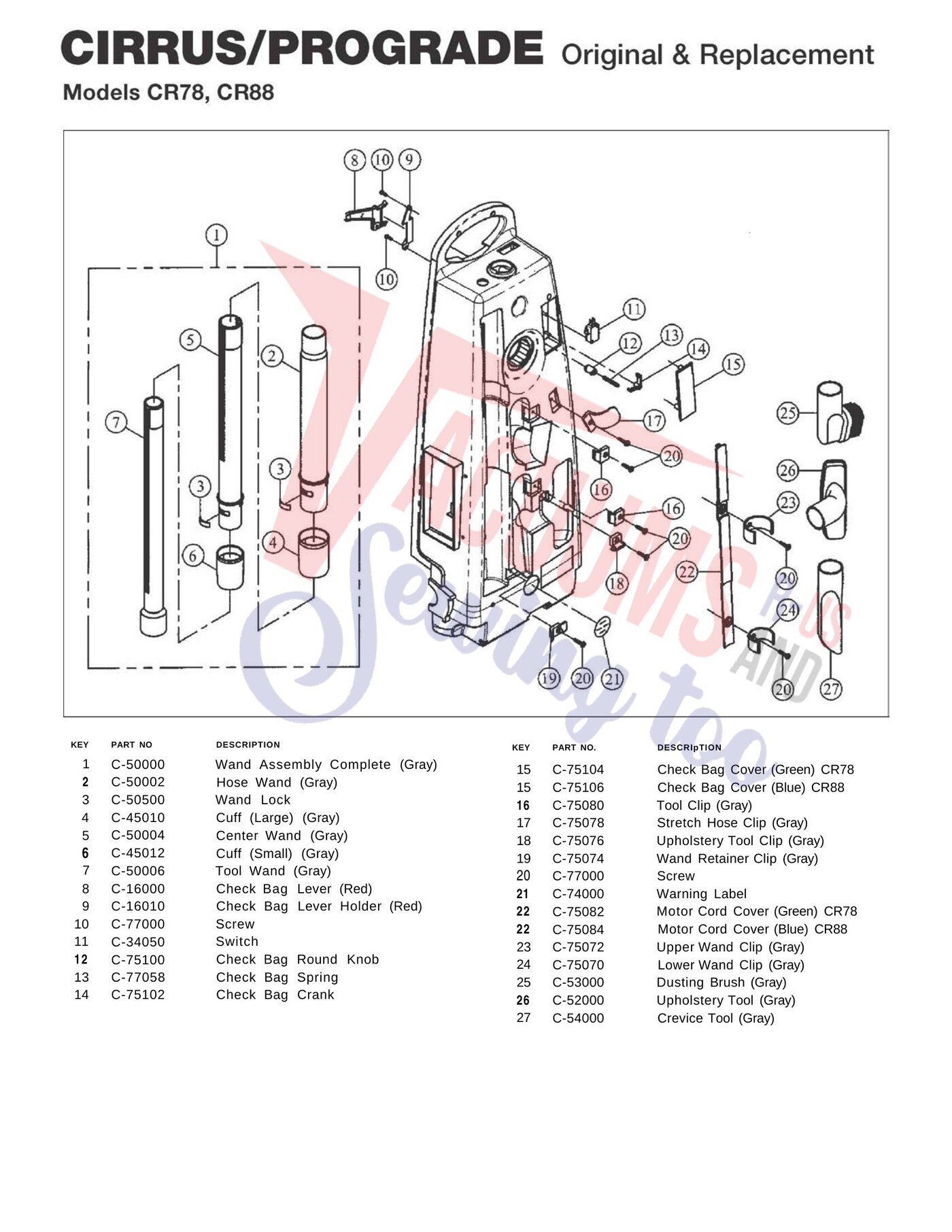

| 1 | Not Available | Wand Assembly Complete (Gray) | C-50000 | Not Available |
| 2 | Not Available | Hose Wand (Gray) | C-50002 | Not Available |
| 3 | Not Available | Wand Lock | C-50500 | Not Available |
| 4 | Not Available | Cuff (Large) (Gray) | C-45010 | Not Available |
| 5 | Not Available | Center Wand (Gray) | C-50004 | Not Available |
| 6 | Not Available | Cuff (Small) (Gray) | C-45012 | Not Available |
| 7 | Not Available | Tool Wand (Gray) | C-50006 | Not Available |
| 8 | Not Available | Check Bag Lever (Red) | C-16000 | Not Available |
| 9 | Not Available | Check Bag Lever Holder (Red) | C-16010 | Not Available |
| 10 | Not Available | Screw | C-77000 | Not Available |
| 11 | Not Available | Switch | C-34050 | Not Available |
| 12 | Not Available | Check Bag Round Knob | C-75100 | Not Available |
| 13 | Not Available | Check Bag Spring | C-77058 | Not Available |
| 14 | Not Available | Check Bag Crank | C-75102 | Not Available |
| 15 | Not Available | Check Bag Cover (Green) CR78 | C-75104 | Not Available |
| 15 | Not Available | Check Bag Cover (Blue) CR88 | C-75106 | Not Available |
| 16 | Not Available | Tool Clip (Gray) | C-75080 | Not Available |
| 17 | Not Available | Stretch Hose Clip (Gray) | C-75078 | Not Available |
| 18 | Not Available | Upholstery Tool Clip (Gray) | C-75076 | Not Available |
| 19 | Not Available | Wand Retainer Clip (Gray) | C-75074 | Not Available |
| 20 | Not Available | Screw | C-77000 | Not Available |
| 21 | Not Available | Warning Label | C-74000 | Not Available |
| 22 | Not Available | Motor Cord Cover (Green) CR78 | C-75082 | Not Available |
| 22 | Not Available | Motor Cord Cover (Blue) CR88 | C-75084 | Not Available |
| 23 | Not Available | Upper Wand Clip (Gray) | C-75072 | Not Available |
| 24 | Not Available | Lower Wand Clip (Gray) | C-75070 | Not Available |
| 25 | Not Available | Dusting Brush (Gray) | C-53000 | Not Available |
| 26 | Not Available | Upholstery Tool (Gray) | C-52000 | Not Available |
| 27 | Not Available | Crevice Tool (Gray) | C-54000 | Not Available |
Report errors on this page HERE
