Schematic and parts book for cirrus CR68 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

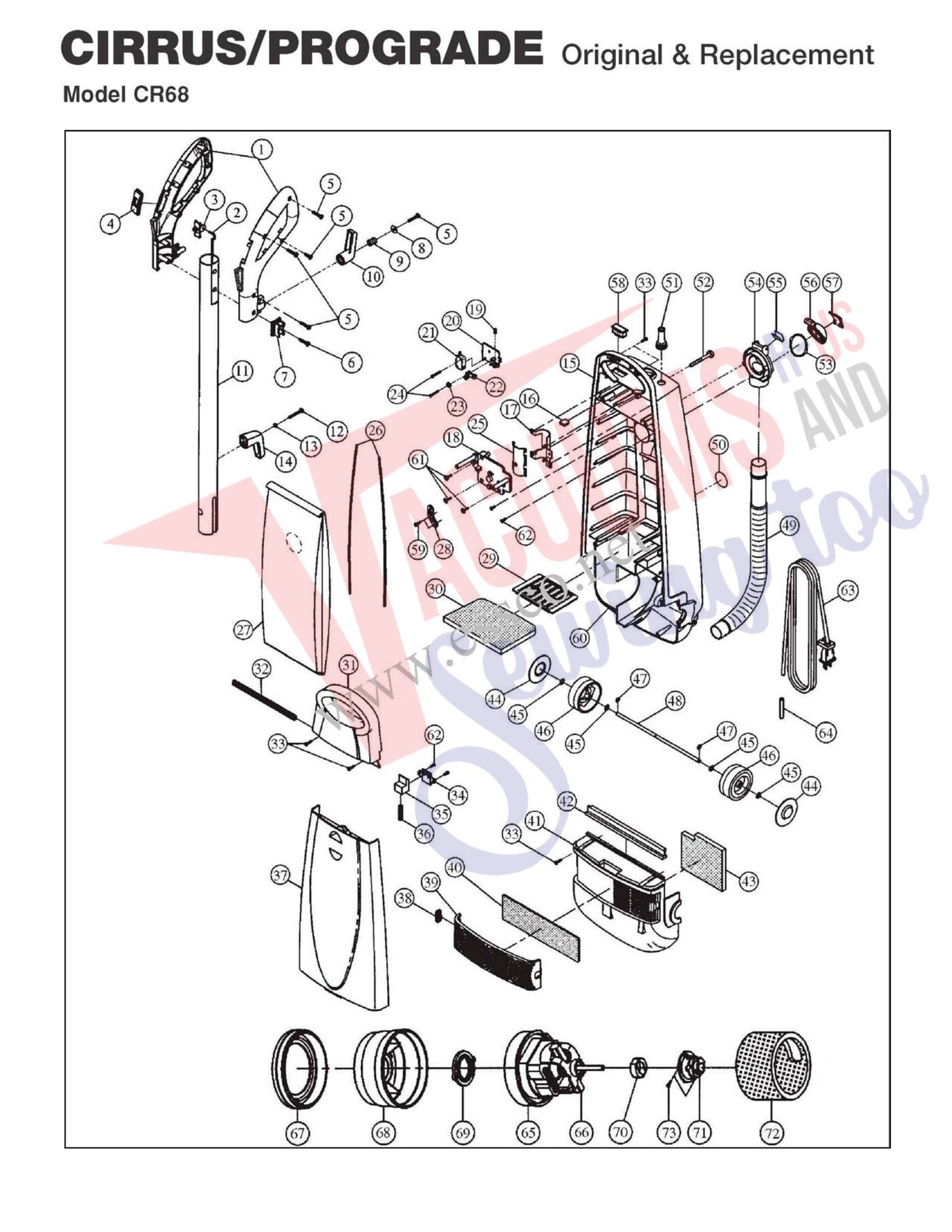

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle Grip RH & LH (Black) | C-70250 | Not Available |
| 2 | Not Available | Handle Lever Rod | C-34500 | Not Available |
| 3 | Not Available | Switch Knob | C-34505 | Not Available |
| 4 | Not Available | Switch Cover (Black) | C-34510 | Not Available |
| 5 | Not Available | Screw | C-77000 | Not Available |
| 6 | Not Available | Screw | C-77003 | Not Available |
| 7 | Not Available | Cord Clip (Black) | C-70520 | Not Available |
| 8 | Not Available | Washer | C-77005 | Not Available |
| 9 | Not Available | Cord Hook Spring | C-77010 | Not Available |
| 10 | Not Available | Upper Cord Hook (Black) | C-70500 | Not Available |
| 11 | Not Available | Handle Tube | C-70000 | Not Available |
| 12 | Not Available | Screw | C-77012 | Not Available |
| 13 | Not Available | Washer | C-77014 | Not Available |
| 14 | Not Available | Lower Cord Hook (Black) | C-70501 | Not Available |
| 15 | Not Available | Dust Compartment (White) | C-75000 | Not Available |
| 16 | Not Available | Vented Support Rubber | C-75900 | Not Available |
| 17 | Not Available | Handle Fitting (Rear) | C-70590 | Not Available |
| 18 | Not Available | P.C. Board Holder | C-75090 | Not Available |
| 19 | Not Available | Switch Activator Spring | C-77023 | Not Available |
| 20 | Not Available | Switch Mounting Plate | C-75092 | Not Available |
| 21 | Not Available | Switch | C-36000 | Not Available |
| 22 | Not Available | Switch Activator | C-34520 | Not Available |
| 23 | Not Available | Plastic Washer | C-77024 | Not Available |
| 24 | Not Available | Screw | C-77025 | Not Available |
| 25 | Not Available | Handle Fitting (Front) | C-70591 | Not Available |
| 26 | Not Available | Dust Compartment Side Seals | C-76900 | Not Available |
| 27 | Not Available | Paper Bag HEPA Type 6 Pk | C-14000 | Not Available |
| 27 | Not Available | Paper Bag Micro Filtration 12 Pk | C-14005 | Not Available |
| 28 | Not Available | Cord Holder (Black) | C-32025 | Not Available |
| 29 | Not Available | Filter Supporter Screen | C-18420 | Not Available |
| 30 | Not Available | Secondary Filter | C-18000 | Not Available |
| 31 | Not Available | Switch Housing Cover (White) | C-75902 | Not Available |
| 32 | Not Available | Dust Cover Seal | C-76902 | Not Available |
| 33 | Not Available | Screw | C-77026 | Not Available |
| 34 | Not Available | Latch Bracket (Black) | C-75802 | Not Available |
| 35 | Not Available | Cover Latch (Black) | C-75025 | Not Available |
| 36 | Not Available | Cover Latch Spring | C-77027 | Not Available |
| 37 | Not Available | Dust Compartment Cover (White) | C-75500 | Not Available |
| 38 | Not Available | Post Cover Knob (Black) | C-75950 | Not Available |
| 39 | Not Available | Post Cover (White) | C-75820 | Not Available |
| 40 | Not Available | Electrostatic Exhaust Filter | C-18051 | Not Available |
| 41 | Not Available | Motor Cover (White) | C-75036 | Not Available |
| 42 | Not Available | Motor Cover Seal Upper | C-76010 | Not Available |
| 43 | Not Available | Exhaust Filter | C-18050 | Not Available |
| 44 | Not Available | Rear Wheel Hubcap | C-71500 | Not Available |
| 45 | Not Available | Washer Rear Wheel | C-77029 | Not Available |
| 46 | Not Available | Rear Wheel (Black) | C-71000 | Not Available |
| 47 | Not Available | E-Clip Rear Wheel | C-77028 | Not Available |
| 48 | Not Available | Rear Wheel Shaft | C-71002 | Not Available |
| 49 | Not Available | Nozzle Hose Blow Molded (Black) | C-40000 | Not Available |
| 50 | Not Available | Warning Label | C-74000 | Not Available |
| 51 | Not Available | Rubber Boot (Black) | C-32000 | Not Available |
| 52 | Not Available | Handle Screw | C-77030 | Not Available |
| 53 | Not Available | Suction Inlet Cover Seal | C-76020 | Not Available |
| 54 | Not Available | Suction Inlet (Black) | C-75050 | Not Available |
| 55 | Not Available | Suction Inlet Lid Spring | C-77031 | Not Available |
| 56 | Not Available | Suction Inlet Lid (Black) | C-75051 | Not Available |
| 57 | Not Available | Suction Slide Control (Black) | C-75052 | Not Available |
| 58 | Not Available | Switch Filler Plug | C-75053 | Not Available |
| 59 | Not Available | Screw Internal Cord Holder | C-77032 | Not Available |
| 60 | Not Available | Motor Cover Seal Lower | C-76022 | Not Available |
| 61 | Not Available | Screw | C-77003 | Not Available |
| 62 | Not Available | Screw | C-77000 | Not Available |
| 63 | Not Available | Power Cord 24' 17/2 (Black) | C-30000 | Not Available |
| 64 | Not Available | Cord Protector | C-32090 | Not Available |
| 65 | Not Available | Motor 1000W | C-60000 | Not Available |
| 66 | Not Available | Carbon Brush | C-63005 | Not Available |
| 67 | Not Available | Motor Mount (Rear) | C-62003 | Not Available |
| 68 | Not Available | Motor Support Housing (Black) | C-62034 | Not Available |
| 69 | Not Available | Motor Gasket | C-76025 | Not Available |
| 70 | Not Available | Motor Mount (Front) | C-62010 | Not Available |
| 71 | Not Available | Motor Pivot Sleeve (Black) | C-62015 | Not Available |
| 72 | Not Available | Noise Suppressor | C-18700 | Not Available |
| 73 | Not Available | Set Screw | C-77000 | Not Available |

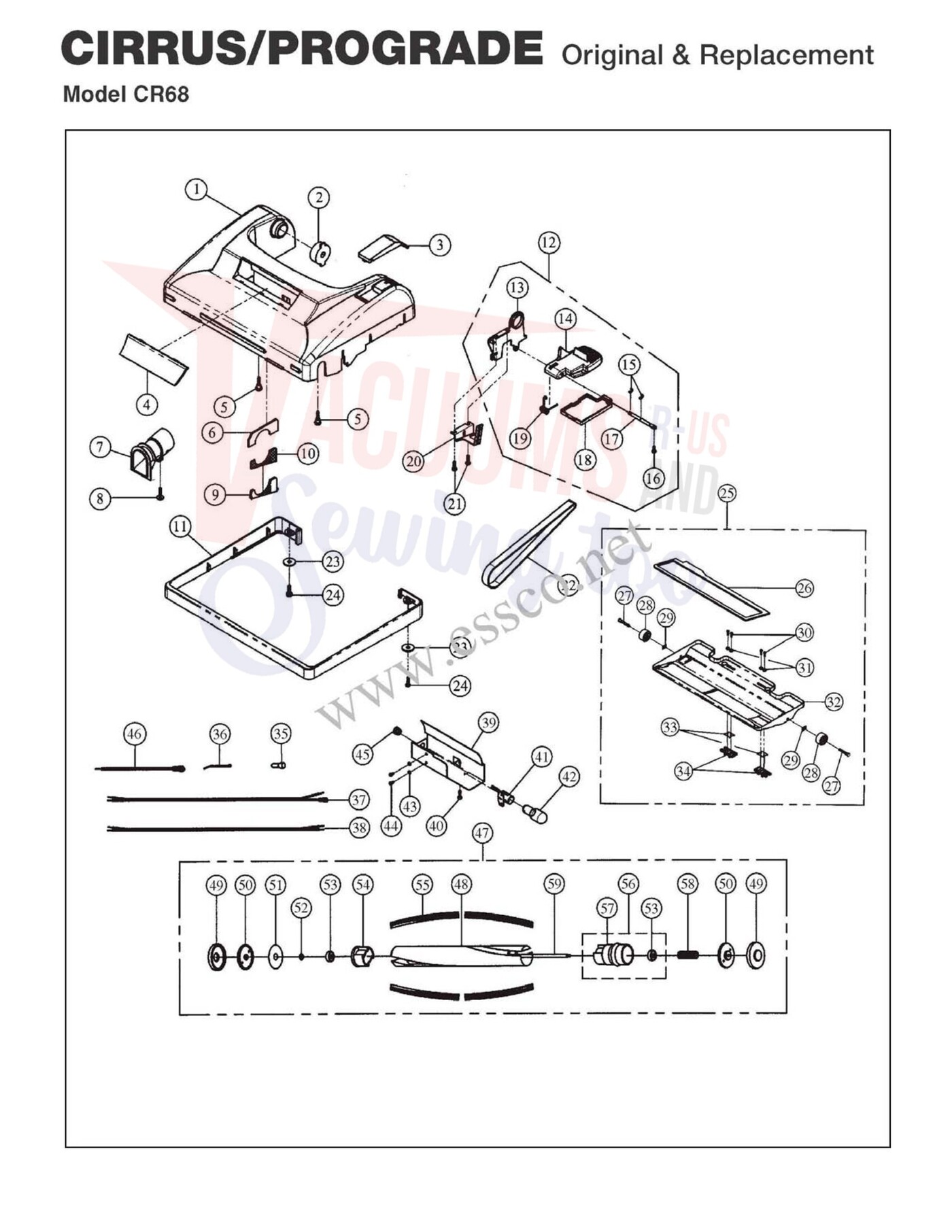

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing (White) | C-73000 | Not Available |
| 2 | Not Available | Plastic Bushing (Black) | C-73400 | Not Available |
| 3 | Not Available | Carpet/Floor Pedal Cover (White) | C-73450 | Not Available |
| 4 | Not Available | Clear Lens | C-73410 | Not Available |
| 5 | Not Available | Bottom Plate Lock Screw | C-77039 | Not Available |
| 6 | Not Available | Nozzle Housing Felt Packing | C-73480 | Not Available |
| 7 | Not Available | Hose Inlet Fitting (Red) | C-73430 | Not Available |
| 8 | Not Available | Screw | C-77040 | Not Available |
| 9 | Not Available | Vented Support Fitting | C-73482 | Not Available |
| 10 | Not Available | Vented Support Felt Packing | C-73484 | Not Available |
| 11 | Not Available | Furniture Guard (Black) | C-74100 | Not Available |
| 12 | Not Available | Foot Pedal Complete (Black) | C-73720 | Not Available |
| 13 | Not Available | Pedal Frame | C-73780 | Not Available |
| 14 | Not Available | Foot Pedal (Black) | C-73722 | Not Available |
| 15 | Not Available | E-Clip | C-77041 | Not Available |
| 16 | Not Available | Screw | C-77032 | Not Available |
| 17 | Not Available | Foot Pedal Shaft | C-73782 | Not Available |
| 18 | Not Available | Rear Belt Cover (Black) | C-73790 | Not Available |
| 19 | Not Available | Foot Pedal Spring | C-77042 | Not Available |
| 20 | Not Available | Belt Guard | C-73486 | Not Available |
| 21 | Not Available | Screw | C-77043 | Not Available |
| 22 | Not Available | Belt 2 Pk | C-10000 | Not Available |
| 23 | Not Available | Washer | C-77044 | Not Available |
| 24 | Not Available | Set Screw | C-77000 | Not Available |
| 25 | Not Available | Bottom Plate Assembly | C-76100 | Not Available |
| 26 | Not Available | Bottom Plate Gasket | C-76001 | Not Available |
| 27 | Not Available | Front Wheel Pin | C-71010 | Not Available |
| 28 | Not Available | Front Wheel (Black) | C-71011 | Not Available |
| 29 | Not Available | Push-On Nut | C-77015 | Not Available |
| 30 | Not Available | Screw | C-77016 | Not Available |
| 31 | Not Available | Washer | C-77017 | Not Available |
| 32 | Not Available | Bottom Plate | C-76101 | Not Available |
| 33 | Not Available | Bottom Plate Latch Spring | C-77018 | Not Available |
| 34 | Not Available | Bottom Plate Latch (Black) | C-76400 | Not Available |
| 35 | Not Available | Wire Connector | SS-3270 | Not Available |
| 36 | Not Available | Cord Clip | C-32003 | Not Available |
| 37 | Not Available | Lead Wire (Black) | C-36900 | Not Available |
| 38 | Not Available | Lead Wire (White) | C-36902 | Not Available |
| 39 | Not Available | Lamp Reflector | C-73412 | Not Available |
| 40 | Not Available | Screw | C-77000 | Not Available |
| 41 | Not Available | Bulb Socket | C-73414 | Not Available |
| 42 | Not Available | Light Bulb | FA-3515 | Not Available |
| 43 | Not Available | Spring Washer | C-77045 | Not Available |
| 44 | Not Available | Screw | C-77046 | Not Available |
| 45 | Not Available | Wire Bushing | C-36914 | Not Available |
| 46 | Not Available | Lead Wire (Black) | C-36908 | Not Available |
| 47 |  | Brushroll, Assembly Ext 3 Row 6502Z/6707Z/Ez Tool Part Number: V700324400 for Evolution | V700324400 | $81.40Read more |
| 48 | Not Available | Agitator Core (Metal) | C-20500 | Not Available |
| 49 | Not Available | Rubber End Cover (Black) | C-20510 | Not Available |
| 50 | Not Available | End Cap | C-20512 | Not Available |
| 51 | Not Available | Agitator Felt Washer | C-77036 | Not Available |
| 52 | Not Available | Washer | C-77037 | Not Available |
| 53 | Not Available | Agitator Bearing | C-62000 | Not Available |
| 54 | Not Available | Agitator Bearing Holder | C-20514 | Not Available |
| 55 | Not Available | Brush Strip | C-22000 | Not Available |
| 56 | Not Available | Agitator Pulley Complete | C-20516 | Not Available |
| 57 | Not Available | Agitator Pulley | C-20519 | Not Available |
| 58 | Not Available | Agitator Pulley Bushing | C-20530 | Not Available |
| 59 | Not Available | Agitator Shaft | C-20522 | Not Available |
