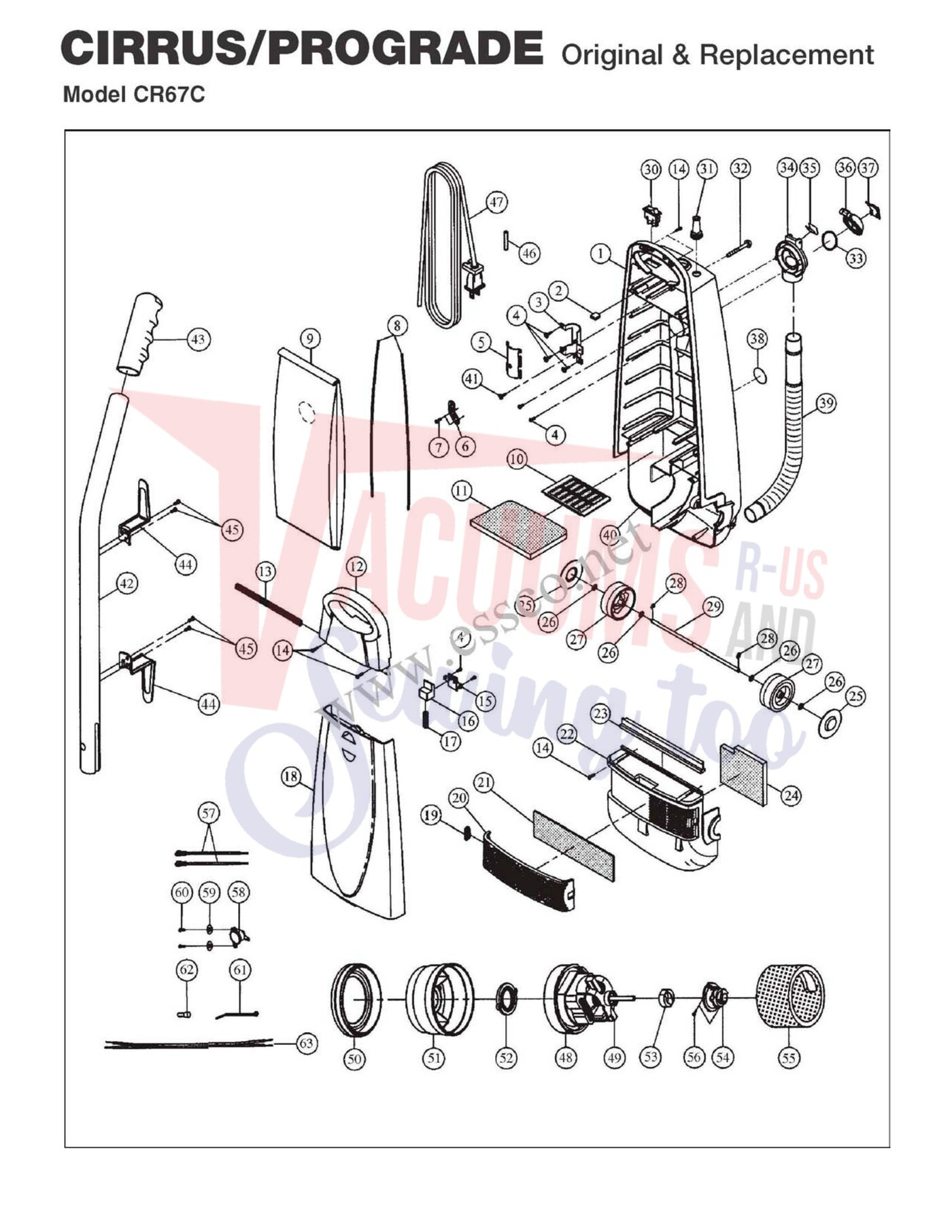

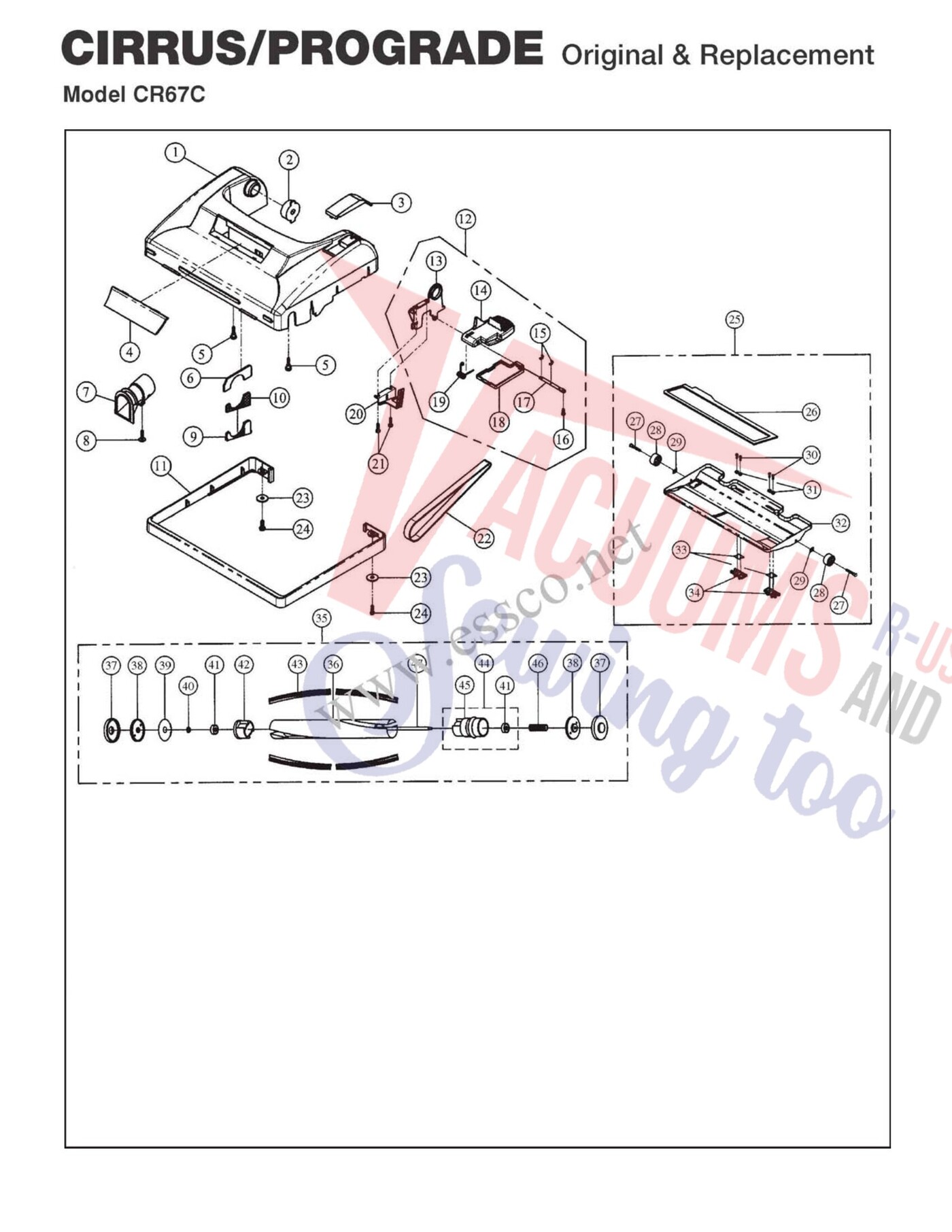

Schematic and parts book for cirrus CR67C . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment (Yellow) | C-75015 | Not Available |
| 2 | Not Available | Vented Support Rubber | C-75900 | Not Available |
| 3 | Not Available | Handle Fitting (Rear) | C-70590 | Not Available |
| 4 | Not Available | Screw | C-77000 | Not Available |
| 5 | Not Available | Handle Fitting (Front) | C-70591 | Not Available |
| 6 | Not Available | Cord Holder (Black) | C-32025 | Not Available |
| 7 | Not Available | Screw | C-77032 | Not Available |
| 8 | Not Available | Dust Compartment Side Seals | C-76900 | Not Available |
| 9 | Not Available | Paper Bag HEPA 6 Pk | C-14000 | Not Available |
| 9 | Not Available | Paper Bag Micro Filtration 12 Pk | C-14005 | Not Available |
| 9 | Not Available | Cloth Dump Bag | C-12250 | Not Available |
| 10 | Not Available | Filter Support Screen | C-18420 | Not Available |
| 11 | Not Available | Secondary Filter | C-18000 | Not Available |
| 12 | Not Available | Switch Housing Cover (Yellow) | C-75908 | Not Available |
| 13 | Not Available | Dust Cover Seal | C-76902 | Not Available |
| 14 | Not Available | Screw | C-77026 | Not Available |
| 15 | Not Available | Latch Bracket (Black) | C-75802 | Not Available |
| 16 | Not Available | Cover Latch (Black) | C-75025 | Not Available |
| 17 | Not Available | Cover Latch Spring | C-77027 | Not Available |
| 18 | Not Available | Dust Cover (Yellow) | C-75506 | Not Available |
| 19 | Not Available | Filter Cover Knob (Black) | C-75950 | Not Available |
| 20 | Not Available | Filter Cover (Yellow) | C-75829 | Not Available |
| 21 | Not Available | Exhaust Filter | C-18056 | Not Available |
| 22 | Not Available | Motor Cover (Yellow) | C-75039 | Not Available |
| 23 | Not Available | Motor Cover Seal | C-76010 | Not Available |
| 24 | Not Available | Motor Filter | C-18050 | Not Available |
| 25 | Not Available | Rear Wheel Hubcap | C-71500 | Not Available |
| 26 | Not Available | Washer | C-77029 | Not Available |
| 27 | Not Available | Rear Wheel (Black) | C-71000 | Not Available |
| 28 | Not Available | E-Clip | C-77028 | Not Available |
| 29 | Not Available | Rear Wheel Shaft | C-71002 | Not Available |
| 30 | Not Available | Switch (Black) | C-34005 | Not Available |
| 31 | Not Available | Large Rubber Boot (Black) | C-32605 | Not Available |
| 32 | Not Available | Handle Screw | C-77030 | Not Available |
| 33 | Not Available | Suction Inlet Cover Seal | C-76020 | Not Available |
| 34 | Not Available | Suction Inlet (Black) | C-75050 | Not Available |
| 35 | Not Available | Suction Inlet Lid Spring | C-77031 | Not Available |
| 36 | Not Available | Suction Inlet Lid (Black) | C-75051 | Not Available |
| 37 | Not Available | Suction Control Dial (Black) | C-75052 | Not Available |
| 38 | Not Available | Warning Label | C-74000 | Not Available |
| 39 | Not Available | Nozzle Hose (Black) | C-40000 | Not Available |
| 42 | Not Available | Handle Tube | C-70008 | Not Available |
| 43 | Not Available | Soft Grip (Black) | C-70255 | Not Available |
| 44 | Not Available | Metal Cord Hook | C-70508 | Not Available |
| 45 | Not Available | Screw | C-77012 | Not Available |
| 46 | Not Available | Cord Protector | C-32092 | Not Available |
| 47 |  | Bissell Switch for BGC3000 Canister Vacuum clean obsessed CO711 switch | C30007 | $5.06Read more |
| 48 | Not Available | Lamb Motor | C-60000 | Not Available |
| 49 | Not Available | Carbon Brush | C-63005 | Not Available |
| 50 | Not Available | Motor Mount (Rear) | C-62003 | Not Available |
| 51 | Not Available | Motor Support Housing (Black) | C-62005 | Not Available |
| 52 | Not Available | Suction Inlet Packing | C-76025 | Not Available |
| 53 | Not Available | Motor Mount (Front) | C-62010 | Not Available |
| 54 | Not Available | Motor Pivot Sleeve (Black) | C-62015 | Not Available |
| 55 | Not Available | Noise Suppressor | C-18700 | Not Available |
| 56 | Not Available | Screw | C-77000 | Not Available |
| 57 | Not Available | Cord (Black) | C-36908 | Not Available |
| 58 | Not Available | Thermal Switch | C-36005 | Not Available |
| 59 | Not Available | Washer | C-77005 | Not Available |
| 60 | Not Available | Screw | C-77047 | Not Available |
| 61 | Not Available | Cord Clip | C-32003 | Not Available |
| 62 | Not Available | Wire Nut | SS-3270 | Not Available |
| 63 | Not Available | Motor Lead (Black) | C-36916 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Housing (Yellow) | C-73006 | Not Available |
| 2 | Not Available | Plastic Bushing (Black) | C-73400 | Not Available |
| 3 | Not Available | Carpet/Floor Pedal Cover (Yellow) | C-73628 | Not Available |
| 4 | Not Available | Window (Yellow) | C-73405 | Not Available |
| 5 | Not Available | Bottom Plate Lock Screw | C-77039 | Not Available |
| 6 | Not Available | Nozzle Housing Felt Packing | C-73480 | Not Available |
| 7 | Not Available | Hose Inlet Fitting (Red) | C-73430 | Not Available |
| 8 | Not Available | Screw | C-77040 | Not Available |
| 9 | Not Available | Vented Support Fitting | C-73482 | Not Available |
| 10 | Not Available | Vented Support Felt Packing | C-73484 | Not Available |
| 11 | Not Available | Furniture Guard (Black) | C-74100 | Not Available |
| 12 | Not Available | Foot Pedal Complete (Black) | C-73720 | Not Available |
| 13 | Not Available | Pedal Frame | C-73780 | Not Available |
| 14 | Not Available | Foot Pedal (Black) | C-73722 | Not Available |
| 15 | Not Available | E-Clip | C-77041 | Not Available |
| 16 | Not Available | Screw | C-77032 | Not Available |
| 17 | Not Available | Foot Pedal Shaft | C-73782 | Not Available |
| 18 | Not Available | Rear Belt Cover (Black) | C-73790 | Not Available |
| 19 | Not Available | Foot Pedal Spring | C-77042 | Not Available |
| 20 | Not Available | Belt Guard | C-73486 | Not Available |
| 21 | Not Available | Screw | C-77043 | Not Available |
| 22 | Not Available | Belt 2 Pk | C-10000 | Not Available |
| 23 | Not Available | Washer | C-77044 | Not Available |
| 24 | Not Available | Screw | C-77000 | Not Available |
| 25 | Not Available | Bottom Plate Assembly | C-76100 | Not Available |
| 26 | Not Available | Packing Grip | C-76001 | Not Available |
| 27 | Not Available | Front Wheel Pin | C-71010 | Not Available |
| 28 | Not Available | Front Wheel | C-71011 | Not Available |
| 29 | Not Available | Push-On Nut | C-77015 | Not Available |
| 30 | Not Available | Screw | C-77016 | Not Available |
| 31 | Not Available | Bottom Plate Latch Washer | C-77017 | Not Available |
| 32 | Not Available | Bottom Plate | C-76101 | Not Available |
| 33 | Not Available | Bottom Plate Latch Spring | C-77018 | Not Available |
| 34 | Not Available | Bottom Plate Latch | C-76400 | Not Available |
| 35 |  | Brushroll, Assembly Ext 3 Row 6502Z/6707Z/Ez Tool Part Number: V700324400 for Evolution | V700324400 | $81.40Read more |
| 36 | Not Available | Agitator Core (Metal) | C-20500 | Not Available |
| 37 | Not Available | Rubber End Cover (Black) | C-20510 | Not Available |
| 38 | Not Available | End Cap | C-20512 | Not Available |
| 39 | Not Available | Agitator Felt Washer | C-77036 | Not Available |
| 40 | Not Available | Washer | C-77037 | Not Available |
| 41 | Not Available | Agitator Bearing | C-62000 | Not Available |
| 42 | Not Available | Agitator Bearing Holder | C-20514 | Not Available |
| 43 | Not Available | Agitator Brush | C-22000 | Not Available |
| 44 | Not Available | Agitator Pulley Complete | C-20516 | Not Available |
| 45 | Not Available | Agitator Pulley | C-20519 | Not Available |
| 46 | Not Available | Agitator Pulley Bushing | C-20530 | Not Available |
| 47 | Not Available | Agitator Shaft | C-20522 | Not Available |
