Schematic and parts book for Cirrus CPU-4T.CIR . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |

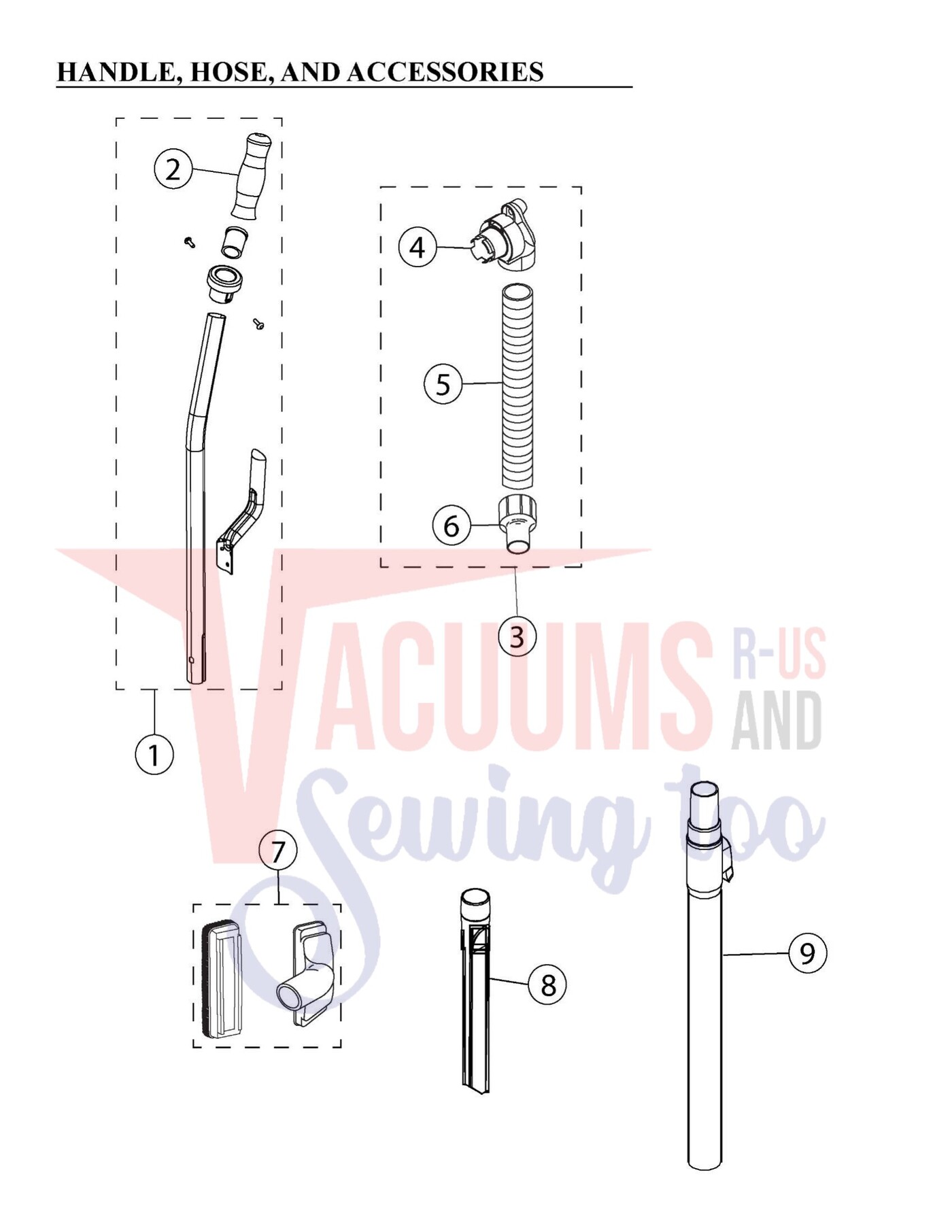

| 1 | Not Available | Handle Assembly | C609-4000 | Not Available |
| 2 |  | Pistol Grip Handle for Simplicity Freedom S10e Riccar supralite R10e and Zoom 200 clean max | BP22 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hose Assembly VibranceSymmetery W/Tools R20E,S20E | D626-0514 | $41.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Suction Inlet | C625-0114 | Not Available |
| 5 |  | CLEANMAX STRETCH HOSE ONLY PRO SERIES CMPS-1T | CM031008 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Hose Cuff | 54.170 | Not Available |
| 7 | No Image | Upholstery tool assembly nylon brush CPU-4T CPU-3QD CMP-3T CMP-3QD | C6250113 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Crevice tool CPU-4T CPU-3QD CMP-3T CMP-3QD | B6250106 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Wand Assy, Telescopic Wand Part Number: CM040001 for Carpet Pro | CM040001 | $44.81Read more |
| # | Part image | Description | SKU | Price |

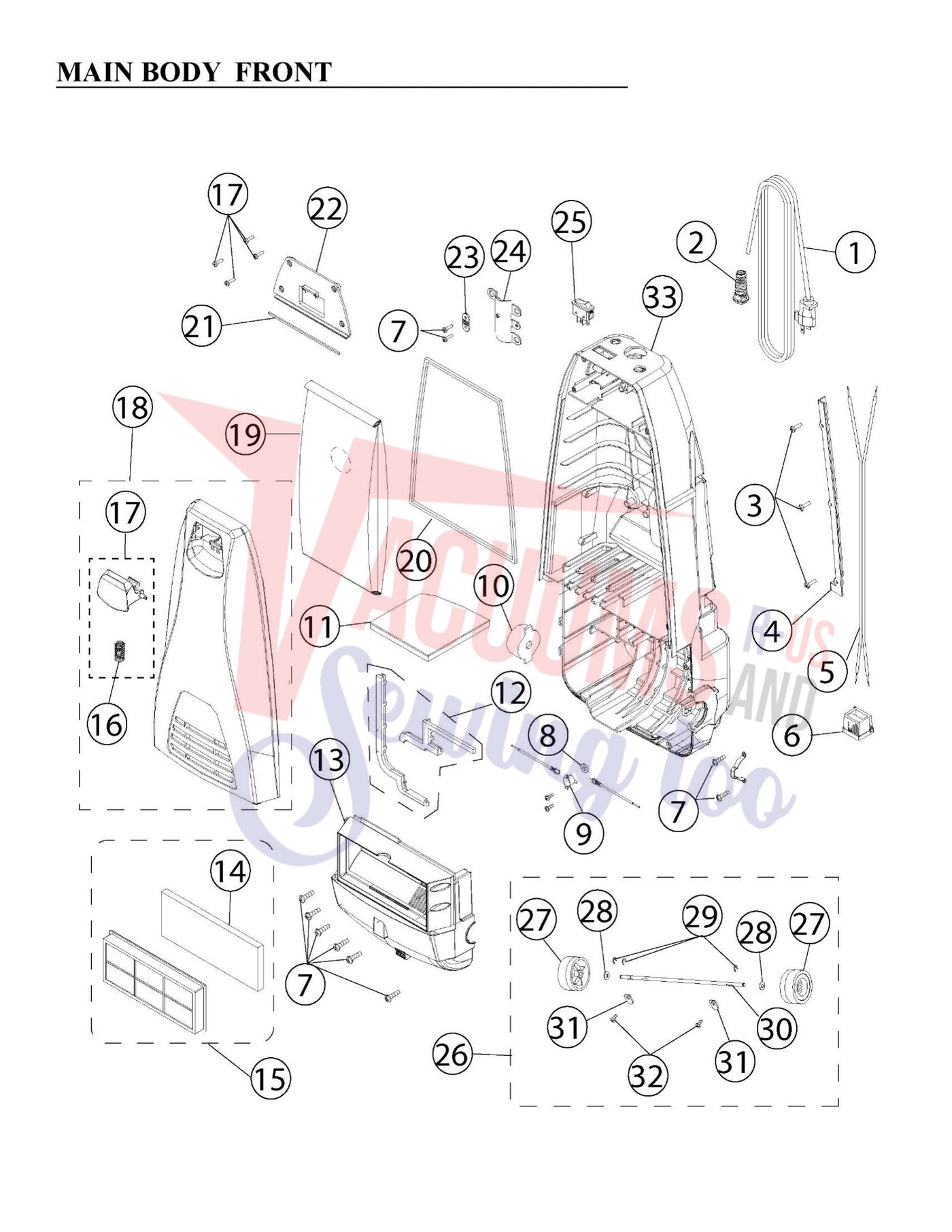

| 1 |  | Power Cord 40' Part Number 14.105 for Cleanmax Models CMC-QD | 14105 | $80.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Strain Relief Boot,Vacuum,Black,Cord | X1102 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Screw - Hose Clip Part Number A732-7705 for Simplicity Models SHD-1T | A7327705 | $0.00Read more |
| 4 | | Wire Harness Cover Part Number 54.129 for Simplicity Models SHD-1T | 54129 | |
| 5 |  | Motor Cord Houshold Part Number B224-0314B for Simplicity and Riccar Models 7250, 7350, 7450, 775... | B2240314B | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Wire Bushing Part Number A732-4114 for Simplicity and Cleanmax Models 7300, 7350, 7850,7200, 7250... | A7324114 | $0.00Read more |
| 7 | Not Available | Screw Hi Lo #8 x 5/8 | A732-8314 | Not Available |
| 8 |  | Thermal Switch Seal Part Number B333-0600 for Simplicity and Cleanmax and Maytag and Riccar Model... | B3330600 | $2.19Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Thermal Switch Manual Reset CPU | B3330400B | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Plastic BushingPlastic BushingPlastic Bushing Part Number B017-0214 for Simplicity and Maytag and... | B0170214 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Secondary Filter Part Number CMPS-SF for Cleanmax Models CMPS-QD, VPPB, CMPS-Q | CMPSSF | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Carpet Pro Seal Kit CPU-3 CPU-4 CMP-3 CleanMax | C6095000 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Motor Cover Black Carpet Pro CleanMax | B6250109 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Exhaust Foam Filter Assembly Part Number CMPS-PF for Cleanmax Models CMPB, CMPS1N | CMPSPF | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Latch Spring Part Number 54.123 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-QD, VPPB, CM... | 54123 | $2.19Read more |
| 17 |  | Dust Cover Latch CPU-3N CPU-3QD CPU-4N CPU-4T CMP-3N CMP-3T CMP-3QD | B6250107 | $4.99Read more |
| 18 |  | Cover, Dust Compartment CPU4T Part Number: C625-0107B for Cirrus | C6250107B | $36.52Read more |
| 19 | Not Available | HEPA Bag (6 Pack) | C-14007 | Not Available |
| 20 |  | Dust Compartment Seal Part Number 54.134 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-QD,... | 54134 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Switch Cover Seal Part Number 54.128 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-QD, VPP... | 54128 | |
| 22 |  | Inner Switch Cover Part Number 54.131 for Simplicity Models SHD-1T | 54131 | $5.49Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Cord Restraining Strap Part Number B332-0014 for Simplicity and Cleanmax and Riccar Models 7250, ... | B3320014 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Wiring Harness Support Part Number B333-0513 for Simplicity Models 7250, 7350, 7450, 7750, 7850, ... | B3330513 | $2.99Read more |
| 25 |  | Main Switch Part Number 25.104 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-QD, VPPB, CMP... | 25104 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Compatible alternate15AMP 120V ON/OFF rocker switch oreck hoover Riccar Simplicity More Product Details | 15AROCKERLG | $10.99Add to cart |
| 25 |  | Compatible alternateSwitch, Blk Rocker 1-Speed Handle Type 6 XL7 Uprts Part Number: 430000914 for Oreck More Product Details | 430000914 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Wheel Axle Assembly Part Number 54.127 for Simplicity Models SHD-1T | 54127 | $7.99Read more |
| 27 |  | Wheel - Rear Black Part Number 54.021 for Simplicity Models SHD-1T | 54021 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Washer 25mm Part Number A732-6500 for Simplicity and Maytag and Riccar Models 6100, 6370, 6400, 6... | A7326500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | E-Clip 5mm Part Number A732-0300 for Simplicity and Cleanmax and Maytag and Riccar Models 7300, 7... | A7320300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Rear Wheel Axle Part Number 54.135 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-QD, VPPB,... | 54135 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 | Not Available | Axle Clamp | 54.136 | Not Available |
| 32 |  | Clamp for Rear Axle Part Number A732-8500 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-QD... | A7328500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | Dust Compartment No Valve CPU-3N CPU-3QD CPU-4N CPU-4T | C6250105 | $49.99Add to cart Special order: ships in 2 to 4 weeks |

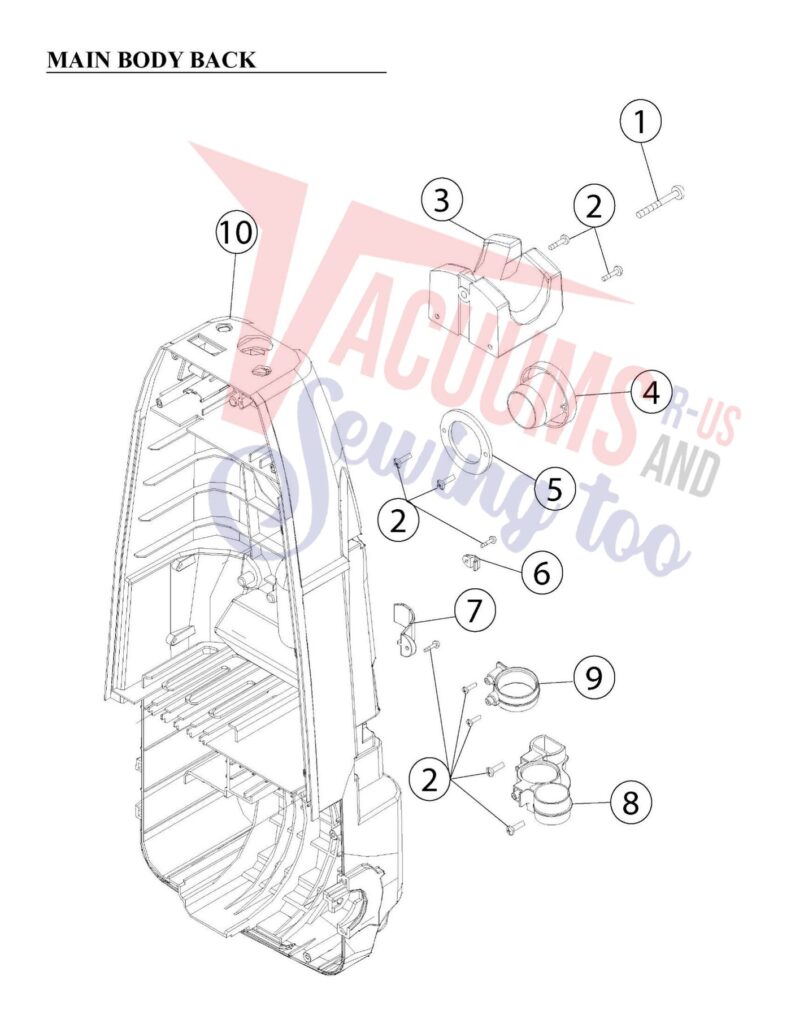

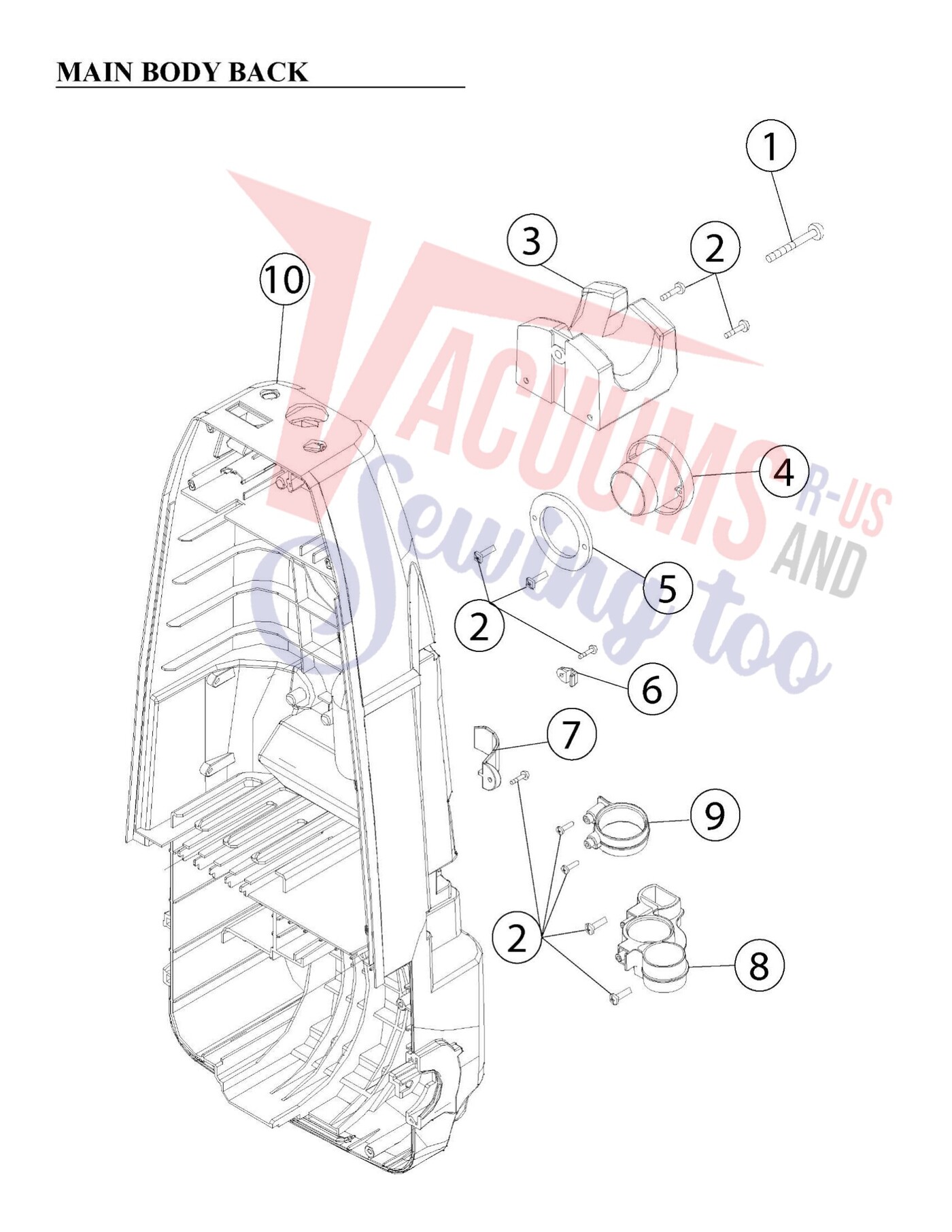

| # | Part image | Description | SKU | Price |
| 1 |  | Handle Screw Part Number A232-0100 for Simplicity and Cleanmax Models 7250, 7350, 7450, 7750, 785... | A2320100 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Screw - Hose Clip Part Number A732-7705 for Simplicity Models SHD-1T | A7327705 | $0.00Read more |
| 3 |  | Hose Hanger - Titan T4000.2 - Tc6000.2 Metal Handles For: titan | 54.140 | $12.36Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Paper Bag Inlet Part Number 89.855 for Cleanmax Models CMPS-QD, VPPB, CMPS-Q | 89855 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Retainer Clip Upholstery Tool Blk | B6261414B | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Hose clip CPU-4T CMP-3T | B6250100 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | On board tool holder CPU-4T CMP-3T | B6250101 | $3.99Read more |
| 9 | No Image | Upper wand retainer CPU-4T CMP-3T | B6250102 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Dust Compartment No Valve CPU-3N CPU-3QD CPU-4N CPU-4T | C6250105 | $49.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

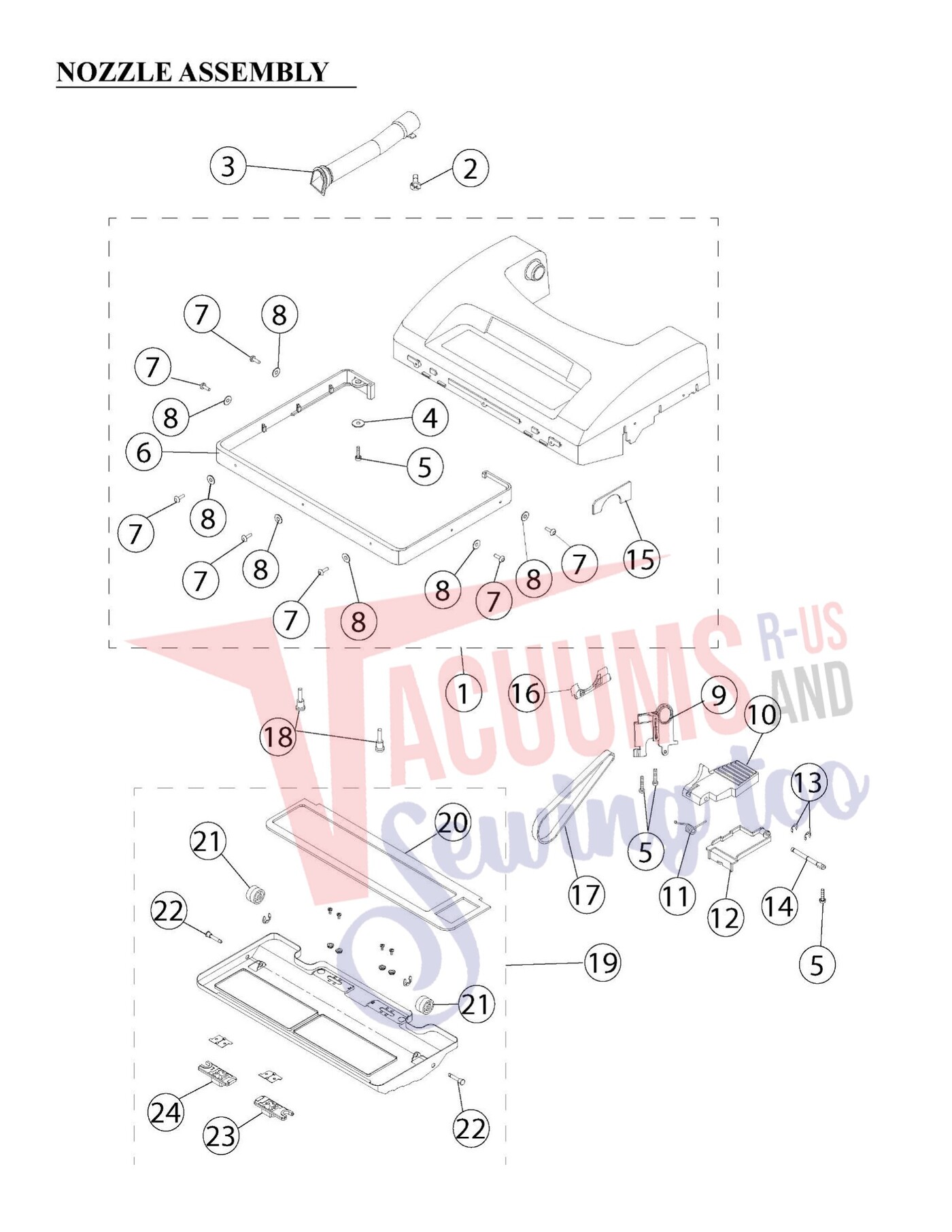

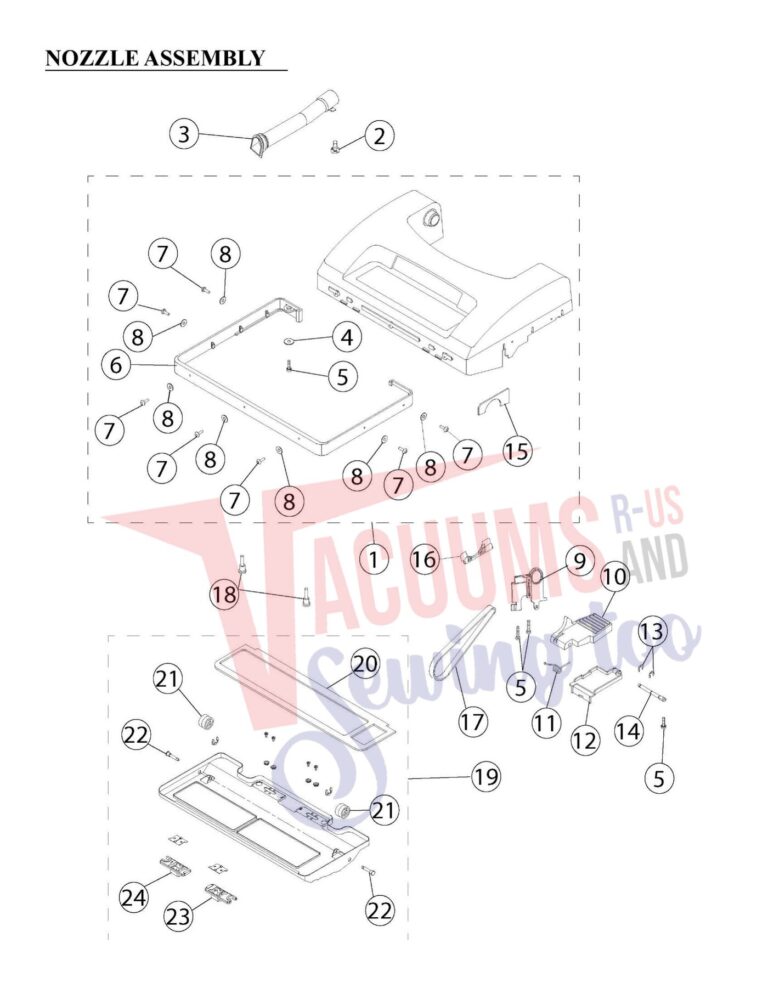

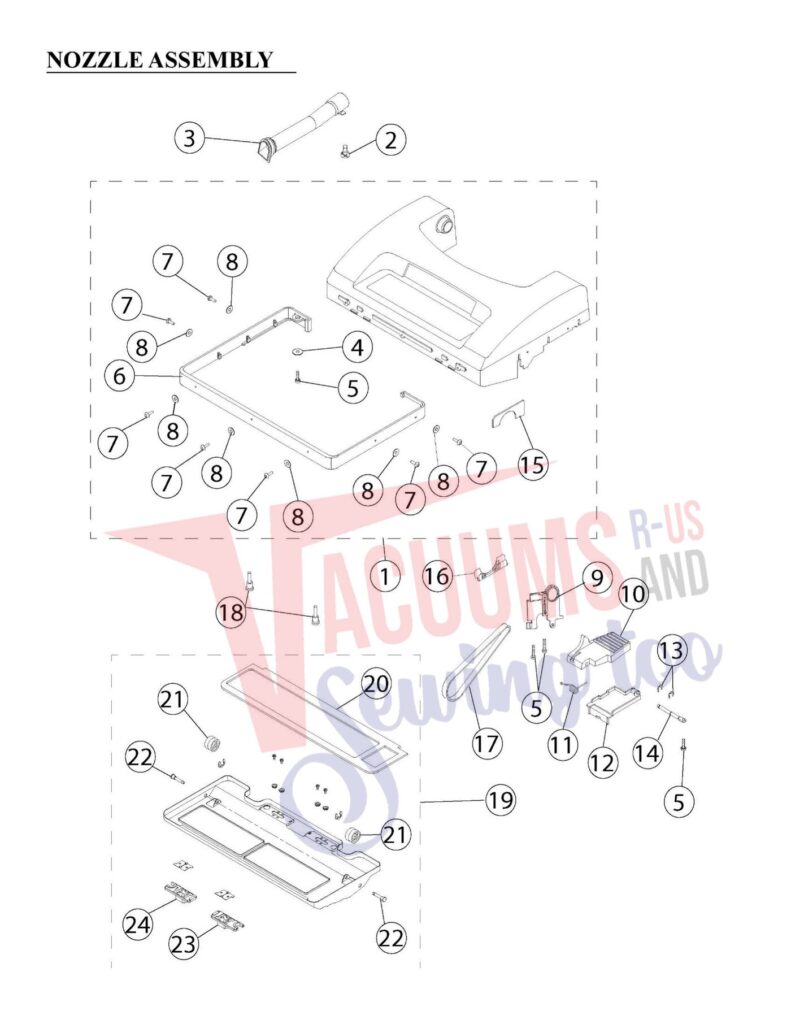

| 1 |  | Cirrus Nozzle Housing Assembly, Gray, CPU-4T.CIR | C6250108B | $25.90Read more |
| 2 |  | Combination Screw M4x12Combination Screw M4x12 Part Number A732-2500 for Simplicity and Maytag an... | A7322500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | CLEANMAX PRO SERIES CMPS-1T NOZZLE INLET TUBE | CMPSNOZTUBE | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Upper Cord Hook Washer Hardened | A430-0405 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Screw HI Lo #8x5/8 | A732-8314 | Not Available |
| 6 |  | Titan Bumper Guard Clear-carpet Pro Cpu-2nt4000.2/tc6000.2 | B6250108 | $22.79Read more |
| 7 | No Image | CLEANMAX RIVET FOR FURNITURE GUARD BUMPER CMPS-1T CMPS-1N | BA00943000 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Washer for Furniture Guard | 004300032 | Not Available |
| 9 |  | Foot Pedal Frame Part Number B020-0100B for Riccar and Simplicity Models R100, R200, R300, R300C,... | B0200100B | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Foot Pedal - Black Part Number 54.016 for Simplicity Models SHD-1T | 54016 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Pedal Spring Part Number B020-0400 for Riccar and Simplicity Models R100, R200, R300, R300C, R500... | B0200400 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Titan Belt Cover Rear Carpet Pro Cpu-1 Commercial | B0201031 | $2.25Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | E-Clip 4mm Part Number A732-0200 for Simplicity and Cleanmax and Maytag and Riccar Models 7300, 7... | A7320200 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Pedal Shaft Part Number B020-0300 for Riccar and Simplicity Models R100, R200, R300, R300C, R500,... | B0200300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Vented Support Fitting | B0171200 | $2.99Add to cart |
| 17 |  | Riccar and Simplicity Vibrance Series Single Belt - Replaces RS20-B2 sub for PR1016 | B0140714 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Base Plate Latch Stud Screw Part Number CM011012 for Cleanmax Models CMPB, CMPS1N,CMPS-QD, VPPB, ... | CM011012 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Clean max CMNR-QD Baseplate CM011007 | WP11912 | $32.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Base Plate Gasket Part Number CM031001 for Cleanmax Models CMPB, CMPS1N | CM031001 | $0.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Base Plate Wheel Part Number B010-1913 for Cleanmax Models CMPB, CMPS1N | B0101913 | $2.99Add to cart |
| 22 |  | Base Plate Wheel Axle Part Number B010-0500 for Cleanmax and Simplicity Models CMPB, CMPS1N,CMPS-... | B0100500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Base Plate Latch Left Part Number CM011008 for Cleanmax Models CMPB, CMPS1N,CMPS-QD, VPPB, CMPS-Q | CM011008 | $0.00Read more |
| 24 | | Base Plate Latch Right Part Number CM011009 for Cleanmax Models CMPB, CMPS1N,CMPS-QD, VPPB, CMPS-Q | CM011009 | $0.00Read more |

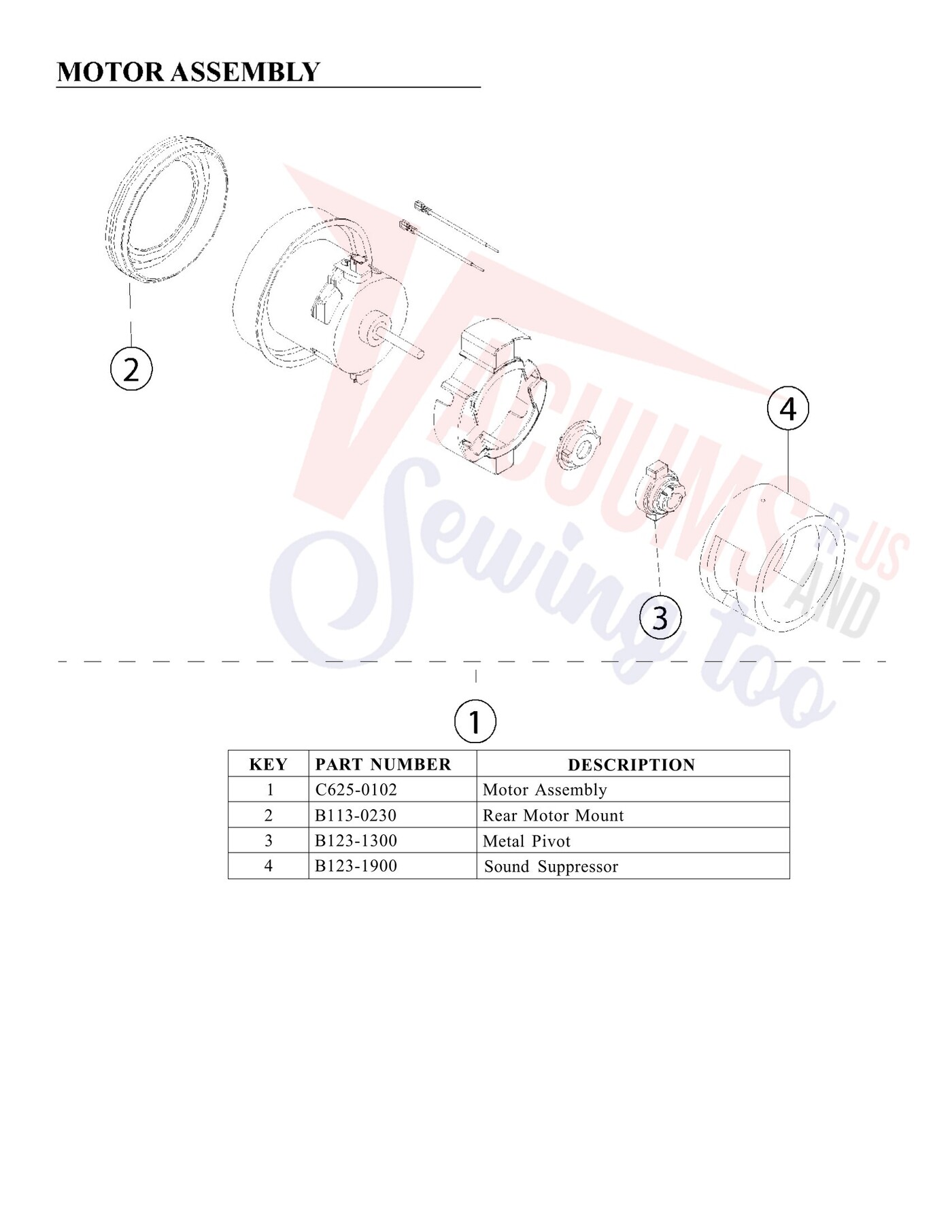

| # | Part image | Description | SKU | Price |
| 1 | No Image | Motor Assembly 10A Single Stage CPU-4T CPU-4N 2 wire motor | C6250102 | $131.99Read more |
| 2 |  | Back Motor Mount Part Number B113-0230 for Simplicity and Maytag and Riccar Models 6100, 6370, 64... | B1130230 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Metal Pivot Sleeve Part Number B123-1300 for Simplicity and Cleanmax and Maytag and Riccar Models... | B1231300 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Motor Sound Suppressor Part Number B123-1900 for Simplicity and Cleanmax and Maytag and Riccar Mo... | B1231900 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

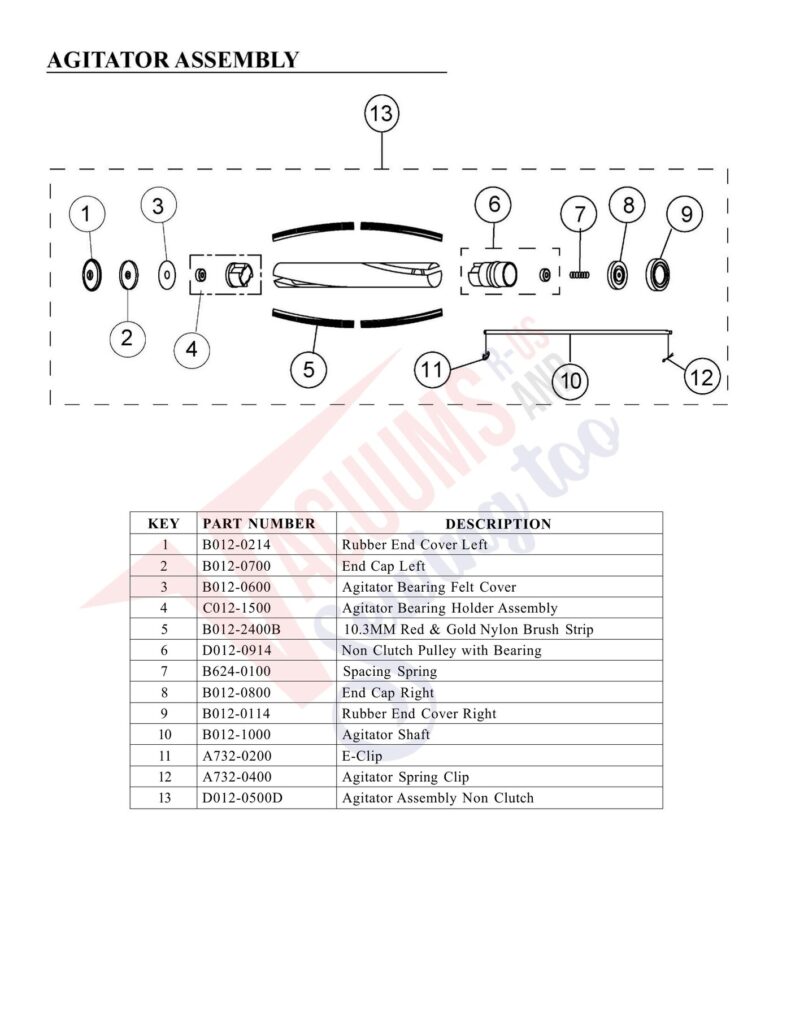

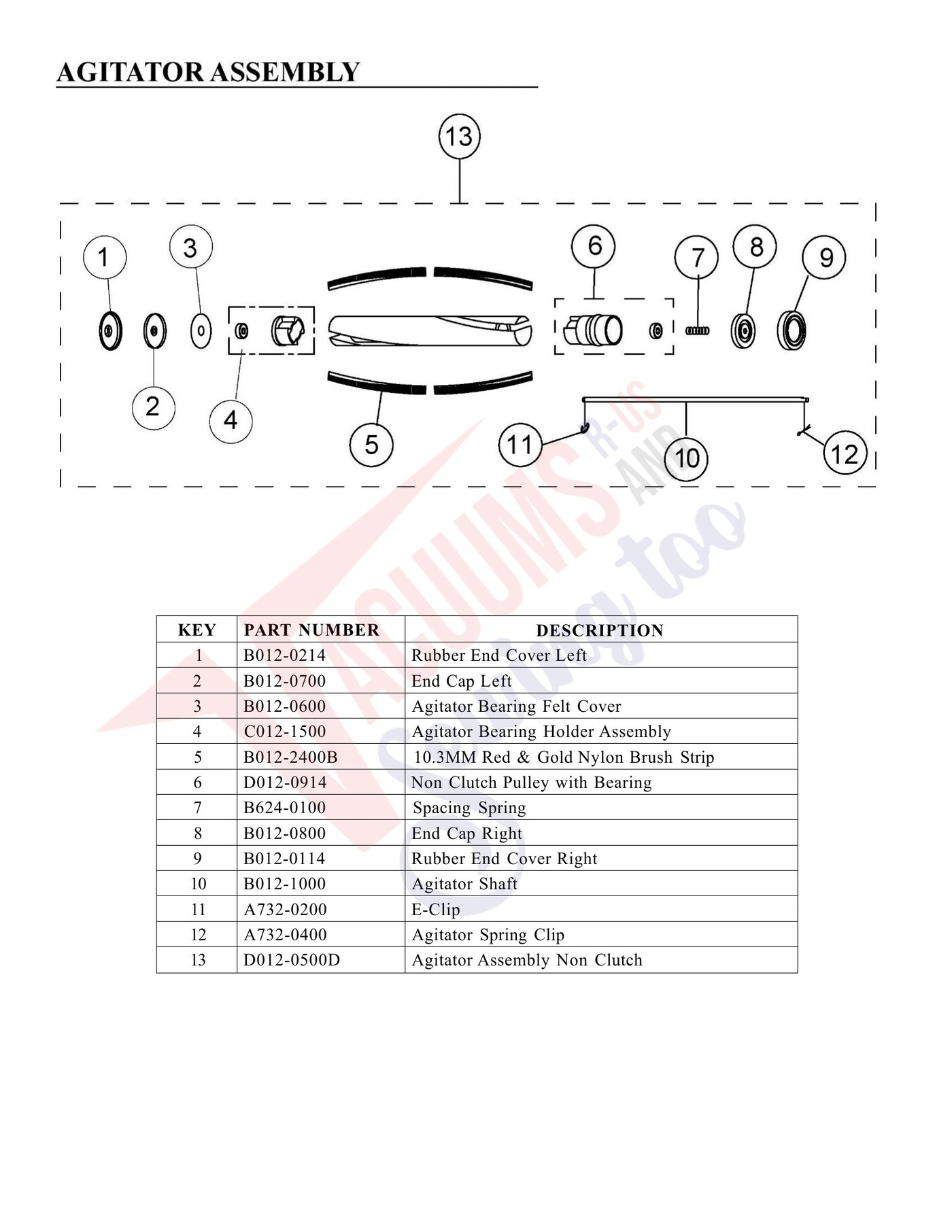

| 1 |  | Rubber End Cover Left Part Number B012-0214 for Simplicity and Cleanmax and Maytag and Riccar Mod... | B0120214 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | End Cap Left Part Number B012-0700 for Simplicity and Cleanmax and Riccar Models 7200, 7250, 7400... | B0120700 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Riccar Simplicity Felt Cover for Brush Roll Bearings | B0120600 | $2.99Add to cart |
| 4 |  | Agitator Bearing Holder Assembly for All Riccar R20 Simplicity S20 machine with metal rollers | C0121500 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Simplicity Symmetry, Riccar Vibrance Brush Strip single strip | B012-2400B | $5.99Add to cart |
| 6 | Not Available | Non Clutch Pulley with Bearing | D012-0914 | Not Available |
| 7 |  | Spacing Spring Part Number B624-0100 for Simplicity and Cleanmax and Riccar Models 7200, 7250, 74... | B6240100 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | End Cap Right Part Number B012-0800 for Simplicity and Cleanmax and Riccar Models 7200, 7250, 740... | B0120800 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Rubber End Cover Right Part Number B012-0114 for Simplicity and Cleanmax and Riccar Models 7200, ... | B0120114 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Agitator Shaft Part Number B012-1000 for Simplicity and Cleanmax and Riccar Models 7200, 7250, 74... | B0121000 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | E-Clip 4mm Part Number A732-0200 for Simplicity and Cleanmax and Maytag and Riccar Models 7300, 7... | A7320200 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Agitator Spring Clip Part Number A732-0400 for Simplicity and Cleanmax and Maytag and Riccar Mode... | A7320400 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Agitator Assembly Non Clutch | D012-0500D | Not Available |
