Schematic and parts book for CFR Eco 500, Eco500, eco-500 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

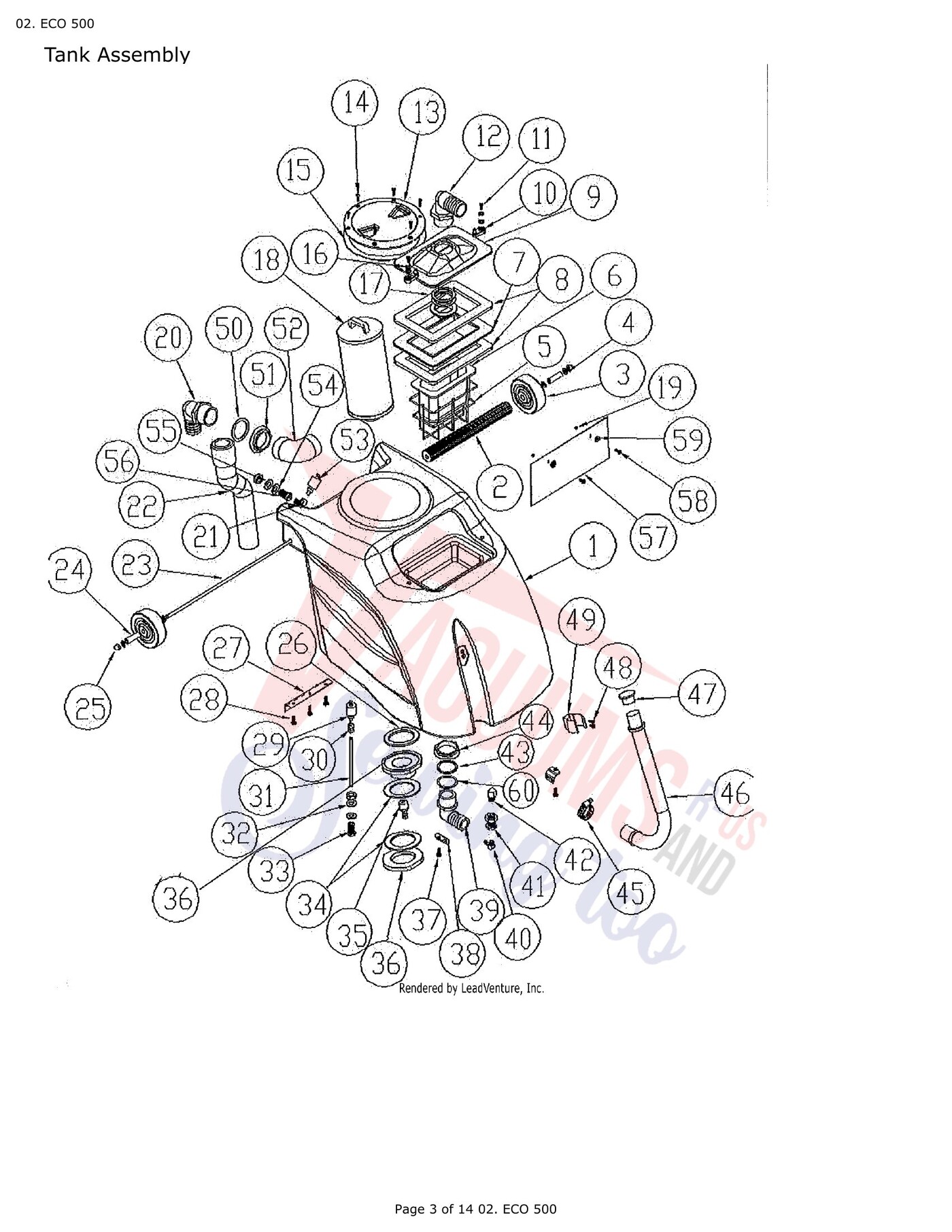

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Tank | 72773AYEL | Not Available |
| 2 | No Image | Handle, Mid Size Extractor | X9453 | $35.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Wheel Black 4 X 1-1/4 | X8025 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Frame, Filter CFR Mid Size | 72775A | $96.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Cloth Filter | 72776A | Not Available |
| 7 | No Image | Filter,Extractor,Inlet Basket,Mesh,Rev A | 72774B | $92.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Gasket | 72778C | Not Available |
| 9 | No Image | Lid, CFR Mid Size | 72790A | $39.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | LID HOLDER CFR MID SIZE | 72789A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | SCREW, 10-32X3/4 PHIL PAN MS 18-8 SS | 7BR005 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | 1-1/2H X 1-1/2M ELBOW BLACK POLYPROPYLENE | 7GR034B | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | LID, 6 Inch Clear W/Blk Ring Extractor | PX103 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Screw No.8 5/8 Tapping Phil PH Blk Zinc | 72387A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Gasket LID 8 OD X 6.625 ID | PX103G | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | WASHER, M10 SPLIT SS | 7CL003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Gasket Dump Valve .125 Thick 1.81 ID X 2.37 OD | PX14A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Filter,Extractor,In Tank | 72777B | $46.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | NUT, 10-24 NYLON INSERT LOCK 18-8 SS | 7BF030 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | 1-1/2H X 1-1/2M ELBOW BLACK POLYPROPYLENE | 7GR034B | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | ELBOW, 1/8 45 DEGREE STREET | SW146 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | HOSE VAC TOOLHEAD CASCADE 45 INCHES | 72384A | $63.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | STUD, ALL-THREADS CFR MID SIZE | 72779A | $11.99Read more |
| 24 | No Image | Spacer 1.625 Long .50 OD .313 ID | 72486A | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Regulator Pressure Knurled Handle | 72059A | $282.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | GASKET, FINAL FILTER CFR MID SIZE | 72792A | $8.99Read more |
| 27 | No Image | HINGE CFR MID SIZE | 72768A | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | Screw 1/4 20x3/4 Phil PH MS SS | 7EW001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Switch Float 2 Pole | 70343A | $89.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Coupling 1/8-1/8 Pipe | 7DA001 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | Not Available | Brass Nipple 1/8" MPT x 6" | 72799A | Not Available |
| 32 | No Image | Gasket | 72794A | $0.00Read more |
| 33 | No Image | Connector Anchor 1/8 NPT | 7AJ004 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | GASKET, BULKHEAD CFR MID SIZE | 72793A | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Barb, 1/2 Hose 1/4 NPT Male | 7AT004 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | Bulkhead (2 pcs) | 72791A | Not Available |
| 37 |  | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | Bracket, Tank Lock CFR Mid Size | 72767A | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | ELBOW 1-1/4H - 1-1/4M NYLON | 7GR016 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | No Image | Barb Elbow 90 1/4-1/8 | 7AT006 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 |  | Bulkhead, Fitting Brass .75 | PX48 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | No Image | Elbow Street 1/4 90 Degree Brass | PC49 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | No Image | GASKET 1-1/4 FITTING | X9164 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | No Image | NUT LOCK 1-1/4 | X9165 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | No Image | Clamp 1-1/2 Worm Gear SS Hex Slot Hd SAE Size 20 | 7DL005 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | No Image | Hose, Drain CFR Midsize Extractor | 72797A | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | No Image | Drain Hose Plug Compatable With PAS37 Hose | PAS36 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 |  | SCREW, 10-32X3/8 PHIL PAN MS 18-8 SS | 7BH004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | No Image | Clip Spring, Black | 72173A | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | No Image | Gasket Dump Valve .125 Thick 1.81 ID X 2.37 OD | PX14A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 |  | Nut, Lock Die Cast 1.5 | PX46 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 |  | Elbow Fitting Plastic 90 White 1.5 FPT | PX11A | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | No Image | Switch Float 2 Pole | 70343A | $89.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | No Image | Gasket | 72794A | $0.00Read more |
| 55 | No Image | Washer 5/8x1-3/16 Bonded Seal Galvanized | 72115A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | No Image | Connector Anchor 1/8 NPT | 7AJ004 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 | No Image | DEFLECTOR, ECO 500 | 72818A | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 58 |  | SCREW 10-24X1 PHIL PAN MS 18-8 SS | 7CU001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 |  | WASHER, RUBBER .29ID .688OD 1/8 80 DURO | 72667A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | No Image | WASHER, DRAIN FITTING, ECO 500 | 72817A | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

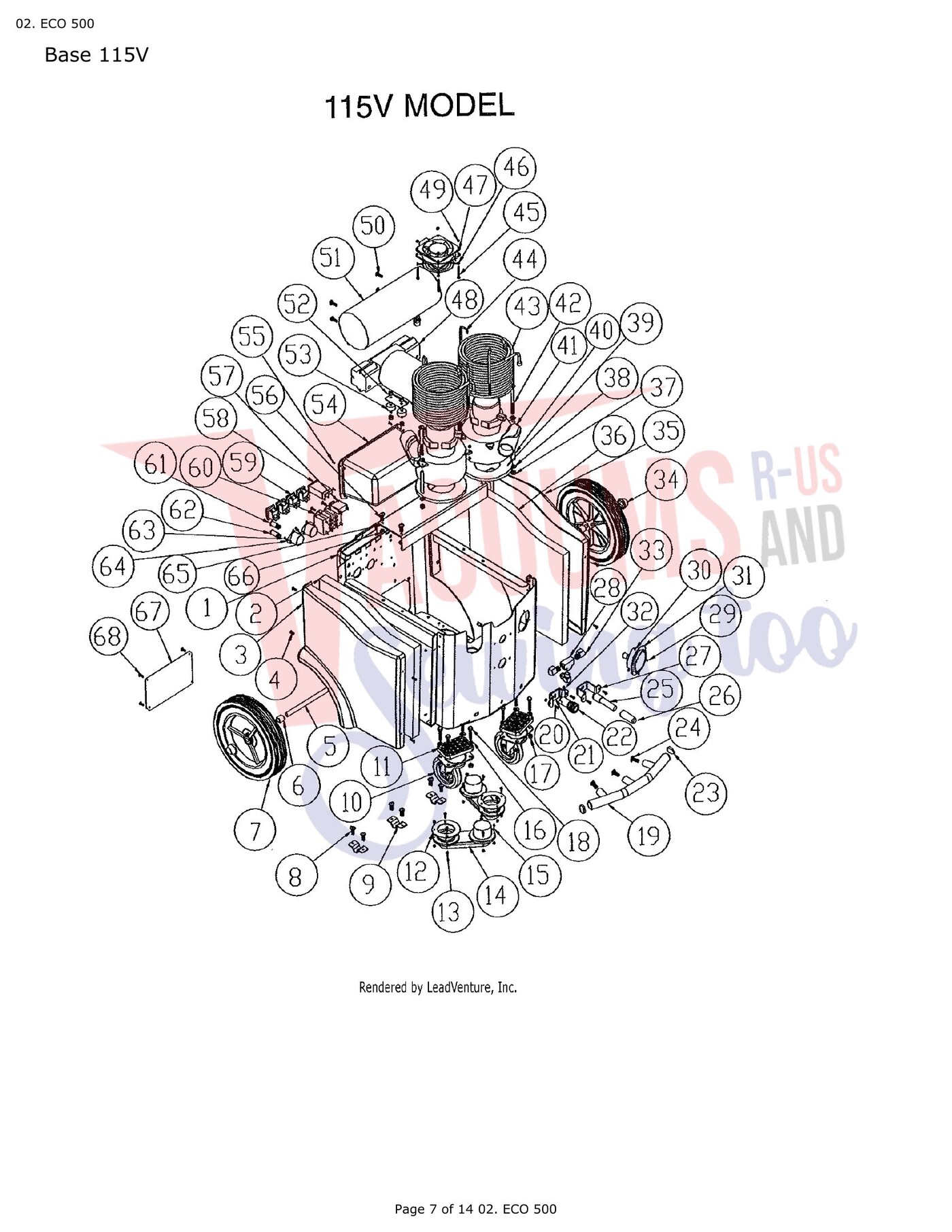

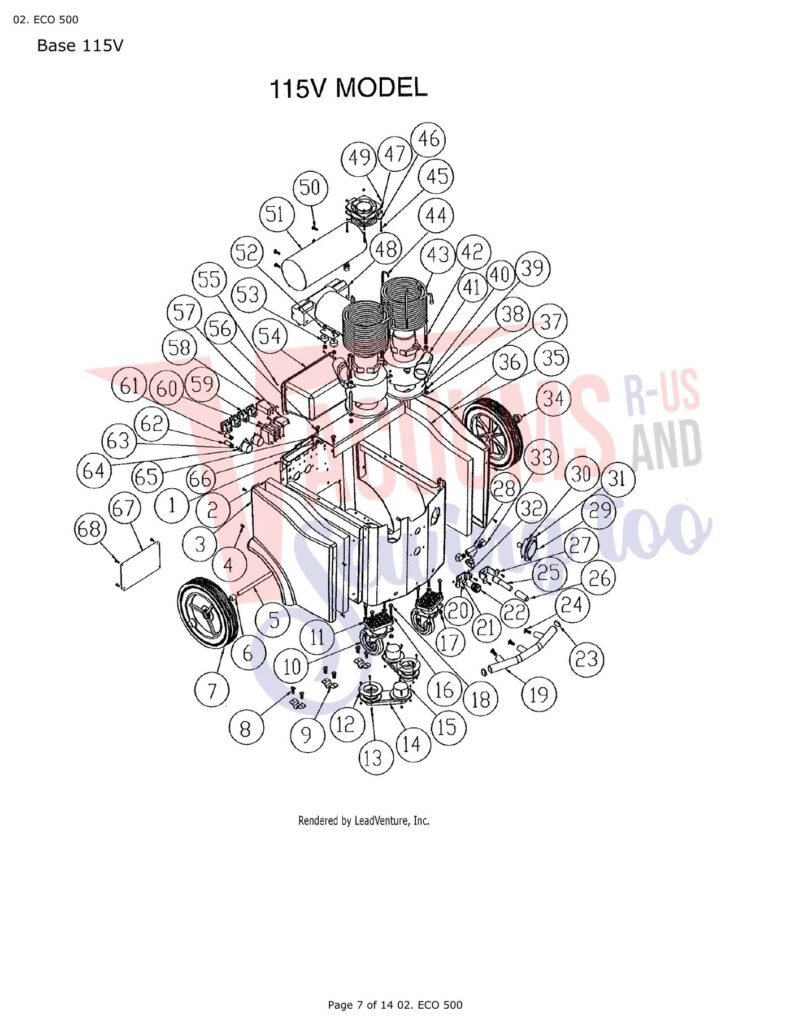

| # | Part image | Description | SKU | Price |
| XX | Not Available | Vacuum Motor 3 Stage 230V | 72365A-C | Not Available |
| 1 | Not Available | Base | 72781B | Not Available |
| 2 | No Image | RIGHT FOAM SIDE PANEL CFR CFR MIDSIZE EXTRACTOR | 72796A | $46.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | RT SIDE PANEL, BLACK RAL 9017 ECO500 | 72788ABLK | $126.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Screw, 10-32 1/2 Black PHMS | 72807A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Axle, Wheel CFR Mid Size | 72769A | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | SPACER, WHEEL 10 CFR MID SIZE EXTRACTOR | 72801A | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Wheel 10-1/2bore Blk with Gray Tire Midsize Ext | X9063 | $53.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | Screw 1/4 20x3/4 Phil PH MS SS | 7EW001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Bracket, Axle Wheel CFR Mid Size | 72770A | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Caster Assembly, Wheel 4 In., Grey, Extractors | X9153 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | SPACER, CASTER CFR MID SIZE | 72783A | $6.99Read more |
| 12 |  | GASKET, VACUUM CHAMBER | X9468 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | NUT, 10-32 KEP ZINC | 7BF008 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Housing,Extractors,Vacuum Chamber,Self Contained | X9467 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | SCREW, 10-32X3/4 PHIL PAN MS 18-8 SS | 7BR005 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | NUT, 5/16-18 KEP ZINC | 7BF005 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | BOLT, 5/16-18 X 1-1/4 HEX TAP GR 2 ZINC | X8227 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Bumper, Front, Eco 500 | 72810A | $346.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | SCREW, 10-24X1/2 PHIL PAN MS 18-8 SS | 7BS001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | BRACKET COUPLER FOR Q/D ECO 500 | 71312A | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Coupler, Quick Disconnect SS 1/4 CFR Eco 500 | 72800A | $180.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | PLUG, BUMPER, ECO 500 | 72804A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | BOLT, 5/16-18X5/8 HEX TAP ZINC | 7DT001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Regulator Pressure Knurled Handle | 72059A | $282.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Sleeve Regulator ECO 500 | 72808A | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Bracket, Mount Pressure Regulator | 70223A | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Tee Union 1/4 NPT | 7AV001 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Screw 6-32x3/4 Phil PH MS SS | X8243 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Nut | X8240 | Not Available |
| 31 | No Image | Gauge Pressure 1000 PSI Back Mount | 70066A | $193.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | NUT, No 10-24 KEP ZINC | 7BF003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Elbow Street 1/4 90 Degree Brass | PC49 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Nut, Push 1/2 | 7GL002 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | No Image | LT SIDE PANEL, BLACK RAL 9017 ECO500 | 72787ABLK | $126.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | LEFT FOAM SIDE PANEL CFR CFR MIDSIZE EXTRACTOR | 72796B | $46.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | GASKET VACUUM MOTOR SEAL | 70020B | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | No Image | Spacer, ABS .25 ID .4 OD Deburred 3.5 Long | 72605A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | No Image | Vacuum Motor 3-Stage | 72365B | $0.00Read more |
| 42 | Not Available | Screw 1/4-20 x 1/2" | 72812A | Not Available |
| 43 | No Image | Coil Heater 3-Stage Vacuum | 72713B | $276.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | Not Available | J-Hook | X9423 | Not Available |
| 45 | Not Available | Screw 8-32 2 1/2" | X8274+ | Not Available |
| 46 | No Image | Cover Fan | 72702A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | No Image | Fan Cooling 120V 92MM 35 Cfm | 72700A | $101.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 | No Image | 500 P.S.I. Pump Assembly W/ Regulator | PT400MS | $0.00Read more |
| 49 | No Image | Nut 8-32 KEPS Zinc | X8256 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | Not Available | Heater (2000W) | X9105 | Not Available |
| 52 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | No Image | Motor Chock Mount 1/4 - 20 x 1/2 | 72149A | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | No Image | Box, Electrical CFR Mid Size | 72772A | $108.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | | SCREW, 10-24X1/2 PHIL PAN MS 18-8 SS | 7BS001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | | Screw 1/4 20x3/4 Phil PH MS SS | 7EW001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 | No Image | Circuit Breaker Extractor 5 amp | X9324 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 58 | No Image | HOUR METER CASCADE AC | 72411A | $253.99Read more |
| 59 |  | On/off Switch Part Number 32966 for Cleanmax and Simplicity Models CM-WAV,SCE | 32966 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | No Image | Relay 25A 120V | 71379A | $81.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 61 |  | Light, Indicator Green | PX86 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 62 | No Image | Light, Neon W/ Lens 120V Amber | X8102 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 63 | No Image | Screw 6-32x3/4 Phil PH MS SS | X8243 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 | No Image | Receptacle, Flanged Inlet Straight Blade | X9429 | $25.99Read more |
| 65 | No Image | BRACKET, BRACE, CFR MIDSIZE | 72795A | $63.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 66 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 67 |  | ACCESS PANEL, CFR MID SIZE REV 05 | 72809A | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 | Not Available | Screw 8-32 2 1/2" | X8274+ | Not Available |

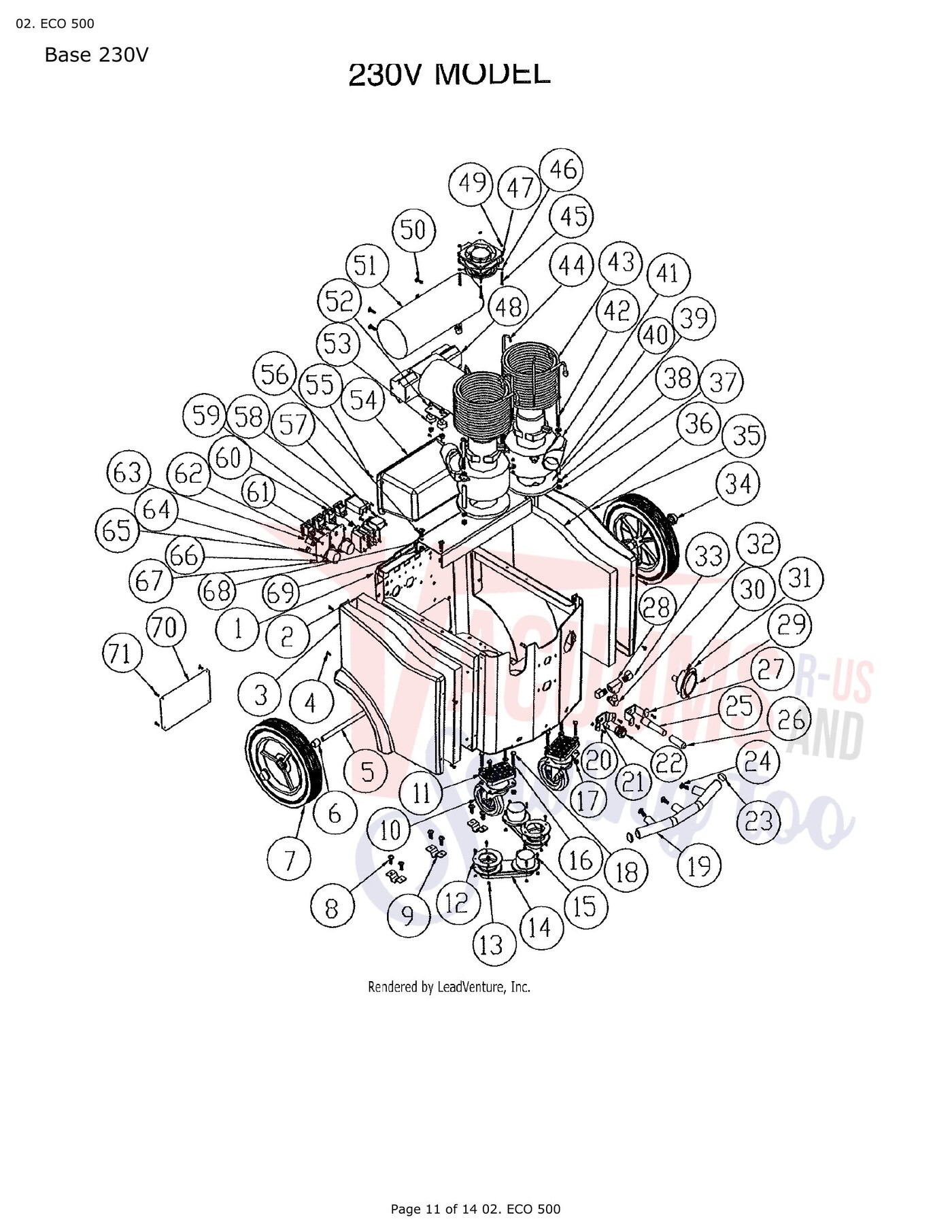

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Base | 72781A | Not Available |
| 2 | No Image | RIGHT FOAM SIDE PANEL CFR CFR MIDSIZE EXTRACTOR | 72796A | $46.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | RT SIDE PANEL, BLACK RAL 9017 ECO500 | 72788ABLK | $126.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Screw, 10-32 1/2 Black PHMS | 72807A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Axle, Wheel CFR Mid Size | 72769A | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | SPACER, WHEEL 10 CFR MID SIZE EXTRACTOR | 72801A | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | | Wheel 10-1/2bore Blk with Gray Tire Midsize Ext | X9063 | $53.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | Screw 1/4 20x3/4 Phil PH MS SS | 7EW001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Bracket, Axle Wheel CFR Mid Size | 72770A | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Caster Assembly, Wheel 4 In., Grey, Extractors | X9153 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | SPACER, CASTER CFR MID SIZE | 72783A | $6.99Read more |
| 12 | | GASKET, VACUUM CHAMBER | X9468 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | NUT, 10-32 KEP ZINC | 7BF008 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | | Housing,Extractors,Vacuum Chamber,Self Contained | X9467 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | SCREW, 10-32X3/4 PHIL PAN MS 18-8 SS | 7BR005 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | NUT, 5/16-18 KEP ZINC | 7BF005 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | BOLT, 5/16-18 X 1-1/4 HEX TAP GR 2 ZINC | X8227 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Bumper, Front, Eco 500 | 72810A | $346.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | SCREW, 10-24X1/2 PHIL PAN MS 18-8 SS | 7BS001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | BRACKET COUPLER FOR Q/D ECO 500 | 71312A | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | | Coupler, Quick Disconnect SS 1/4 CFR Eco 500 | 72800A | $180.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | PLUG, BUMPER, ECO 500 | 72804A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | BOLT, 5/16-18X5/8 HEX TAP ZINC | 7DT001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Regulator Pressure Knurled Handle | 72059A | $282.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Sleeve Regulator ECO 500 | 72808A | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | | Bracket, Mount Pressure Regulator | 70223A | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Tee Union 1/4 NPT | 7AV001 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Screw 6-32x3/4 Phil PH MS SS | X8243 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Nut | X8240 | Not Available |
| 31 | No Image | Gauge Pressure 1000 PSI Back Mount | 70066A | $193.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | NUT, No 10-24 KEP ZINC | 7BF003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Elbow Street 1/4 90 Degree Brass | PC49 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | | Nut, Push 1/2 | 7GL002 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | No Image | LT SIDE PANEL, BLACK RAL 9017 ECO500 | 72787ABLK | $126.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | LEFT FOAM SIDE PANEL CFR CFR MIDSIZE EXTRACTOR | 72796B | $46.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | GASKET VACUUM MOTOR SEAL | 70020B | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | No Image | Spacer, ABS .25 ID .4 OD Deburred 3.5 Long | 72605A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | No Image | Motor,Extractor,230,VAC,Ametek,3 STG | 72854A | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | Not Available | Screw 1/4-20 x 1/2" | 72812A | Not Available |
| 43 | No Image | Coil Heater 3-Stage Vacuum | 72713B | $276.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | Not Available | J-Hook | X9423 | Not Available |
| 45 | Not Available | Screw 8-32 2 1/2" | X8274+ | Not Available |
| 46 | No Image | Cover Fan | 72702A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | Fan Cooling 230V 92MM 50 Cfm | 72701A | Not Available |
| 48 | Not Available | Pump Assembly 230V Low Profile | PT400MS-2 | Not Available |
| 49 | No Image | Nut 8-32 KEPS Zinc | X8256 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | No Image | Heater, 3000W 230V 20 Ohm Single Element | PF3000D | $637.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | No Image | Motor Chock Mount 1/4 - 20 x 1/2 | 72149A | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | No Image | Box, Electrical CFR Mid Size | 72772A | $108.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | | SCREW, 10-24X1/2 PHIL PAN MS 18-8 SS | 7BS001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | | Screw 1/4 20x3/4 Phil PH MS SS | 7EW001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 | No Image | Circuit Breaker Extractor 5 amp | X9324 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 58 | Not Available | Hour Meter | 72410A | Not Available |
| 59 | No Image | Relay, 230V | 71379B | $105.99Read more |
| 60 | | On/off Switch Part Number 32966 for Cleanmax and Simplicity Models CM-WAV,SCE | 32966 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 61 | No Image | Screw 10-24 X 3/4 Phil Pan MS Blk Zinc | X8276 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 62 | No Image | NUT, No 10-24 KEP ZINC | 7BF003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 63 | No Image | HEATER LIGHT, RED, 230V | 72806A | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 | No Image | Screw 6-32x3/4 Phil PH MS SS | X8243 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 | No Image | Plug, 1/2 Inch Black Nylon | 71804A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 66 | No Image | Door, Flip Hinge and Spring SCE | X9096 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 67 | No Image | Receptacle, Male Flanged | X9000 | $77.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 | No Image | BRACKET, BRACE, CFR MIDSIZE | 72795A | $63.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 69 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | | ACCESS PANEL, CFR MID SIZE REV 05 | 72809A | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 71 | Not Available | Screw 8-32 2 1/2" | X8274+ | Not Available |
Report errors on this page HERE
