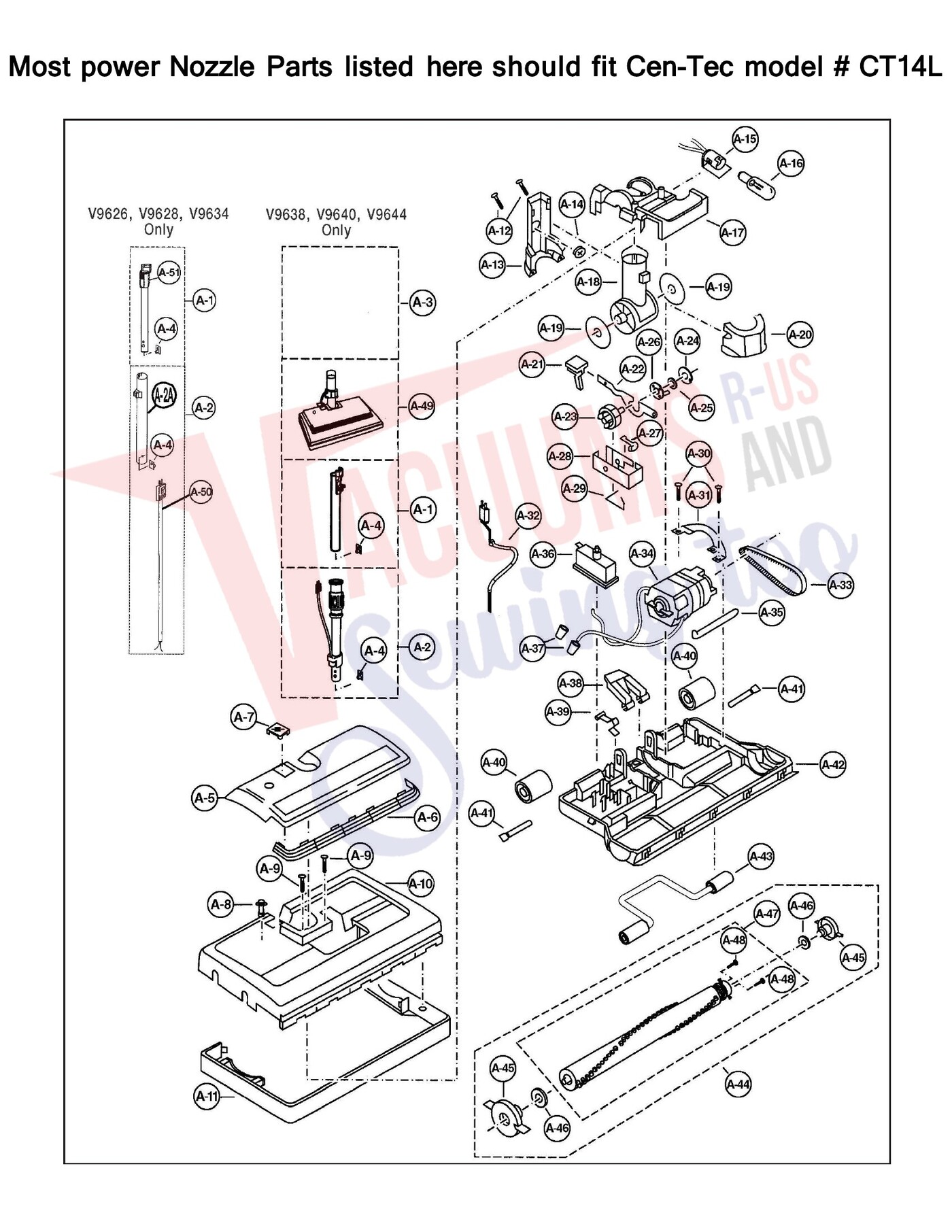

Schematic and parts book for Cen-Tec CT14L;CT14L . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX | Not Available | Hose Ass'y V9644 A-33 P-MC320B Geared Belt Type CB-5 | 40476 | Not Available |
| 1 | Not Available | Wand Upper v9626 v9634 | 50043 | Not Available |
| 1 | Not Available | Wand Upper v9628 | 50046 | Not Available |
| 1 | Not Available | Wand Upper v9638 | 50047 | Not Available |
| 1 | Not Available | Wand Upper v9640 | 50048 | Not Available |
| 1 | Not Available | Wand Upper v9644 | 50070 | Not Available |
| 2 | Not Available | Wand Lower With Cord | 50052 | Not Available |
| 2 | Not Available | Wand Lower v9640 | 50053 | Not Available |
| 2A | Not Available | Wand Lower | 50051 | Not Available |
| 3 | No Image | COVER, SWITCH Part Number: 4-0474 for Compact | 40474 | $8.34Read more |
| 3 | Not Available | Hose Ass'y v9628 v9638 | 40473 | Not Available |
| 3 | Not Available | Hose Ass'y V9640 | 40475 | Not Available |
| 4 | Not Available | Lock spring Wand | 725-419 | Not Available |
| 5 | Not Available | Power Head Cover v9626 | 24HBTWZBUD | Not Available |
| 5 | Not Available | Power Head Cover | 24HBMVZMU9 | Not Available |
| 5 | Not Available | Power Head Cover v9634 | 24HCHJZC01 | Not Available |
| 5 | Not Available | Power Head Cover v9640 | 24HCBWZCU1 | Not Available |
| 5 | Not Available | Power Head Cover v9644 | 24HCHKZR0K | Not Available |
| 6 | Not Available | Lens Light Cover | 744-119 | Not Available |
| 7 | Not Available | Lens Height Adjustment | 744-237 | Not Available |
| 8 | Not Available | Extension Button v9626 v9634 | 744-280 | Not Available |
| 8 | Not Available | Extension Button | 73452 | Not Available |
| 9 | Not Available | screw Nozzle Cover | 681-550 | Not Available |
| 10 | Not Available | Nozzle Cover v9626 | 73180 | Not Available |
| 10 | Not Available | Nozzle Cover v9628 v9638 | 73156 | Not Available |
| 10 | Not Available | Nozzle Cover v9640 v9634 | 73155 | Not Available |
| 10 | Not Available | Nozzle Cover v9644 | 73154 | Not Available |
| 11 | Not Available | Furniture Guard v9638 v9640 | 74065 | Not Available |
| 11 | Not Available | Furniture Guard | 10ASRZV07 | Not Available |
| 12 | Not Available | Wand Release Cover screw | XTN4+24BFY | Not Available |
| 13 | Not Available | Rear Cover Wand | 75552 | Not Available |
| 14 | Not Available | Button Wand Release | 13DABFZV0G | Not Available |
| 15 | Not Available | socket Bulb v9626 | 414-8683 | Not Available |
| 15 | Not Available | socket Bulb v9628 v9634 | 93HBNXZ000 | Not Available |
| 16 | Not Available | Bulb Headlight | FA-3515 | Not Available |
| 17 | Not Available | swivel Cap v9626 | 25QMGZB0D | Not Available |
| 17 | Not Available | swivel Cap v9628 v9638 | 25QMGZM09 | Not Available |
| 17 | Not Available | swivel Cap v9640 | 25QMGZC01 | Not Available |
| 17 | Not Available | swivel Cap v9634 v9644 | 25QMGZV06 | Not Available |
| 18 | Not Available | swivel v9626 v9628 v9634 | 415-5049 | Not Available |
| 18 | Not Available | swivel v9638 v9640 v9644 | 72423 | Not Available |
| 19 | Not Available | seal swivel | 742-019 | Not Available |
| 20 | Not Available | Front Cover | 75547 | Not Available |
| 21 | Not Available | Pad Foot Pedal | 48AMGZV06 | Not Available |
| 22 | Not Available | Lever indicator | 747-287 | Not Available |
| 23 | Not Available | Cam indicator | 725-725 | Not Available |
| 24 | Not Available | Washer Thrust | 722-909 | Not Available |
| 25 | Not Available | Washer | 725-635 | Not Available |
| 26 | Not Available | Catch indexing | 722-955 | Not Available |
| 27 | Not Available | Ratchet Catch | 742-016 | Not Available |
| 28 | Not Available | indicator Block | 742-015 | Not Available |
| 29 | Not Available | spring Assist | 725-775 | Not Available |
| 30 | Not Available | screw (Motor Bridge) | 681-297 | Not Available |
| 31 | Not Available | Bridge Motor | 705-093 | Not Available |
| 32 | Not Available | Lead Wire "A" Unit | 36017 | Not Available |
| 33 | Not Available | Geared Belt Type CB-5 | MC320B | Not Available |
| 33 |  | Belt, Kenmore Geared Power Nozzle | KER-1075 | $6.00Add to cart |
| 33 | Not Available | Serpentine Belt Type CB-6 | MC330B | Not Available |
| 34 | Not Available | v9626 v9628 v9638 v9640 | 60518 | Not Available |
| 34 | Not Available | serpentine | 60519 | Not Available |
| 35 | Not Available | Overload Protector | 742-002 | Not Available |
| 36 | Not Available | connector Wire | 742-332 | Not Available |
| 37 | Not Available | Release Handle | SS-3270 | Not Available |
| 38 | Not Available | Lifter | 73723 | Not Available |
| 40 | Not Available | Roller Rear | 01CAKZZV06 | Not Available |
| 41 | Not Available | Axle Rear | 742-006 | Not Available |
| 42 | Not Available | Base v9626 v9628 | 72150 | Not Available |
| 42 | Not Available | Base v9634 v9644 | 72151 | Not Available |
| 43 | Not Available | Axle Assembly Front | 744-029 | Not Available |
| 44 | Not Available | Brushroll v9626 Geared | 20017 | Not Available |
| 44 | Not Available | Brushroll v9628 v9638 v9640 | 20087 | Not Available |
| 44 | Not Available | Brushroll v9634 v9644 | 20086 | Not Available |
| 45 | Not Available | Bearing/Housing Assembly | 20538 | Not Available |
| 46 | Not Available | Washer | 681-424 | Not Available |
| 47 | Not Available | Brushroll Core v9626 | 415-6360 | Not Available |
| 47 | Not Available | Brushroll Core | 85RBMVZ020 | Not Available |
| 48 | Not Available | screw (End Brush) | 681-605 | Not Available |
| 49 | Not Available | Power Nozzle Assembly v9626 | 50XCBVZB0D | Not Available |
| 49 | Not Available | Power Nozzle Assembly | 50XBMVZM09 | Not Available |
| 49 | Not Available | Power Nozzle Assembly v9634 | 50XCHJZC01 | Not Available |
| 49 | Not Available | Power Nozzle Assembly v9640 | 50XCBWZC01 | Not Available |
| 49 | Not Available | Power Nozzle Assembly v9644 | 50XCHKZR0K | Not Available |
| 50 | Not Available | Cord Unit v9626 v9634 | 30053 | Not Available |
| 50 | Not Available | Cord Unit v9628 | 30054 | Not Available |
| 51 | Not Available | Quick Release V9628 V9638 | 73925 | Not Available |
