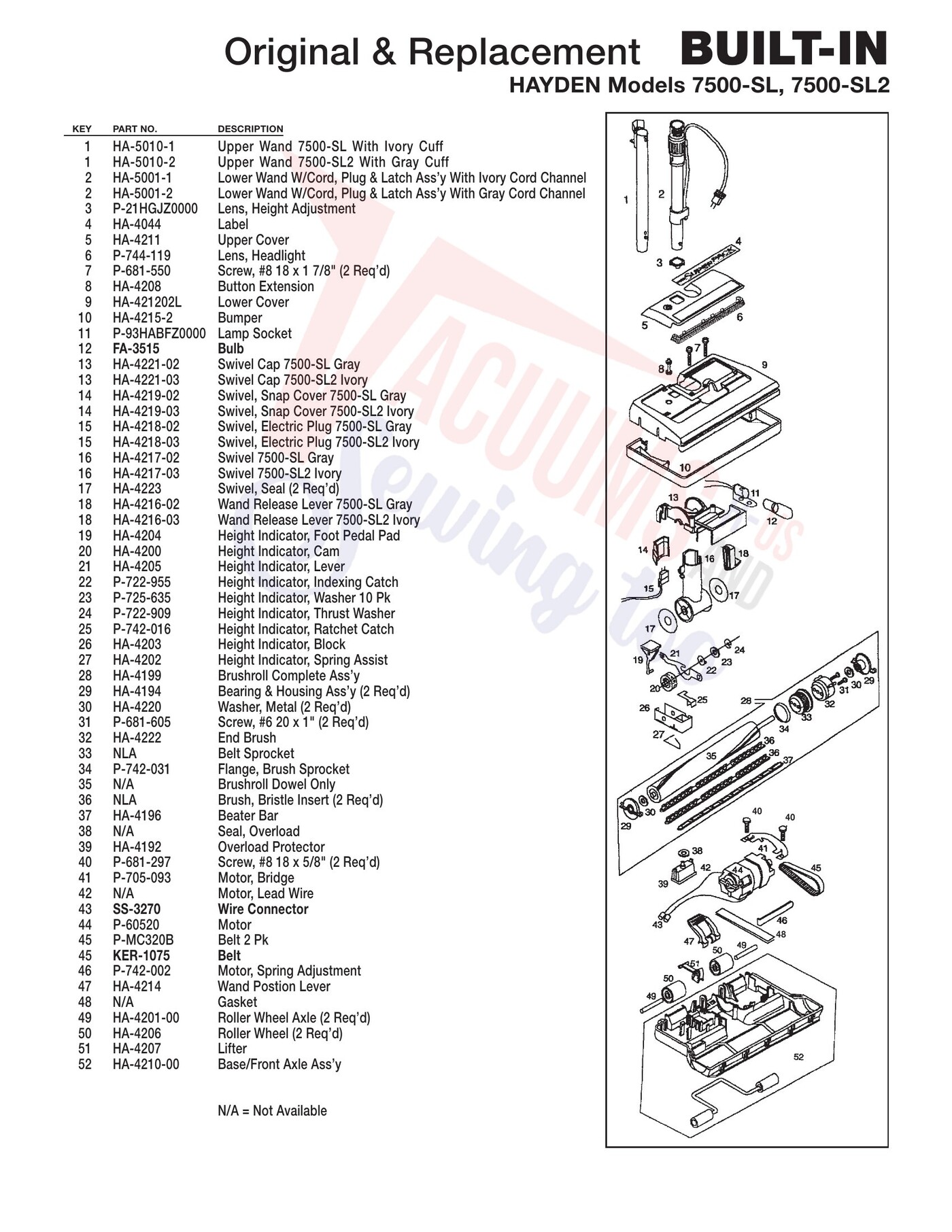

Schematic and parts book for Built-In 7500-SL, 7500-SL2 Hayden. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Upper Wand 7500-sl With ivory cuff | 5010-1 | Not Available |
| 1 | Not Available | Upper Wand 7500-sl2 With gray cuff | 5010-2 | Not Available |
| 2 | Not Available | lower Wand W/cord plug & latch ass’y With ivory cord channel | 5001-1 | Not Available |
| 2 | Not Available | lower Wand W/cord plug & latch ass’y With gray cord channel | 5001-2 | Not Available |
| 3 | Not Available | lens Height adjustment | 21HGJZ0000 | Not Available |
| 4 | Not Available | label | 4044 | Not Available |
| 5 | Not Available | Upper cover | 4211 | Not Available |
| 6 | Not Available | lens Headlight | 744-119 | Not Available |
| 7 | Not Available | screw #8 18 x 1 7/8" (2 Req’d) | 681-550 | Not Available |
| 8 | Not Available | Button extension | 4208 | Not Available |
| 9 | Not Available | lower cover | 421202L | Not Available |
| 10 | Not Available | Bumper | 4215-2 | Not Available |
| 11 | Not Available | lamp socket | 93HABFZ0000 | Not Available |
| 12 | Not Available | Bulb | FA-3515 | Not Available |
| 13 | Not Available | swivel cap 7500-sl gray | 4221-02 | Not Available |
| 13 | Not Available | swivel cap 7500-sl2 ivory | 4221-03 | Not Available |
| 14 | Not Available | swivel snap cover 7500-sl gray | 4219-02 | Not Available |
| 14 | Not Available | swivel snap cover 7500-sl2 ivory | 4219-03 | Not Available |
| 15 | Not Available | swivel electric plug 7500-sl gray | 4218-02 | Not Available |
| 15 | Not Available | swivel electric plug 7500-sl2 ivory | 4218-03 | Not Available |
| 16 | Not Available | swivel 7500-sl gray | 4217-02 | Not Available |
| 16 | Not Available | swivel 7500-sl2 ivory | 4217-03 | Not Available |
| 17 | Not Available | swivel seal (2 Req’d) | 4223 | Not Available |
| 18 | Not Available | Wand Release lever 7500-sl gray | 4216-02 | Not Available |
| 18 | Not Available | Wand Release lever 7500-sl2 ivory | 4216-03 | Not Available |
| 19 | Not Available | Height indicator foot pedal pad | 4204 | Not Available |
| 20 | Not Available | Height indicator cam | 4200 | Not Available |
| 21 | Not Available | Height indicator lever | 4205 | Not Available |
| 22 | Not Available | Height indicator indexing catch | 722-955 | Not Available |
| 23 | Not Available | Height indicator Washer 10 pk | 725-635 | Not Available |
| 24 | Not Available | Height indicator thrust Washer | 722-909 | Not Available |
| 25 | Not Available | Height indicator Ratchet catch | 742-016 | Not Available |
| 26 | Not Available | Height indicator Block | 4203 | Not Available |
| 27 | Not Available | Height indicator spring assist | 4202 | Not Available |
| 28 | Not Available | Brushroll complete ass’y | 4199 | Not Available |
| 29 | Not Available | Bearing & Housing ass’y (2 Req’d) | 4194 | Not Available |
| 30 | Not Available | Washer metal (2 Req’d) | 4220 | Not Available |
| 31 | Not Available | screw #6 20 x 1" (2 Req’d) | 681-605 | Not Available |
| 32 | Not Available | end Brush | 4222 | Not Available |
| 33 | Not Available | Belt sprocket | NLA | Not Available |
| 34 | Not Available | flange Brush sprocket | 742-031 | Not Available |
| 35 | Not Available | Brushroll Dowel only | N/A | Not Available |
| 36 | Not Available | Brush Bristle insert (2 Req’d) | NLA | Not Available |
| 37 | Not Available | Beater Bar 40 40 | 4196 | Not Available |
| 38 | Not Available | seal overload | N/A | Not Available |
| 39 | Not Available | overload protector | 4192 | Not Available |
| 40 | Not Available | screw #8 18 x 5/8" (2 Req’d) | 681-297 | Not Available |
| 41 | Not Available | motor Bridge | 705-093 | Not Available |
| 42 | Not Available | motor lead Wire | N/A | Not Available |
| 43 | Not Available | wire connector | SS-3270 | Not Available |
| 44 | Not Available | motor | 60520 | Not Available |
| 45 | Not Available | Belt 2 pk 48 | MC320B | Not Available |
| 45 |  | Belt, Kenmore Geared Power Nozzle | KER-1075 | $6.00Add to cart |
| 46 | Not Available | motor spring adjustment | 742-002 | Not Available |
| 47 | Not Available | Wand postion lever | 4214 | Not Available |
| 48 | Not Available | gasket | N/A | Not Available |
| 49 | Not Available | Roller Wheel axle (2 Req’d) | 4201-00 | Not Available |
| 50 | Not Available | Roller Wheel (2 Req’d) | 4206 | Not Available |
| 51 | Not Available | lifter | 4207 | Not Available |
| 52 | Not Available | Base/front axle ass’y | 4210-00 | Not Available |
