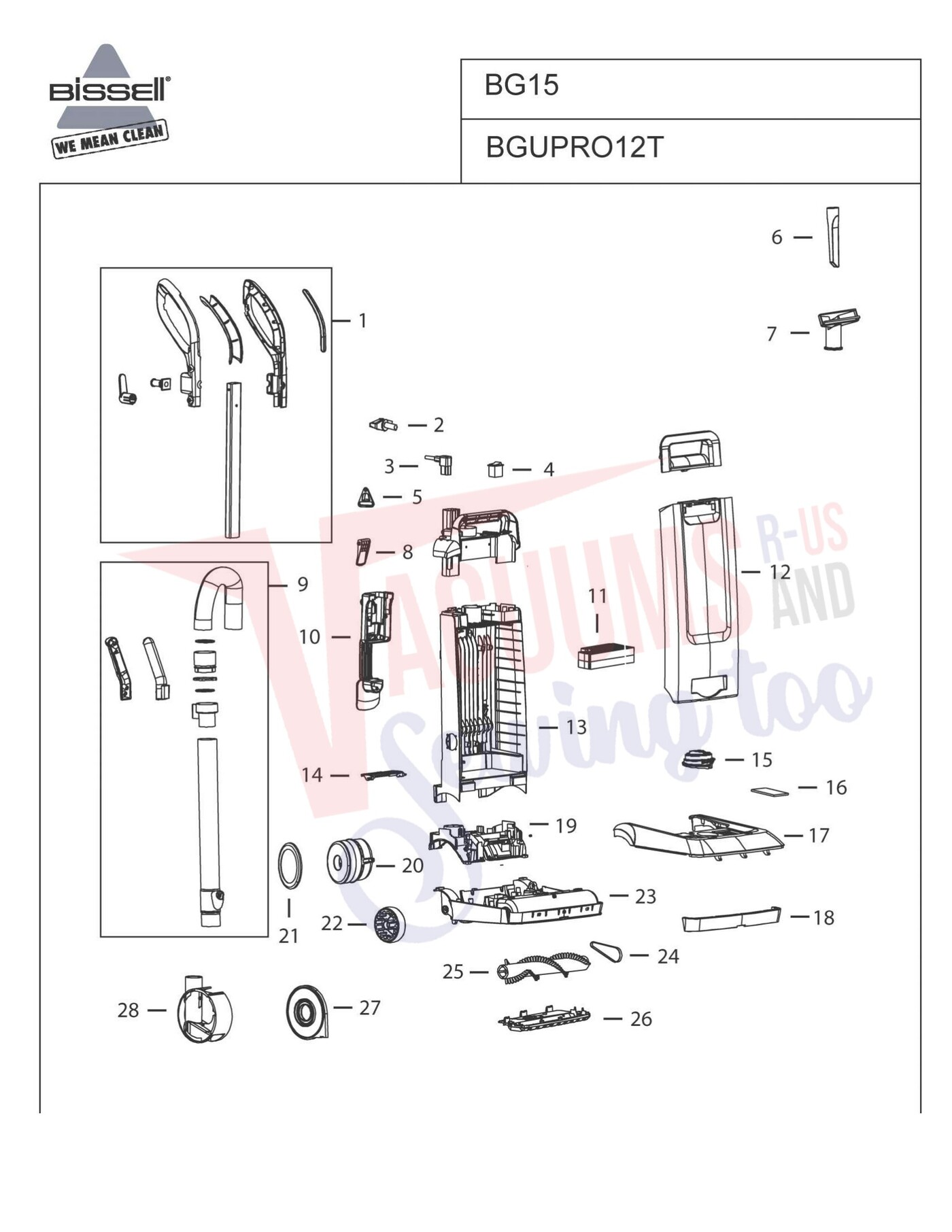

Schematic and parts book for Bissell BGUPRO12T . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Cable Cord USA (Yellow) | 203-7782 | Not Available |
| XX | No Image | PLATE, SPRINGHANDLE HEIGHT ADJUSTMENT BG15 Part Number: 203-7786 for Bissell | 2037786 | $1.69Read more |
| XX | Not Available | Main PCB Board | 203-7805 | Not Available |
| XX | No Image | MOTOR, SM 1000W BG15 Part Number: 203-7806 for Bissell | 2037806 | $112.70Read more |
| XX | No Image | GEAR, MOTOR 14X BG15 Part Number: 203-7807 for Bissell | 2037807 | $12.28Read more |
| XX | No Image | CLUTCH, GEAR BOX 60X BG15 Part Number: 203-7808 for Bissell | 2037808 | $21.36Read more |
| XX | Not Available | Paper Bag (10 pack) | 203-7812 | Not Available |
| XX | No Image | Belt, Clutch & Motor Gear BG15 Part Number: 203-7818 for Bissell | 2037818 | $11.08Read more |
| XX | No Image | OUTLET, AIR FELT BG15 Part Number: 203-7796 for Bissell | 2037796 | $2.11Read more |
| XX | No Image | BRACKET, WIRE FIXATION BG15 Part Number: 203-7802 for Bissell | 2037802 | $5.58Read more |
| XX | No Image | BASE, FOOT W/WHEELS BG15 Part Number: 203-7819 for Bissell | 2037819 | $509.45Read more |
| 1 | No Image | HANDLE, BG15 Part Number: 203-7781 for Bissell | 2037781 | $45.70Read more |
| 2 | No Image | SCREW, THUMB BG15 Part Number: 203-7783 for Bissell | 2037783 | $4.58Read more |
| 3 | No Image | RECEPTICLE, 3 WIRE BG15 Part Number: 203-7811 for Bissell | 2037811 | $5.72Read more |
| 4 | Not Available | PowerSwitch (Green) | 203-7821 | Not Available |
| 5 | No Image | RESTRAIN, CORD BG78/BG15/BG11 Part Number: 203-7784 for Bissell | 2037784 | $4.20Read more |
| 6 | No Image | CREVICE TOOL, BG15 BLACK Part Number: 203-7817 for Bissell | 2037817 | $8.31Read more |
| 7 | No Image | UPHOLSTERY TOOL, BG15 BLACK Part Number: 203-7816 for Bissell | 2037816 | $13.26Read more |
| 8 | No Image | HANDLE, HEIGHT ADJUSTMENT YELLOW BG15 Part Number: 203-7785 for Bissell | 2037785 | $3.76Read more |
| 9 | Not Available | Wand Assembly (Black) | 203-7797 | Not Available |
| 10 | No Image | HANDLE, BACK W/GRIPS BG15 Part Number: 203-7787 for Bissell | 2037787 | $24.45Read more |
| 11 | Not Available | Filter Cassette Body (Black) | 203-7799 | Not Available |
| 12 | No Image | DOOR, FRONT GREEN BG15 Part Number: 203-7798 for Bissell | 2037798 | $18.02Read more |
| 13 | No Image | BODY, REAR SINGLE MOTOR BG15 Part Number: 203-7788 for Bissell | 2037788 | $66.34Read more |
| 14 | No Image | PEDAL, LOCKING BG15 Part Number: 203-7820 for Bissell | 2037820 | $8.27Read more |
| 15 | No Image | KNOB, HEIGHT ADJUSTMENT BG15 BLACK Part Number: 203-7790 for Bissell | 2037790 | $7.69Read more |
| 16 | No Image | FILTER, FELT AIR OUTLET COTTON BG15 Part Number: 203-7813 for Bissell | 2037813 | $3.91Read more |
| 17 | No Image | HOUSING, BRUSHROLL GREEN BG15 Part Number: 203-7791 for Bissell | 2037791 | $37.84Read more |
| 18 | No Image | BUMPER, NOZZLE HOUSING GRAY BG15 Part Number: 203-7803 for Bissell | 2037803 | $21.90Read more |
| 19 | No Image | BASE, SWIVEL SM BG15 Part Number: 203-7789 for Bissell | 2037789 | $55.79Read more |
| 20 | No Image | MOTOR, UPSM BG15 Part Number: 203-7792 for Bissell | 2037792 | $160.36Read more |
| 21 | No Image | COVER, MOTOR RIGHT BG15 Part Number: 203-7793 for Bissell | 2037793 | $6.92Read more |
| 22 | No Image | Caster, Rear W/Bearing And Shaft BG15 Part Number: 203-7795 for Bissell | 2037795 | $37.30Read more |
| 23 | Not Available | Brush housing Assembly w/ Grey Bumper | 203-7794 | Not Available |
| 24 | Not Available | Belt | 203-7814 | Not Available |
| 25 | Not Available | Brush Roller Assembly with End Caps | 203-7815 | Not Available |
| 26 | No Image | BOTTOM PLATE, BG15 BLACK Part Number: 203-7804 for Bissell | 2037804 | $40.27Read more |
| 27 | No Image | SUPPORT, AIR INTAKE RIGHT BG15 Part Number: 203-7801 for Bissell | 2037801 | $25.20Read more |
| 28 | Not Available | Air Intake and Swivel UPSM Assembly | 203-7800 | Not Available |
