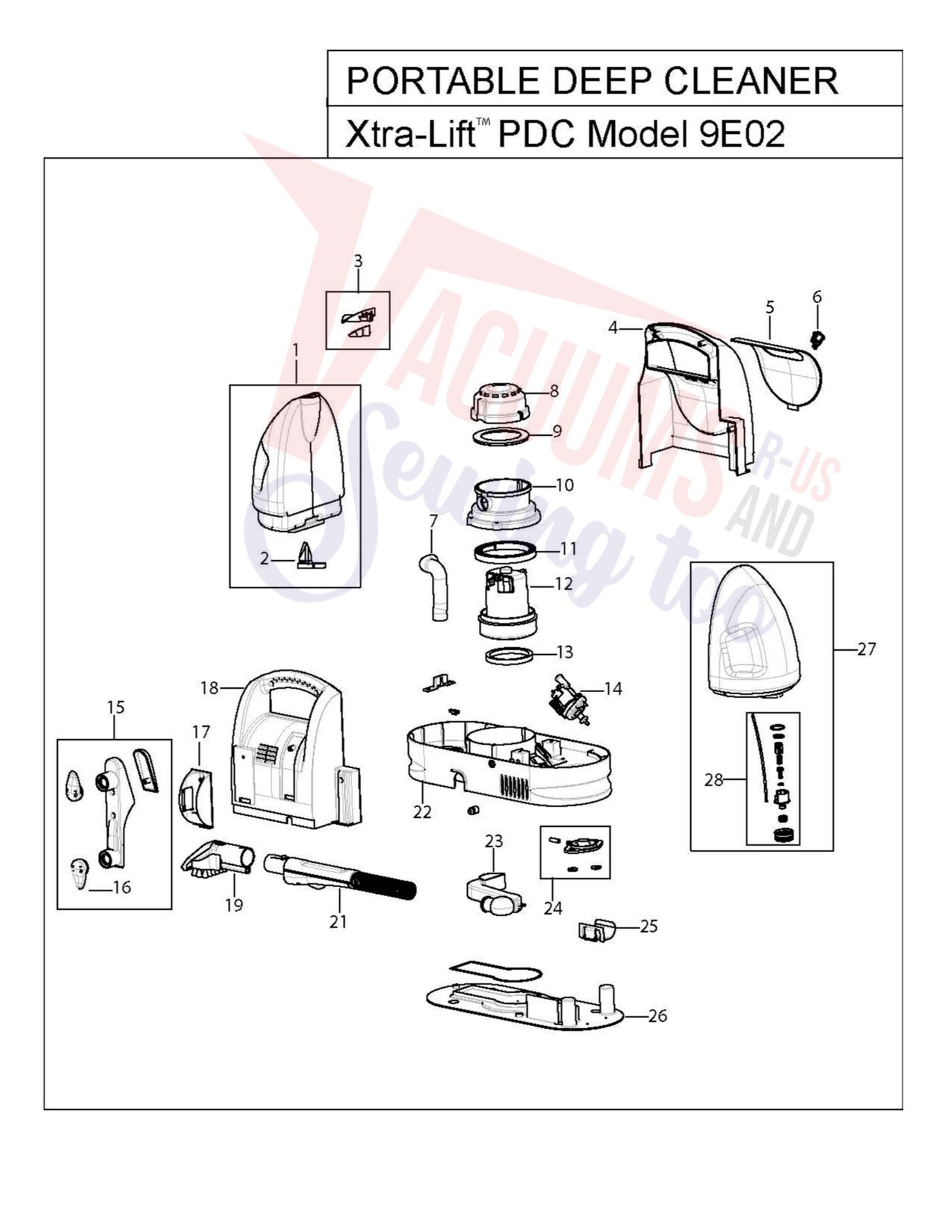

Schematic and parts book for Bissell 9E02 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| xx | Not Available | Power Cord | 2035025 | Not Available |
| xx | Not Available | GASKET FOR BASE/RECOVERY TANK | 2035026 | Not Available |
| xx | Not Available | User's Guide | 2031158 | Not Available |
| 1 | Not Available | Dirty Tank Assy | 203-5005 | Not Available |
| 2 | Not Available | Airstack Bottom Seal | 603-5045 | Not Available |
| 3 | Not Available | Dirty Tank Latch w/ Gasket | 203-5010 | Not Available |
| 4 | Not Available | Front Housing | 203-5016 | Not Available |
| 5 | Not Available | Cover Plate | 203-5015 | Not Available |
| 6 |  | SWITCH LGPRO POWER ONOFF REPL Bissell repair part number: 2104200 | 2104200 | $4.86Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Motor Exhaust Duct | 603-5017 | Not Available |
| 8 | Not Available | Top Motor Cover | 603-5018 | Not Available |
| 9 | Not Available | Top Motor Seal | 603-5019 | Not Available |
| 10 | Not Available | Motor Cover | 603-5020 | Not Available |
| 11 | Not Available | Top Motor Gasket | 603-5021 | Not Available |
| 12 |  | NO LONGER AVAILABLE MOTOR LITTLE GREEN REPL Bissell repair part number: 6035022 | 6035022 | $32.67Read more |
| 13 |  | GASKET BOTTOM MOTOR LG REPL Bissell repair part number: 6035023 | 6035023 | $2.97Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Bissell 603-5029 Pump, Little Green 1400/1425 Series | 6035029 | $14.63Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Cord Wrap Bracket w/ Cord Wraps & Cover | 203-5022 | Not Available |
| 16 | Not Available | Cord Wrap | 203-5021 | Not Available |
| 17 | Not Available | Wand Clip | 203-5023 | Not Available |
| 18 | Not Available | Rear Housing | 203-5024 | Not Available |
| 19 | Not Available | 3" Upholstery Tool | 203-5020 | Not Available |
| 21 | Not Available | Flex Hose & Handle Assy | 203-5019 | Not Available |
| 22 | Not Available | Base - Med Cool Gray | 203-5201 | Not Available |
| 23 | Not Available | Intake Duct | 603-5034 | Not Available |
| 24 | Not Available | Receiver Assy | 603-5030 | Not Available |
| 25 | Not Available | Hose Clip | 203-5048 | Not Available |
| 26 | Not Available | Bottom Base Cover w/ Gasket | 203-5018 | Not Available |
| 27 | Not Available | Clean Tank Assy | 203-5017 | Not Available |
| 28 |  | CAP INSERT ASSY REPL Bissell repair part number: 2035014 | 2035014 | $8.47Add to cart Product is special order please allow 2-4 weeks for delivery. |
