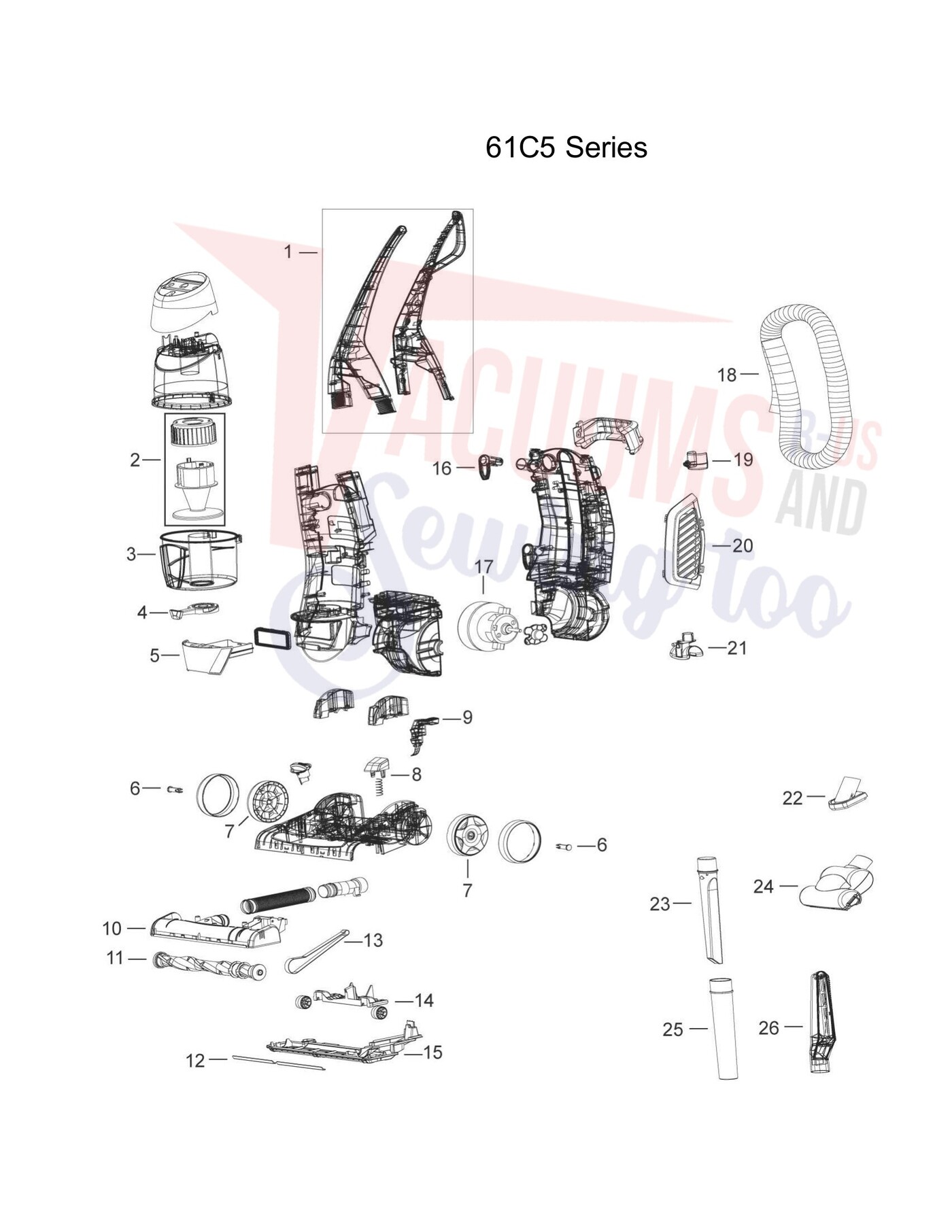

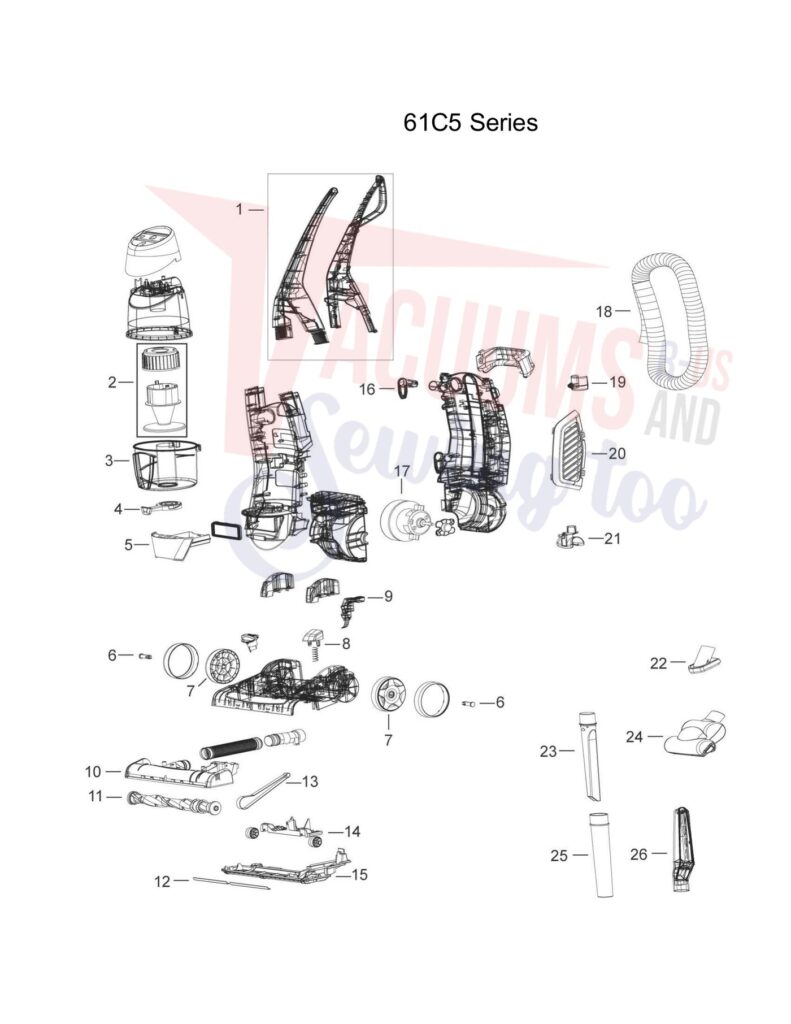

Schematic and parts book for Bissell 61C5 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX |  | Filter, 27W8 Febreze 7 & 9 Postmotor 3545 Allergen Part Number: 27W81 for Bissell | 27W81 | $21.51Read more |
| XX | Not Available | User Guide | 110-4532 | Not Available |
| 1 | Not Available | Handle Assembly | 203-1720 | Not Available |
| 2 |  | Cyclone, Gray Total Floors Uprt 61C5/52C2 Part Number: 203-1729 for Bissell | 2031729 | $17.95Read more |
| 3 | Not Available | Dirt Cup | 203-1728 | Not Available |
| 4 | Not Available | Lever Cyclone | 203-1725 | Not Available |
| 5 | Not Available | Filter Case | 203-1721 | Not Available |
| 6 | Not Available | Axel | 203-1764 | Not Available |
| 7 | Not Available | Wheel | 203-1731 | Not Available |
| 8 | No Image | BUTTON, BRUSH Part Number: 203-1737 for Bissell | 2031737 | $13.82Read more |
| 9 | Not Available | Detent Pedal | 203-1736 | Not Available |
| 10 | No Image | Drum, Case W/Seals Total Floors Uprt 61C5/52C2 Part Number: 203-1734 for Bissell | 2031734 | $27.21Read more |
| 11 | No Image | Brush Roll Assembly | 2031751 | $35.15Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Pet Strip Left | 203-1733 | Not Available |
| 12 | Not Available | Pet Strip Right | 203-1765 | Not Available |
| 13 |  | Belt 61C5W | 2031730 | $10.06Add to cart |
| 14 | Not Available | Carriage Assy | 203-1738 | Not Available |
| 15 | Not Available | Sole Plate Assy w/ Seals | 203-1732 | Not Available |
| 16 |  | Hook Cord, Upper 61C5 Series Part Number: 203-1722 for Bissell | 2031722 | $4.84Read more |
| 17 | Not Available | Motor Assy | 203-1726 | Not Available |
| 18 | Not Available | Hose Assy | 203-1739 | Not Available |
| 19 |  | Holder, Upper Hose Total Floors Uprt 61C5/52C2 Part Number: 203-1723 for Bissell | 2031723 | $10.92Read more |
| 20 | Not Available | Grille Back | 203-1727 | Not Available |
| 21 | Not Available | Hose Holder Lower w/ Screws | 203-1724 | Not Available |
| 22 | Not Available | Dusting/Upholstery Combo Tool | 203-1228 | Not Available |
| 23 | No Image | Tool Crevice | 2031740 | $13.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Pet TurboEraser | 203-7529 | Not Available |
| 25 | Not Available | Extension Wand | 203-1768 | Not Available |
| 26 | Not Available | Pet Dusting / Crevice Tool | 203-1741 | Not Available |
