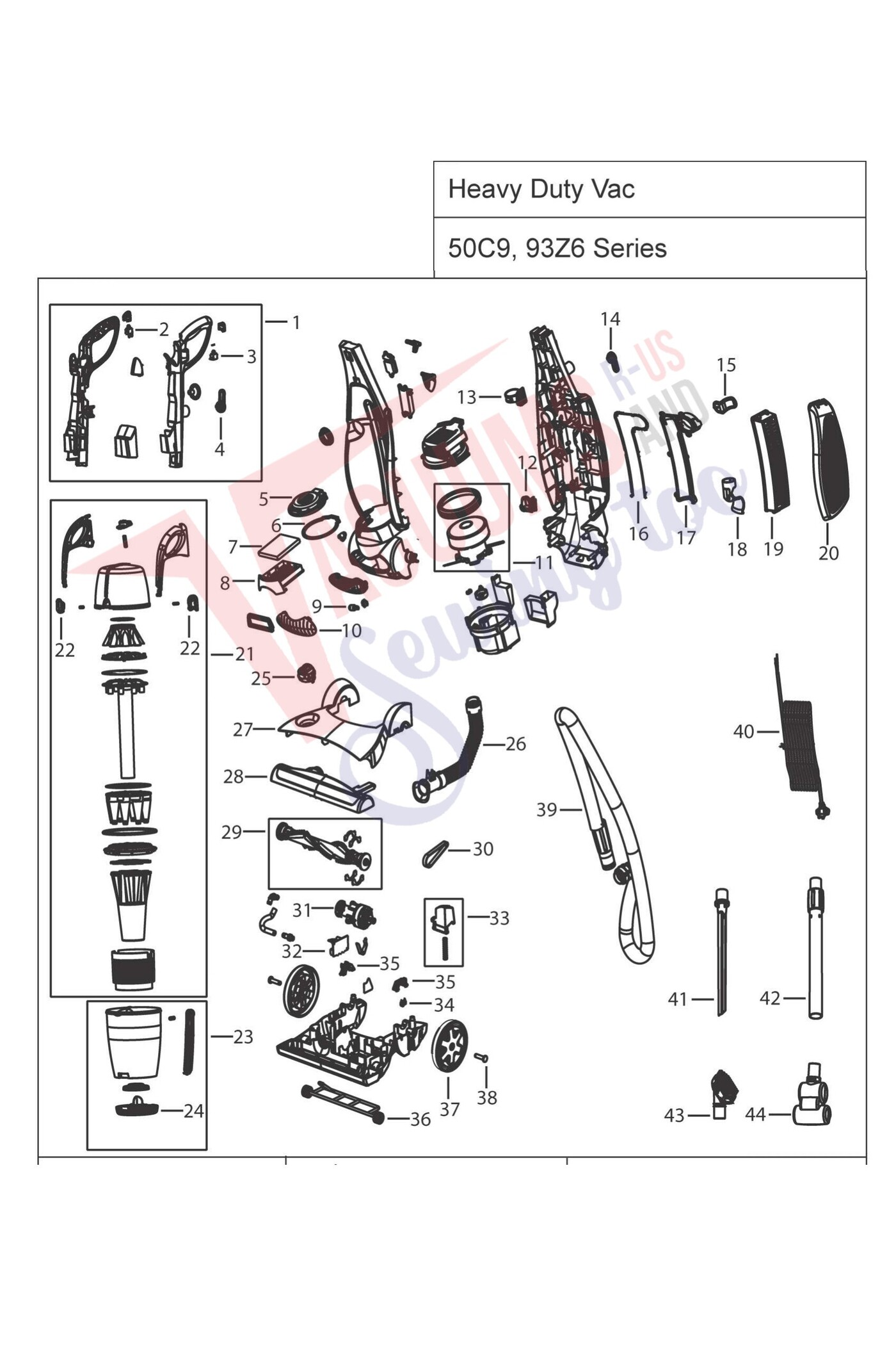

Schematic and parts book for Bissell 50C9, 93z6 Bissell Heavy Duty and Healthy Home. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX | Not Available | Turbobrush w/Microban | 203-1372 | Not Available |
| XX | Not Available | Pet Wide Turbobrush | 203-1367 | Not Available |
| XX | Not Available | Flexible Crevice Tool | 203-1366 | Not Available |
| XX | Not Available | Contour Tool | 203-1382 | Not Available |
| XX |  | SCREW, HANDLE HEALTHY HOME 5770 5990 6100 Part Number: 203-1376 for Bissell | 2031376 | $2.32Read more |
| XX | Not Available | User's Guide | 110-4073 | Not Available |
| 1 | Not Available | Handle Assembly w/ Cord - Black (50C9) | 203-1442 | Not Available |
| 1 |  | Handle, Dark Gray Plastic W/Cord Heavy Duty 50C91 Part Number: 203-1617 for Bissell | 2031617 | $49.94Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Switch-Bissell 5770 - 5990 - 6100 - On/Off -
Healthy Home - Upright For: bissell | 2031316 | $3.33Read more |
| 3 |  | Switch, Blk Sq Brush Button 5770/6100 Healthy Home Part Number: 203-1317 for Bissell | 2031317 | $3.62Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Cord wrap hook for Bissell healthy home vacuum cleaner models: 5770, 5990, 6100, 5770-5, 5770-8,... | 2031315 | $10.88Read more |
| 5 | Not Available | UV Reflector | 203-1378 | Not Available |
| 6 |  | Gasket, Gray Cyclone Healthy Home 5770/5990/6100 Part Number: 203-1308 for Bissell | 2031308 | $4.91Read more |
| 7 |  | Filter Foam Premotor | 2031374 | $6.81Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Pre Motor Filter Tray | 203-1352 | Not Available |
| 9 |  | Bulb, 12V Healthy Home 5770/5990/6100 Part Number: 203-1377 for Bissell | 2031377 | $3.62Read more |
| 10 | Not Available | Headlight Lens | 203-1354 | Not Available |
| 11 |  | Motor, 5.7" 120 Volt B/B 2 Stage Thru-Flow Hi-Eff Part Number: 203-1360 for Bissell | 2031360 | $86.64Read more |
| 12 | Not Available | Lower Wand Support | 203-1443 | Not Available |
| 13 |  | Support, Upper Wand Heavy Duty Bagless 50C9/93Z6 Part Number: 203-1444 for Bissell | 2031444 | $7.16Read more |
| 14 | | Cord wrap hook for Bissell healthy home vacuum cleaner models: 5770, 5990, 6100, 5770-5, 5770-8,... | 2031315 | $10.88Read more |
| 15 | Not Available | Hose Clip | 203-1445 | Not Available |
| 16 | Not Available | Rope Gasket - Diverter Cover | 203-1379 | Not Available |
| 17 |  | Cover, Clear Plastic Diverter Healthy Home 5770 Part Number: 203-1361 for Bissell | 2031361 | $10.48Read more |
| 18 |  | Guide, Black Hose Healthy Home 5770/5990/6100 Part Number: 203-1446 for Bissell | 2031446 | $5.18Read more |
| 19 |  | Style 15 Hepa Filter Cartridge | 3282 | $41.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | DOOR, FILTER HEALTHY HOME 5770 5990 6100 Part Number: 203-1447 for Bissell | 2031447 | $10.36Read more |
| 21 |  | Cyclone, Upper Heavy Duty Uprt 50C9/93Z6 Part Number: 203-1448 for Bissell | 2031448 | $56.12Read more |
| 22 |  | LATCHES, WITH SPRING CYCLONE Part Number: 203-1449 for Bissell | 2031449 | $5.95Read more |
| 23 | Not Available | Dirt Bin & Debris Door Assembly | 203-1450 | Not Available |
| 24 |  | Door, Dirt Cup Healthy Home 5770/5990/6100/6405 Part Number: 203-1299 for Bissell | 2031299 | $16.02Read more |
| 25 |  | Knob, Height Adjustment Healthy Hom 5770/5990/6100 Part Number: 203-1320 for Bissell | 2031320 | $2.65Read more |
| 26 |  | Hose, Nozzle, Healthy Home 5770/5990/6100 Part Number: 203-1348 for Bissell | 2031348 | $9.87Read more |
| 27 | Not Available | Top Cover | 203-1451 | Not Available |
| 28 | Not Available | Brush Window | 203-1452 | Not Available |
| 29 | Not Available | Brush w/Felt Gaskets | 203-1328 | Not Available |
| 30 |  | Belt Healty Home Heavy Duty | 2031329 | $3.44Add to cart |
| 31 |  | Cogged brush bar motor for bissell healthy home 5770 5990 6100 5770-5 5770-8 5770-P 5770-H 6405 | 2031350 | $43.99Read more |
| 32 | Not Available | Circuit Board - 5770 series; 16N5234CT; 50C91; 6100AN | 203-1349 | Not Available |
| 32 |  | Circuit Board, Heavy Duty Bagless 93Z6 Part Number: 203-8232 for Bissell | 2038232 | $22.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Pedal, Black Detent Healthy Home 5770/5990/6100 Part Number: 203-1340 for Bissell | 2031340 | $3.33Read more |
| 34 |  | Bissell microswitch for Bissell healthy home 5770 5990 6100 5770-5 5770-8 5770-P 5770-H 6405 | 2031347 | $7.21Add to cart |
| 35 |  | Clamp, Body Pivot W/Screws Healthy Home 5770/5990 Part Number: 203-1346 for Bissell | 2031346 | $0.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 |  | WHEEL, FRONT ASSEMBLY 5770 5990 6100 HEALTHY HOME Part Number: 203-1319 for Bissell | 2031319 | $14.73Read more |
| 37 |  | Wheel, Rear HealthyHome 5770/5990/6100 Part Number: 203-1341 for Bissell | 2031341 | $9.53Read more |
| 38 |  | Axle, W/E-Ring Healthy Home 5770/5990/6100 Part Number: 203-1345 for Bissell | 2031345 | $5.09Read more |
| 39 |  | Hose, 5770/5990/6100 Healthy Home Part Number: 203-1359 for Bissell | 2031359 | $28.89Read more |
| 40 |  | Cord, Gray Healthy Home 5770/5990/6100/6405 Part Number: 203-1318 for Bissell | 2031318 | $27.63Read more |
| 41 |  | Tool Crevice | 2031363 | $6.81Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 |  | Wand, Telescoping Ext Healthy Home/Pet Hair Eraser Part Number: 203-1364 for Bissell | 2031364 | $21.96Read more |
| 42 | Not Available | Telescoping Wand - Metal | 203-1373 | Not Available |
| 43 |  | Tool Upholstery Brush Only | 2031434 | $6.81Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | Not Available | Turbobrush | 203-1362 | Not Available |
