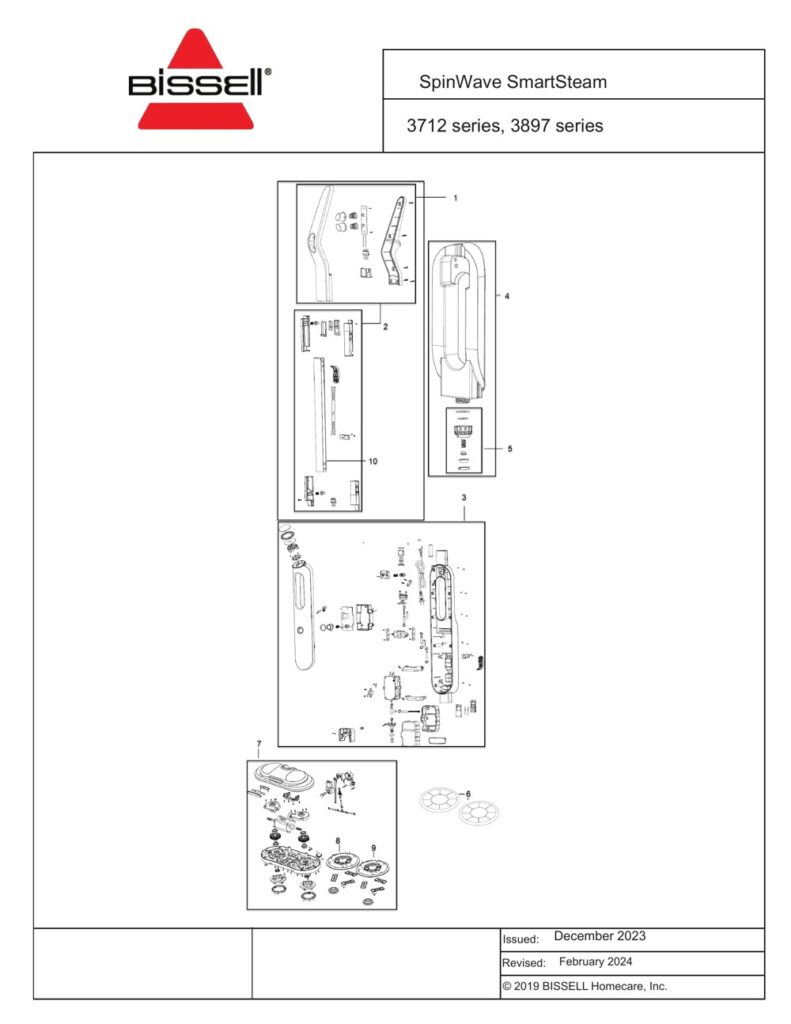

Schematic and parts book for Bissell 3738 SpinWave SmartSteam. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle - Grip, Titanium - 3712, 3897A | 1641103 | Not Available |
| 1 | Not Available | Handle - Grip, Silver - 3712W | 1641104 | Not Available |
| 2 | Not Available | Handle Assembly, Titanium - 3712, 3897A | 1641101 | Not Available |
| 2 | Not Available | Handle Assembly, Silver - 3712W | 1641102 | Not Available |
| 3 | Not Available | Body and Cord Assembly - Titanium - 3712, 3897A | 1641107 | Not Available |
| 3 | Not Available | Body and Cord Assembly - Silver - 3712W | 1641108 | Not Available |
| 4 | Not Available | Clean Tank with Cap | 1641109 | Not Available |
| 5 | Not Available | Clean Tank Cap | 1641110 | Not Available |
| 6 | Not Available | Scrubby Pads (2 pk) | 1641112 | Not Available |
| 7 | Not Available | Foot Assembly - Titanium - 3712, 3897A | 1641113 | Not Available |
| 7 | Not Available | Foot Assembly - Silver - 3712W | 1641114 | Not Available |
| 8 | Not Available | Rotating Disc with screw, Left, Grey - 3712 , 3897A | 1641115 | Not Available |
| 8 | Not Available | Rotating Disc with screw, Left, Electric Blue - 3712W | 1641116 | Not Available |
| 9 | Not Available | Rotating Disc with screw, Right, Grey - 3712, 3897A | 1641117 | Not Available |
| 9 | Not Available | Rotating Disc with screw, Right, Electric Blue - 3712W | 1641118 | Not Available |
| 10 | Not Available | Handle Tube, Natural - 3712W | 1641105 | Not Available |
| 10 | Not Available | Handle Tube - Bossanova Blue - 3712, 3897A | 1641106 | Not Available |
