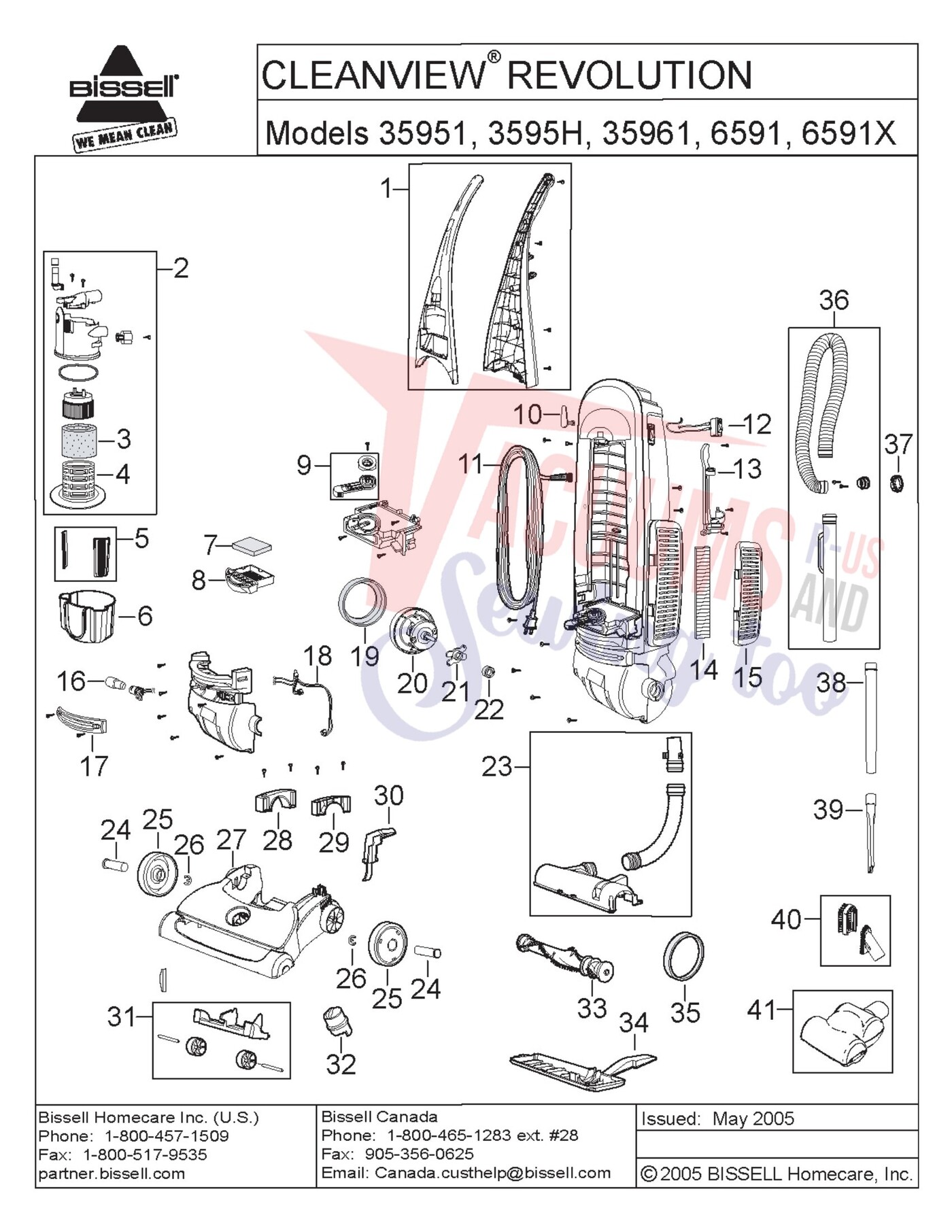

Schematic and parts book for Bissell 35951, 3595H, 3596, 35961, 6591, 6591X . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx | Not Available | User's Guide - Canada | 6036725 | Not Available |
| xx | Not Available | User's Guide - United States | 2036720 | Not Available |
| 1 | Not Available | Handle Assy - Blue Suede | 203-6741 | Not Available |
| 1 | Not Available | Handle Assy - Green Slate | 203-6744 | Not Available |
| 1 | Not Available | Handle Assy - Spice | 203-6745 | Not Available |
| 2 | Not Available | Cyclone Assy - Clear/Lime w/ Filter Clean | 203-6733 | Not Available |
| 2 | Not Available | Cyclone Assy - Clear/Yellow w/ Filter Clean | 203-6734 | Not Available |
| 2 | Not Available | Cyclone Assy - Clear/Yellow w/ Filter Clean & Dirt Sensor | 203-6735 | Not Available |
| 2 | Not Available | Cyclone Assy - Light Berry/Taupe w/ Filter Clean & Dirt Sensor | 203-6736 | Not Available |
| 3 |  | Bissell Foam Filter Style 7 and 8 | BR1805 | $8.10Add to cart |
| 4 | Not Available | Separation Flange Frame - Lime | 203-6740 | Not Available |
| 4 | Not Available | Separation Flange Frame - Yellow | 203-6739 | Not Available |
| 5 | Not Available | Dirt Cup Screen (2pk) - Lime | 203-6721 | Not Available |
| 5 | Not Available | Dirt Cup Screen (2pk) - Yellow | 203-6727 | Not Available |
| 5 | Not Available | Dirt Cup Screen (2pk) - Taupe | 203-6723 | Not Available |
| 6 | Not Available | Dirt Cup - Clear | 203-6737 | Not Available |
| 6 | Not Available | Dirt Cup - Light Berry | 203-6738 | Not Available |
| 7 |  | Bissell Pre-Motor Filter for Upright Bissell Vacuums | 2031073 | $8.00Read more |
| 8 | Not Available | Pre Motor Filter Grille | 203-2058 | Not Available |
| 9 | Not Available | Lock n' Seal Lever | 203-1119 | Not Available |
| 10 |  | CORD RELEASE 3545 REPL Bissell repair part number: 2031018 | 2031018 | $3.42Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Cord | 203-1067 | Not Available |
| 12 | | SWITCH ROCKER 3545 REPL Bissell repair part number: 2031035 | 2031035 | $11.39Read more |
| 13 | Not Available | Tool Caddy | 203-1076 | Not Available |
| 14 |  | FILTER HEPA STYLE 7916 Bissell repair part number: 32076 | 32076 | $18.82Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Compatible alternateBissell HEPA Filter Designed to Fit Style 9 HEPA Filter Part # 32076 More Product Details | BR18005 | $9.52Add to cart |
| 15 | Not Available | Post Motor Filter Grille | 203-1011 | Not Available |
| 16 | | LIGHT BULB 12 VOLT REPL Bissell repair part number: 2031297 | 2031297 | $3.73Read more |
| 17 | Not Available | Lens | 203-1008 | Not Available |
| 18 | No Image | HARNESS, WIRING THERMAL 3591 Part Number: 203-1034 for Bissell | 2031034 | $10.68Read more |
| 19 | Not Available | Motor Cushion - Large | 203-1218 | Not Available |
| 20 | Not Available | Vacuum Motor | 203-2211 | Not Available |
| 21 | Not Available | Motor Support | 203-1217 | Not Available |
| 22 | Not Available | Motor Cushion - Small | 203-1107 | Not Available |
| 23 | Not Available | Case Drum Assy | 203-6747 | Not Available |
| 24 |  | WHEELSHAFT8975 CLEANVW REPL Bissell repair part number: 2032547 | 2032547 | $5.15Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Rear Wheel | 203-6746 | Not Available |
| 26 |  | WHEELERING8975 CLEANVW REPL Bissell repair part number: 2032548 | 2032548 | $3.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | Top Cover - Blue Suede | 203-6750 | Not Available |
| 27 | Not Available | Top Cover - Green Slate | 203-6753 | Not Available |
| 27 | Not Available | Top Cover - Spice | 203-6754 | Not Available |
| 27 | Not Available | Top Cover - Broadway Bronze | 203-6755 | Not Available |
| 28 | Not Available | Neck Brush - Right | 203-1040 | Not Available |
| 29 | Not Available | Neck Brush - Left | 203-1039 | Not Available |
| 30 | Not Available | Detent Lever | 203-0052 | Not Available |
| 31 | Not Available | Front Wheel Assy | 203-1015 | Not Available |
| 32 | Not Available | Height Adjustment Knob | 203-1122 | Not Available |
| 33 | Not Available | Brush Roll - Lime | 203-6726 | Not Available |
| 33 | Not Available | Brush Roll - Yellow | 203-6729 | Not Available |
| 33 | Not Available | Brush Roll - Taupe | 203-6756 | Not Available |
| 34 |  | Bottom Plate, CleanView Revolution 3596/6591 Part Number: 203-6749 for Bissell | 2036749 | $18.85Read more |
| 35 |  | Bissell 7, 9, 10, 12 Belt 2pk Aftermarket | BR-1008 | $9.99Add to cart |
| 35 |  | Compatible alternateBissell Belt 2PK 7 9 10 belt More Product Details | 011120320749 | $6.00Add to cart |
| 35 |  | Compatible alternateBelt, Style 10 Flat Each 088650/088750/088300 Part Number: 1860140600 for Royal More Product Details | 1860140600 | $6.00Add to cart Special order — allow 2-4 weeks. |
| 35 | No Image | Compatible alternateBelt Style 7910 More Product Details | 2031093 | $7.13Add to cart Special order — allow 2-4 weeks. |
| 35 |  | Compatible alternateBelt, Style UB11 216.37030700 Upright More Product Details | 81313207 | $6.00Add to cart Special order — allow 2-4 weeks. |
| 36 | Not Available | Upholstery Hose | 203-2035 | Not Available |
| 37 | Not Available | Twist n' Snap Collar | 203-1128 | Not Available |
| 38 | Not Available | Extension Wand | 203-1084 | Not Available |
| 39 | Not Available | Crevice Tool Blue Suede | 203-1063 | Not Available |
| 40 | Not Available | Upholstery Tool Green Slate | 203-1228 | Not Available |
| 41 | Not Available | TurboBrush - Lime | 203-6732 | Not Available |
| 41 | Not Available | TurboBrush - Yellow | 203-6730 | Not Available |
