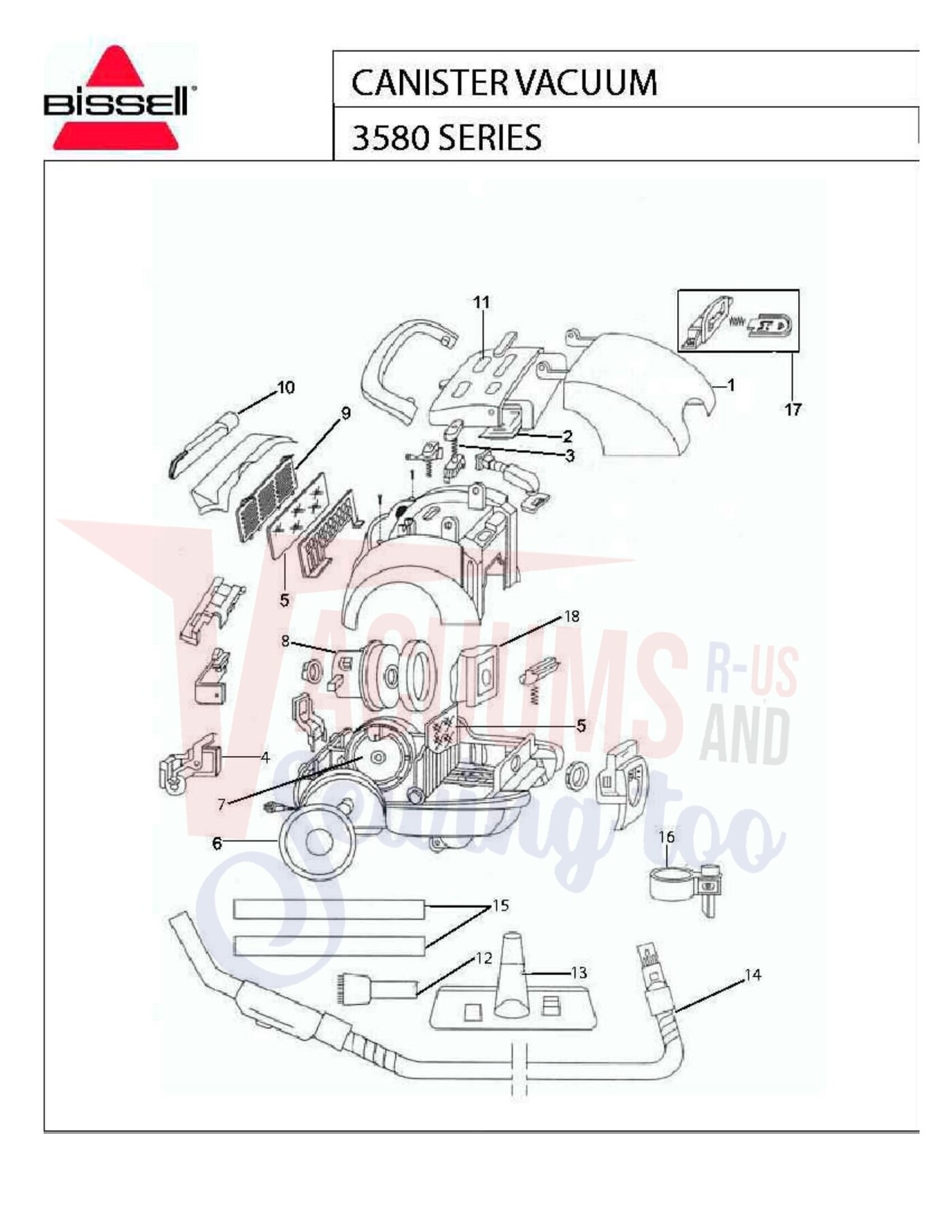

Schematic and parts book for Bissell 3580 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Upholstery Tool | 210-0061 | Not Available |
| XX | Not Available | User's Guide | 010-5719 | Not Available |
| 1 | Not Available | Front Cover | 010-2901 | Not Available |
| 2 | Not Available | PC Boards (2) | 010-6024 | Not Available |
| 3 | Not Available | Switch | 010-3376 | Not Available |
| 3 | Not Available | Motor | 010-6022 | Not Available |
| 4 | Not Available | Cord Reel Release Assy | 010-2793 | Not Available |
| 5 | Not Available | Filter Kit - Front & Rear | 210-0253 | Not Available |
| 6 | Not Available | Rear Wheel | 010-9773 | Not Available |
| 7 | Not Available | Cord Reel Assy | NLA | Not Available |
| 9 | Not Available | Plate Grill | 010-6953 | Not Available |
| 10 | Not Available | Crevice Tool | 210-9149 | Not Available |
| 11 | Not Available | Panel Cover | 010-2902 | Not Available |
| 12 | Not Available | Dustinq Brush | 210-0451 | Not Available |
| 13 | Not Available | Floor Brush | 210-0450 | Not Available |
| 14 | Not Available | Hose Assy | 210-4651 | Not Available |
| 15 | Not Available | Extension Wand (2) | 210-9622 | Not Available |
| 16 | Not Available | Wand Storage Clip - 3530 | 010-9623 | Not Available |
| 16 | Not Available | Wand Storage Clip - 3530M | 210-9634 | Not Available |
| 17 | Not Available | Cover Latch | NLA | Not Available |
| 18 | Not Available | Bags | 32023 | Not Available |
