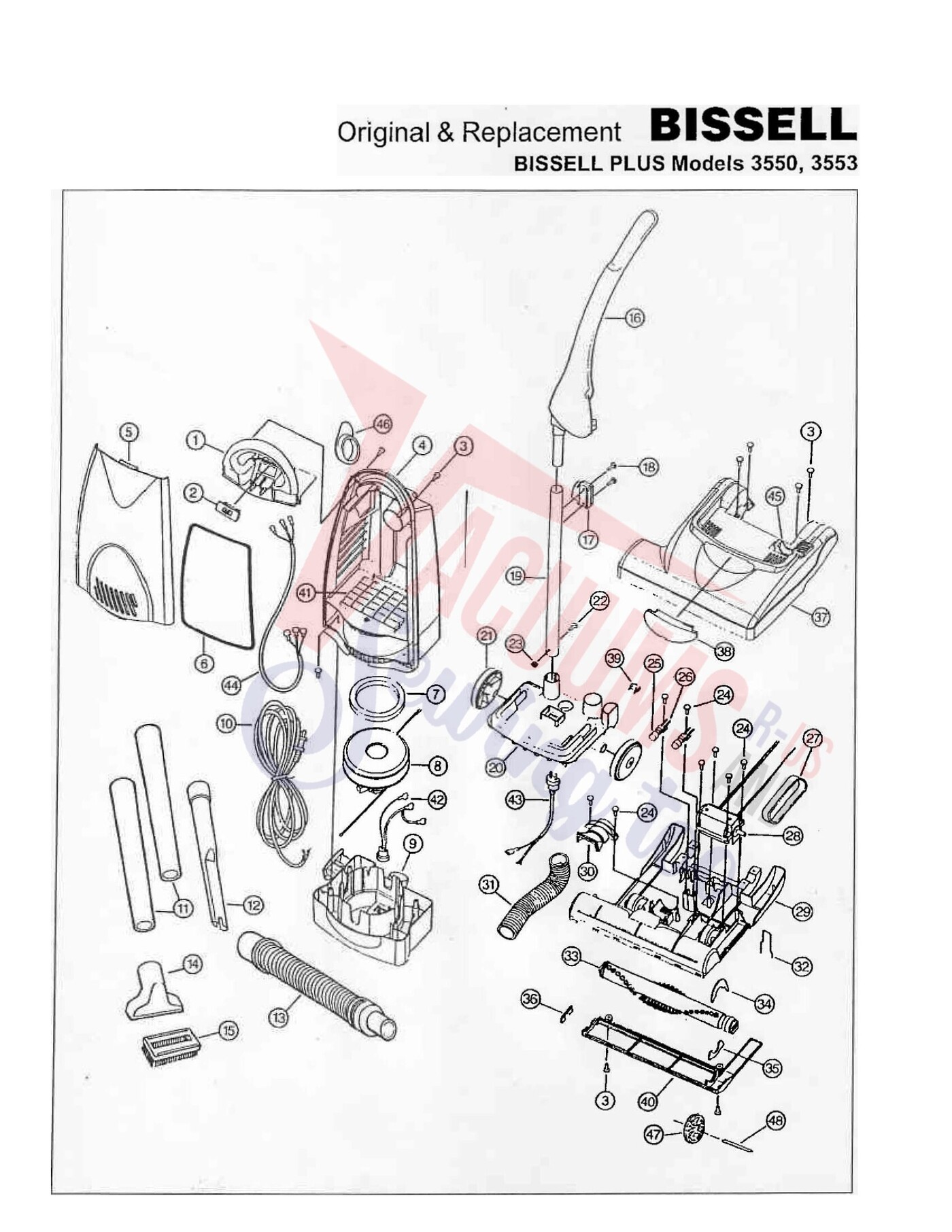

Schematic and parts book for Bissell 3550, 3553 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Handle Cover - Red | 013-2953 | Not Available |
| XX | Not Available | Main Body Ass'y - Red | 014-5700 | Not Available |
| XX | Not Available | Motor Housing - Red | 014-4732 | Not Available |
| XX | No Image | SCREW, MOTOR COVER 5500 CANISTER Part Number: 01-0282-2 for Koblenz | 0102822 | $1.18Read more |
| XX | Not Available | Handle Assy - Red | 014-4473 | Not Available |
| XX | Not Available | Housing Latch Ass'y - Red | 603-5500 | Not Available |
| 2 | Not Available | Rocker Switch | 010-8832 | Not Available |
| 3 | Not Available | Screw #8 x 3/4 | 880-7927 | Not Available |
| 5 | Not Available | Bag Door Ass'y - Green | 014-3172 | Not Available |
| 6 | Not Available | Door Gasket | 010-4002 | Not Available |
| 7 | Not Available | Motor Gasket Painted Wood Square Ends | 013-7741 | Not Available |
| 8 | Not Available | Motor Ass'y | NLA | Not Available |
| 9 | Not Available | Motor Housing - Green Natural Wood Oblong Ends | 014-4718 | Not Available |
| 10 | Not Available | Power Cord - Green | 010-2860 | Not Available |
| 11 | Not Available | Wand | 010-9664 | Not Available |
| 12 | Not Available | Crevice Tool 8-014-2972 Hood Ass'y - Red (Incl. Key #38) | 010-9157 | Not Available |
| 13 | Not Available | Attachment Hose | 010-4689 | Not Available |
| 14 | Not Available | Upholstery Tool | NLA | Not Available |
| 15 | Not Available | Slide on Brush | NLA | Not Available |
| 16 | Not Available | Handle Ass'y - Green Units Using W/Square Ends Brushroll | 014-4458 | Not Available |
| 17 | Not Available | Housing Latch Ass'y - Green Units Using W/Oblong Ends Brushroll | NLA | Not Available |
| 18 | Not Available | Screw | 880-7021 | Not Available |
| 19 | Not Available | Handle Tube | 010-9474 | Not Available |
| 20 | Not Available | Bracket Transition Pivot | 014-1183 | Not Available |
| 21 | Not Available | Rear Wheel | 010-9770 | Not Available |
| 22 | No Image | SCREW, HANDLE 3550 3553 PLUS UPRIGHT Part Number: 880-7025 for Bissell | 8807025 | $0.27Read more |
| 23 | No Image | HANDLE NUT, PLUS UPRIGHT Part Number: 880-5006 for Bissell | 8805006 | $0.27Read more |
| 24 | Not Available | Screw #6 x 3/4 | 880-7141 | Not Available |
| 26 | Not Available | Bulb Holder | 010-4601 | Not Available |
| 27 | Not Available | Belt | 010-0601 | Not Available |
| 27 |  | Belt, SDB2 Singer Simp Freedom Knmr Whirlpool Flat Part Number: SR-1000 for Singer Replacement | SR1000 | $2.39Read more |
| 28 | Not Available | Motor Brush | 010-5964 | Not Available |
| 29 | Not Available | Base Foot Ass'y | NLA | Not Available |
| 30 | Not Available | Duct Cover | 013-2900 | Not Available |
| 31 | Not Available | Nozzle Hose | NLA | Not Available |
| 32 | Not Available | Belt Guide | 010-0691 | Not Available |
| 33 | Not Available | Brushroll Ass'y - | NLA | Not Available |
| 33 | Not Available | Brushroll Ass'y - | NLA | Not Available |
| 34 | Not Available | Upper Packing | 010-4030 | Not Available |
| 35 | Not Available | Lower Packing | 010-4029 | Not Available |
| 36 | Not Available | Corner Brush | 010-1180 | Not Available |
| 37 | Not Available | Hood Ass'y - Green (incl. Key #38) | 015-2924 | Not Available |
| 38 | Not Available | Lens | 013-5577 | Not Available |
| 39 | Not Available | Brush Switch | 010-8817 | Not Available |
| 40 | Not Available | Bottom Plate - | NLA | Not Available |
| 40 | Not Available | Bottom Plate | 013-3171 | Not Available |
| 41 | Not Available | Filter Cage Ass'y | 014-1510 | Not Available |
| 42 | Not Available | Receptacle - Female | 01Q-7340 | Not Available |
| 43 | Not Available | Receptacle - Male | 010-7341 | Not Available |
| 44 | Not Available | Wire Harness Ass'y | 010-4462 | Not Available |
| 45 | Not Available | Detent Lever | 010-3052 | Not Available |
| 46 | Not Available | Cord Hook | 603-1120 | Not Available |
| 47 | Not Available | Front Wheel | 010-9771 | Not Available |
| 48 | Not Available | Front Axle | 010-0159 | Not Available |
