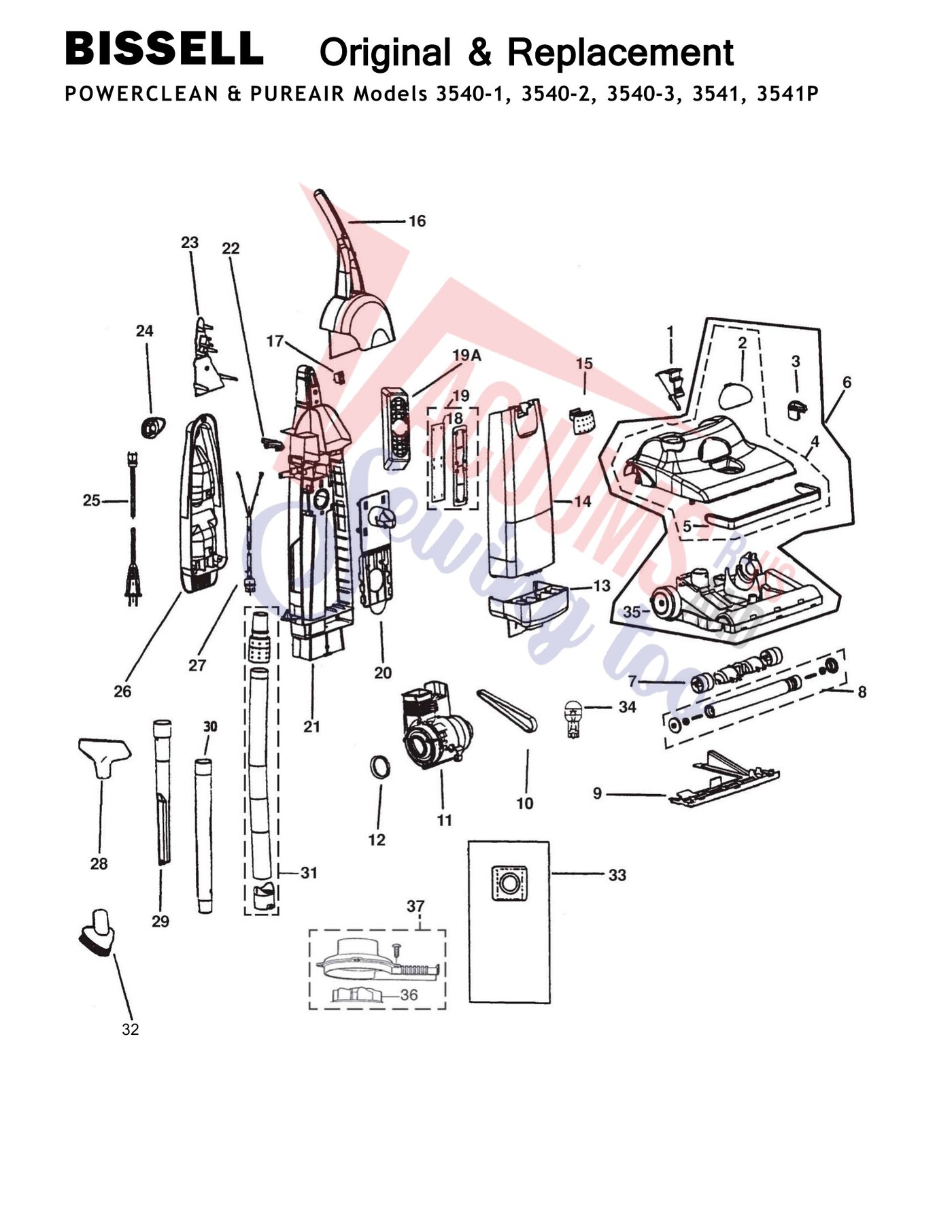

Schematic and parts book for Bissell 3540-1;3540-2;3540-3;3541;3541P . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle Release Lever | NLA | Not Available |
| 2 | Not Available | Lens | NLA | Not Available |
| 3 | Not Available | Height Adjustment Knob | 013-3724 | Not Available |
| 4 | Not Available | Hood Ass'y 3540-1 3540-2 3540-3 | NLA | Not Available |
| 4 | Not Available | Hood Ass'y 3541 3541 | NLA | Not Available |
| 5 | Not Available | Furniture Guard | NLA | Not Available |
| 5 | Not Available | Furniture Guard | NLA | Not Available |
| 6 | Not Available | Base Ass'y (Incl. #2 3 4 5 35) 3540-2 3540-3 3541 3541P | NLA | Not Available |
| 6 | Not Available | Base Ass'y (Incl. #2 3 4 5 35) | NLA | Not Available |
| 7 | Not Available | Front Wheel Ass'y | NLA | Not Available |
| 8 | Not Available | Brushroll Ass'y 13" | 014-1164 | Not Available |
| 8 | Not Available | Brushroll Ass'y 15" | 014-1165 | Not Available |
| 9 | Not Available | Bottom Plate | NLA | Not Available |
| 9 | Not Available | Bottom Plate 3541 3541P | NLA | Not Available |
| 10 | Not Available | Belt Style 3 & 5 | 010-0613 | Not Available |
| 11 | Not Available | Motor Ass'y | NLA | Not Available |
| 12 | Not Available | Motor Seal | NLA | Not Available |
| 13 | Not Available | Stair Handle 3540-1 3 Pk | NLA | Not Available |
| 14 | Not Available | Bag Door Ass'y | NLA | Not Available |
| 14 | Not Available | Bag Door Ass'y | NLA | Not Available |
| 14 | Not Available | Bag Door Ass'y (Incl. Key #15) 3541 | NLA | Not Available |
| 14 | Not Available | Bag Door Ass'y (Incl. Key #15) 3541P | NLA | Not Available |
| 15 | Not Available | Bag Door Latch 3541 | NLA | Not Available |
| 15 | Not Available | Bag Door Latch 3541P | NLA | Not Available |
| 15 | Not Available | Bag Door Latch 3540-1 | NLA | Not Available |
| 15 | Not Available | Bag Door Latch 3540-2 3540-3 | NLA | Not Available |
| 16 | Not Available | Upper Handle Ass'y 3540-1 | NLA | Not Available |
| 16 | Not Available | Upper Handle Ass'y 3540-2 3540-3 | NLA | Not Available |
| 16 | Not Available | Upper Handle Ass'y 3541 3541P | NLA | Not Available |
| 17 | Not Available | Switch | NLA | Not Available |
| 18 | Not Available | Foam Exhaust Filter 3540-1 | 010-3540 | Not Available |
| 19 | Not Available | Exhaust Filter Ass'y 3540-1 | NLA | Not Available |
| 19A | Not Available | Filtrete Exhaust Filter Ass'y | NLA | Not Available |
| 20 | Not Available | Bag Retainer | NLA | Not Available |
| 21 | Not Available | Main Body 3540-1 3540-2 3540-3 | NLA | Not Available |
| 21 | Not Available | Main Body 3541 3541P | NLA | Not Available |
| 22 | Not Available | Hose Clip | NLA | Not Available |
| 23 | Not Available | Control Panel Cover | NLA | Not Available |
| 24 | Not Available | Cord Hook | 013-3722 | Not Available |
| 25 | Not Available | Power Cord 30' 3540-2 3540-3 | NLA | Not Available |
| 26 | Not Available | Carrying Handle Ass'y | NLA | Not Available |
| 27 | Not Available | Wiring Harness | 010-4471 | Not Available |
| 28 | Not Available | Upholstery Tool | NLA | Not Available |
| 29 | Not Available | Crevice Tool | NLA | Not Available |
| 30 | Not Available | Wand | 010-9664 | Not Available |
| 31 | Not Available | Hose Ass'y | NLA | Not Available |
| 32 | Not Available | Dusting Brush | NLA | Not Available |
| 33 | Not Available | Paper Bag Style 5 Envirofresh | 32028 | Not Available |
| 33 | Not Available | Paper Bag Style 3 Filtrete | 32029 | Not Available |
| 34 | Not Available | Bulb | HR-3500 | Not Available |
| 35 | Not Available | Rear Whee 3540-1 3540-2 3540-3 | N/A | Not Available |
| 35 | Not Available | Rear Wheel 3541 3541P | N/A | Not Available |
| 36 | Not Available | Fan | NLA | Not Available |
| 37 | Not Available | Fan & Fan Cover | NLA | Not Available |
