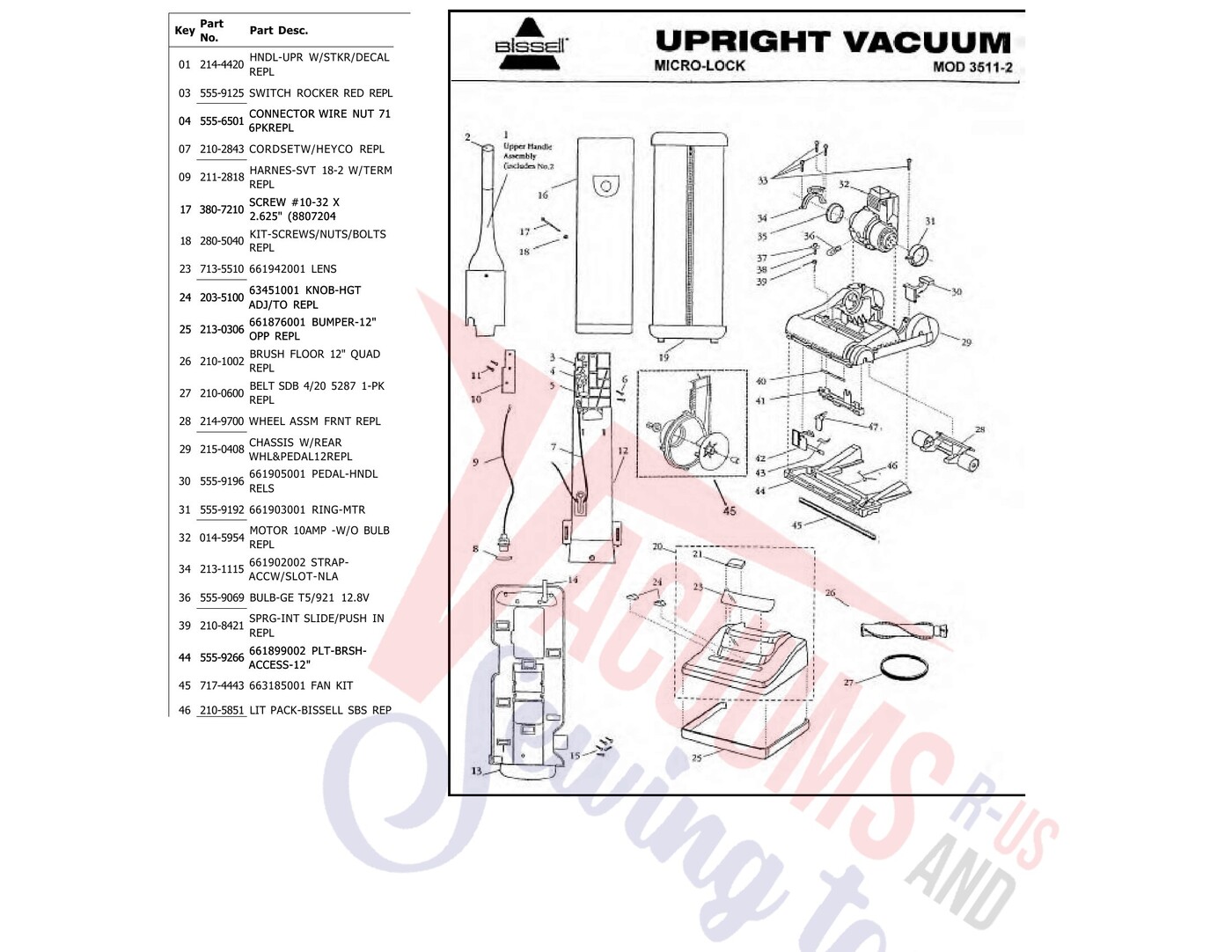

Schematic and parts book for Bissell 3511-2 Micro-Lock. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 01 | Not Available | HNDL-UPR W/STKR/DECAL | 214-4420 | Not Available |
| 03 |  | SWITCH ROCKER RED REPL Bissell repair part number: 5559125 | 5559125 | $3.27Read more |
| 04 | Not Available | CONNECTOR WIRE NUT 71 | 555-6501 | Not Available |
| 07 | Not Available | CORDSETW/HEYCO REPL | 210-2843 | Not Available |
| 09 | Not Available | HARNES-SVT 18-2 W/TERM | 211-2818 | Not Available |
| 17 | Not Available | SCREW #10-32 XX | 380-7210 | Not Available |
| 18 | Not Available | KIT-SCREWS/NUTS/BOLTS | 280-5040 | Not Available |
| 23 | Not Available | LENS | 713-5510 | Not Available |
| 24 |  | Knob for Singer Sb/Hb Series For: fragrance fresh | 2035100 | $1.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | BUMPER-12" OPP REPL | 213-0306 | Not Available |
| 26 | Not Available | BRUSH FLOOR 12" QUAD | 210-1002 | Not Available |
| 27 | Not Available | BELT SDB 4/20 5287 1-PK | 210-0600 | Not Available |
| 28 | Not Available | WHEEL ASSM FRNT REPL | 214-9700 | Not Available |
| 29 | Not Available | CHASSIS W/REAR WHL&PEDAL12REPL | 215-0408 | Not Available |
| 30 | Not Available | PEDAL-HNDL | 555-9196 | Not Available |
| 31 | Not Available | RING-MTR | 555-9192 | Not Available |
| 32 | Not Available | MOTOR 10AMP -W/O BULB | 014-5954 | Not Available |
| 34 | No Image | STRAP, MOTOR 35351 Part Number: 213-1115 for Bissell | 2131115 | $0.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | BULB-GE T5/921 12.8V | 555-9069 | Not Available |
| 39 | Not Available | SPRG-INT SLIDE/PUSH IN | 210-8421 | Not Available |
| 44 | No Image | BOTTOM PLATE, SB/HB UPRT 12" Part Number: 555-9266 for Singer | 5559266 | $4.97Read more |
| 45 | Not Available | FAN KIT | 717-4443 | Not Available |
| 46 | Not Available | LIT PACK-BISSELL SBS REP | 210-5851 | Not Available |
