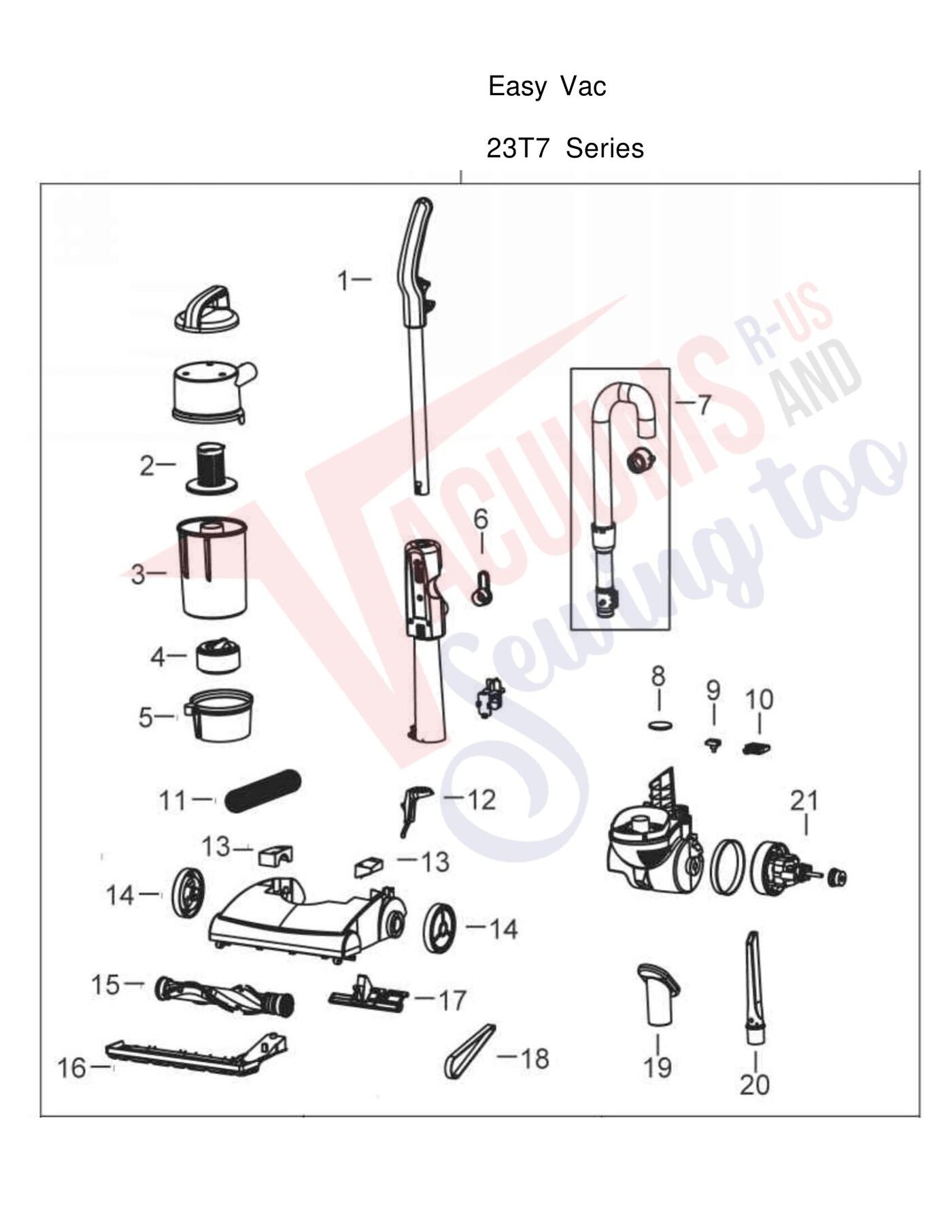

Schematic and parts book for Bissell 23T7 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx | Not Available | User's Guide | 1104293 | Not Available |
| 1 | Not Available | Handle Assy - Marina Blue | 203-5900 | Not Available |
| 2 | Not Available | Filter Separator w/Gasket - Marina Blue | 203-7591 | Not Available |
| 3 | Not Available | Dirt Cup | 203-7592 | Not Available |
| 4 |  | Filter Assy | 2037593 | $16.41Add to cart |
| 5 | Not Available | Lower Tank | 203-7594 | Not Available |
| 6 |  | Cord Wrap, Upper Quick Release Easy Vac 23T7 Part Number: 2037595 for Bissell | 2037595 | $6.26Read more |
| 7 |  | Hose, :( Assembly W/Ends 23T7 Part Number: 203-7596 for Bissell | 2037596 | $17.26Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Motor Inlet Sponge Filter | 2037597 | $5.15Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | SWITCH, INTERNAL POWER 23T7 Part Number: 203-7598 for Bissell | 2037598 | $5.95Read more |
| 10 |  | Bissell Pedal Power Switch-bissell 23t7 Upright | 2037599 | $5.42Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Foot Hose | 203-7623 | Not Available |
| 12 | Not Available | Detent Lever | 203-7624 | Not Available |
| 13 | Not Available | Left & Right Pivot Clamps | 203-7625 | Not Available |
| 14 | Not Available | Rear Wheel | 203-7626 | Not Available |
| 15 | No Image | Brush Assembly Easy Vacpf C | 2037627 | $22.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | Nozzle Grd. w/Sqege & Frt. Whls | 203-7628 | Not Available |
| 17 | Not Available | Roller Lifter Assy. | 203-7629 | Not Available |
| 18 | Not Available | Drive Belt | 203-7034 | Not Available |
| 19 | Not Available | Upholstery Brush | 203-7882 | Not Available |
| 20 |  | CREVICE TOOL 23T723T7C Bissell repair part number: 2037943 | 2037943 | $2.97Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | Vacuum Motor | 203-7631 | Not Available |
