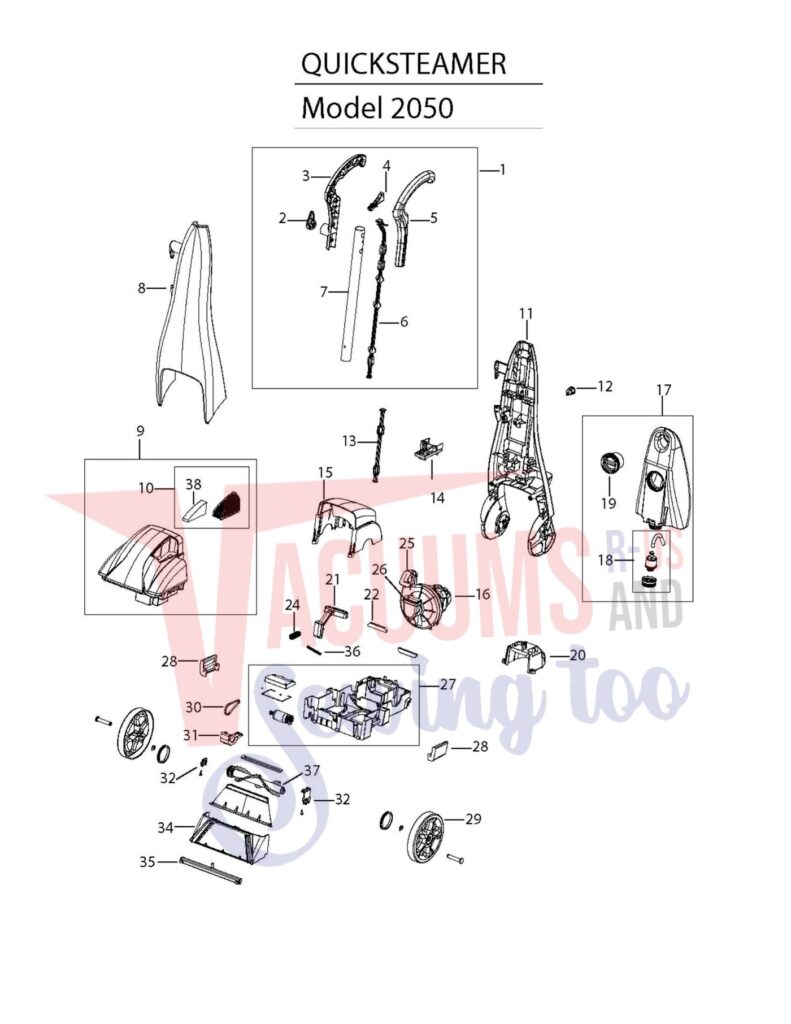

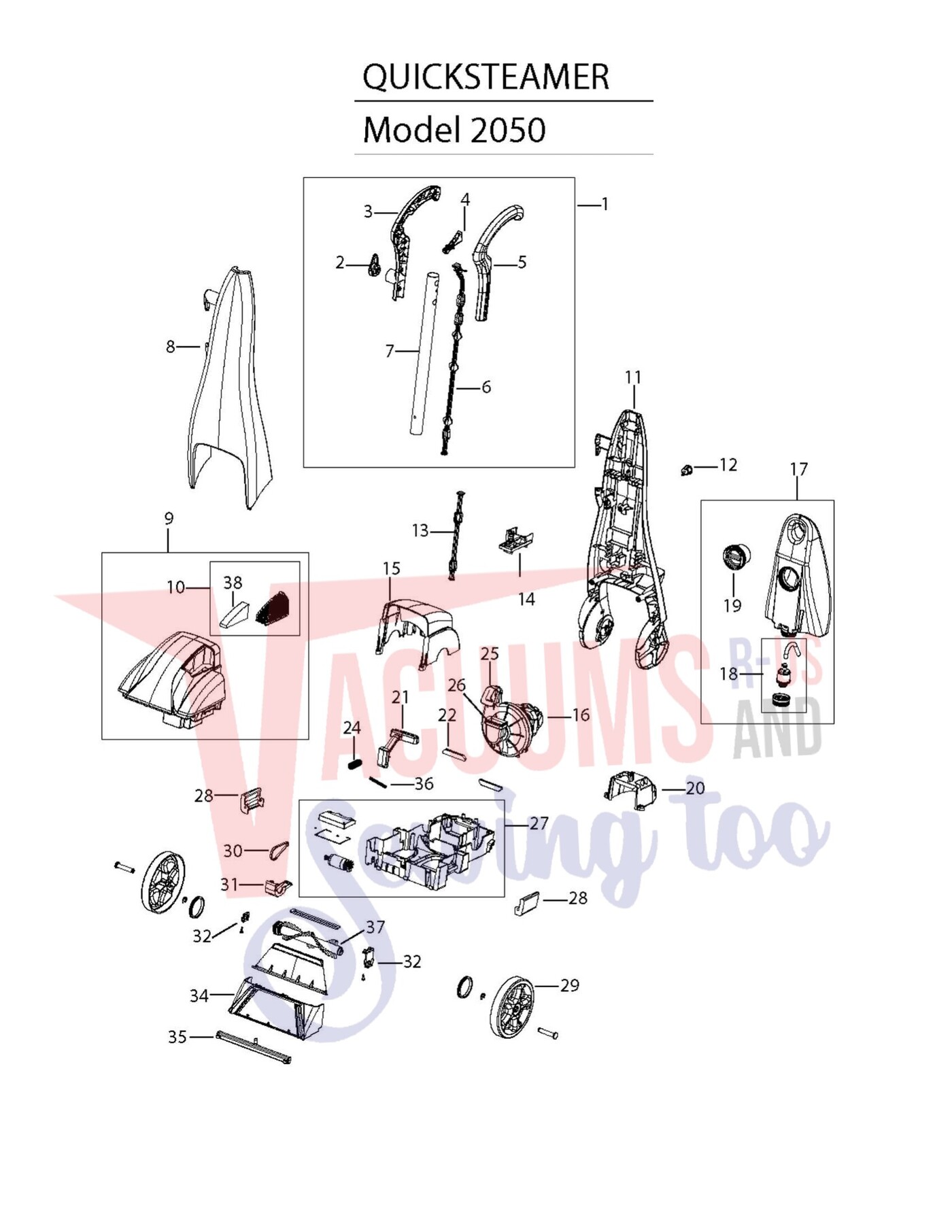

Schematic and parts book for Bissell 2050 Quick Steamer. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| xx | Not Available | POWER CORD | 204-1129 | Not Available |
| xx | Not Available | HANDLE SCREW | 203-5616 | Not Available |
| xx | Not Available | USER'S GUIDE | 210-6209 | Not Available |
| 1 | Not Available | HANDLE ASSY W/ GRIP | 603-2010 | Not Available |
| 2 | Not Available | QUICK CORD WRAP CAP | 204-1107 | Not Available |
| 3 | Not Available | HANDLE - RT SIDE | 204-1104 | Not Available |
| 4 | Not Available | TRIGGER | 204-1103 | Not Available |
| 5 | Not Available | HANDLE - LT SIDE | 204-1108 | Not Available |
| 6 | Not Available | PUSH ROD - UPPER | 204-1106 | Not Available |
| 7 | Not Available | TUBING | 204-1127 | Not Available |
| 8 | Not Available | HANDLE LOWER FRONT | 204-1102 | Not Available |
| 9 | Not Available | DIRTY WATER TANK | 603-2008 | Not Available |
| 10 | Not Available | EXHAUST VENT PANEL W/ FILTER | 204-1124 | Not Available |
| 11 | Not Available | HANDLE LOWER BACK | 204-1109 | Not Available |
| 12 | Not Available | ON/OFF SWITCH | 204-1128 | Not Available |
| 13 | Not Available | PUSH ROD - LOWER | 204-1110 | Not Available |
| 14 | Not Available | RECEIVER ASSY | 204-1126 | Not Available |
| 15 | Not Available | REAR COVER | 204-1125 | Not Available |
| 16 | Not Available | COMPLETE MOTOR ASSY | 204-1123 | Not Available |
| 17 | Not Available | CLEAN WATER TANK ASSY | 603-2009 | Not Available |
| 18 | Not Available | CAP AND INSERT | 204-1111 | Not Available |
| 19 | Not Available | FORMULA MEASURING CUP | 204-1112 | Not Available |
| 20 | Not Available | MOTOR COVER | 204-1113 | Not Available |
| 21 | Not Available | DETENT LEVER | 204-1114 | Not Available |
| 22 | Not Available | REAR MOTOR SUPPORT | 010-6357 | Not Available |
| 24 | Not Available | SPRING DETENT | NLA | Not Available |
| 25 | No Image | GASKET, MOTOR OUTLET Part Number: 603-7825 for Bissell | 6037825 | $4.92Read more |
| 26 | Not Available | MOTOR INTAKE GASKET | 204-1122 | Not Available |
| 27 | Not Available | BASE ASSY W/ BRUSH MOTOR | 204-1117 | Not Available |
| 28 | Not Available | TANK LATCHES - TWO | 204-1116 | Not Available |
| 29 | Not Available | WHEEL | 204-1121 | Not Available |
| 30 | Not Available | BRUSH BELT | 603-2007 | Not Available |
| 31 | Not Available | BRUSH COVER | 204-1131 | Not Available |
| 32 | Not Available | BRUSH SUP BUSHING RT/LT | 204-1130 | Not Available |
| 34 | Not Available | FRONT NOZZLE ASSY | 204-1120 | Not Available |
| 35 | Not Available | SPRAY BAR | 204-1118 | Not Available |
| 36 | Not Available | METAL DETENT DOWEL | 204-1115 | Not Available |
| 37 | Not Available | BRUSH ASSY | 603-2006 | Not Available |
| 38 | Not Available | FOAM FILTER | 603-7824 | Not Available |
