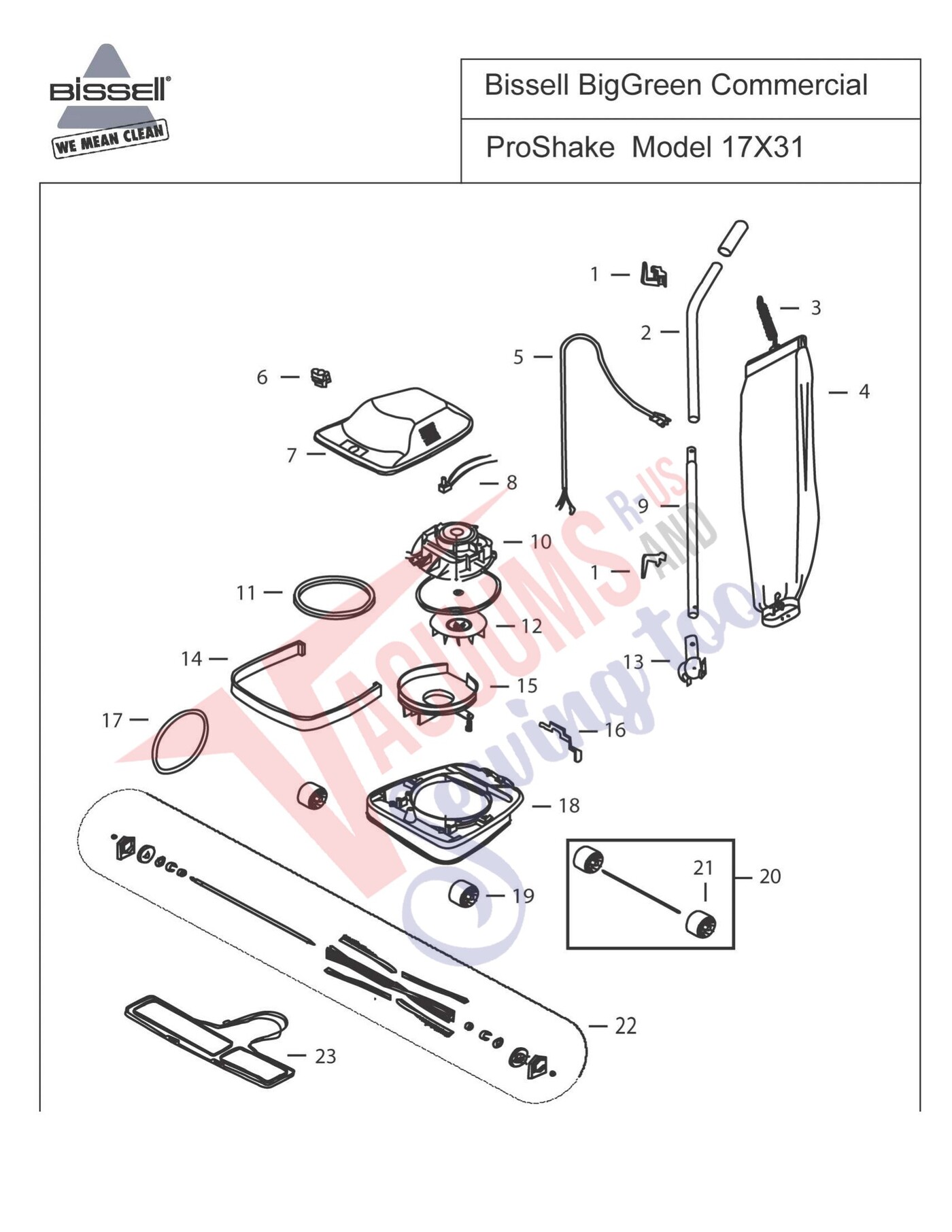

Schematic and parts book for Bissell 17X31 Proshake. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| xx | Not Available | Bushing Strain Relief | 203-8302 | Not Available |
| xx | Not Available | Screw Shoulder | 203-8303 | Not Available |
| xx | Not Available | Air Inlet Duct (RH) | 203-8305 | Not Available |
| xx | Not Available | Spring Foot Pedal | 203-8307 | Not Available |
| xx | Not Available | Spring Hood | 203-8309 | Not Available |
| xx | Not Available | Air Inlet Duct (LH) | 203-8314 | Not Available |
| xx | Not Available | Spring Adapter Retainer | 203-8315 | Not Available |
| xx | Not Available | Carbon Motor Brush | 203-8322 | Not Available |
| xx | Not Available | Base Assy Motor | 203-8324 | Not Available |
| xx | Not Available | Bristle Strip 12" | 203-7950 | Not Available |
| xx | Not Available | Rubber Cap Ends for all Rollers | 203-8326 | Not Available |
| xx | Not Available | Fan Washer | 203-8327 | Not Available |
| xx | Not Available | Nut & Bolt Set | 160-0498 | Not Available |
| xx | No Image | Magnets for front of commercial sanitaire Bissell and Perfect vacuums. These are for the housings... | 2038317 | $5.00Read more |
| 1 | Not Available | Cord Retainer Set | 203-7848 | Not Available |
| 2 | Not Available | Handle Tube Assy Upper w/Handle Grip (does not come with nut & bolt) | 203-8328 | Not Available |
| 3 | Not Available | Spring | 203-8330 | Not Available |
| 4 |  | Bissell Teflex Outer Bag Assembly for BG101 and BG102 | 2038340 | $29.99Read more |
| 5 | No Image | CORD, POWER YELLOW BG17 17X3 Part Number: 203-7853 for Bissell | 2037853 | $70.05Read more |
| 6 | Not Available | Height Adjustment Knob | 203-8304 | Not Available |
| 7 | Not Available | Hood Chrome w/ Name Plate | 203-8301 | Not Available |
| 8 | Not Available | Switch Push | 203-8312 | Not Available |
| 9 | Not Available | Handle Tube Lower | 203-8329 | Not Available |
| 10 | No Image | MOTOR, BG17 17X3 Part Number: 203-7828 for Bissell | 2037828 | $184.80Read more |
| 11 | Not Available | Gasket Motor | 203-8313 | Not Available |
| 12 | Not Available | Fan | 203-7847 | Not Available |
| 13 | Not Available | Handle Socket Assy w/ Spring | 203-8331 | Not Available |
| 14 | Not Available | Bumper 12" | 203-8318 | Not Available |
| 15 | Not Available | Cover Fan Chamber | 203-8316 | Not Available |
| 16 | Not Available | Foot Pedal | 203-8308 | Not Available |
| 17 |  | Belt,Bissell Commercial Lightweight BG17 17X3 Part Number: 203-7843 for Bissell | 2037843 | $3.59Read more |
| 18 | Not Available | Base Assy 12" w/ magnet | 203-8310 | Not Available |
| 19 | Not Available | Front Wheel (qty 1) | 203-8321 | Not Available |
| 20 | Not Available | Rear Wheel & Axle Assembly | 203-7842 | Not Available |
| 21 | Not Available | Rear Wheel (qty 1) | 203-8320 | Not Available |
| 22 |  | Bissell Brush Roller Assembly for Big Green 12' Aluminum | 2037855 | $99.99Read more |
| 23 | No Image | PLATE, ASSEMBLY BOTTOM 12" BG101 Part Number: 2038336 for Bissell | 2038336 | $34.55Read more |
