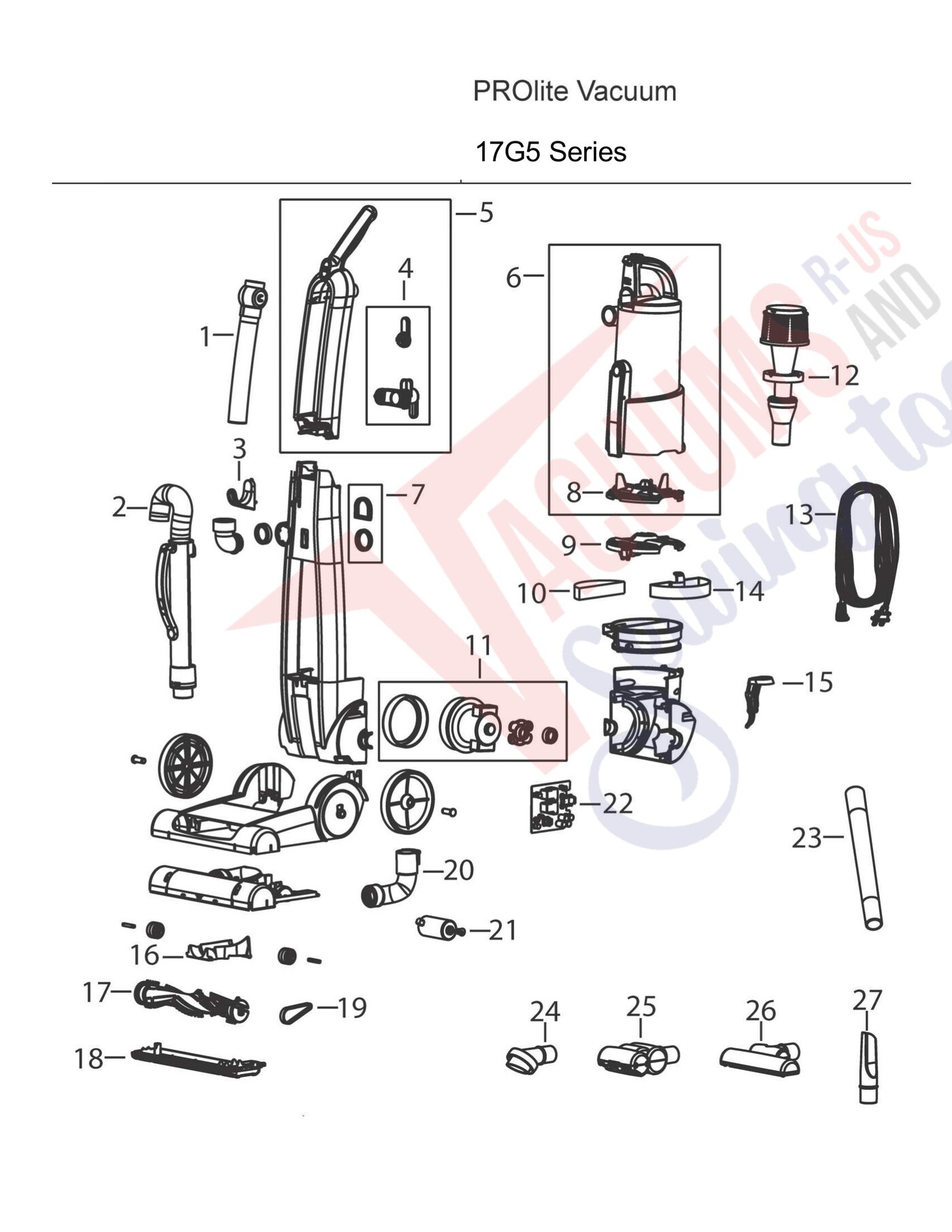

Schematic and parts book for Bissell 17G5 PROlite. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx |  | SWITCH, MICRO 17G5 Part Number: 203-2191 for Bissell | 2032191 | $10.65Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | Screw Pack - Handle | 203-2009 | Not Available |
| xx | Not Available | Accessory Bag | 203-2007 | Not Available |
| xx | Not Available | User's Guide - 17G5 | 110-4132 | Not Available |
| xx | Not Available | User's Guide - 17G52 - Bilingual | 110-4140 | Not Available |
| 1 | Not Available | Bendable Wand | 203-2111 | Not Available |
| 2 | Not Available | Main Hose Assembly w/Grip Wand | 203-2011 | Not Available |
| 3 | Not Available | Hose Hanger | 203-2049 | Not Available |
| 4 |  | CORD WRAP 17G5 Part Number: 203-2008 for Bissell | 2032008 | $6.26Read more |
| 5 |  | HANDLE, UPPER 17G5 Part Number: 203-2110 for Bissell | 2032110 | $73.66Read more |
| 5 |  | HANDLE, UPPER MOLTEN RED 17G5 10169 Part Number: 2032250 for Bissell | 2032250 | $62.80Read more |
| 6 |  | Door, Dirt Cup PROlite Cyclonic 17G5/17G5-2 Part Number: 203-2095 for Bissell | 2032095 | $44.80Read more |
| 7 | Not Available | Gasket Kit | 203-2087 | Not Available |
| 8 |  | DOOR, DEBRIS Part Number: 203-2096 for Bissell | 2032096 | $11.53Read more |
| 9 | Not Available | Filter Door w/Gasket | 203-2092 | Not Available |
| 10 |  | Filter, Premotor Half Moon Style 20 Foam 17G5 | 2032091 | $9.89Read more |
| 11 | Not Available | Vacuum Motor w/Gaskets | 203-2046 | Not Available |
| 12 | Not Available | Inner Cyclone Assembly | 203-2097 | Not Available |
| 13 | Not Available | Power Cord | 203-2055 | Not Available |
| 14 |  | Style 20 Hepa Media Filter | 2032093 | $23.86Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Detent Pedal | 203-2045 | Not Available |
| 16 |  | Cover, Clear Plastic Foot Hose PROlite 17G5/17G5-2 Part Number: 203-2044 for Bissell | 2032044 | $7.11Read more |
| 17 | No Image | Brush Dowel Assy 17G5 | 2032054 | $28.07Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Sole Plate | 203-2048 | Not Available |
| 19 | Not Available | Belt - Style 20 | 203-2050 | Not Available |
| 20 | Not Available | Foot Hose Assembly w/Connectors < 10068 | 203-2043 | Not Available |
| 20 | Not Available | Foot Hose Assembly w/Connectors > 10067 | 203-2192 | Not Available |
| 21 |  | Bissell Prolite vacuum brush motor 2032047 for model 17G5 and 17G5-2 | 2032047 | $43.99Read more |
| 22 | Not Available | Circuit Board | 203-2094 | Not Available |
| 23 | Not Available | Extension Wand | 203-2003 | Not Available |
| 24 | No Image | Cover, Rear AIR108 Part Number: 20320-01 for Oreck | 2032001 | $111.25Read more |
| 25 | Not Available | Turbobrsuh w/Grey Roller | 203-1429 | Not Available |
| 26 | Not Available | Deluxe Floor Tool | 203-2004 | Not Available |
| 27 | Not Available | Crevice Tool | 203-2002 | Not Available |
