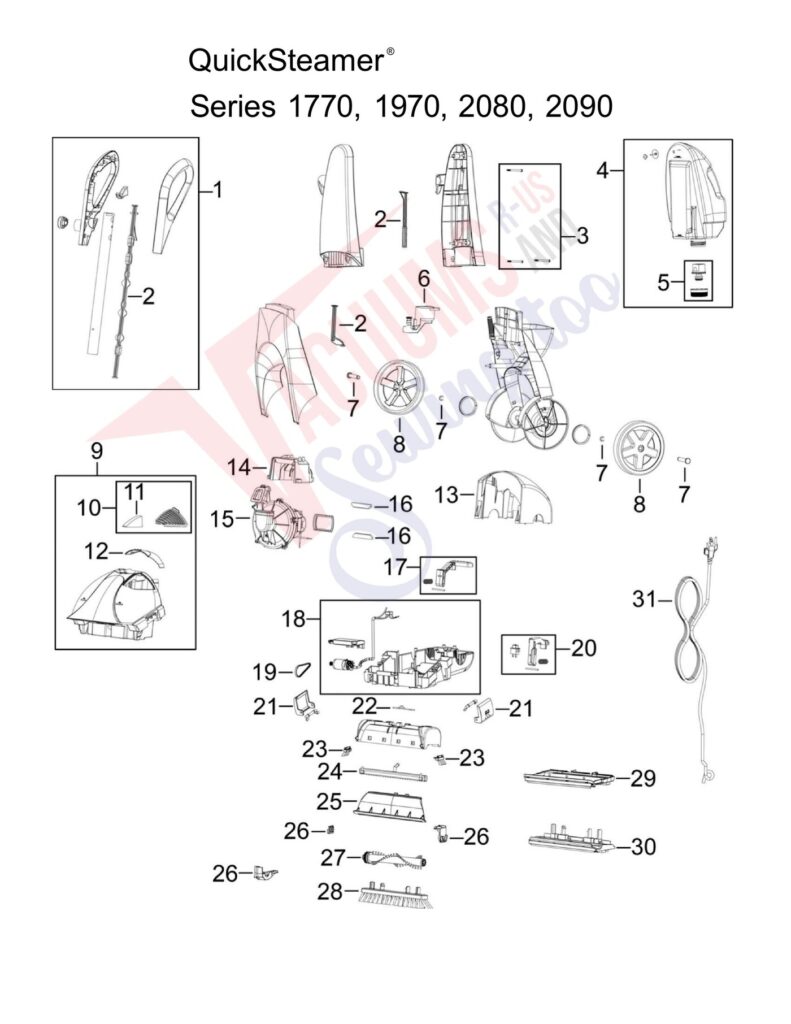

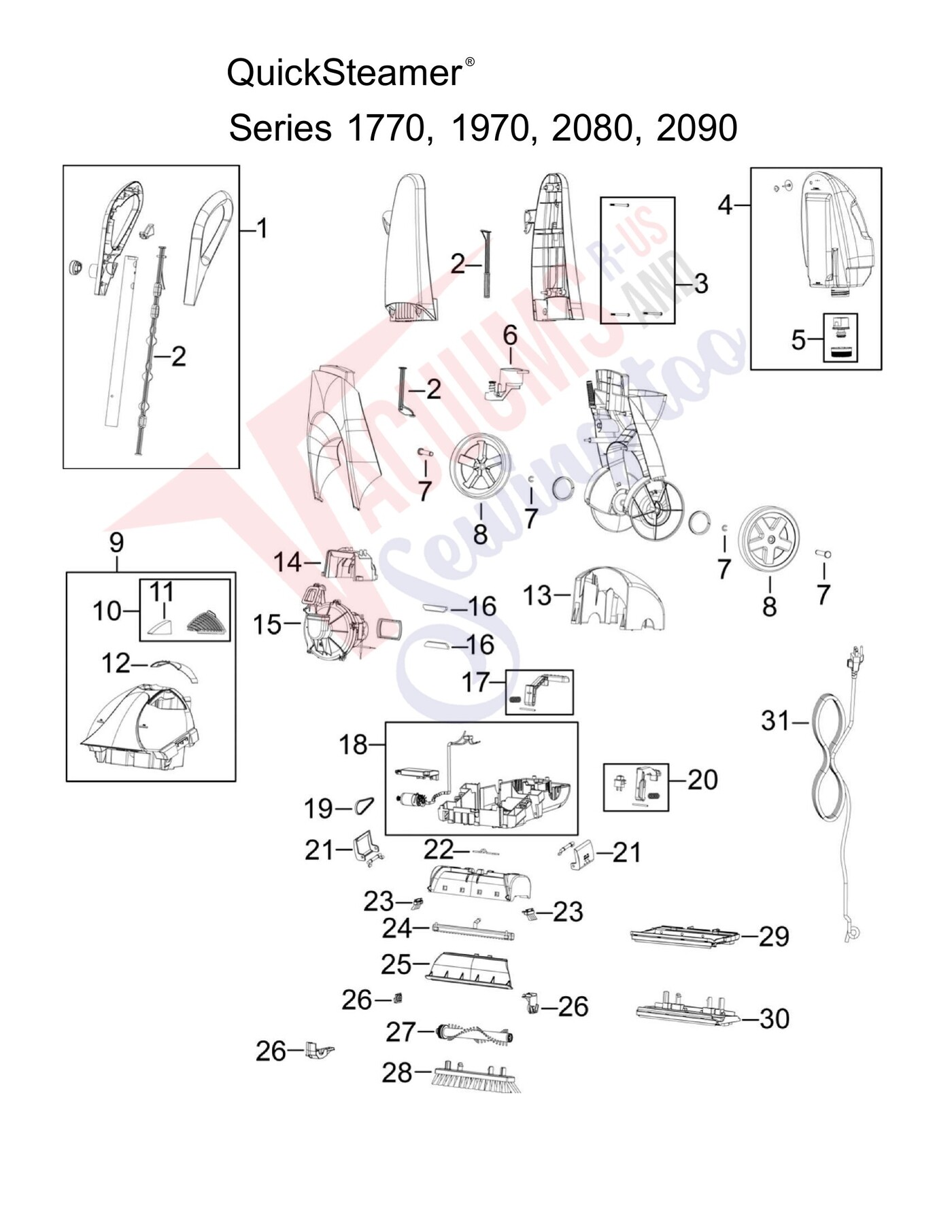

Schematic and parts book for Bissell 1770, 1970, 2080, 2090 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| xx | Not Available | User's Guide - Canada | 603-5623 | Not Available |
| 1 |  | Handle, Quick Steamer Part Number: 203-5519 for Bissell | 2035519 | $20.00Read more |
| 1 |  | HANDLE, VULCANIC SATIN 1770/1970/2080/2090 Part Number: 203-5520 for Bissell | 2035520 | $24.21Read more |
| 1 | Not Available | Handle Assy - Titanium | 203-5569 | Not Available |
| 1 | Not Available | Handle Assembly - Skywalker Blue | 203-7525 | Not Available |
| 2 |  | Push Rod Kit, QuickSteamer 1770/1970/2080/2090 Part Number: 203-5552 for Bissell | 2035552 | $5.41Read more |
| 3 |  | Kit, Screw QuickSteam/PowerEase/PowerForce Part Number: 203-5521 for Bissell | 2035521 | $3.33Read more |
| 4 |  | water tank soap tank for Bissell QuickSteamer Multi Surface Depp Cleaner 1770, 1970, 1970R, 1970X... | 2035537 | $21.99Read more |
| 4 |  | Tank, Clean Water/Solution W/Cap QuickStea Part Number: 203-5540 for Bissell | 2035540 | $24.88Read more |
| 4 | Not Available | Clean Tank w/Cap - 2090 | 203-5573 | Not Available |
| 4 | Not Available | Clean Tank w/Cap - Clear | 203-7527 | Not Available |
| 5 | Not Available | Cap & Insert Assy | 203-5541 | Not Available |
| 6 |  | Receiver, QuickSteamer 1770/1970/2080/2090 Part Number: 203-5553 for Bissell | 2035553 | $9.69Add to cart |
| 7 |  | Wheel Axle Kit, Rear QuickSteamer 1770/1970 Part Number: 203-5566 for Bissell | 2035566 | $3.59Read more |
| 8 | Not Available | Wheel (2pk) | 203-5565 | Not Available |
| 9 |  | Tank, Recovery QuickSteamer Deep Clean 1770/1970 Part Number: 203-5522 for Bissell | 2035522 | $35.44Read more |
| 9 | Not Available | Recovery Tank Assy - 2080 | 203-5523 | Not Available |
| 9 | Not Available | Recovery Tank Assy - 2090 | 203-5571 | Not Available |
| 9 | No Image | TANK, RECOVERY CLEAR 76R9 Part Number: 203-7526 for Bissell | 2037526 | $33.52Read more |
| 10 |  | Filter, Foam W/Grill Recovery Tank 1770/1970 Part Number: 203-5525 for Bissell | 2035525 | $4.84Read more |
| 10 |  | no longer available Filter, W/Exhaust Vent Recovery Tank 2080/76R9/177 Part Number: 203-5526 for ... | 2035526 | $6.42Read more |
| 10 | Not Available | Foam Filter Grille w/ Filter - 2090 | 203-5572 | Not Available |
| 11 |  | Filter, Foam Recovery Tank 1770/1970/2080/2090 Part Number: 203-5527 for Bissell | 2035527 | $3.88Read more |
| 12 | Not Available | Recovery Tank Handle | 203-5524 | Not Available |
| 13 |  | Rear Cover, For Motor QuickSteamer 1770/1970/1770C Part Number: 203-5555 for Bissell | 2035555 | $10.08Read more |
| 13 | No Image | MOTOR COVER, REAR 2080 VULCANIC SATIN Part Number: 203-5556 for Bissell | 2035556 | $11.17Read more |
| 13 | Not Available | Rear Cover - Titanium | 203-5574 | Not Available |
| 13 | Not Available | Rear Cover - Skywalker Blue | 203-7528 | Not Available |
| 14 | Not Available | Motor Cover | 203-5562 | Not Available |
| 15 | Not Available | Motor | 203-5559 | Not Available |
| 15 |  | Motor, 2090 For Units With A Powerbrush Part Number: 203-5618 for Bissell | 2035618 | $85.44Read more |
| 16 | Not Available | Motor Support Gasket (2pk) | 203-5558 | Not Available |
| 17 | No Image | LEVER, HANDLE RELESE DETENT 2080 STEAMER Part Number: 203-5557 for Bissell | 2035557 | $5.01Read more |
| 18 | Not Available | Base w/ Brush Motor | 203-5564 | Not Available |
| 19 |  | NO LONGER AVAILABLE BRUSH BELT 2080 Bissell repair part number: 2035549 | 2035549 | $66.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Switch (pedal switch spring pin gasket support) | 203-5554 | Not Available |
| 21 |  | NO LONGER AVAILABLE Latch, Recover Tank QuickSteam 1770/1970/2080 2Pk Part Number: 203-5543 for B... | 2035543 | $4.84Read more |
| 22 |  | LATCH, NOZZLE 1770 1970 2080 2090 Part Number: 203-5530 for Bissell | 2035530 | $2.70Read more |
| 23 | Not Available | Side Brush (Left & Right) | 203-5551 | Not Available |
| 24 |  | BAR, SPRAY Part Number: 203-5560 for Bissell | 2035560 | $4.29Read more |
| 24 | Not Available | Spray Bar - 20802090 | 203-5561 | Not Available |
| 25 |  | Nozzle, Carpet Cleaner Floor Nozzle Part Number: 203-5529 for Bissell | 2035529 | $21.80Read more |
| 26 |  | SWIVEL ARM KIT Bissell repair part number: 2035550 | 2035550 | $5.58Read more |
| 27 |  | BRUSH ROTATING Bissell repair part number: 2035546 | 2035546 | $16.37Read more |
| 28 |  | Brush, Stationary QuckSteamer 1770/1970/2080 Part Number: 203-5545 for Bissell | 2035545 | $8.18Read more |
| 29 | Not Available | Bare Floor Tool - (for rotating brush units) | 203-5548 | Not Available |
| 30 |  | Bare Floor Tool-Bissell 1770 For: bissell | 2035547 | $16.06Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | Not Available | Cord | 203-5563 | Not Available |
