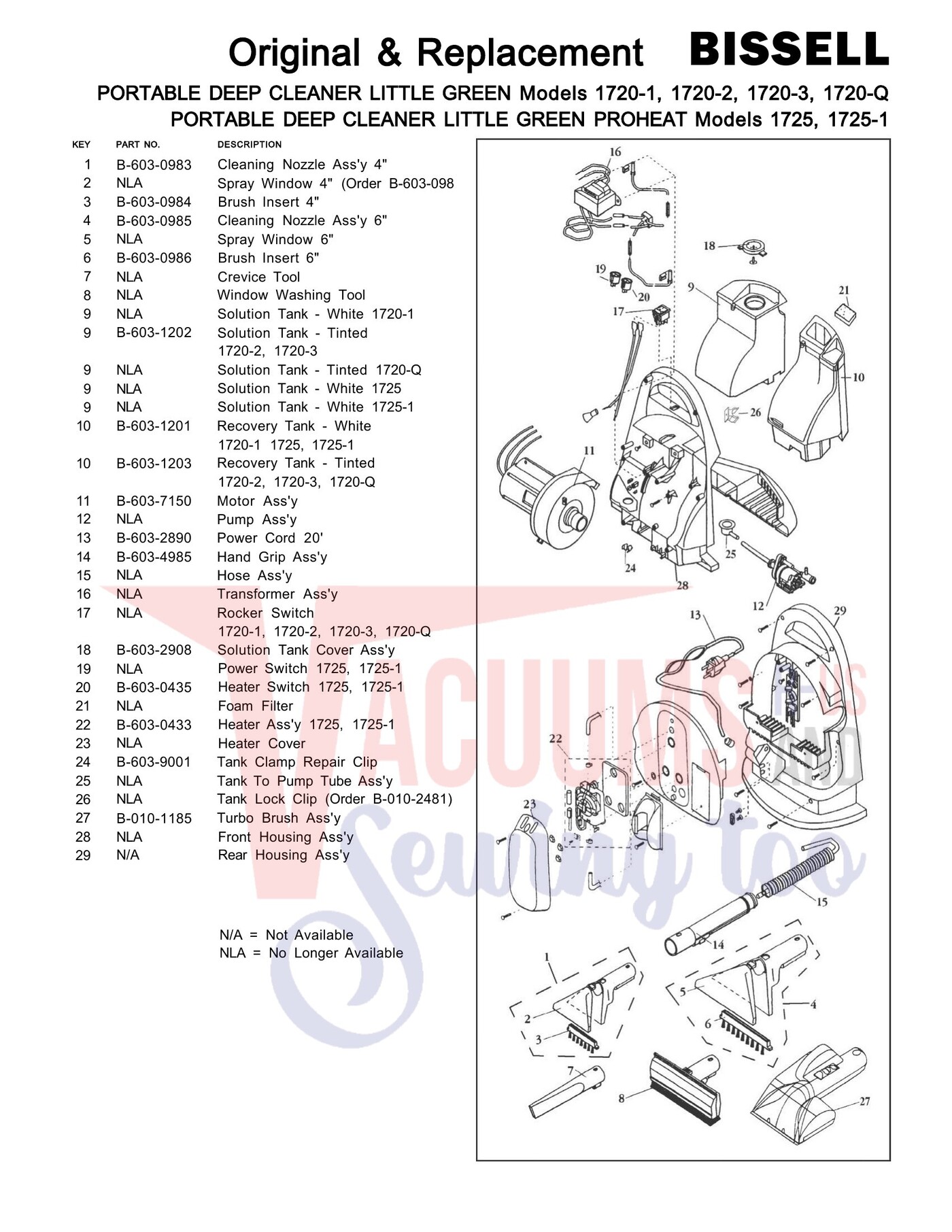

Schematic and parts book for Bissell 1720-1;1720-2;1720-3;1720-Q;1725;1725-1 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Cleaning Nozzle Ass'y 4" | 603-0983 | Not Available |
| 2 | Not Available | Spray Window 4" (Order B-603-098 | NLA | Not Available |
| 3 | Not Available | Brush Insert 4" | 603-0984 | Not Available |
| 4 | Not Available | Cleaning Nozzle Ass'y 6" | 603-0985 | Not Available |
| 5 | Not Available | Spray Window 6" | NLA | Not Available |
| 6 | Not Available | Brush Insert 6" | 603-0986 | Not Available |
| 7 | Not Available | Crevice Tool | NLA | Not Available |
| 8 | Not Available | Window Washing Tool | NLA | Not Available |
| 9 | Not Available | Solution Tank - White 1720-1 | NLA | Not Available |
| 9 | Not Available | Solution Tank - Tinted | 603-1202 | Not Available |
| 9 | Not Available | Solution Tank - Tinted 1720-Q | NLA | Not Available |
| 9 | Not Available | Solution Tank - White 1725 | NLA | Not Available |
| 9 | Not Available | Solution Tank - White 1725-1 | NLA | Not Available |
| 10 | Not Available | Recovery Tank - White | 603-1201 | Not Available |
| 10 | Not Available | Recovery Tank - Tinted | 603-1203 | Not Available |
| 11 | Not Available | Motor Ass'y | 603-7150 | Not Available |
| 12 | Not Available | Pump Ass'y | NLA | Not Available |
| 13 | Not Available | Power Cord 20' | 603-2890 | Not Available |
| 14 | Not Available | Hand Grip Ass'y | 603-4985 | Not Available |
| 15 | Not Available | Hose Ass'y | NLA | Not Available |
| 16 | Not Available | Transformer Ass'y | NLA | Not Available |
| 17 | Not Available | Rocker Switch | NLA | Not Available |
| 18 | Not Available | Solution Tank Cover Ass'y | 603-2908 | Not Available |
| 19 | Not Available | Power Switch 1725 1725-1 | NLA | Not Available |
| 20 | Not Available | Heater Switch 1725 1725-1 | 603-0435 | Not Available |
| 21 | Not Available | Foam Filter | NLA | Not Available |
| 22 | Not Available | Heater Ass'y 1725 1725-1 | 603-0433 | Not Available |
| 23 | Not Available | Heater Cover | NLA | Not Available |
| 24 | Not Available | Tank Clamp Repair Clip | 603-9001 | Not Available |
| 25 | Not Available | Tank To Pump Tube Ass'y | NLA | Not Available |
| 26 | Not Available | Tank Lock Clip (Order B-010-2481) | NLA | Not Available |
| 27 | Not Available | Turbo Brush Ass'y | 010-1185 | Not Available |
| 28 | Not Available | Front Housing Ass'y | NLA | Not Available |
| 29 | Not Available | Rear Housing Ass'y | N/A | Not Available |
