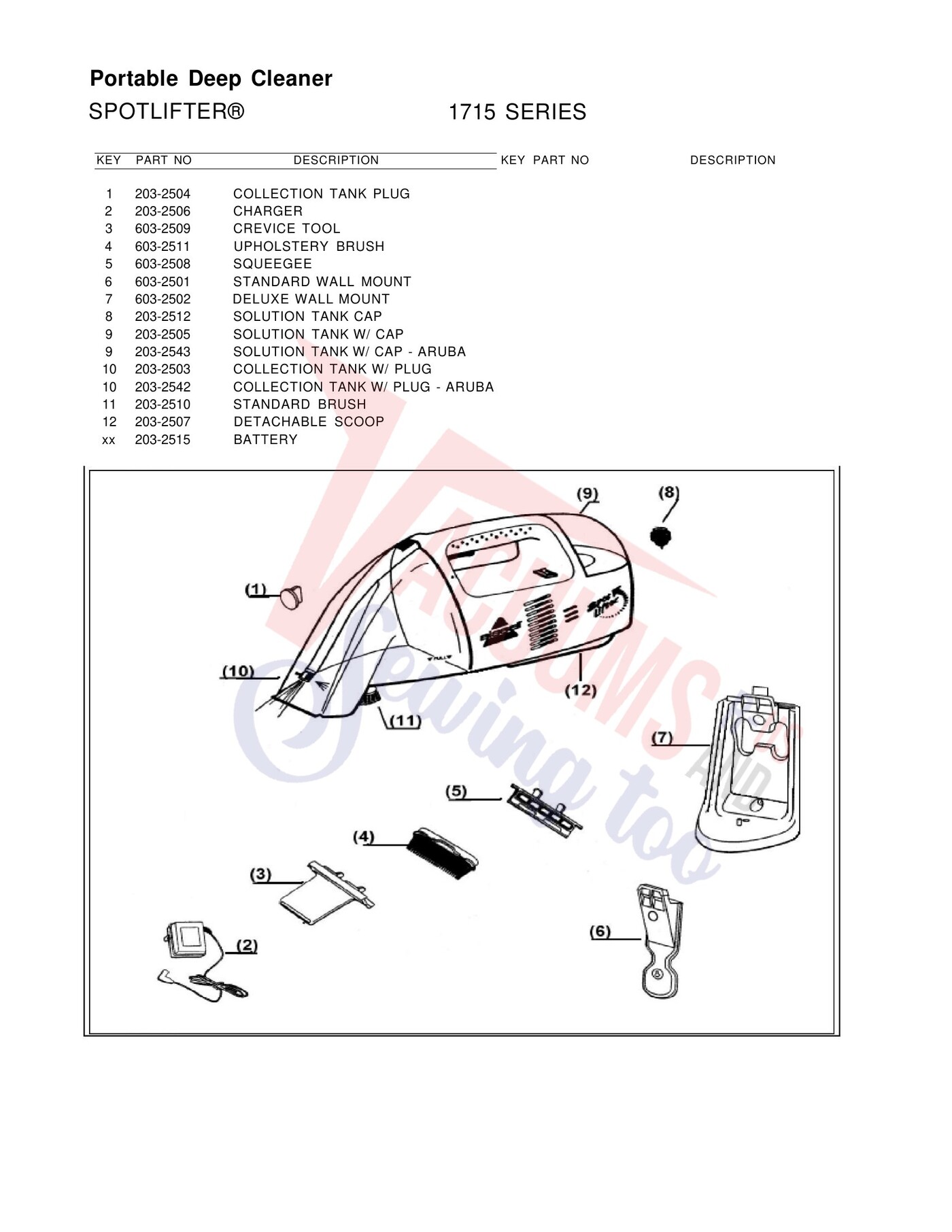

Schematic and parts book for Bissell 1715 Spotlifter. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| xx | Not Available | BATTERY | 203-2515 | Not Available |
| 1 | Not Available | COLLECTION TANK PLUG | 203-2504 | Not Available |
| 2 | Not Available | CHARGER | 203-2506 | Not Available |
| 3 | Not Available | CREVICE TOOL | 603-2509 | Not Available |
| 4 | Not Available | UPHOLSTERY BRUSH | 603-2511 | Not Available |
| 5 | Not Available | SQUEEGEE | 603-2508 | Not Available |
| 6 | Not Available | STANDARD WALL MOUNT | 603-2501 | Not Available |
| 7 | Not Available | DELUXE WALL MOUNT | 603-2502 | Not Available |
| 8 | Not Available | SOLUTION TANK CAP | 203-2512 | Not Available |
| 9 | Not Available | SOLUTION TANK W/ CAP | 203-2505 | Not Available |
| 9 | Not Available | SOLUTION TANK W/ CAP - ARUBA | 203-2543 | Not Available |
| 10 | Not Available | COLLECTION TANK W/ PLUG | 203-2503 | Not Available |
| 10 | Not Available | COLLECTION TANK W/ PLUG - ARUBA | 203-2542 | Not Available |
| 11 | Not Available | STANDARD BRUSH | 203-2510 | Not Available |
| 12 | Not Available | DETACHABLE SCOOP | 203-2507 | Not Available |
