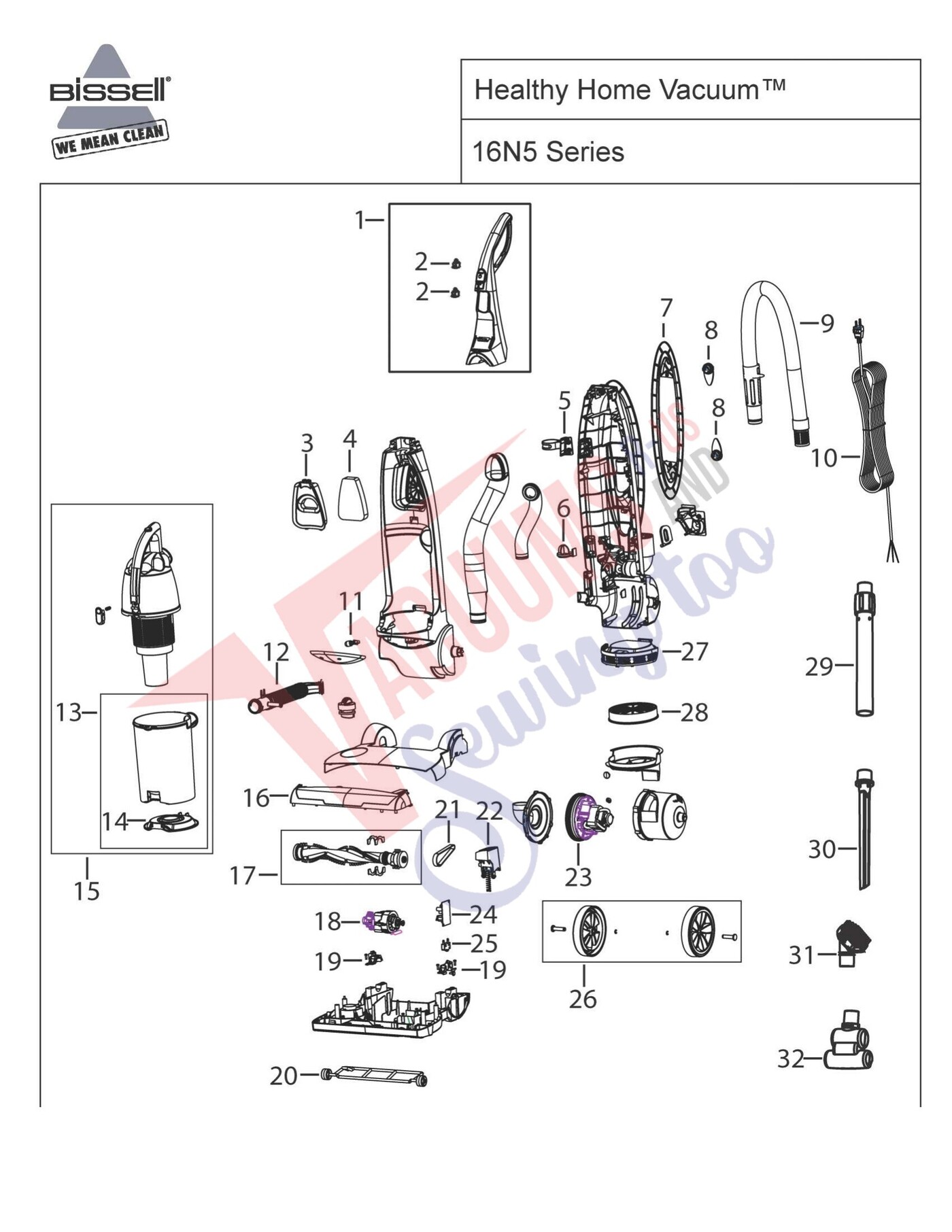

Schematic and parts book for Bissell 16N5 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle Assembly - Green | 2031465 | Not Available |
| 1 | Not Available | Handle Assembly - Bahama Mama | 2031584 | Not Available |
| 1 | Not Available | Handle Assembly - Black | 2031587 | Not Available |
| 2 |  | Switch, Blk Sq Brush Button 5770/6100 Healthy Home Part Number: 203-1317 for Bissell | 2031317 | $3.62Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | COVER, PRE-MOTOR FILTER 16N5 Part Number: 2031474 for Bissell | 2031474 | $7.48Read more |
| 4 | Not Available | Pre Motor Filter | 2031467 | Not Available |
| 5 | Not Available | Upper Wand Support | 2031472 | Not Available |
| 6 | Not Available | Lower Wand Support | 2031471 | Not Available |
| 7 | Not Available | Surfboard | 2031599 | Not Available |
| 8 |  | Hook, Cord Healthy Home 16N5/16N5-3 Part Number: 203-1466 for Bissell | 2031466 | $6.55Read more |
| 9 | Not Available | Hose Assembly | 2031485 | Not Available |
| 10 | No Image | Cord, Power Healthy Home 16N4 Upright Part Number: 203-1486 for Bissell | 2031486 | $30.13Read more |
| 11 |  | BULB, 16N5F Part Number: 203-1469 for Bissell | 2031469 | $5.01Read more |
| 12 |  | Hose, Bissell Foot Assembly Part Number: 203-1478 for Bissell | 2031478 | $14.00Read more |
| 13 | Not Available | Dirt Bin & Debris Door Assembly - Green/Yellow | 2031498 | Not Available |
| 13 | Not Available | Dirt Bin & Debris Door Assembly - Black/Red | 2031589 | Not Available |
| 14 |  | Door, Dirt Cup Healthy Home 16N5/16N5-3 Part Number: 203-1499 for Bissell | 2031499 | $35.99Read more |
| 15 | Not Available | Cyclone Assembly - Green/Yellow | 2031497 | Not Available |
| 15 | Not Available | Cyclone Assembly - Bahama Mama | 2031788 | Not Available |
| 15 | Not Available | Cyclone Assembly - Black/Red | 2031588 | Not Available |
| 15 | Not Available | Cyclone Assembly - Blue Illusion | 2031789 | Not Available |
| 16 | No Image | Window, Transparent Brushroll Part Number: 203-1479 for Bissell | 2031479 | $23.78Read more |
| 17 | Not Available | Brush Roll | 2031328 | Not Available |
| 18 |  | MOTOR, BRUSHROLL 16N5 Part Number: 203-1480 for Bissell | 2031480 | $58.56Read more |
| 19 | Not Available | Body Pivot Clamp w/Screw | 2031482 | Not Available |
| 20 |  | WHEEL, FRONT 16N5 Part Number: 203-1483 for Bissell | 2031483 | $20.70Read more |
| 21 |  | Belt Healty Home Heavy Duty | 2031329 | $3.44Add to cart |
| 22 | Not Available | Detent Pedal | 2031481 | Not Available |
| 23 | No Image | MOTOR, MAIN VACUUM W/GASKET & ISOLATOR 16N5 Part Number: 203-1470 for Bissell | 2031470 | $80.06Read more |
| 24 | Not Available | Circuit Board 16N5234CT; 50C91; 6100AN | 2031349 | Not Available |
| 24 |  | Circuit Board, Heavy Duty Bagless 93Z6 Part Number: 203-8232 for Bissell | 2038232 | $22.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | Bissell microswitch for Bissell healthy home 5770 5990 6100 5770-5 5770-8 5770-P 5770-H 6405 | 2031347 | $7.21Add to cart |
| 26 | Not Available | Rear Wheel Kit | 2031484 | Not Available |
| 27 |  | COVER, EXHAUST FILTER Part Number: 2031468 for Bissell | 2031468 | $7.45Read more |
| 27 | Not Available | Exhaust Filter Cover - Chrome | 2031586 | Not Available |
| 28 |  | Bissell Exhaust Type 18 Hepa Pleated Round 16N5 Filter | B2031473 | $22.78Add to cart |
| 28 |  | Bissell Filter Hepa Exhaust-bissell 16n5 Healthy Home | F959 | $22.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 |  | Wand, Telescoping Ext Healthy Home/Pet Hair Eraser Part Number: 203-1364 for Bissell | 2031364 | $21.96Read more |
| 29 | Not Available | Telescoping Wand - Metal | 2031373 | Not Available |
| 29 | Not Available | Telescoping Wand - Steel | 2031585 | Not Available |
| 30 |  | Tool Crevice | 2031363 | $6.81Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | Not Available | Combo Upholstery Tool | 2031365 | Not Available |
| 32 | Not Available | Turbo Brush | 2031362 | Not Available |
