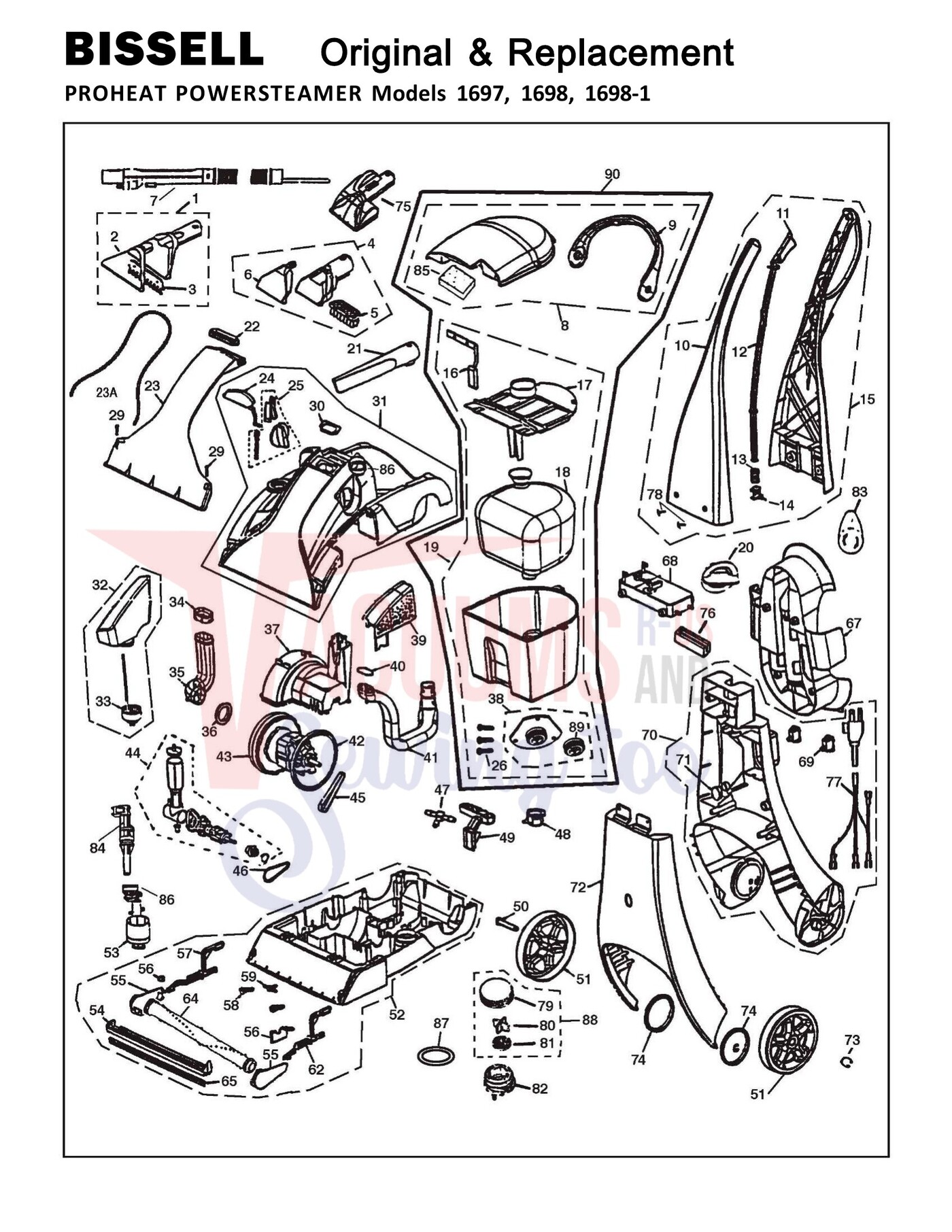

Schematic and parts book for Bissell 1697;1698;1698-1 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Upholstery Nozzle Ass'y | 603-0983 | Not Available |
| 2 | Not Available | Spray Window 4" (Order B-010-9201) | NLA | Not Available |
| 3 | Not Available | Brush Insert 4" | 603-0966 | Not Available |
| 4 | Not Available | Tuff Stain Tool 3" | 015-9155 | Not Available |
| 5 | Not Available | Brush Insert 3" (Order B-210-1157) | 014-9155 | Not Available |
| 6 | Not Available | Spray Window 3" (Order B-015-9155) | NLA | Not Available |
| 7 | Not Available | Hose Ass'y (Inc. Key #41) | 010-9210 | Not Available |
| 8 |  | Tank Lid Wscngsktandhand 1698 | 0154439 | $33.08Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Tank Handle | 603-4439 | Not Available |
| 10 | Not Available | Handle Front 1697 (Order B-013-4426) | NLA | Not Available |
| 10 | Not Available | Handle Front 1698 | 014-4446 | Not Available |
| 10 | Not Available | Handle Front 1698-1 (Order B-214-4405) | NLA | Not Available |
| 11 | Not Available | Handle Trigger | 013-9168 | Not Available |
| 12 | Not Available | Control Rod & Spring Ass'y | 013-7511 | Not Available |
| 13 | Not Available | Control Rod Spring (Order B-013-7511) | NLA | Not Available |
| 14 | Not Available | Valve Ass'y | 010-9592 | Not Available |
| 15 | Not Available | Handle Ass'y 1697 | NLA | Not Available |
| 15 |  | HANDLE UPPER ASSM BK WO DEC Bissell repair part number: 2144406 | 2144406 | $29.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Handle Ass'y 1698-1 | NLA | Not Available |
| 16 | Not Available | Float Ass'y | 014-0325 | Not Available |
| 17 | Not Available | Tank Baffle & Bladder (Incl. Key #18) (Order B-014-4432) | 013-0212 | Not Available |
| 18 | Not Available | Bladder | 010-0315 | Not Available |
| 19 | | Tankbladder Autoload 1698 | 0159041 | $27.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Drain Cap With Gasket | 014-1782 | Not Available |
| 21 | Not Available | Crevice Tool | 010-9148 | Not Available |
| 22 | Not Available | Oval Window Seal | 010-4052 | Not Available |
| 23 | Not Available | Base Window | 014-9863 | Not Available |
| 23A |  | Gasket Extruded 136 in x 27 in Bissell repair part number: 2103418 | 2103418 | $4.75Read more |
| 24 | Not Available | Diverter | 013-6986 | Not Available |
| 25 | Not Available | Diverter Knob Ass'y | 014-5170 | Not Available |
| 26 | Not Available | Screw | 880-7075 | Not Available |
| 29 | Not Available | Screw | 880-7030 | Not Available |
| 30 | Not Available | Diverter Gasket | 010-4054 | Not Available |
| 31 | Not Available | Housing Ass'y 1697 (Order B-555-6503) | 015-4908 | Not Available |
| 31 | Not Available | Housing Ass'y 1698 Black | NLA | Not Available |
| 31 | Not Available | Housing Ass'y 1698-1 | NLA | Not Available |
| 32 | Not Available | Shampoo Bottle Ass'y (Inc. Key #33) | 010-1785 | Not Available |
| 33 | Not Available | Cap And Insert Ass'y | 010-1795 | Not Available |
| 34 | Not Available | Duct Gasket | 010-4050 | Not Available |
| 35 | Not Available | Short Air Duct | 010-3161 | Not Available |
| 36 | Not Available | Motor Intake Gasket | 010-4051 | Not Available |
| 37 | Not Available | Motor Cover (Order B-010-0489) | 013-2984 | Not Available |
| 38 | Not Available | Auto Load Ass'y (Inc. Key #89) | 010-7041 | Not Available |
| 39 | Not Available | Belt Cover 1697 | 013-2992 | Not Available |
| 39 | Not Available | Belt Cover 1698 | 013-2993 | Not Available |
| 39 | Not Available | Belt Cover 1698-1 | 203-2991 | Not Available |
| 40 | Not Available | Air Duct O-Ring B-010-4446 Wiring Harness 1697 | 010-4053 | Not Available |
| 41 | Not Available | Long Air Duct B-010-4451 Wiring Harness 16981698-1 | NLA | Not Available |
| 42 | Not Available | Motor Gasket B-010-2485 Large Clamp | 010-4056 | Not Available |
| 43 | Not Available | Motor Ass'y B-010-2490 Small Clamp | 010-5970 | Not Available |
| 44 | Not Available | Pump Ass'y B-010-5912 Owners Manual 1697 | 010-7185 | Not Available |
| 45 | Not Available | Pump Belt B-010-5925 Owners Manual 1698 | 010-0620 | Not Available |
| 45 |  | Belt, Pump Hot Shot Steamer & 1699 Steamer Part Number: BR-1020 for Bissell Replacement | BR1020 | $2.22Read more |
| 45 |  | Compatible alternateBissell Belt Flat Bissell 8852 Steam Vacdeep Essential Pump Belt More Product Details | 1601543 | $6.00Add to cart Special order — allow 2-4 weeks. |
| 45 |  | Compatible alternateBelt, Pump Deep Clean Essential 8852 Series More Product Details | B-160-1543 | $6.00Add to cart Special order — allow 2-4 weeks. |
| 46 |  | Belt,Bissell Proheat Extractor Geared Part Number: BR-1075 for Bissell Replacement | BR1075 | $3.40Read more |
| 46 | | Belt,Bissell Proheat Extractor Geared Part Number: BR-1075 for Bissell Replacement | BR1075 | $3.40Read more |
| 47 | Not Available | Barbed "T" Connector B-013-9444 5" Clear Vinyl Tube | 015-8001 | Not Available |
| 48 | Not Available | Autoload Receiver B-013-9446 28" Clear Vinyl Tube | 014-0710 | Not Available |
| 49 | Not Available | Handle Release Pedal B-013-9447 14" Vinyl Tube | 013-5580 | Not Available |
| 50 | Not Available | Axle B-013-9448 32" Vinyl Tube | 010-0170 | Not Available |
| 51 | Not Available | Wheel | 013-9754 | Not Available |
| 52 | Not Available | Base Ass'y | 014-0442 | Not Available |
| 53 | Not Available | Automix Ass'y Less Knob | 010-0106 | Not Available |
| 54 | Not Available | Bare Floor Attachment | NLA | Not Available |
| 55 | Not Available | Left & Right Pivot Arm Kit | NLA | Not Available |
| 56 |  | ARM RETAINER LEFT RIGHT Bissell repair part number: 5559113 | 5559113 | $4.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 |  | Bissell Left and Right Proheat 1699 7901 Elevator Levers for models 7950 7950-Y 9E00 1698 1698-1 ... | 2000010 | $10.90Add to cart |
| 58 | Not Available | Spray Tip | 010-6105 | Not Available |
| 59 | Not Available | Regular "T" Connector | 010-2602 | Not Available |
| 62 | Not Available | Elevator Lever Spring (Order B-200-0010) | NLA | Not Available |
| 64 |  | Udc Brush4 Row Thru Axlerepl | 2101157 | $20.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 | Not Available | Bare Floor Squeege | NLA | Not Available |
| 67 | Not Available | Tool Storage Caddy | 013-6750 | Not Available |
| 68 | Not Available | Heater | 010-4501 | Not Available |
| 69 | Not Available | Power Switch | 010-8827 | Not Available |
| 69 | Not Available | Red Heater Switch 1698 | 710-8617 | Not Available |
| 69 | Not Available | Lighted Heater Switch 1698-1 | 010-8801 | Not Available |
| 70 | Not Available | Main Body Ass'y 1697 | 014-4431 | Not Available |
| 70 | Not Available | Main Body Ass'y 1698 | 014-4432 | Not Available |
| 70 | Not Available | Main Body Ass'y 1698-1 | NLA | Not Available |
| 71 | Not Available | Light Ass'y 1698 1698-1 | 010-5601 | Not Available |
| 72 | Not Available | Front Panel 1697 (Order B-014-4417) | NLA | Not Available |
| 72 | Not Available | Front Panel 1698 | 014-4417 | Not Available |
| 72 | Not Available | Front Panel 1698-1 (Order B-014-4417) | NLA | Not Available |
| 73 | Not Available | E-Clip | 010-6215 | Not Available |
| 74 | Not Available | Wheel Bushing | NLA | Not Available |
| 75 | Not Available | Turbo Brush Ass'y | 010-1183 | Not Available |
| 76 | Not Available | Rubber Block | 010-8550 | Not Available |
| 77 | Not Available | Power Cord 33' 3 Wire | 010-2850 | Not Available |
| 78 | Not Available | Handle Screw | 010-0290 | Not Available |
| 79 | Not Available | Flow Indicator Cap (Order B-555-6503) | NLA | Not Available |
| 80 | Not Available | Flow Indicator Spinner | NLA | Not Available |
| 81 | Not Available | Flow Indicator Filter (Order B-555-6503) | NLA | Not Available |
| 82 | Not Available | Flow Indicator Base (Inc. Key #87) | 010-0489 | Not Available |
| 83 | Not Available | Cord Hook | 013-3722 | Not Available |
| 84 | Not Available | Automix Piston | 010-8722 | Not Available |
| 85 | Not Available | Lint Screen | 015-3500 | Not Available |
| 86 | Not Available | Automix Knob | 010-5108 | Not Available |
| 87 | Not Available | Flow Indicator O-Ring | NLA | Not Available |
| 88 |  | Flow Indicator Assy Repl | 5556503 | $6.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 89 | Not Available | Tank Seal | 010-6241 | Not Available |
| 90 |  | Bissell 015-9043 Tank with lid and bladder for 1x - 7950 7950-Y 9E00 1698 1698-1 8904 8804 8804M ... | 0159043 | $55.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 |  | Available ReconditionedPre owned Bissell 015-9043 Tank with lid and bladder for 1x - 7950 7950-Y 9E00 1698 1698-1 8904 8... More Product Details | 0159043R | $38.00Add to cart |
