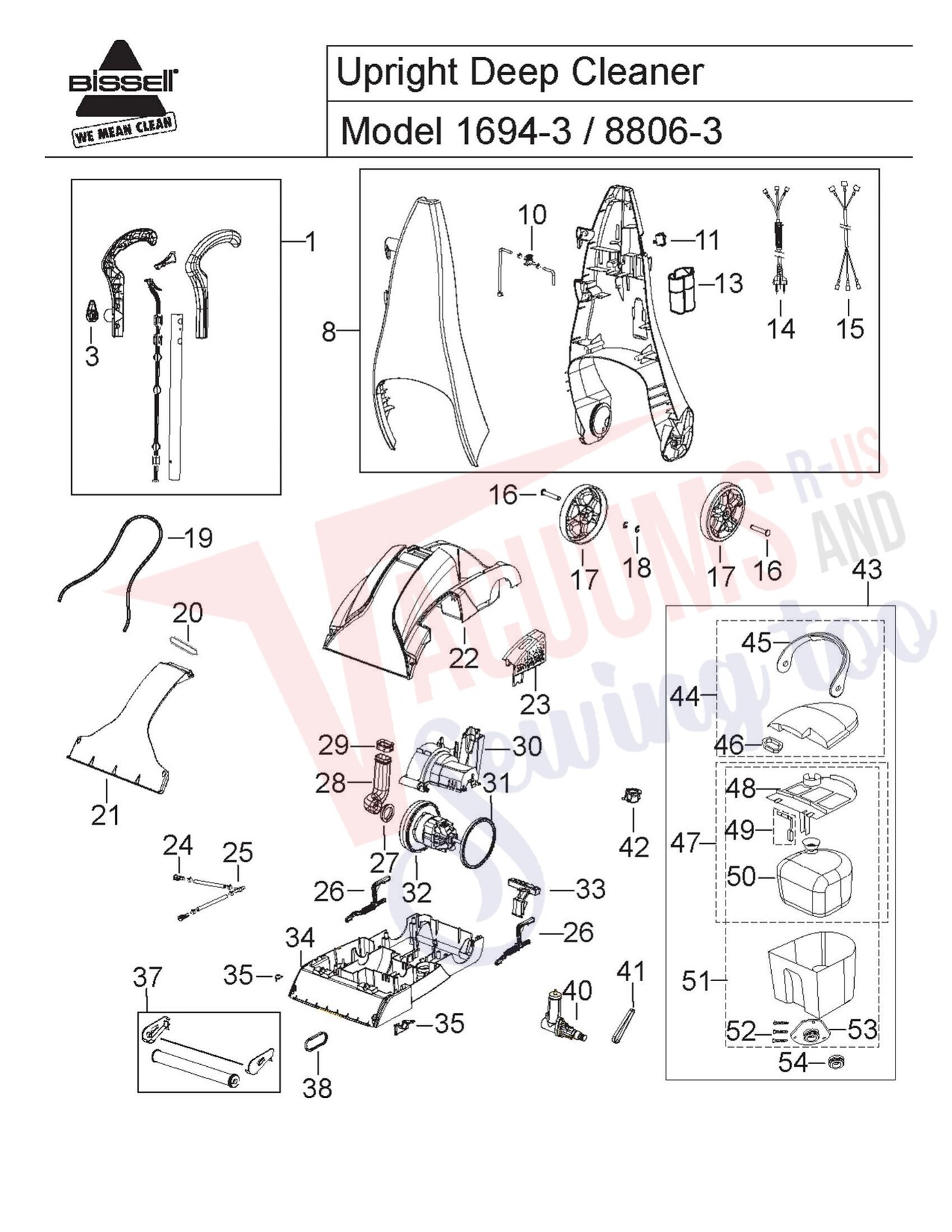

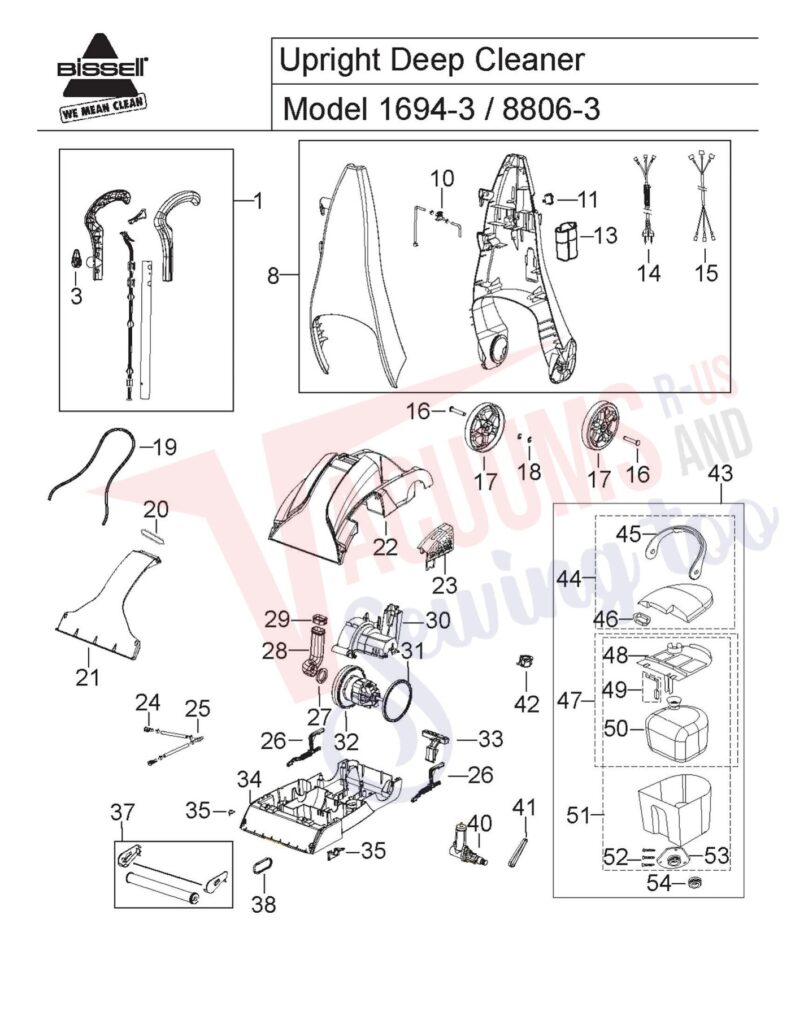

Schematic and parts book for Bissell 1694-3, 8806-3 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx | Not Available | HANDLE SCREW | 203-5616 | Not Available |
| xx | Not Available | CLAMP LARGE | 210-2485 | Not Available |
| xx | Not Available | CLAMP SMALL | 210-2490 | Not Available |
| xx | Not Available | USER'S GUIDE | 210-2516 | Not Available |
| xx | Not Available | CONNECTOR T | 210-2602 | Not Available |
| xx | Not Available | TUBE VINYL 20" | 213-9438 | Not Available |
| xx | Not Available | TUBE VINYL 7.5" | 213-9449 | Not Available |
| xx | Not Available | DRAIN CAP - RECOVERY TANK | 214-1782 | Not Available |
| xx | Not Available | T ASSY ODD BARB | 215-8001 | Not Available |
| xx |  | SCREW number 8 PLAS X 34 6PCK REPL Bissell repair part number: 5557030 | 5557030 | $4.36Read more |
| 1 | Not Available | HANDLE & GRIP ASSY JAVA BEAN | 555-6203 | Not Available |
| 3 | Not Available | CORD WRAP JAVA BEAN | 210-6379 | Not Available |
| 8 | Not Available | LOWER HANDLE COMP JAVA BEAN | 215-5102 | Not Available |
| 10 |  | Valve Assembly for Bissell 1698 | 2109592 | $3.72Read more |
| 10 | | Compatible alternateSpring Breeze Fragrance Disc Bissell repair part number: 1095 More Product Details | 1095 | $45.42Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | SWITCH ROCKER RED REPL Bissell repair part number: 5559125 | 5559125 | $3.27Read more |
| 13 | Not Available | MEASURING CUP | 213-3010 | Not Available |
| 14 | Not Available | CORD | 210-2836 | Not Available |
| 15 | No Image | Wiring Harness Bissell Pro-Heat Steamer For: bissell | 2104446 | $8.79Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | AXLE | 210-0170 | Not Available |
| 17 | Not Available | WHEEL | 213-9754 | Not Available |
| 18 | Not Available | AXLE E-RING | 210-6215 | Not Available |
| 19 |  | Gasket Extruded 136 in x 27 in Bissell repair part number: 2103418 | 2103418 | $4.75Read more |
| 20 | Not Available | TANK INTERFACE SEAL | 210-4052 | Not Available |
| 21 |  | NO LONGER AVAILABLE Bissell 214-9871 Window, Base for models: 1692 1699 7901 7920 8905 8910 Prohe... | 2149871 | $20.89Read more |
| 21 |  | Available ReconditionedPre owned Bissell 214-9871 Window, Base for models: 1692 1699 7901 7920 8905 8910 Proheat 7950 79... More Product Details | 2149871R | $59.99Add to cart |
| 22 | Not Available | MAIN HOUSING JAVA BEAN | 213-4942 | Not Available |
| 23 | Not Available | BELT COVER JAVA BEAN | 213-2901 | Not Available |
| 24 |  | Single spray tip for bissell 7950 7950-Y 9E00 1685 1692 carpet cleaner shampooer extractor | 2106107 | $9.90Add to cart |
| 25 | Not Available | T- CONNECTOR | 210-2602 | Not Available |
| 26 |  | Bissell Left and Right Proheat 1699 7901 Elevator Levers for models 7950 7950-Y 9E00 1698 1698-1 ... | 2000010 | $10.90Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | GASKET MTR INTAKE REPL Bissell repair part number: 2104051 | 2104051 | $2.18Read more |
| 28 | Not Available | MOTOR DUCT | 210-3161 | Not Available |
| 29 |  | NO LONGER AVAILABLE GASKETSHORT DUCT REPL Bissell repair part number: 2104050 | 2104050 | $5.01Read more |
| 30 | | COVER MOTOR REPL Bissell repair part number: 2132984 | 2132984 | $5.85Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Gasket Motor Inner Repl | 2104056 | $3.42Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Bissell single brush pro heat main motor PN: 1601038 | 1601038 | $65.99Read more |
| 32 |  | Available ReconditionedReconditioned preowned Bissell single brush pro heat main motor PN: 1601038 More Product Details | WP13040 | $65.99Add to cart |
| 33 |  | Pedal, :( Gray Handle Release Proheat 1699/7901/79 Part Number: 555-9102 for Bissell | 5559102 | $5.70Read more |
| 34 | Not Available | BASE W/ 4-ROW BRUSH | 214-0435 | Not Available |
| 35 |  | ARM RETAINER LEFT RIGHT Bissell repair part number: 5559113 | 5559113 | $4.51Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Udc Brush4 Row Thru Axlerepl | 2101157 | $20.95Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | BELTBRUSH 1PK Bissell repair part number: 0150621 | 0150621 | $9.16Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Compatible alternateAftermarket Bissell Belt-bissell Pro Heat aftermarket belt two pack 1 flat pump belt 1 geared bru... More Product Details | 18330100 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | NO LONGER AVAILABLE Belt driven non electric pump assy for single brush roller type bissell carpe... | 2107181 | $43.99Read more |
| 40 |  | Available ReconditionedPre owned Belt driven non electric pump assy for single brush roller type bissell carpet cleaners... More Product Details | 2107181R | $43.99Add to cart |
| 41 |  | PUMP BELT PACK 1699 WINSTREPL Bissell repair part number: 2150628 | 2150628 | $10.48Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | AUTOLOAD RECEIVER REPL Bissell repair part number: 2140710 | 2140710 | $5.76Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Bissell 015-9043 Tank with lid and bladder for 1x - 7950 7950-Y 9E00 1698 1698-1 8904 8804 8804M ... | 0159043 | $55.34Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Available ReconditionedPre owned Bissell 015-9043 Tank with lid and bladder for 1x - 7950 7950-Y 9E00 1698 1698-1 8904 8... More Product Details | 0159043R | $38.00Add to cart |
| 44 | | Tank Lid Wscngsktandhand 1698 | 0154439 | $33.08Read more |
| 45 | | HANDLE TANK REPL Bissell repair part number: 2034435 | 2034435 | $6.87Add to cart Special order: ships in 2 to 4 weeks |
| 46 | Not Available | LINT SCREEN RED | 213-3501 | Not Available |
| 47 | Not Available | BAFFLE & BLADDER ASSY | 214-0213 | Not Available |
| 48 |  | BAFFLE and FLOAT ASSY REPL Bissell repair part number: 2130213 | 2130213 | $13.48Add to cart Special order: ships in 2 to 4 weeks |
| 49 | Not Available | FLOAT ASSY | 214-0325 | Not Available |
| 50 |  | BLADDER 1697 REPL Bissell repair part number: 2100315 | 2100315 | $20.79Read more |
| 51 | Not Available | TANK BOTTOM W/ AUTOLOAD | 214-9045 | Not Available |
| 52 | Not Available | SCREW #6 x 1/2 | 280-7075 | Not Available |
| 53 |  | Auto Load, :( W/O Screws 1697/1697/1699/7901/7920 Part Number: 210-7041 for Bissell | 2107041 | $7.18Read more |
| 54 | Not Available | OVERSEAL FOR AUTOLOAD | 210-6241 | Not Available |
