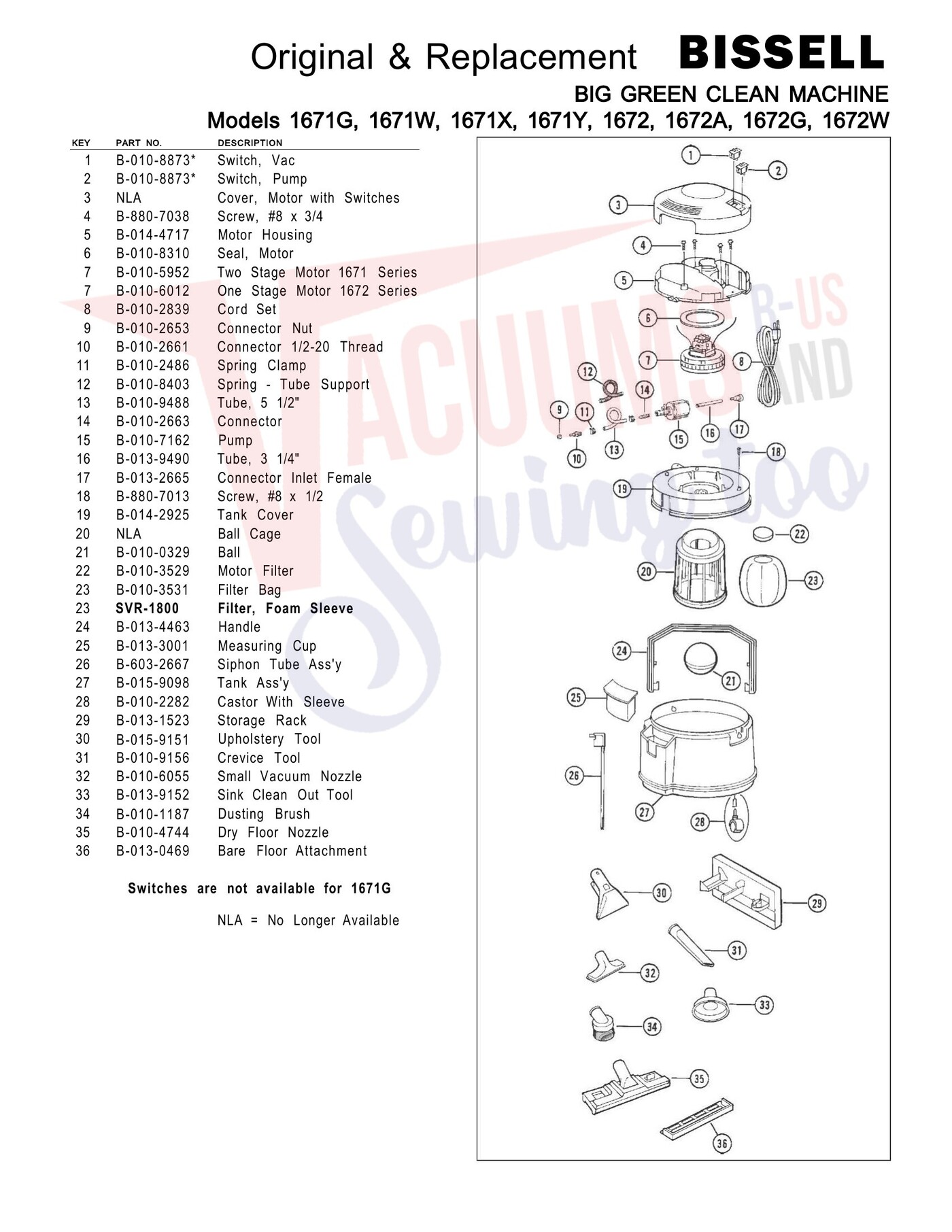

Schematic and parts book for Bissell 1671G;1671W;1671X;1671Y;1672;1672A;1672G;1672W . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Switch Vac | 010-8873 | Not Available |
| 2 | Not Available | Switch Pump | 010-8873 | Not Available |
| 3 | Not Available | Cover Motor with Switches | NLA | Not Available |
| 4 | Not Available | Screw #8 x 3/4 | 880-7038 | Not Available |
| 5 | Not Available | Motor Housing | 014-4717 | Not Available |
| 6 | Not Available | Seal Motor | 010-8310 | Not Available |
| 7 | Not Available | Two Stage Motor 1671 Series | 010-5952 | Not Available |
| 7 | Not Available | One Stage Motor 1672 Series | 010-6012 | Not Available |
| 8 | Not Available | Cord Set | 010-2839 | Not Available |
| 9 | Not Available | Connector Nut | 010-2653 | Not Available |
| 10 | Not Available | Connector 1/2-20 Thread | 010-2661 | Not Available |
| 11 | Not Available | Spring Clamp | 010-2486 | Not Available |
| 12 | Not Available | Spring - Tube Support | 010-8403 | Not Available |
| 13 | Not Available | Tube 5 1/2" | 010-9488 | Not Available |
| 14 | Not Available | Connector | 010-2663 | Not Available |
| 15 | Not Available | Pump | 010-7162 | Not Available |
| 16 | Not Available | Tube 3 1/4" | 013-9490 | Not Available |
| 17 | Not Available | Connector Inlet Female | 013-2665 | Not Available |
| 18 | Not Available | Screw #8 x 1/2 | 880-7013 | Not Available |
| 19 | Not Available | Tank Cover | 014-2925 | Not Available |
| 20 | Not Available | Ball Cage | NLA | Not Available |
| 21 | Not Available | Ball | 010-0329 | Not Available |
| 22 | Not Available | Motor Filter | 010-3529 | Not Available |
| 23 | Not Available | Filter Bag | 010-3531 | Not Available |
| 23 |  | Filter, Foam Sleeve Wet/Dry Type R Ea Part Number: 90585-00 for Shop Vac | 9058500 | $12.31Read more |
| 24 | Not Available | Handle | 013-4463 | Not Available |
| 25 | Not Available | Measuring Cup | 013-3001 | Not Available |
| 26 | Not Available | Siphon Tube Ass'y | 603-2667 | Not Available |
| 27 | Not Available | Tank Ass'y | 015-9098 | Not Available |
| 28 | Not Available | Castor With Sleeve | 010-2282 | Not Available |
| 29 | Not Available | Storage Rack | 013-1523 | Not Available |
| 30 | Not Available | Upholstery Tool | 015-9151 | Not Available |
| 31 | Not Available | Crevice Tool | 010-9156 | Not Available |
| 32 | No Image | UPHOLSTERY TOOL, SMALL BGCM 1671 SERIES Part Number: 010-6055 for Bissell | 0106055 | $7.48Read more |
| 33 | Not Available | Sink Clean Out Tool | 013-9152 | Not Available |
| 34 | Not Available | Dusting Brush | 010-1187 | Not Available |
| 35 | Not Available | Dry Floor Nozzle | 010-4744 | Not Available |
| 36 | Not Available | Bare Floor Attachment | 013-0469 | Not Available |
| # | Part image | Description | SKU | Price |

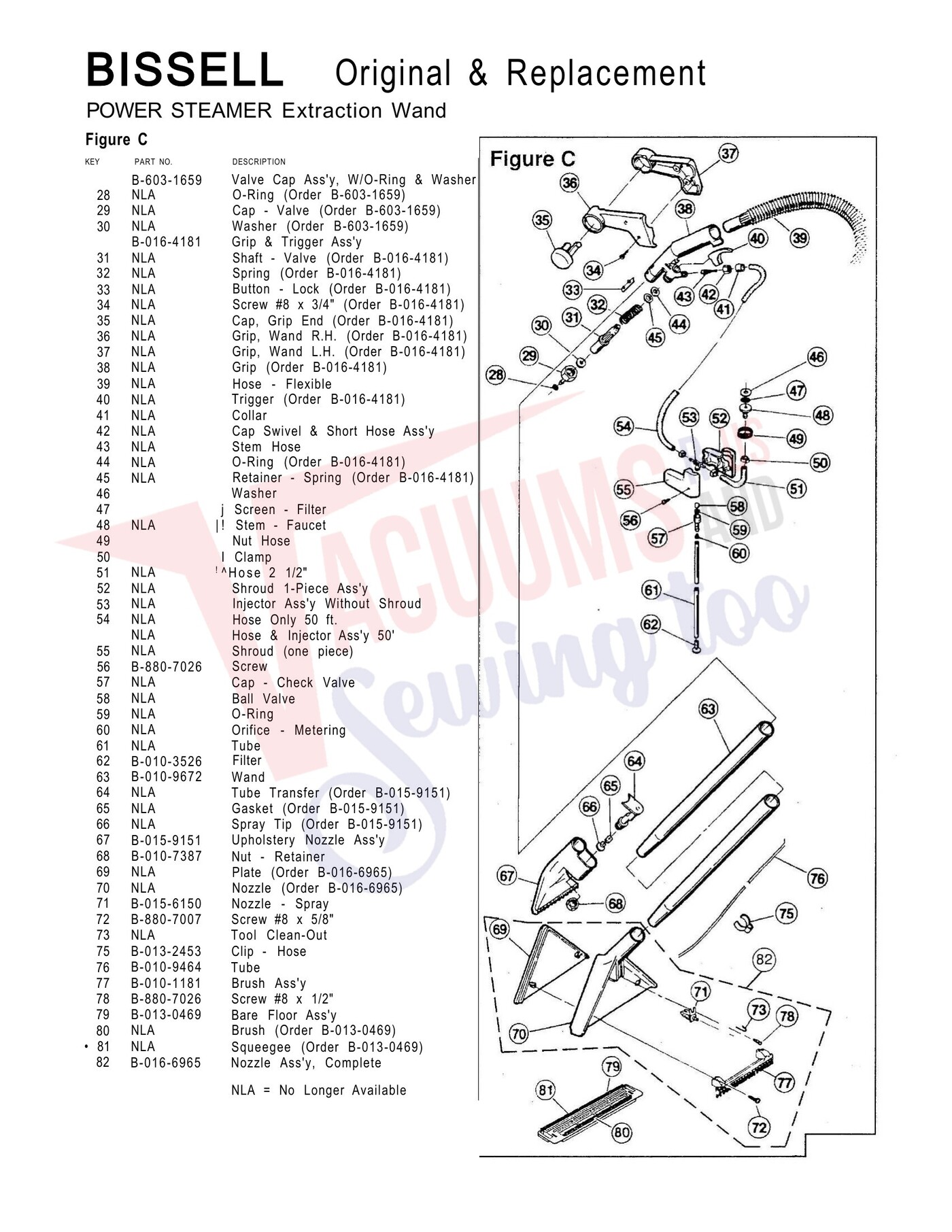

| XX | Not Available | Valve Cap Ass'y W/O-Ring & Washer | 603-1659 | Not Available |
| XX | Not Available | Grip & Trigger Ass'y | 016-4181 | Not Available |
| 28 | Not Available | O-Ring (Order B-603-1659) | NLA | Not Available |
| 29 | Not Available | Cap - Valve (Order B-603-1659) | NLA | Not Available |
| 30 | Not Available | Washer (Order B-603-1659) | NLA | Not Available |
| 31 | Not Available | Shaft - Valve (Order B-016-4181) | NLA | Not Available |
| 32 | Not Available | Spring (Order B-016-4181) | NLA | Not Available |
| 33 | Not Available | Button - Lock (Order B-016-4181) | NLA | Not Available |
| 34 | Not Available | Screw #8 x 3/4" (Order B-016-4181) | NLA | Not Available |
| 35 | Not Available | Cap Grip End (Order B-016-4181) | NLA | Not Available |
| 36 | Not Available | Grip Wand R.H. (Order B-016-4181) | NLA | Not Available |
| 37 | Not Available | Grip Wand L.H. (Order B-016-4181) | NLA | Not Available |
| 38 | Not Available | Grip (Order B-016-4181) | NLA | Not Available |
| 39 | Not Available | Hose - Flexible | NLA | Not Available |
| 40 | Not Available | Trigger (Order B-016-4181) | NLA | Not Available |
| 41 | Not Available | Collar | NLA | Not Available |
| 42 | Not Available | Cap Swivel & Short Hose Ass'y | NLA | Not Available |
| 43 | Not Available | Stem Hose | NLA | Not Available |
| 44 | Not Available | O-Ring (Order B-016-4181) | NLA | Not Available |
| 45 | Not Available | Retainer - Spring (Order B-016-4181) | NLA | Not Available |
| 48 | Not Available | | ! Stem - Faucet | NLA | Not Available |
| 51 | Not Available | ! ^Hose 2 1/2" | NLA | Not Available |
| 52 | Not Available | Shroud 1-Piece Ass'y | NLA | Not Available |
| 53 | Not Available | Injector Ass'y Without Shroud | NLA | Not Available |
| 54 | Not Available | Hose Only 50 ft. | NLA | Not Available |
| 55 | Not Available | Shroud (one piece) | NLA | Not Available |
| 56 | Not Available | Screw | 880-7026 | Not Available |
| 57 | Not Available | Cap - Check Valve | NLA | Not Available |
| 58 | Not Available | Ball Valve | NLA | Not Available |
| 59 | Not Available | O-Ring | NLA | Not Available |
| 60 | Not Available | Orifice - Metering | NLA | Not Available |
| 61 | Not Available | Tube | NLA | Not Available |
| 62 | Not Available | Filter | 010-3526 | Not Available |
| 63 | Not Available | Wand | 010-9672 | Not Available |
| 64 | Not Available | Tube Transfer (Order B-015-9151) | NLA | Not Available |
| 65 | Not Available | Gasket (Order B-015-9151) | NLA | Not Available |
| 66 | Not Available | Spray Tip (Order B-015-9151) | NLA | Not Available |
| 67 | Not Available | Upholstery Nozzle Ass'y | 015-9151 | Not Available |
| 68 | Not Available | Nut - Retainer | 010-7387 | Not Available |
| 69 | Not Available | Plate (Order B-016-6965) | NLA | Not Available |
| 70 | Not Available | Nozzle (Order B-016-6965) | NLA | Not Available |
| 71 | Not Available | Nozzle - Spray | 015-6150 | Not Available |
| 72 | Not Available | Screw #8 x 5/8" | 880-7007 | Not Available |
| 73 | Not Available | Tool Clean-Out | NLA | Not Available |
| 75 | Not Available | Clip - Hose | 013-2453 | Not Available |
| 76 | Not Available | Tube | 010-9464 | Not Available |
| 77 | Not Available | Brush Ass'y | 010-1181 | Not Available |
| 78 | Not Available | Screw #8 x 1/2" | 880-7026 | Not Available |
| 79 | Not Available | Bare Floor Ass'y | 013-0469 | Not Available |
| 80 | Not Available | Brush (Order B-013-0469) | NLA | Not Available |
| 81 | Not Available | Squeegee (Order B-013-0469) | NLA | Not Available |
| 82 |  | Bissell big green floor nozzle 016-6965 for models 1671G 1671w 1671x 1671Y 1672 1672A 1672G 1672W... | 5559005 | $54.99Read more |
