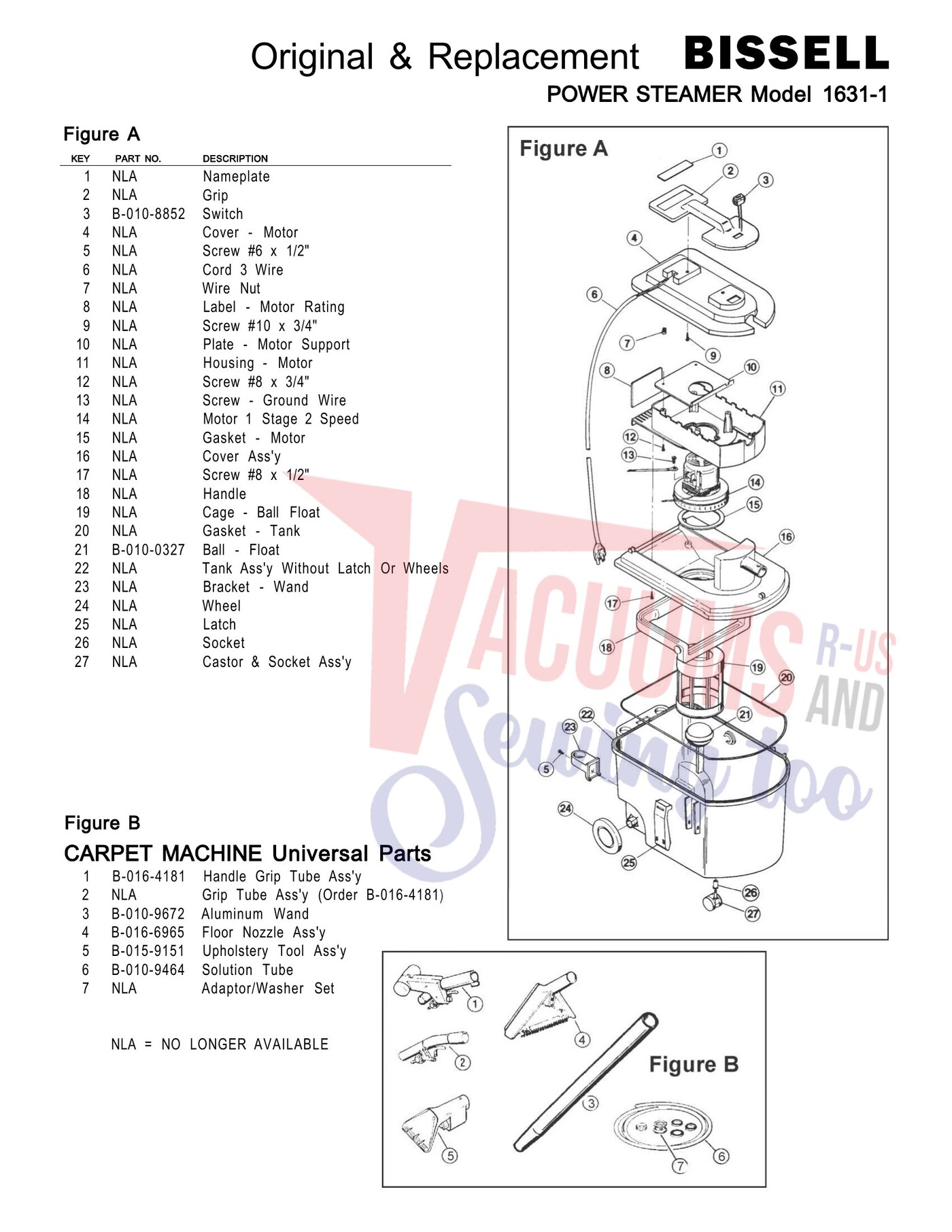

Schematic and parts book for Bissell 1631-1 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nameplate | NLA | Not Available |
| 1 | Not Available | Handle Grip Tube Ass'y | 016-4181 | Not Available |
| 2 | Not Available | Grip | NLA | Not Available |
| 2 | Not Available | Grip Tube Ass'y (Order B-016-4181 | NLA | Not Available |
| 3 | Not Available | Switch | 010-8852 | Not Available |
| 3 | Not Available | Aluminum Wand | 010-9672 | Not Available |
| 4 | Not Available | Cover - Motor | NLA | Not Available |
| 4 |  | Bissell big green floor nozzle 016-6965 for models 1671G 1671w 1671x 1671Y 1672 1672A 1672G 1672W... | 5559005 | $54.99Read more |
| 5 | Not Available | Screw #6 x 1/2" | NLA | Not Available |
| 5 | Not Available | Upholstery Tool Ass'y | 015-9151 | Not Available |
| 6 | Not Available | Cord 3 Wire | NLA | Not Available |
| 6 | Not Available | Solution Tube | 010-9464 | Not Available |
| 7 | Not Available | Wire Nut | NLA | Not Available |
| 7 | Not Available | Adaptor/Washer Set | NLA | Not Available |
| 8 | Not Available | Label - Motor Rating | NLA | Not Available |
| 9 | Not Available | Screw #10 x 3/4" | NLA | Not Available |
| 10 | Not Available | Plate - Motor Support | NLA | Not Available |
| 11 | Not Available | Housing - Motor | NLA | Not Available |
| 12 | Not Available | Screw #8 x 3/4" | NLA | Not Available |
| 13 | Not Available | Screw - Ground Wire | NLA | Not Available |
| 14 | Not Available | Motor 1 Stage 2 Speed | NLA | Not Available |
| 15 | Not Available | Gasket - Motor | NLA | Not Available |
| 16 | Not Available | Cover Ass'y | NLA | Not Available |
| 17 | Not Available | Screw #8 x 1/2" | NLA | Not Available |
| 18 | Not Available | Handle | NLA | Not Available |
| 19 | Not Available | Cage - Ball Float | NLA | Not Available |
| 20 | Not Available | Gasket - Tank | NLA | Not Available |
| 21 | Not Available | Ball - Float | 010-0327 | Not Available |
| 22 | Not Available | Tank Ass'y Without Latch Or Wheels | NLA | Not Available |
| 23 | Not Available | Bracket - Wand | NLA | Not Available |
| 24 | Not Available | Wheel | NLA | Not Available |
| 25 | Not Available | Latch | NLA | Not Available |
| 26 | Not Available | Socket | NLA | Not Available |
| 27 | Not Available | Castor & Socket Ass'y | NLA | Not Available |
| # | Part image | Description | SKU | Price |

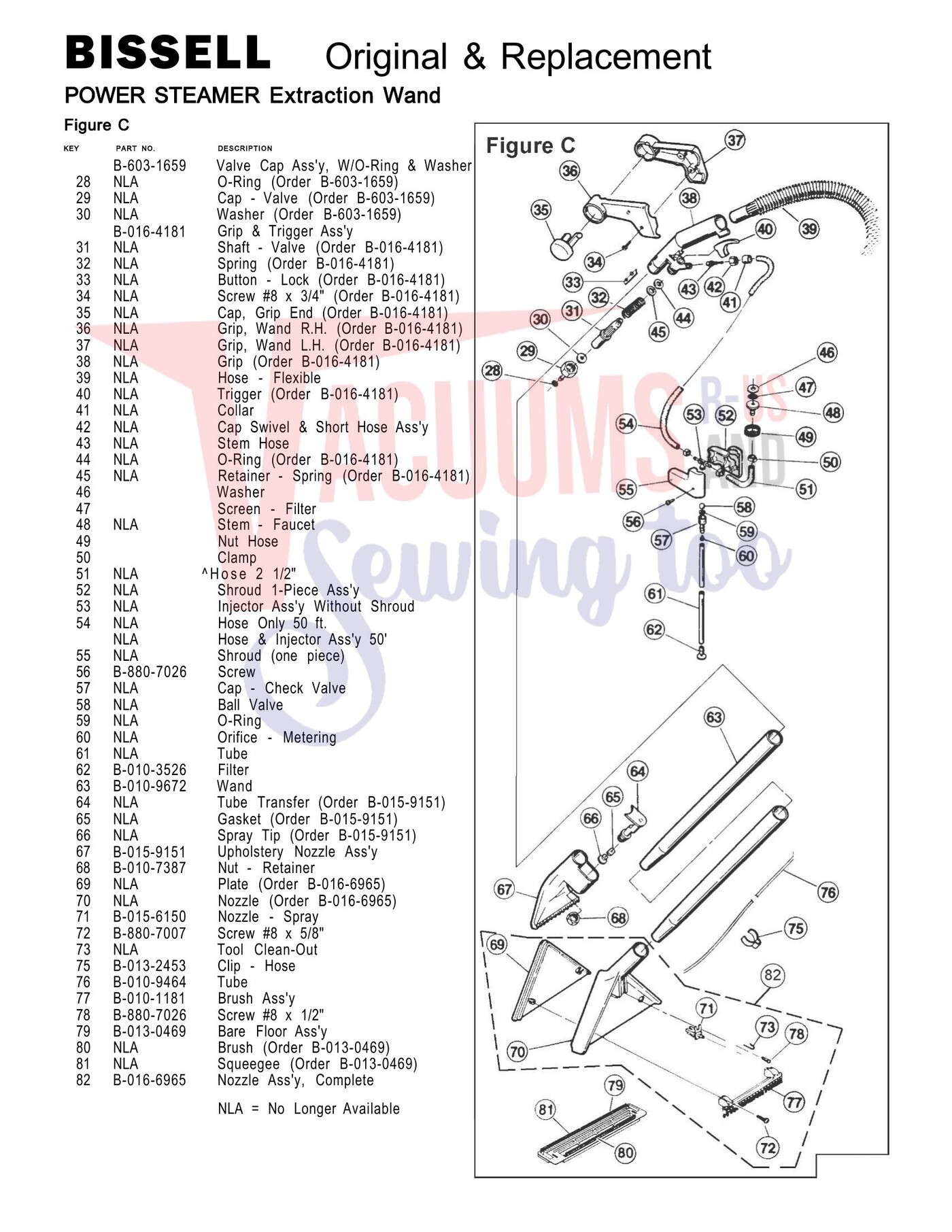

| XX | Not Available | Valve Cap Ass'y W/O-Ring & Washer | 603-1659 | Not Available |
| XX | Not Available | Grip & Trigger Ass'y | 016-4181 | Not Available |
| 28 | Not Available | O-Ring (Order B-603-1659) | NLA | Not Available |
| 29 | Not Available | Cap - Valve (Order B-603-1659) | NLA | Not Available |
| 30 | Not Available | Washer (Order B-603-1659) | NLA | Not Available |
| 31 | Not Available | Shaft - Valve (Order B-016-4181) | NLA | Not Available |
| 32 | Not Available | Spring (Order B-016-4181) | NLA | Not Available |
| 33 | Not Available | Button - Lock (Order B-016-4181) | NLA | Not Available |
| 34 | Not Available | Screw #8 x 3/4" (Order B-016-4181) | NLA | Not Available |
| 35 | Not Available | Cap Grip End (Order B-016-4181) | NLA | Not Available |
| 36 | Not Available | Grip Wand R.H. (Order B-016-4181) | NLA | Not Available |
| 37 | Not Available | Grip Wand L.H. (Order B-016-4181) | NLA | Not Available |
| 38 | Not Available | Grip (Order B-016-4181) | NLA | Not Available |
| 39 | Not Available | Hose - Flexible | NLA | Not Available |
| 40 | Not Available | Trigger (Order B-016-4181) | NLA | Not Available |
| 41 | Not Available | Collar | NLA | Not Available |
| 42 | Not Available | Cap Swivel & Short Hose Ass'y | NLA | Not Available |
| 43 | Not Available | Stem Hose | NLA | Not Available |
| 44 | Not Available | O-Ring (Order B-016-4181) | NLA | Not Available |
| 45 | Not Available | Retainer - Spring (Order B-016-4181) | NLA | Not Available |
| 48 | Not Available | Stem - Faucet | NLA | Not Available |
| 51 | Not Available | ^Hose 2 1/2" | NLA | Not Available |
| 52 | Not Available | Shroud 1-Piece Ass'y | NLA | Not Available |
| 53 | Not Available | Injector Ass'y Without Shroud | NLA | Not Available |
| 54 | Not Available | Hose Only 50 ft. | NLA | Not Available |
| 55 | Not Available | Shroud (one piece) | NLA | Not Available |
| 56 | Not Available | Screw | 880-7026 | Not Available |
| 57 | Not Available | Cap - Check Valve | NLA | Not Available |
| 58 | Not Available | Ball Valve | NLA | Not Available |
| 59 | Not Available | O-Ring | NLA | Not Available |
| 60 | Not Available | Orifice - Metering | NLA | Not Available |
| 61 | Not Available | Tube | NLA | Not Available |
| 62 | Not Available | Filter | 010-3526 | Not Available |
| 63 | Not Available | Wand | 010-9672 | Not Available |
| 64 | Not Available | Tube Transfer (Order B-015-9151) | NLA | Not Available |
| 65 | Not Available | Gasket (Order B-015-9151) | NLA | Not Available |
| 66 | Not Available | Spray Tip (Order B-015-9151) | NLA | Not Available |
| 67 | Not Available | Upholstery Nozzle Ass'y | 015-9151 | Not Available |
| 68 | Not Available | Nut - Retainer | 010-7387 | Not Available |
| 69 | Not Available | Plate (Order B-016-6965) | NLA | Not Available |
| 70 | Not Available | Nozzle (Order B-016-6965) | NLA | Not Available |
| 71 | Not Available | Nozzle - Spray | 015-6150 | Not Available |
| 72 | Not Available | Screw #8 x 5/8" | 880-7007 | Not Available |
| 73 | Not Available | Tool Clean-Out | NLA | Not Available |
| 75 | Not Available | Clip - Hose | 013-2453 | Not Available |
| 76 | Not Available | Tube | 010-9464 | Not Available |
| 77 | Not Available | Brush Ass'y | 010-1181 | Not Available |
| 78 | Not Available | Screw #8 x 1/2" | 880-7026 | Not Available |
| 79 | Not Available | Bare Floor Ass'y | 013-0469 | Not Available |
| 80 | Not Available | Brush (Order B-013-0469) | NLA | Not Available |
| 81 | Not Available | Squeegee (Order B-013-0469) | NLA | Not Available |
| 82 | | Bissell big green floor nozzle 016-6965 for models 1671G 1671w 1671x 1671Y 1672 1672A 1672G 1672W... | 5559005 | $54.99Read more |
