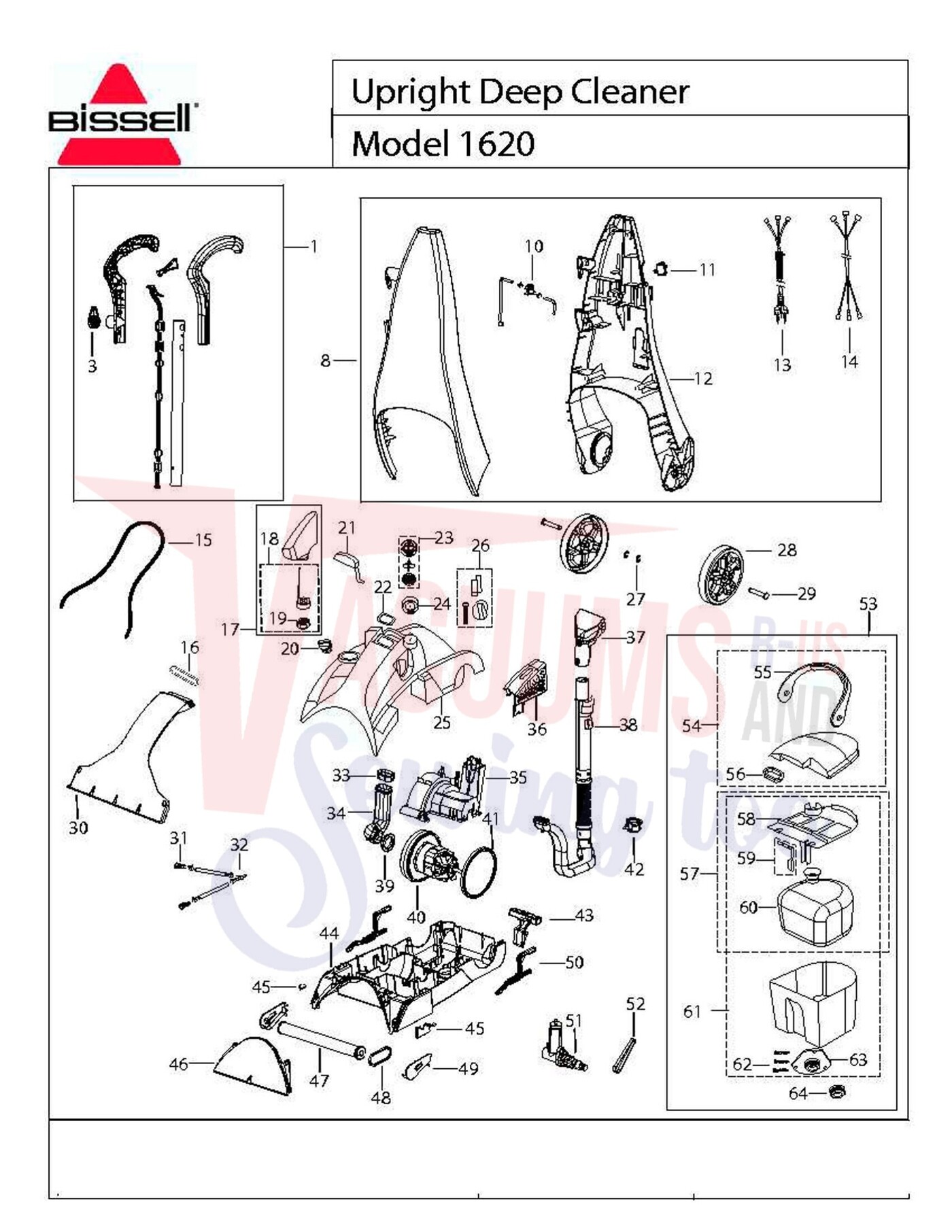

Schematic and parts book for Bissell 1620 Upright Deep Cleaner. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX | Not Available | CLAMP LARGE | 210-2485 | Not Available |
| XX | Not Available | CLAMP SMALL | 210-2490 | Not Available |
| XX | Not Available | CONNECTORT | 210-2602 | Not Available |
| XX | Not Available | TUBE VINYL 20* | 213-9438 | Not Available |
| XX | Not Available | TUBE VINYL 7.5* | 213-9449 | Not Available |
| XX | Not Available | T ASSY ODD BARB | 215-8001 | Not Available |
| XX | Not Available | HANDLE SCREW | 280-6301 | Not Available |
| XX |  | SCREW number 8 PLAS X 34 6PCK REPL Bissell repair part number: 5557030 | 5557030 | $4.36Read more |
| XX | No Image | OWNER'S MANUAL, 1620 Part Number: 210-4800 for Bissell | 2104800 | $5.18Read more |
| 1 | Not Available | HANDLE & GRIP ASSY GREEN | 213-4032 | Not Available |
| 3 | Not Available | CORD WRAP GREEN | 210-6388 | Not Available |
| 6 | Not Available | LOWER HANDLE COMP GREEN | 214-4048 | Not Available |
| 10 |  | Valve Assembly for Bissell 1698 | 2109592 | $3.72Read more |
| 10 | | Compatible alternateSpring Breeze Fragrance Disc Bissell repair part number: 1095 More Product Details | 1095 | $45.42Add to cart Special order — allow 2-4 weeks. |
| 11 |  | SWITCH ROCKER RED REPL Bissell repair part number: 5559125 | 5559125 | $3.27Read more |
| 12 | Not Available | HANDLE BACKASSY BLUE | 214-4045 | Not Available |
| 13 | Not Available | CORD SET 1692 | 210-2836 | Not Available |
| 14 | No Image | Wiring Harness Bissell Pro-Heat Steamer For: bissell | 2104446 | $8.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Gasket Extruded 136 in x 27 in Bissell repair part number: 2103418 | 2103418 | $4.75Read more |
| 16 | Not Available | TANK INTERFACE SEAL | 210-4052 | Not Available |
| 17 |  | BOTTLE ASSEMBLY Bissell repair part number: 2101785 | 2101785 | $17.75Read more |
| 18 |  | CAP DETERGENT Bissell repair part number: 2101795 | 2101795 | $8.25Read more |
| 19 | Not Available | OVERSEAL-AUTOLOAD | 210-6241 | Not Available |
| 20 |  | Knob Automix Repl | 2105108 | $5.15Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Diverter-Bissell 1698 For: bissell | 2136988 | $3.07Read more |
| 22 |  | GASKET DIVERTER WINST REPL Bissell repair part number: 2114054 | 2114054 | $5.15Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | Flow Indicator Assy Repl | 5556503 | $6.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Bissell 210-0489 flow indicator base for models 7950 7950-Y 9E00 1698 1698-1 8904 8804 8804M 1699... | 2100489 | $7.70Add to cart |
| 25 | Not Available | MAIN HOUSING GREEN | 214-4921 | Not Available |
| 26 |  | DIVERTER ASSEM REPL Bissell repair part number: 2145170 | 2145170 | $4.59Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | AXLE E-RING | 210-6215 | Not Available |
| 28 | Not Available | WHEEL | 213-9754 | Not Available |
| 29 | Not Available | AXLE | 210-0170 | Not Available |
| 30 | Not Available | WINDOW NOZZLE | 214-9872 | Not Available |
| 31 |  | Single spray tip for bissell 7950 7950-Y 9E00 1685 1692 carpet cleaner shampooer extractor | 2106107 | $9.90Add to cart |
| 32 | Not Available | T- CONNECTOR | 210-2602 | Not Available |
| 33 |  | NO LONGER AVAILABLE GASKETSHORT DUCT REPL Bissell repair part number: 2104050 | 2104050 | $5.01Read more |
| 34 | Not Available | MOTOR DUCT | 210-3161 | Not Available |
| 35 | | COVER MOTOR REPL Bissell repair part number: 2132984 | 2132984 | $5.85Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | BELT COVER GREEN | 213-2992 | Not Available |
| 37 |  | Tool 3in Tough Stain Non Removable Window Bissell repair part number: 2159155 | 2159155 | $22.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | H O SE/D U CT/G Rl P A SS Y 6' | 215-3162 | Not Available |
| 39 | | GASKET MTR INTAKE REPL Bissell repair part number: 2104051 | 2104051 | $2.18Read more |
| 40 |  | Bissell single brush pro heat main motor PN: 1601038 | 1601038 | $65.99Read more |
| 41 | | Gasket Motor Inner Repl | 2104056 | $3.42Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 |  | AUTOLOAD RECEIVER REPL Bissell repair part number: 2140710 | 2140710 | $5.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 |  | Pedal, :( Gray Handle Release Proheat 1699/7901/79 Part Number: 555-9102 for Bissell | 5559102 | $5.70Read more |
| 44 | Not Available | BASE W/ ROTARY BRUSH | 213-0448 | Not Available |
| 45 |  | ARM RETAINER LEFT RIGHT Bissell repair part number: 5559113 | 5559113 | $4.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 |  | CLEARVIEW WINDOW BK 02165 Bissell repair part number: 2149851 | 2149851 | $10.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 |  | Udc Brush4 Row Thru Axlerepl | 2101157 | $20.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 |  | BELTBRUSH 1PK Bissell repair part number: 0150621 | 0150621 | $9.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 |  | Compatible alternate6960w Bissell Upright Deep Cleaner Replacement Belts includes belt 215-0628 2150628 and 015-0621 ... More Product Details | 011120004595 | $8.33Add to cart Special order — allow 2-4 weeks. |
| 48 |  | Compatible alternateAftermarket Bissell Belt-bissell Pro Heat aftermarket belt two pack 1 flat pump belt 1 geared bru... More Product Details | 18330100 | $6.00Add to cart Special order — allow 2-4 weeks. |
| 49 | Not Available | PIVOT ARM LEFT & RIGHT KIT | 200-0011 | Not Available |
| 50 |  | Bissell Left and Right Proheat 1699 7901 Elevator Levers for models 7950 7950-Y 9E00 1698 1698-1 ... | 2000010 | $10.90Add to cart |
| 51 |  | NO LONGER AVAILABLE Belt driven non electric pump assy for single brush roller type bissell carpe... | 2107181 | $43.99Read more |
| 52 |  | PUMP BELT PACK 1699 WINSTREPL Bissell repair part number: 2150628 | 2150628 | $10.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 |  | Bissell 015-9043 Tank with lid and bladder for 1x - 7950 7950-Y 9E00 1698 1698-1 8904 8804 8804M ... | 0159043 | $55.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 |  | Available ReconditionedPre owned Bissell 015-9043 Tank with lid and bladder for 1x - 7950 7950-Y 9E00 1698 1698-1 8904 8... More Product Details | 0159043R | $38.00Add to cart |
| 54 | | Tank Lid Wscngsktandhand 1698 | 0154439 | $33.08Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | | HANDLE TANK REPL Bissell repair part number: 2034435 | 2034435 | $6.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | Not Available | LINT SCREEN RED | 213-3501 | Not Available |
| 57 | Not Available | BAFFLE & BLADDER ASSY | 214-0213 | Not Available |
| 58 |  | BAFFLE and FLOAT ASSY REPL Bissell repair part number: 2130213 | 2130213 | $13.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 | Not Available | FLOAT ASSY | 214-0325 | Not Available |
| 60 |  | BLADDER 1697 REPL Bissell repair part number: 2100315 | 2100315 | $20.79Read more |
| 61 | Not Available | TAN K BOTTOM W/ AUTOLOAD | 214-9045 | Not Available |
| 62 | Not Available | SCREW #6 x 1/2 | 280-7075 | Not Available |
| 63 |  | Auto Load, :( W/O Screws 1697/1697/1699/7901/7920 Part Number: 210-7041 for Bissell | 2107041 | $7.18Read more |
| 64 | Not Available | OVERSEAL FOR AUTOLOAD | 210-6241 | Not Available |
