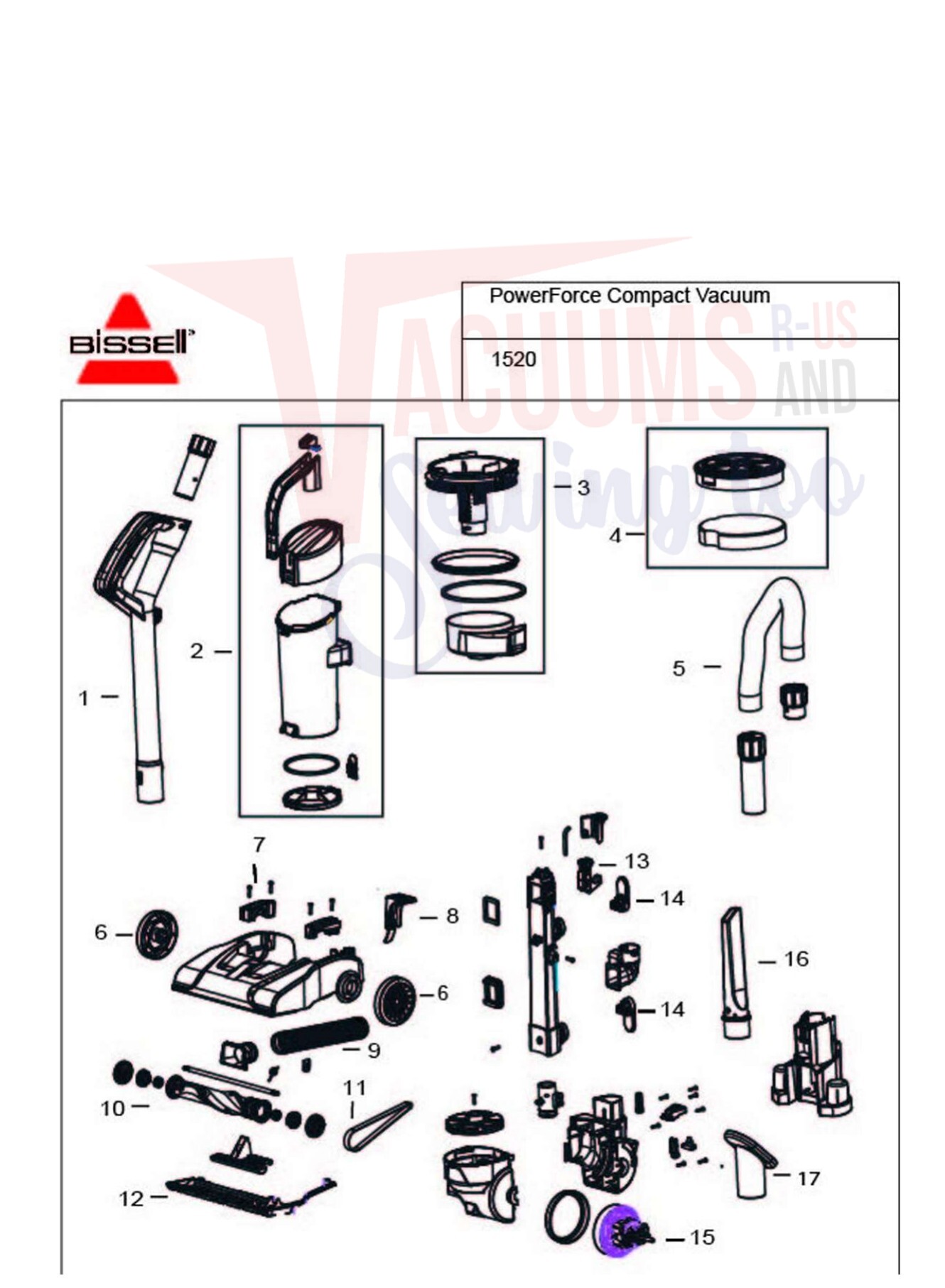

Schematic and parts book for Bissell 1520 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx |  | Power Cord Bissell repair part number: 1606831 | 1606831 | $30.62Add to cart Special order: ships in 2 to 4 weeks |
| xx | | Bissell Handle Clip Black Part Number: 1613444 | 1613444 | $1.73Read more |
| 1 | No Image | Handle Replacement | 1604893 | $17.95Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Dirt Container | 1604894 | $22.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Dirt Tank Separator Bissell repair part number: 1607629 | 1607629 | $13.89Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Filter Set Bissell repair part number: 1604896 | 1604896 | $10.48Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Hose Assembly | 160-4897 | Not Available |
| 6 |  | single Wheel Bissell repair part number: 1606835 | 1606835 | $2.97Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Pedal Switch Bissell repair part number: 1606833 | 1606833 | $2.97Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Detent Lever | 160-6832 | Not Available |
| 9 |  | Foot Hose Bissell repair part number: 1606834 | 1606834 | $4.19Read more |
| 10 |  | Floor Brush Bissell repair part number: 1606837 | 1606837 | $31.39Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Sub with royal dirt devil type 15 Bissell Powerforce Compact Belt replaces 203-7034 2037034 | 1604895 | $9.89Add to cart |
| 12 | Not Available | Access Plate | 161-3443 | Not Available |
| 12 | Not Available | Access Plate | 160-7836 | Not Available |
| 13 | | Hose Holder Bissell repair part number: 1606830 | 1606830 | $2.97Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Cord Wrap Bissell repair part number: 1606829 | 1606829 | $2.97Add to cart |
| 15 | | Motor Assy Bissell repair part number: 1606836 | 1606836 | $46.87Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | CREVICE TOOL 23T723T7C Bissell repair part number: 2037943 | 2037943 | $2.97Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Tool Dusting Brush Bissell repair part number: 2031527 | 2031527 | $4.39Add to cart Special order: ships in 2 to 4 weeks |
