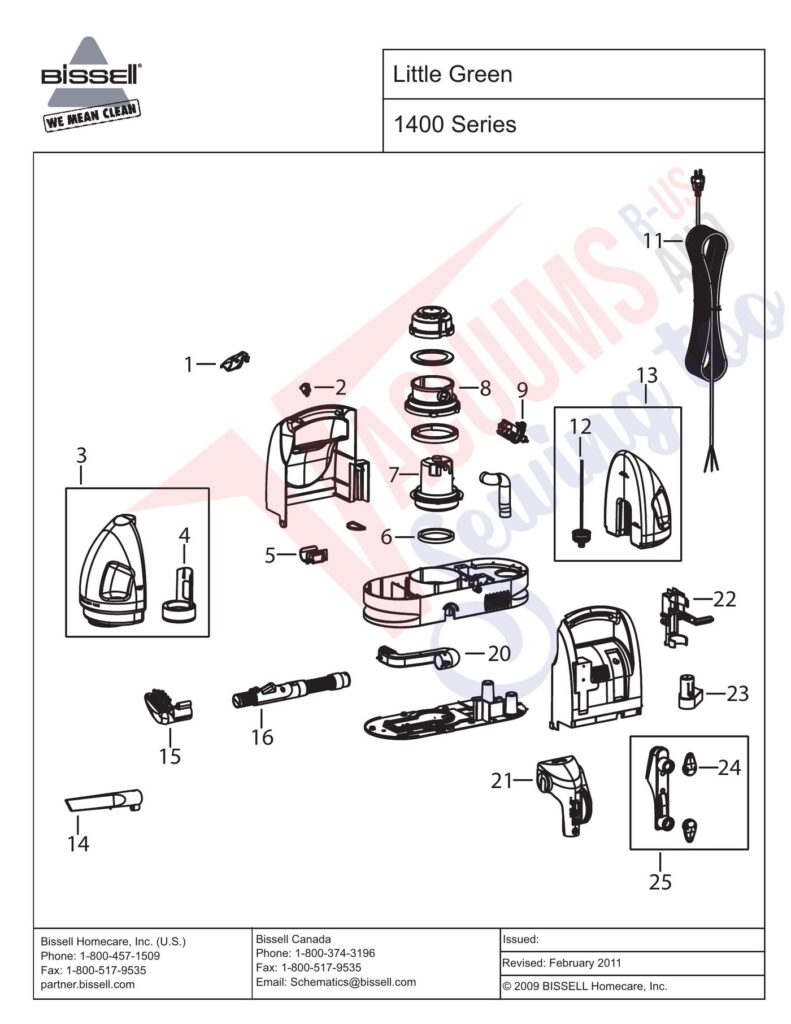

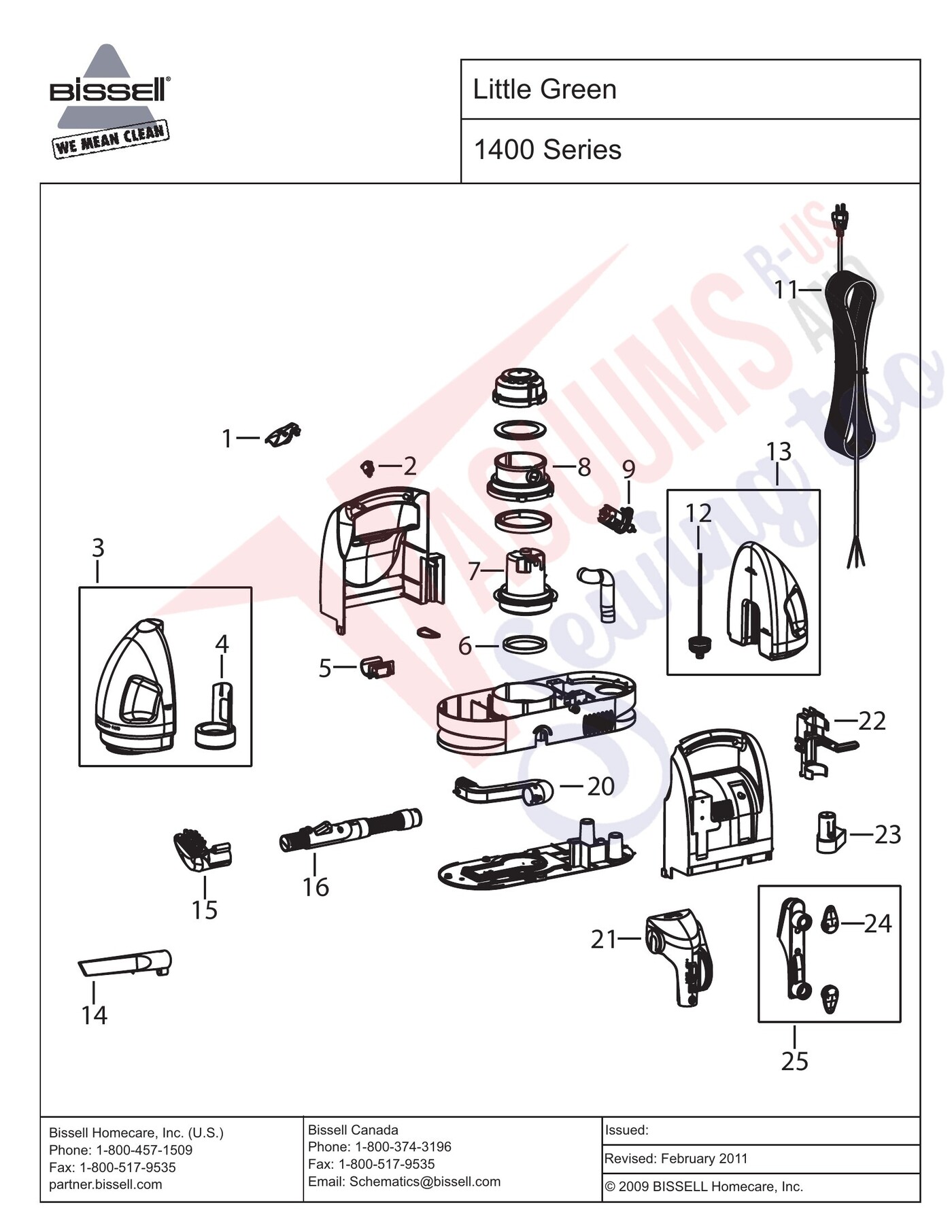

Schematic and parts book for Bissell 1400 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| xx | Not Available | NLA Gasket - Collection Tank | 6032054 | Not Available |
| xx | Not Available | User's Guide | 2105766 | Not Available |
| 1 |  | NO LONGER AVAILABLE LATCH WGASKET DIRTY TANK LG Bissell repair part number: 2037145 | 2037145 | $3.80Read more |
| 2 |  | SWITCH LGPRO POWER ONOFF REPL Bissell repair part number: 2104200 | 2104200 | $4.86Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | TANK DIRTY ASSY REPL Bissell repair part number: 2037144 | 2037144 | $30.67Add to cart |
| 3 | Not Available | NLA Collection Tank Assembly - Dusk | 2035009 | Not Available |
| 4 |  | SEALAIR STACK LG REPL BT Bissell repair part number: 2035045 | 2035045 | $3.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Hose Clip Flex | 2037159 | $6.81Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | GASKET BOTTOM MOTOR LG REPL Bissell repair part number: 6035023 | 6035023 | $2.97Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | NO LONGER AVAILABLE MOTOR LITTLE GREEN REPL Bissell repair part number: 6035022 | 6035022 | $32.67Read more |
| 8 | Not Available | NLA Motor Cover | 6035020 | Not Available |
| 9 |  | Bissell 603-5029 Pump, Little Green 1400/1425 Series | 6035029 | $14.63Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Power Cord | 2037305 | Not Available |
| 12 |  | CAP INSERT ASSY REPL Bissell repair part number: 2035014 | 2035014 | $8.47Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | TANK CLEAN ASSY REPL Bissell repair part number: 2037158 | 2037158 | $22.40Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | NLA Clean Tank Assembly - Dusk | 2035008 | Not Available |
| 14 |  | Tool Spraying Crevice Bissell repair part number: 2036655 | 2036655 | $14.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Upholstery Tool, 3" Little Green 1425 Series Part Number: 203-7151 for Bissell | 2037151 | $11.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | 3" Upholstery Tool - Dusk | 3149162 | Not Available |
| 16 | Not Available | NLA Hose Assembly | 2035027 | Not Available |
| 16 |  | HOSE FLEX HANDLE ASSY Bissell repair part number: 2037152 | 2037152 | $41.63Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | HOSE DUCT Bissell repair part number: 2036914 | 2036914 | $3.06Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Bissell Turbo Tool Brush for Vacuum Cleaners 2036652 | 2036652 | $57.42Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | NLA Flex Hose Storage Bracket - White | 2036871 | Not Available |
| 22 |  | FLEX HOSE STORAGE BRKT GREEN Bissell repair part number: 2037150 | 2037150 | $3.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Turbobrush Clip | 2036870 | Not Available |
| 24 | | CORD WRAP Bissell repair part number: 2037169 | 2037169 | $3.80Read more |
| 24 | Not Available | NLA Cord Wrap - White | 2035011 | Not Available |
| 25 | | CORD WRAP BRACKET WWRAP REPL Bissell repair part number: 2037148 | 2037148 | $6.81Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | NLA Cord Wrap Assembly - White | 6035038 | Not Available |
