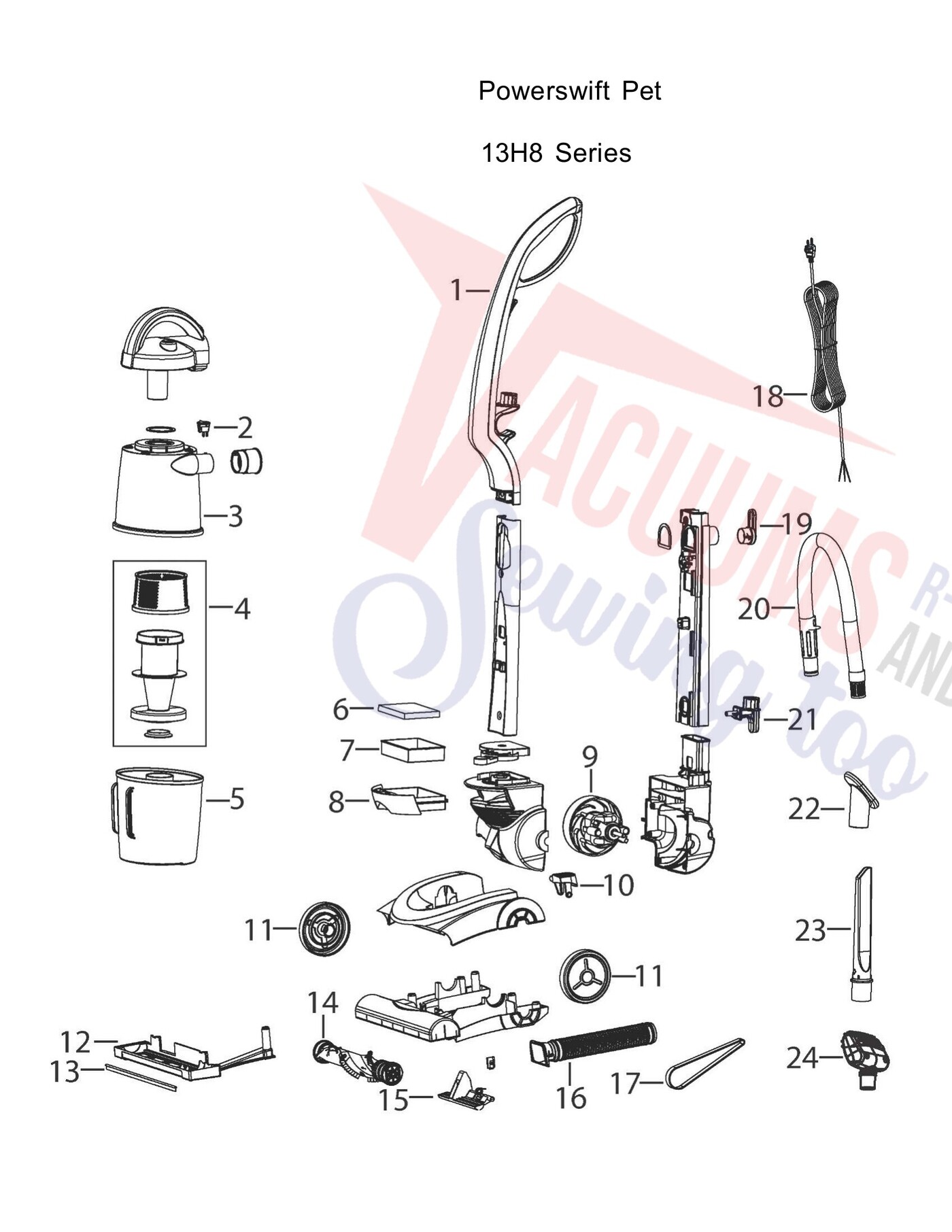

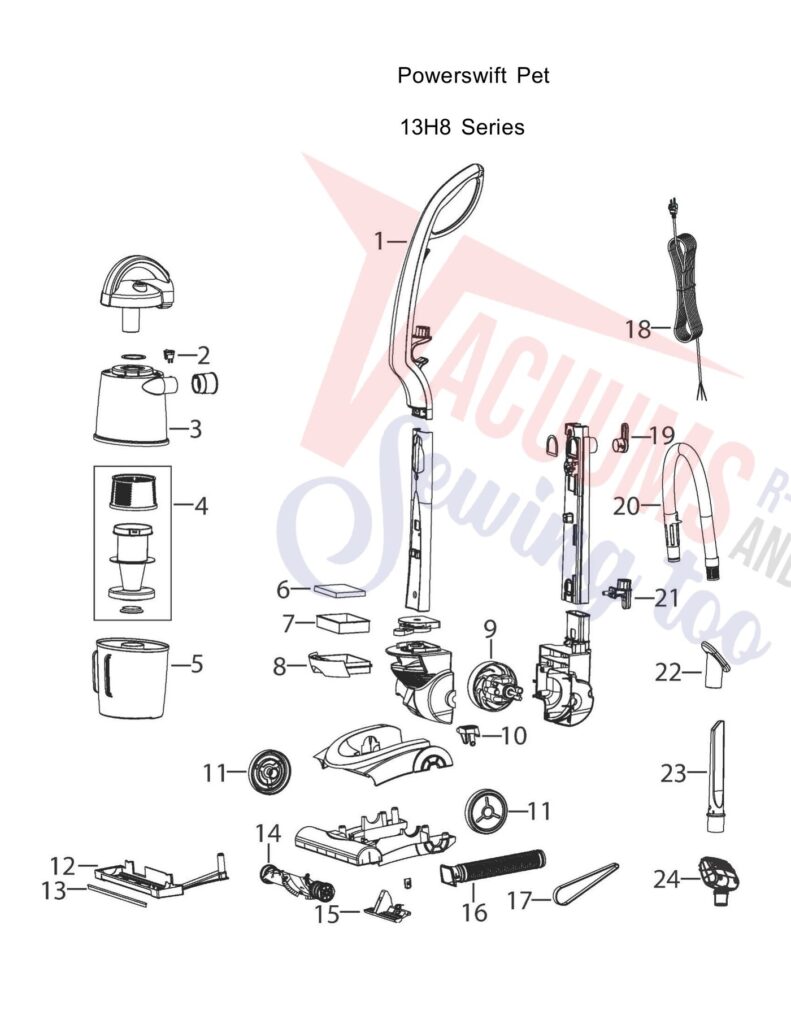

Schematic and parts book for Bissell 13H8 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| xx | Not Available | Handle Screw | 203-2190 | Not Available |
| xx | Not Available | User's Guide - 13H8 | 110-4176 | Not Available |
| 1 | Not Available | Upper Handle Assembly | 203-2174 | Not Available |
| 2 | Not Available | Switch | 203-2176 | Not Available |
| 3 | Not Available | Upper Tank w/Gasket | 203-2180 | Not Available |
| 4 | Not Available | Dirtbin Cyclone w/Gasket & Seperator | 203-2177 | Not Available |
| 5 | Not Available | Dirtbin | 203-2166 | Not Available |
| 6 | Not Available | Foam Filter | 203-2171 | Not Available |
| 7 | Not Available | Pleated HEPA Filter | 203-2172 | Not Available |
| 8 | Not Available | Filter Tray | 203-2182 | Not Available |
| 9 | Not Available | Motor w/Gasket | 203-2183 | Not Available |
| 10 | No Image | PEDAL, HANDLE RELEASE W/ SPRING 13H8 Part Number: 203-2184 for Bissell | 2032184 | $5.18Read more |
| 11 | Not Available | Wheel | 203-2186 | Not Available |
| 12 |  | PLATE, SOLE BISSELL Part Number: 203-2189 for Bissell | 2032189 | $17.48Read more |
| 13 | Not Available | Squeegee | 203-2188 | Not Available |
| 14 | Not Available | Brush Assembly | 203-2173 | Not Available |
| 15 | Not Available | Lifter Roller w/Spring | 203-2187 | Not Available |
| 16 |  | Hose, Lower W/Cuffs 13H8 Part Number: 203-2185 for Bissell | 2032185 | $11.45Read more |
| 17 | Not Available | Belt | 203-7499 | Not Available |
| 18 | Not Available | Cord | 203-2102 | Not Available |
| 19 | Not Available | Upper Cord Wrap w/Screw | 203-2175 | Not Available |
| 20 | Not Available | Hose Assembly | 203-2165 | Not Available |
| 21 | No Image | WRAP, CORD LOWER BISSELL Part Number: 203-2181 for Bissell | 2032181 | $6.26Read more |
| 22 |  | Tool Dusting Brush Bissell repair part number: 2031527 | 2031527 | $4.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | CREVICE TOOL,:( 13H8 Part Number: 203-2164 for Bissell | 2032164 | $6.80Read more |
| 24 | Not Available | Contour Tool | 203-1291 | Not Available |
