Parts list and schematic diagram for Miele Models: TRIFLEX HX1 SMULO, SMUL0, Miele TriFlex HX1 HomeCare Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx |  | Genuine Miele Casing insert | 10834884 | $24.70Read more |
| xx | Not Available | For Miele TRIFLEX HX1 SMULO SMUL0 | noop | Not Available |
| 10 | | Genuine Miele Linkage LOWS assy | 11268099 | $109.00Read more |
| 10 | | Genuine Miele Linkage OBSW assy | 10832158 | $98.00Read more |
| 10 | | Genuine Miele Linkage RBRT/ SI assy | 11268119 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Genuine Miele Linkage GPHGR/ SI assy | 11268109 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Genuine Miele Linkage IGRPF assy | 11268129 | $129.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Genuine Miele Linkage KAGR/ RG assy | 11636146 | $98.00Read more |
| 10-110 | | Genuine Miele SEB430 Floor brush GrGr | 11670610 | $309.00Read more |
| 10-110 | | Genuine Miele SEB430 Floor brush LoWe | 11670620 | $309.00Read more |
| 10-110 | | Genuine Miele SEB430 Floor brush RuRo | 11670640 | $309.00Read more |
| 10-110 | | Genuine Miele SEB430 Floor brush KaGr | 11670860 | $309.00Read more |
| 10-110 | | Genuine Miele SEB430 Floor brush ObSw Rg HX1 S | 12078600 | $199.00Read more |
| 20 | Not Available | Casing top HX2/HX1R For Miele TRIFLEX HX1 SMULO SMUL0 | 12261400 | Not Available |
| 30 | | Genuine Miele Flap | 10834871 | $6.60Read more |
| 40 | | Genuine Miele Conv.kit for drive Mgb02 | 12475730 | $0.00Read more |
| 45 | | Genuine Miele Support roller | 10835062 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.30Read more |
| 60-85 | | Genuine Miele KB Casing bottom HX2/HX1R | 12157951 | $78.10Read more |
| 70 | | Genuine Miele Brush Seal 5Stck. | 11564270 | $10.70Read more |
| 70 | Not Available | Brush Seal For Miele TRIFLEX HX1 SMULO SMUL0 | 11268050 | Not Available |
| 80 |  | Genuine Miele Support roller front | 10835083 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 85 |  | Genuine Miele Shaft front | 10835070 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele Sealing lip Short | 11507700 | $18.80Read more |
| 100+110 | | Genuine Miele Brush roller Handle | 11509641 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele Handle Brush roller assy | 10832394 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Casing insert | 10834884 | $24.70Read more |

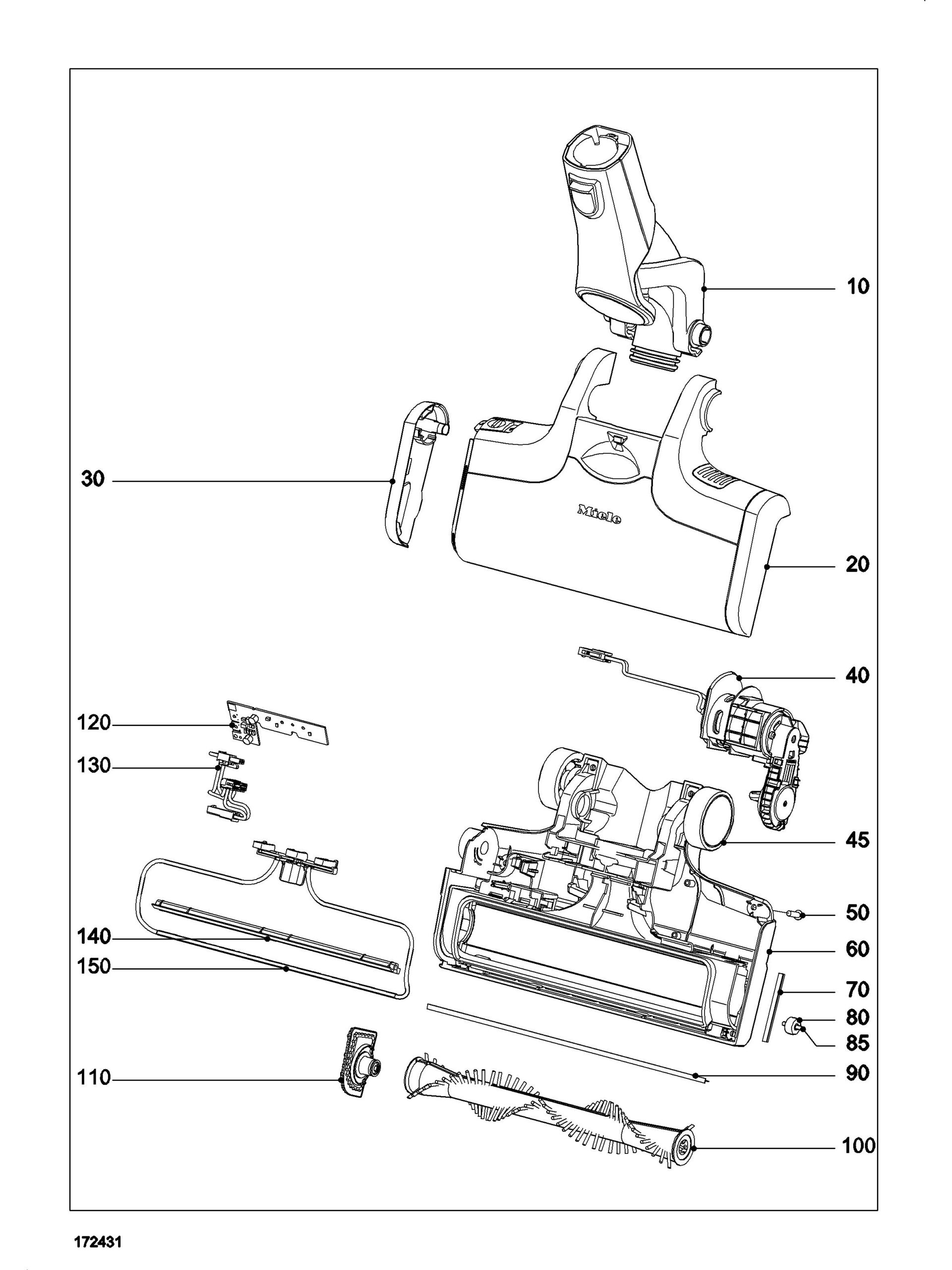

| 10 | | Genuine Miele Linkage LOWS assy | 11268099 | $109.00Read more |
| 10 | | Genuine Miele Linkage OBSW assy | 10832158 | $98.00Read more |
| 10 | | Genuine Miele Linkage RBRT/ SI assy | 11268119 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Genuine Miele Linkage GPHGR/ SI assy | 11268109 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Genuine Miele Linkage IGRPF assy | 11268129 | $129.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-150 | | Genuine Miele SEB435 Floor brush RuRo for triflex | 11670880 | $249.00Read more |
| 10-150 | | Genuine Miele SEB435 Floor brush ObSw | 11670890 | $249.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-150 | No Image | Compatible alternateMiele SEB435 Power Nozzle for Triflex More Product Details | WP11761 | $286.35Add to cart Special order: ships in 2 to 4 weeks |
| 10-150 | | Genuine Miele SEB435 Floor brush InfGr | 11670900 | $249.00Read more |
| 10-150 | | Genuine Miele SEB435 Floor brush ObSw Rg | 11792270 | $399.00Read more |
| 20 | Not Available | Casing top HX2/HX1R For Miele TRIFLEX HX1 SMULO SMUL0 | 12261400 | Not Available |
| 30 | | Genuine Miele Flap | 10834871 | $6.60Read more |
| 40 | | Genuine Miele Conv.kit for drive Mgb02 | 12475730 | $0.00Read more |
| 45 | | Genuine Miele Support roller | 10835062 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.30Read more |
| 60-85 | No Image | Casing Bottom Assy | 10832365 | $83.00Read more |
| 60-85 | | Genuine Miele KB Casing bottom HX2/HX1R | 12157951 | $78.10Read more |
| 70 | | Genuine Miele Brush Seal 5Stck. | 11564270 | $10.70Read more |
| 70 | Not Available | Brush Seal For Miele TRIFLEX HX1 SMULO SMUL0 | 11268050 | Not Available |
| 80 | | Genuine Miele Support roller front | 10835083 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 85 | | Genuine Miele Shaft front | 10835070 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Brush roller Handle | 11509641 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele Handle Brush roller assy | 10832394 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele Electronic unit EZ HX1003 | 11107851 | $63.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Connecting cable SEB "Y" | 10888152 | $39.50Read more |
| 140 | | Genuine Miele Reflector | 10847652 | $18.80Read more |
| 150 | | Genuine Miele Optic light guide | 10847641 | $20.60Read more |
| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele TRIFLEX HX1 SMULO SMUL0 | noop | Not Available |

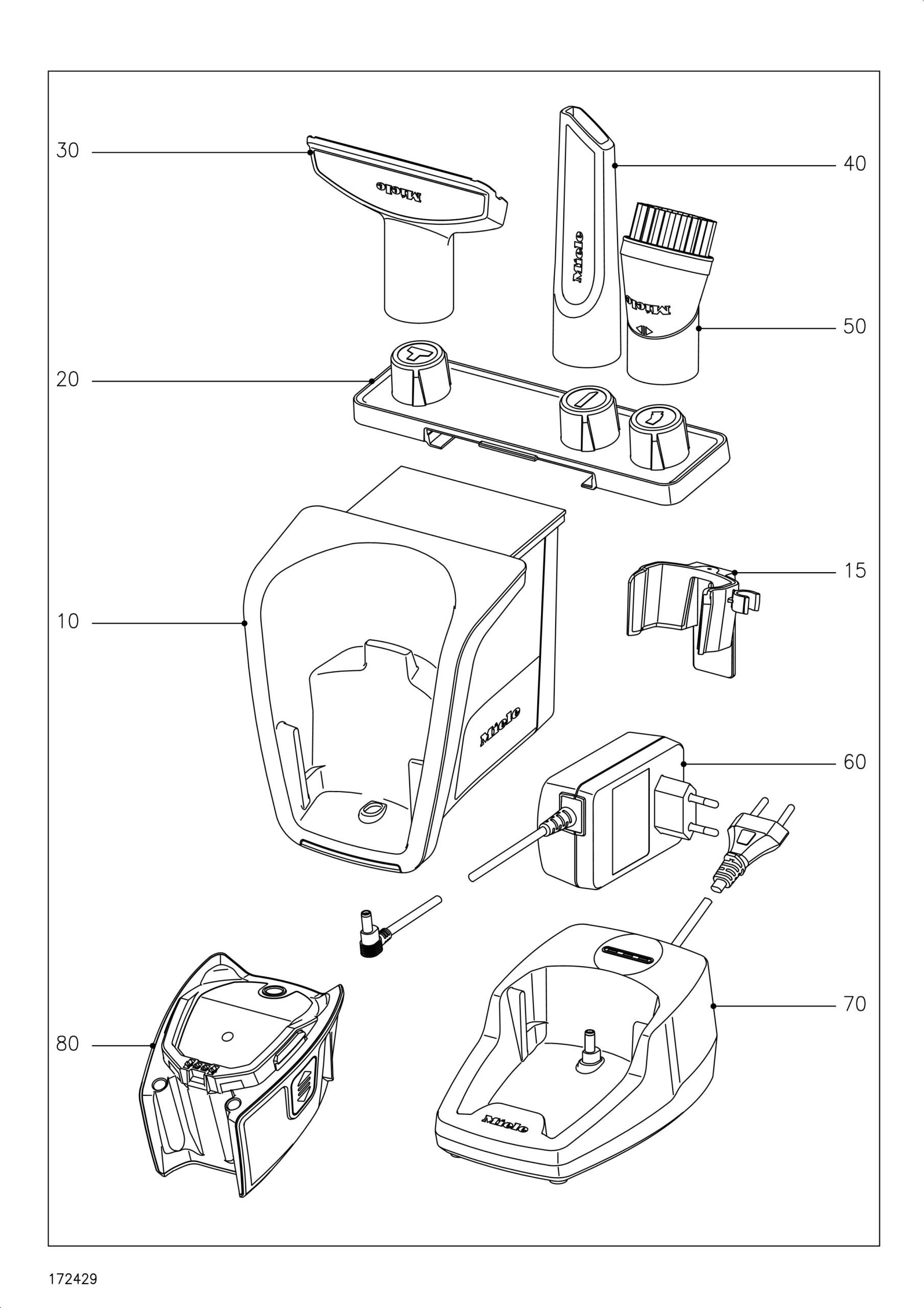

| 10 | | Genuine Miele Wall bracket Bagged assy | 12014871 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Genuine Miele Wall bracket Bagged XS assy | 12229720 | $10.70Read more |
| 20 | | Genuine Miele Shelf Accessory | 10833651 | $10.70Read more |
| 30 | | Genuine Miele Upholstery nozzle XL SPD20 | 11483910 | $43.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 50 |  | Genuine Miele Dusting Brush | 7010301 | $0.00Read more |
| 50 | No Image | Compatible alternateDusting Brush L More Product Details | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Aftermarket Miele Round Dusting Brush - Compatible with Miele Part SSP10 and 7010301 | 32161762 | $7.01Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele Recharger US, JP Type A | 11684361 | $209.00Add to cart |
| 60 | | Genuine Miele Recharger EU Type C | 11681701 | $29.00Read more |
| 70 | | Genuine Miele HX-LS USA Charger cradle Lithium-ion bat | 11607500 | $145.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele HX-LA Lithium-ion battery | 11384710 | $229.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Available Pre OwnedPre-owned Genuine Miele HX-LA Lithium-Ion Battery for Triflex More Product Details | WP12453 | $175.00Add to cart |
| # | Part image | Description | SKU | Price |

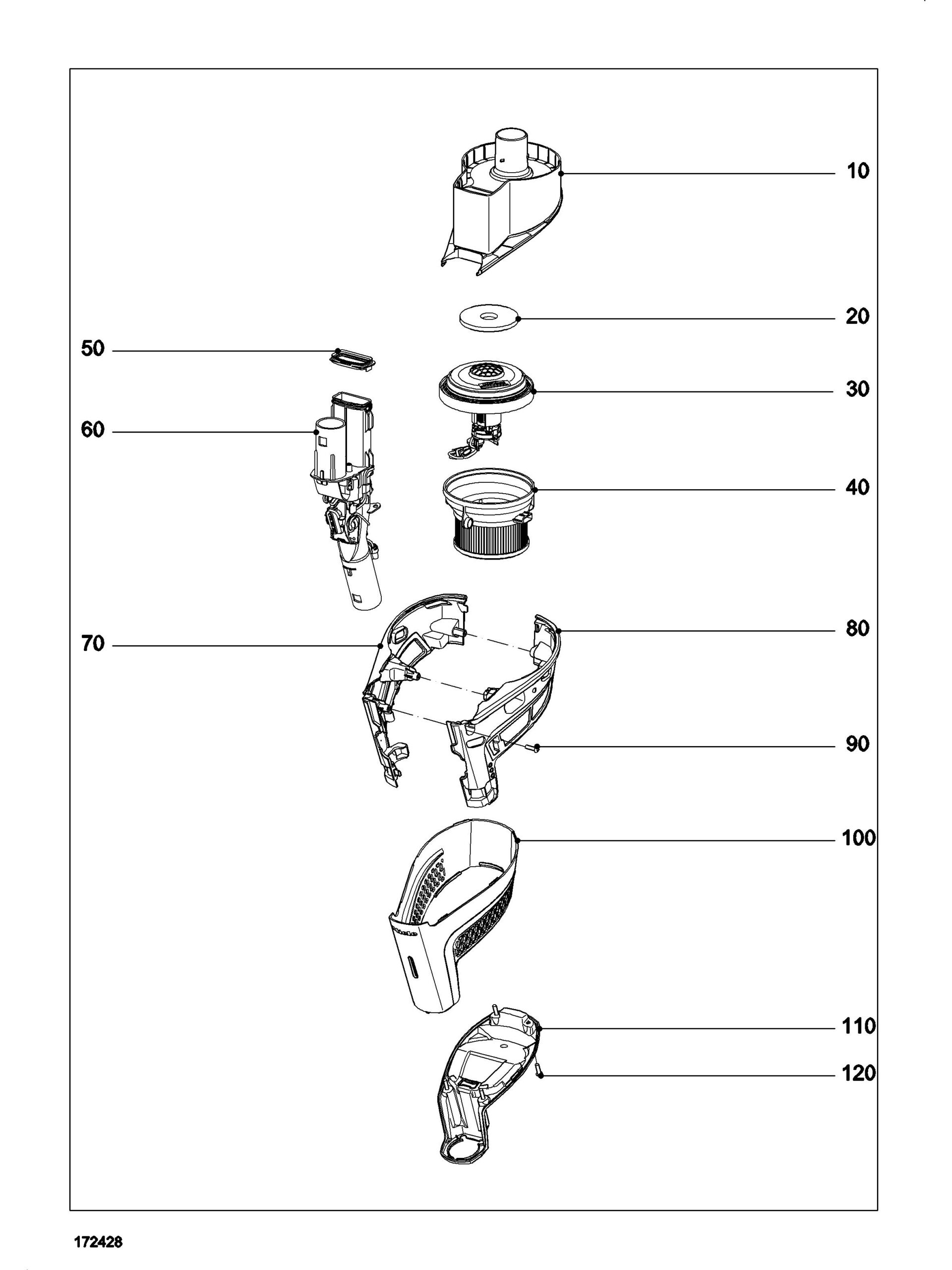

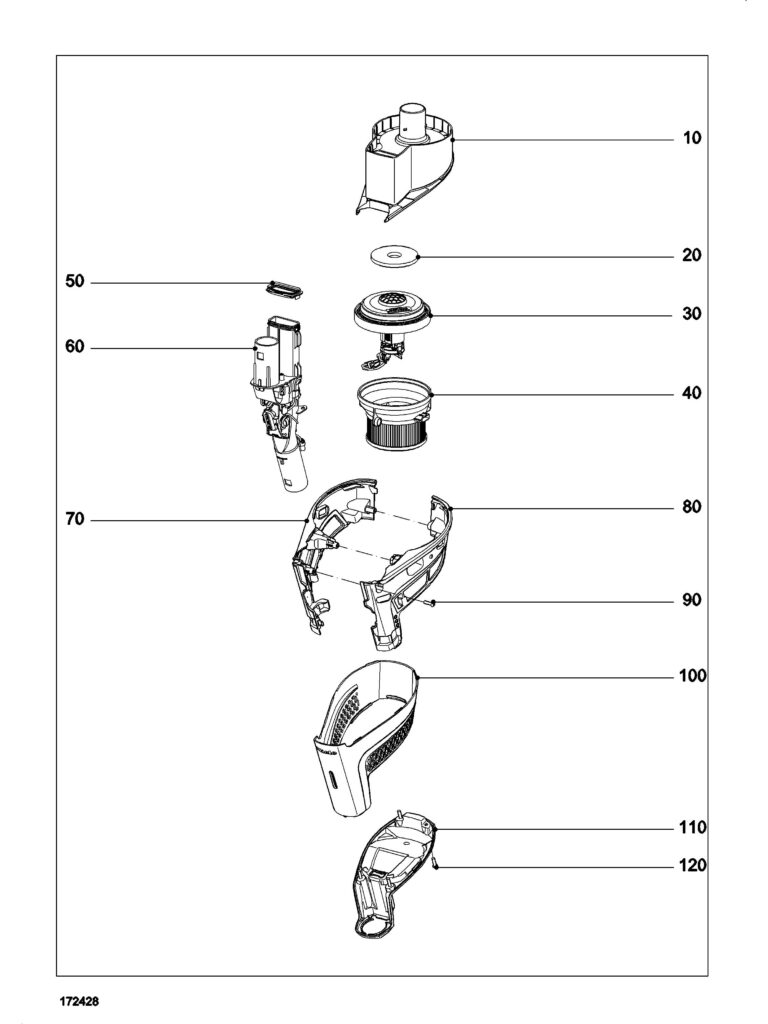

| xx | | Genuine Miele Connecting cable Fan | 10888092 | $24.70Read more |
| xx | No Image | Connecting Cable Fan Mgg | 11870190 | $27.00Read more |
| xx | Not Available | For Miele TRIFLEX HX1 SMULO SMUL0 | noop | Not Available |
| 10 | | Genuine Miele Cover Motor housing | 10832477 | $39.50Read more |
| 20 | | Genuine Miele Ring Set | 11561830 | $10.70Read more |
| 30 | | Genuine Miele Fan Mgg 01 KD | 11954340 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Air outlet filter Hygiene-Lifetime F9 | 11013171 | $0.00Read more |
| 50 | | Genuine Miele Seal Suction channel | 10834681 | $6.60Read more |
| 60 | No Image | Bracket Electric Hx1003-E Assy | 11935273 | $329.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | | Genuine Miele Casing insert left assy | 10832432 | $59.40Read more |
| 80 | | Genuine Miele Casing insert right assy | 10832422 | $59.40Read more |
| 90 | | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.30Read more |
| 100 | | Genuine Miele Cover frame Printed LOWS/ RG | 12016810 | $33.80Read more |
| 100 | | Genuine Miele Cover frame Printed OBSW/ RG | 10832461 | $71.70Read more |
| 100 | | Genuine Miele Cover frame Printed RBRT/ SI | 11068662 | $71.70Read more |
| 100 | | Genuine Miele Cover frame Printed GPHGR/ RG | 11239591 | $71.70Read more |
| 100 | | Genuine Miele Cover frame Printed IGRPF/ RG | 11068672 | $93.60Read more |
| 100 | | Genuine Miele Cover frame Printed KAGR/ RG | 11635050 | $39.50Read more |
| 110 | | Genuine Miele Cover bottom | 10832444 | $39.50Read more |
| 120 | | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.30Read more |
| # | Part image | Description | SKU | Price |

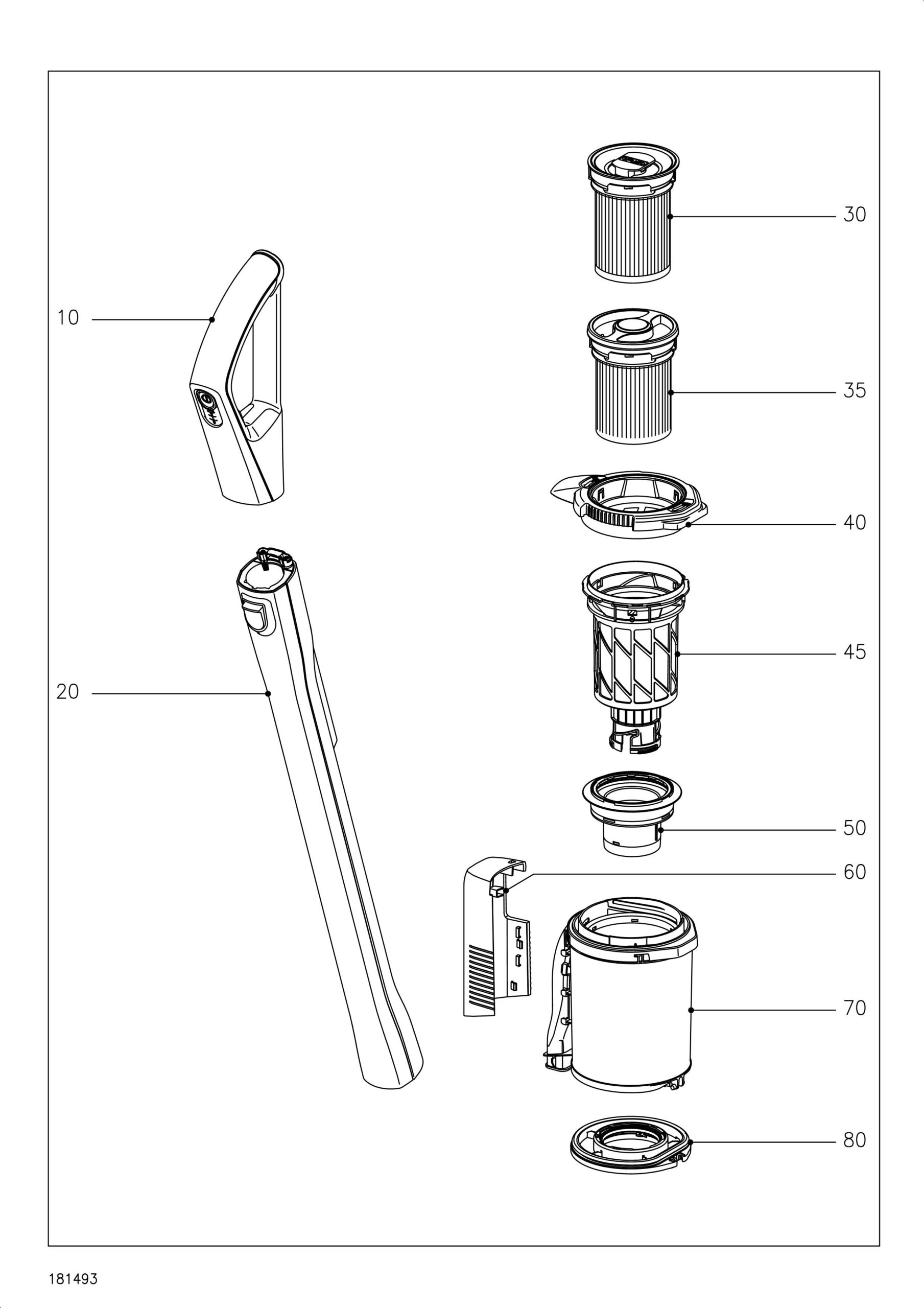

| 10 | | Genuine Miele Handle LOWS assy | 12281100 | $159.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Genuine Miele Handle OBSW assy | 12281110 | $150.60Read more |
| 10 | | Genuine Miele Handle RBRT assy | 12281120 | $159.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Genuine Miele Handle GPHGR assy | 12281130 | $159.00Add to cart |
| 10 | | Genuine Miele Handle IGRPF assy | 11052359 | $159.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Genuine Miele Handle KAGR assy | 11646675 | $131.10Read more |
| 20 | | Genuine Miele Suction pipe LOWS assy | 11062305 | $93.60Read more |
| 20 | | Genuine Miele Suction pipe OBSW assy | 10832126 | $93.60Read more |
| 20 | | Genuine Miele Suction pipe RBRT assy | 11062315 | $93.60Read more |
| 20 |  | Genuine Miele Suction pipe GPHGR assy | 11256264 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Genuine Miele Suction pipe IGRPF assy | 11062346 | $0.00Read more |
| 20 | | Compatible alternateGenuine Miele Suction pipe IGRPF assy More Product Details | 11062345 | $129.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Genuine Miele Suction pipe KAGR assy | 11636663 | $131.10Read more |
| 30 | | Genuine Miele HX-FSF Fine dust filter | 11385020 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Compatible alternateAftermarket Miele Triflex HEPA Filter More Product Details | WP12345 | Original price was: $19.99.$14.99Current price is: $14.99.Add to cart |
| 30-80 | | Genuine Miele Separator HX1 KD assy | 12307260 | $169.00Read more |
| 45+50 | | Genuine Miele Pre-filter | 12431950 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | | Genuine Miele Cover Air channel | 10833502 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | | Genuine Miele Container | 11509672 | $95.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele Flap | 11969530 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
