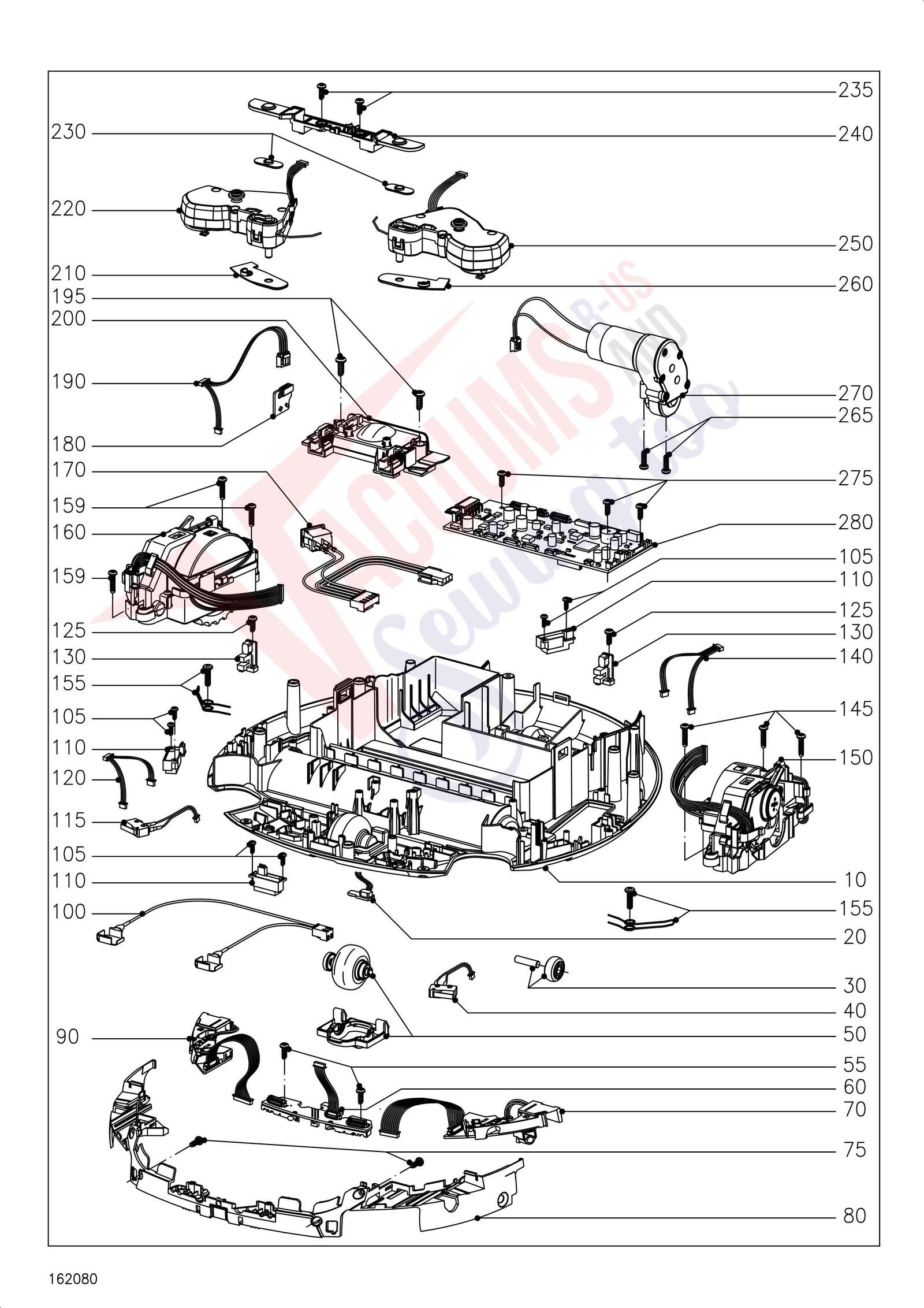

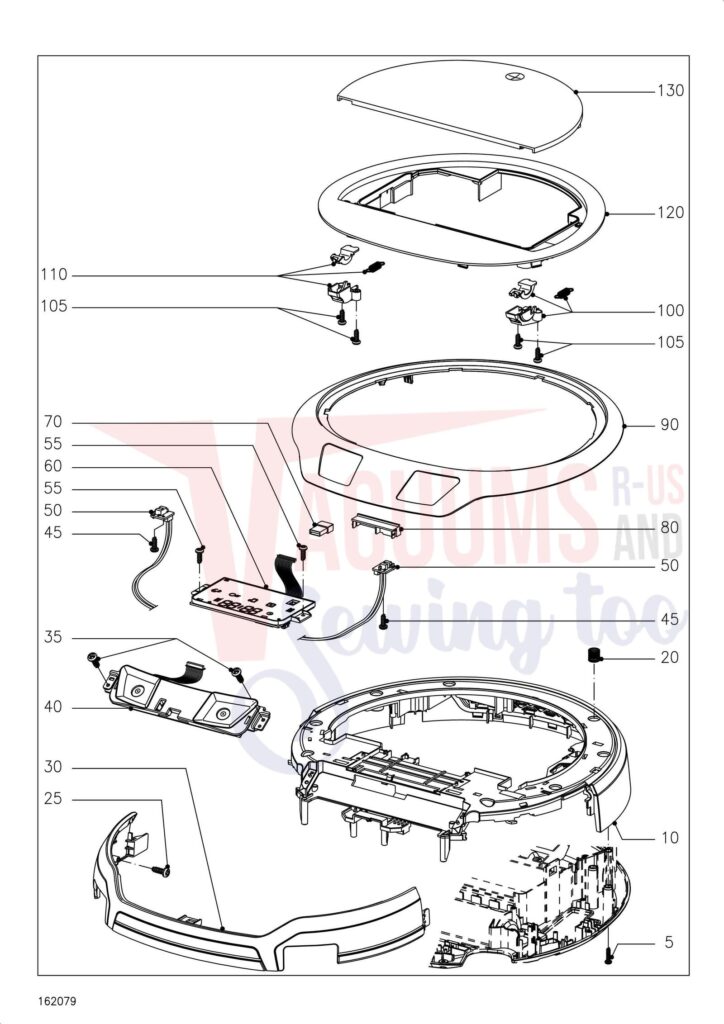

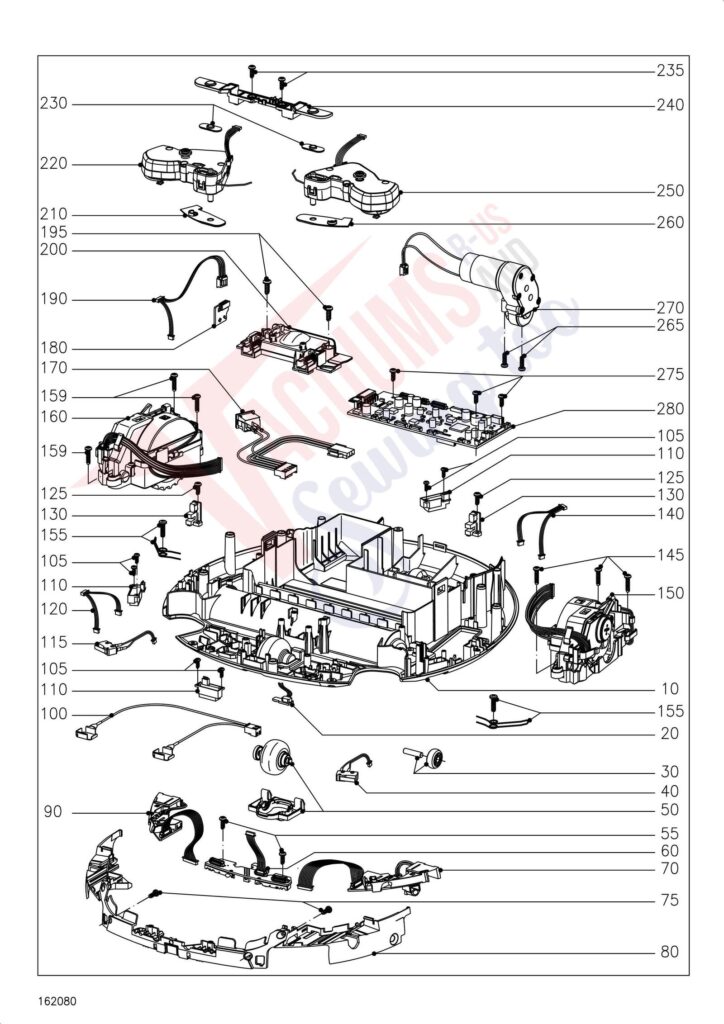

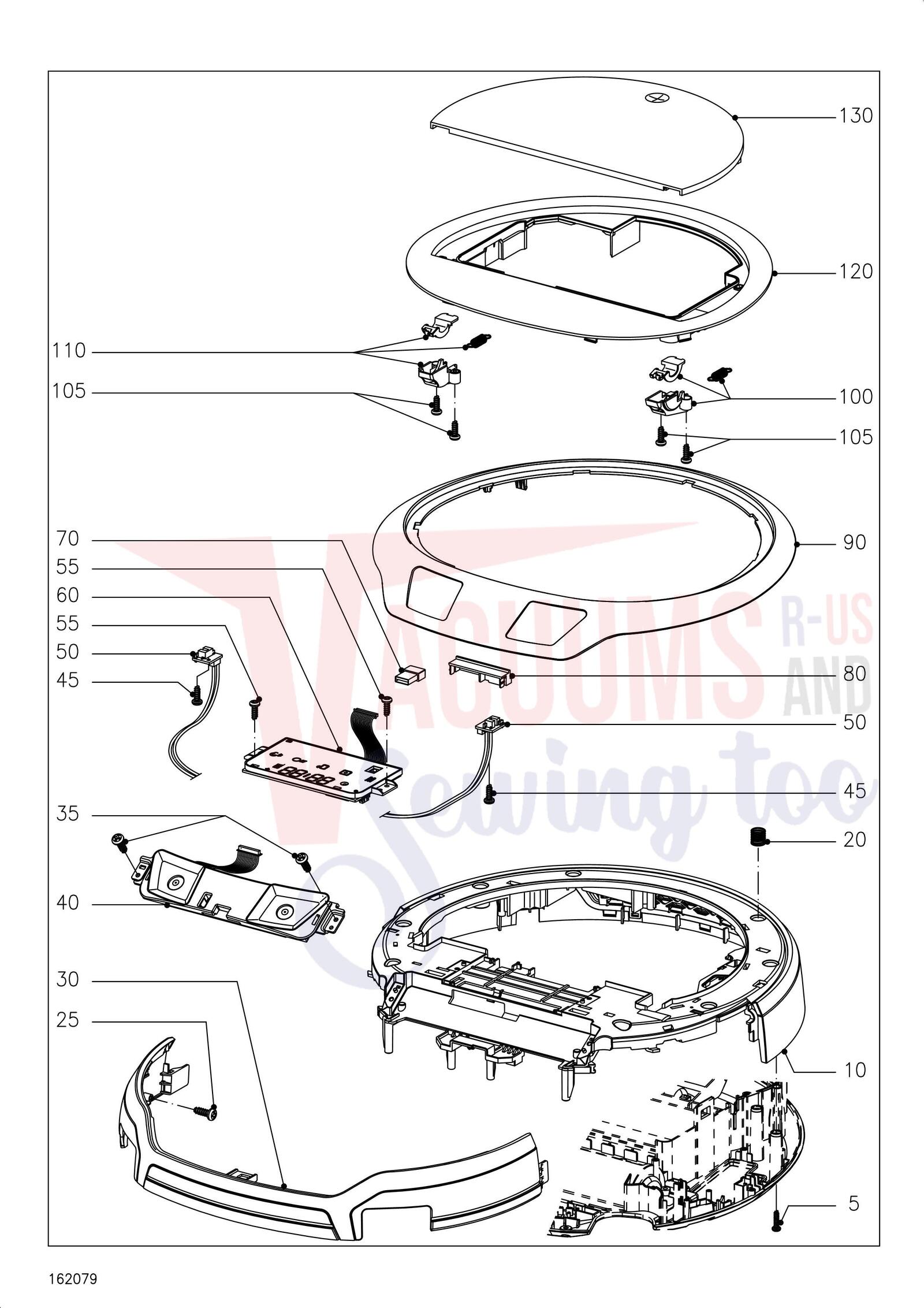

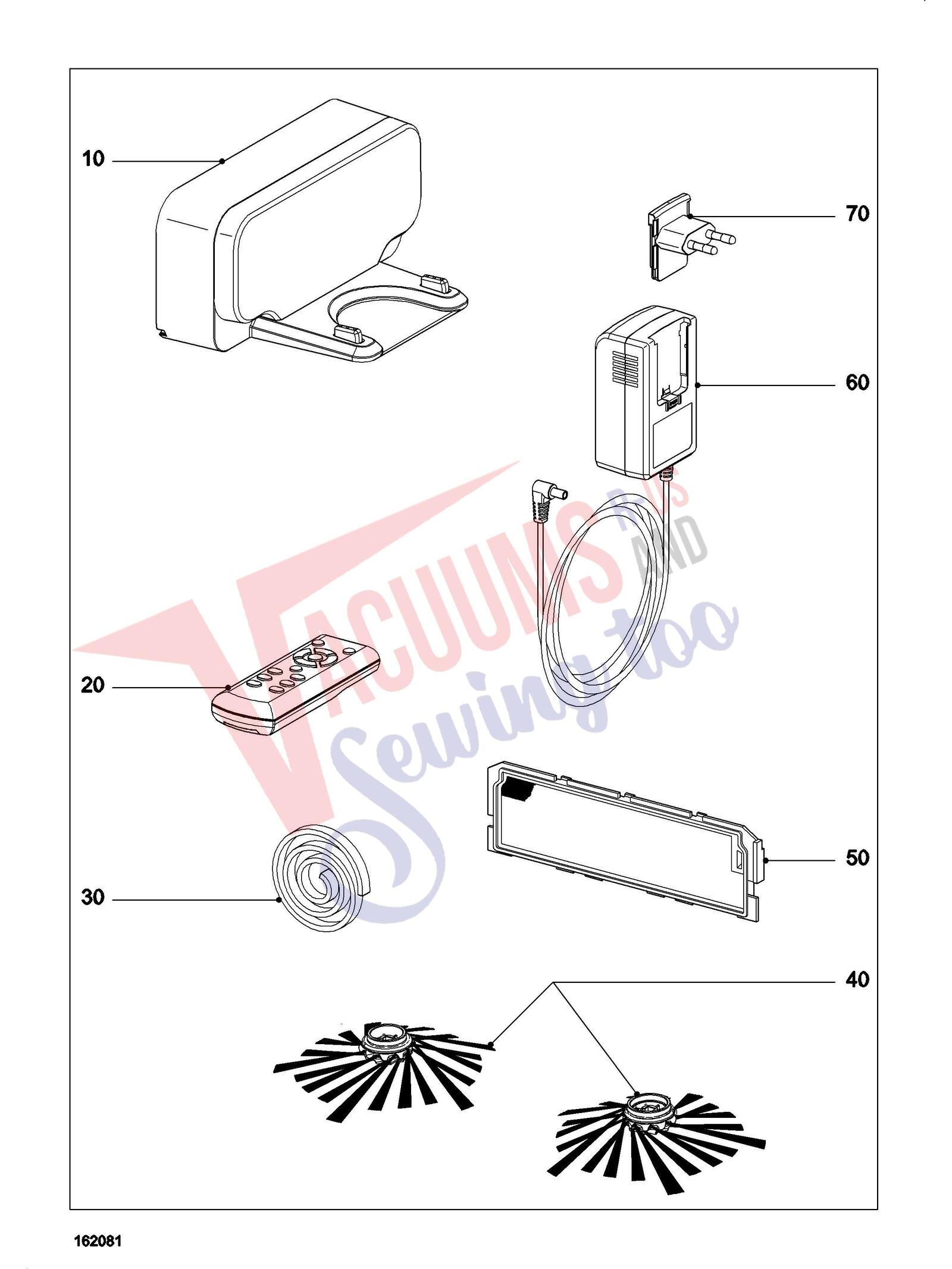

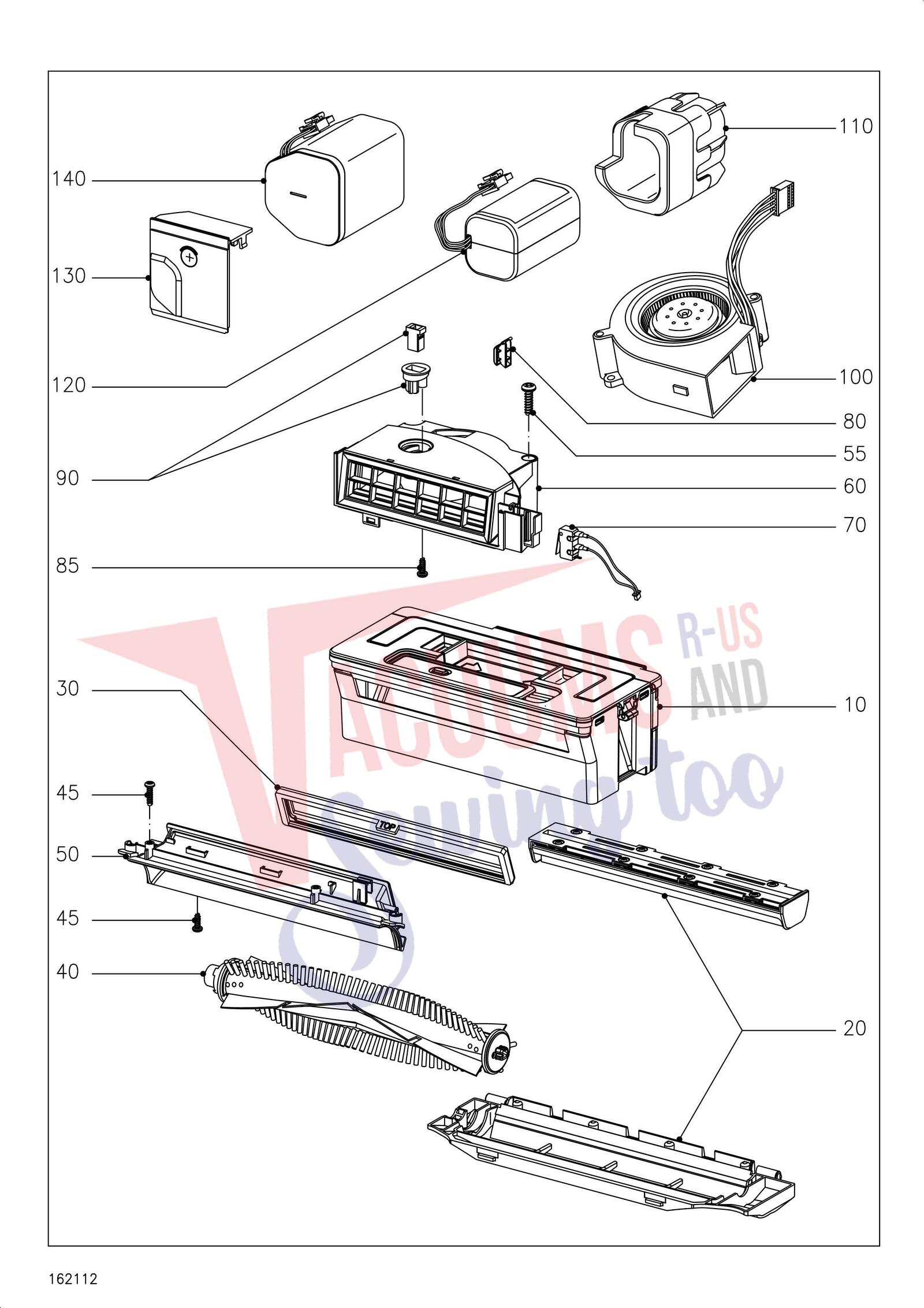

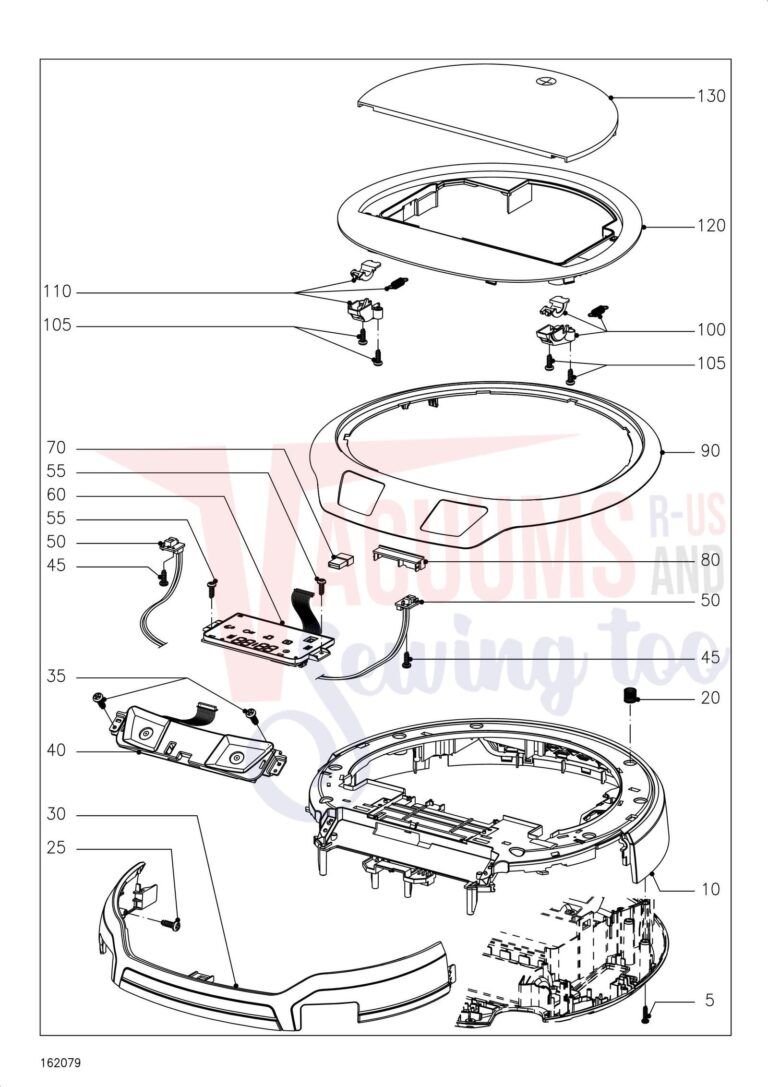

Parts list and schematic diagram for Miele Models: SPQL0 Scout RX3, SPQL0, SPQL0 Scout RX3 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
| # | Part image | Description | SKU | Price |
| xx |  | Genuine Miele Retaining plate GREY assy | 11878360 | $36.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Genuine Miele Docking station | 11696503 | $289.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Remote control mit WiFi | 10606520 | $93.60Read more |
| 20 | | Genuine Miele Remote control mit WiFi | 10606522 | $93.60Read more |
| 30 | | Genuine Miele RX-MB Magnetic tape | 10802450 | $39.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | | Genuine Miele RX3-SB20 Side brush | 11724180 | $29.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Air-Clean filter Plus RX2/RX3-AP | 10592080 | $29.00Read more |
| 60 | | Genuine Miele power supply unit 21V 2.0A USA RX | 11187890 | $129.00Read more |
| 70 | | Genuine Miele AC Adapter USA/CDN/J | 10606461 | $39.50Read more |
| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Adhesive label QC (50Stck.) | 11709350 | $20.60Read more |
| 10 | Not Available | No spare part For Miele SPQL0 Scout RX3 SPQL0 | noop | Not Available |
| 20 | | Genuine Miele Hall sensor | 10542540 | $33.80Read more |
| 30 | | Genuine Miele Support roller Shaft | 10666770 | $18.80Read more |
| 40 | | Genuine Miele Switch Side arm left | 10542580 | $39.50Read more |
| 50 | | Genuine Miele Roller Cover | 10666662 | $15.95Read more |
| 55 | | Genuine Miele Self tapping screw T2S PAN 3x8 MFZN | 9709090 | $2.30Read more |
| 55+60 | | Genuine Miele Sensor group middle assy | 11162881 | $85.50Read more |
| 70 | | Genuine Miele Sensor group left | 10543031 | $78.10Read more |
| 75 | | Genuine Miele Self tapping screw T2S PAN 3x8 MFZN | 9709090 | $2.30Read more |
| 75+80 | | Genuine Miele Frame Bumper EXPIRED | 10542980 | $52.20Read more |
| 90 | | Genuine Miele Sensor group right | 10543041 | $78.10Read more |
| 100 | | Genuine Miele Terminal block | 10542550 | $39.50Read more |
| 105 | | Genuine Miele Self tapping screw T2S PAN 2x8 MFZN | 10807070 | $2.30Read more |
| 105+110 | | Genuine Miele PSD- Sensor | 11020002 | $71.70Read more |
| 115 | | Genuine Miele Switch Side arm right | 10793750 | $39.50Read more |
| 120 | | Genuine Miele Connecting cable right Bump-PSD Sensor | 10643930 | $0.00Read more |
| 125 | | Genuine Miele Self tapping screw T2S PAN 3x8 MFZN | 9709090 | $2.30Read more |
| 125+130 | | Genuine Miele Fork light barrier | 10542650 | $52.20Read more |
| 140 | | Genuine Miele Connecting cable left Bump-PSD Sensor | 10697160 | $0.00Read more |
| 145 | | Genuine Miele Self tapping screw T2S PAN 3x12 MFZN | 9832540 | $2.30Read more |
| 145+150 | | Genuine Miele Wheel left kpl. RX2 | 10542774 | $233.80Read more |
| 155 | | Genuine Miele Torsion spring Bumper Set | 10799161 | $24.70Read more |
| 159 | | Genuine Miele Self tapping screw T2S PAN 3x12 MFZN | 9832540 | $2.30Read more |
| 159+160 | | Genuine Miele Wheel right kpl. RX2 | 10542784 | $233.80Read more |
| 170 | | Genuine Miele Switch I/0 kpl. | 10543070 | $43.60Read more |
| 180 | | Genuine Miele Passive sensor Main PCB kpl. | 10542570 | $43.60Read more |
| 190 | No Image | Connecting Cable Passiv Enc._Psd Sen. | 10542530 | $27.00Read more |
| 195 | | Genuine Miele Self tapping screw T2S PAN 4x14 MFZN | 9709130 | $2.30Read more |
| 195+200 | | Genuine Miele Bumper Guide | 10666812 | $33.80Read more |
| 210 | | Genuine Miele Sliding ring bottom right | 10542590 | $20.60Read more |
| 220 | | Genuine Miele Side arm right assy RX3 | 11835050 | $176.20Read more |
| 230 | | Genuine Miele Sliding ring top | 10542640 | $20.60Read more |
| 235 | | Genuine Miele Self tapping screw T2S PAN 3x12 MFZN | 9832540 | $2.30Read more |
| 235+240 | | Genuine Miele Guide side arm | 10542501 | $33.80Read more |
| 250 | | Genuine Miele Side arm left assy RX3 | 11570360 | $176.20Read more |
| 260 | | Genuine Miele Sliding ring bottom left | 10542620 | $20.60Read more |
| 265 | | Genuine Miele Drive damper | 11062190 | $105.10Read more |
| 265+270 | | Genuine Miele Motor Main brush kpl. | 10542452 | $129.00Read more |
| 265+270 | No Image | Compatible alternateMiele Scout Main Brush Motor More Product Details | 10542450 | $2.73Add to cart Special order — allow 2-4 weeks. |
| 275 | | Genuine Miele Self tapping screw T2S PAN 3x8 MFZN | 9709090 | $2.30Read more |
| 275+280 | | Genuine Miele Main PCB assy RX3 | 11835064 | $411.10Read more |
| # | Part image | Description | SKU | Price |
| 5 | | Genuine Miele Self tapping screw T2S PAN 3x12 MFZN | 9832540 | $2.30Read more |
| 5+10 | | Genuine Miele Cover rear assy RX3 | 11836470 | $176.20Read more |
| 20 | | Genuine Miele Spring f. Topbumper | 10542390 | $13.50Read more |
| 25 | | Genuine Miele Self tapping screw T2S PAN 3x8 MFZN | 9709090 | $2.30Read more |
| 25+30 | | Genuine Miele Bumper front assy RX3 | 11835120 | $0.00Read more |
| 35 | | Genuine Miele Self tapping screw T2S PAN 3x8 MFZN | 9709090 | $2.30Read more |
| 35+40 | | Genuine Miele Camera Module assy | 11737500 | $585.80Read more |
| 45 | | Genuine Miele Self tapping screw T2S PAN 2.3x5 | 10807080 | $2.30Read more |
| 45+50 | | Genuine Miele Sensor Bumper oben | 10543000 | $59.40Read more |
| 55 | | Genuine Miele Self tapping screw T2S PAN 3x8 MFZN | 9709090 | $2.30Read more |
| 55+60 | | Genuine Miele UI/PCB- Control panel vollst. | 11162361 | $251.00Read more |
| 70 | | Genuine Miele WiFi module USA | 10727780 | $93.60Read more |
| 80 | | Genuine Miele Cover USB | 10543130 | $18.80Read more |
| 90 | | Genuine Miele Top Bumper v2.0 | 11668771 | $161.60Read more |
| 90 | | Genuine Miele Bumper top assy GER | 11837590 | $233.80Read more |
| 90 | | Genuine Miele Bumper top assy BRPF | 11837600 | $161.60Read more |
| 90 | | Genuine Miele Bumper top assy RGPF | 11837610 | $233.80Read more |
| 100+105 | | Genuine Miele Hinge left | 10666803 | $33.80Read more |
| 105 | | Genuine Miele Self tapping screw T2S PAN 3x8 MFZN | 9709090 | $2.30Read more |
| 105+110 | | Genuine Miele Hinge right | 10666793 | $33.80Read more |
| 120 | | Genuine Miele Decor Cover | 10543141 | $71.70Read more |
| 130 | | Genuine Miele Top Door RX3 | 11837620 | $59.40Read more |
| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Cleaning tool kpl. | 10549640 | $33.80Read more |
| xx | | Genuine Miele Bearing kpl. RX2/RX3 | 10873220 | $24.70Read more |
| 10 | No Image | Dust Box Vollst. | 10543092 | $239.00Read more |
| 20 | | Genuine Miele RX2/RX3-DL Sealing lip | 10592100 | $39.00Read more |
| 30 | | Genuine Miele Seal Suction channel | 10542520 | $0.00Read more |
| 40 |  | Genuine Miele RX3-BW Brush roller | 11724200 | $39.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | | Genuine Miele Self tapping screw T2S PAN 3x8 MFZN | 9709090 | $2.30Read more |
| 45 | | Genuine Miele Self tapping screw T2S PAN 3x12 MFZN | 9832540 | $2.30Read more |
| 45+50 | | Genuine Miele Suction channel | 10542510 | $33.80Read more |
| 55 | | Genuine Miele Self tapping screw T2S PAN 4x14 MFZN | 9709130 | $2.30Read more |
| 55+60 | | Genuine Miele Fan Module | 10602360 | $71.70Read more |
| 70 | | Genuine Miele Sensor Dust box | 10542890 | $39.50Read more |
| 80 | | Genuine Miele Lever Sensor | 10542900 | $13.50Read more |
| 85 | | Genuine Miele Self tapping screw T2S PAN 3x8 MFZN | 9709090 | $2.30Read more |
| 85+90 | | Genuine Miele interlock f. Deckel kpl. | 10555290 | $33.80Read more |
| 100 | | Genuine Miele Fan | 10542840 | $109.40Read more |
| 110 | | Genuine Miele Adapter Lithium-ion battery | 10564070 | $39.50Read more |
| 120 | | Genuine Miele RX2_3-LA20 Lithium-ion battery Basic1 | 12689280 | $259.00Read more |
| 130 | | Genuine Miele Cover Battery | 10542920 | $20.60Read more |
