Parts list and schematic diagram for Miele Models: SNCF0 BOOST CX1, SNCF0, Miele Boost CX1 Parquet Pure Suction Lotus White SNCE0 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.

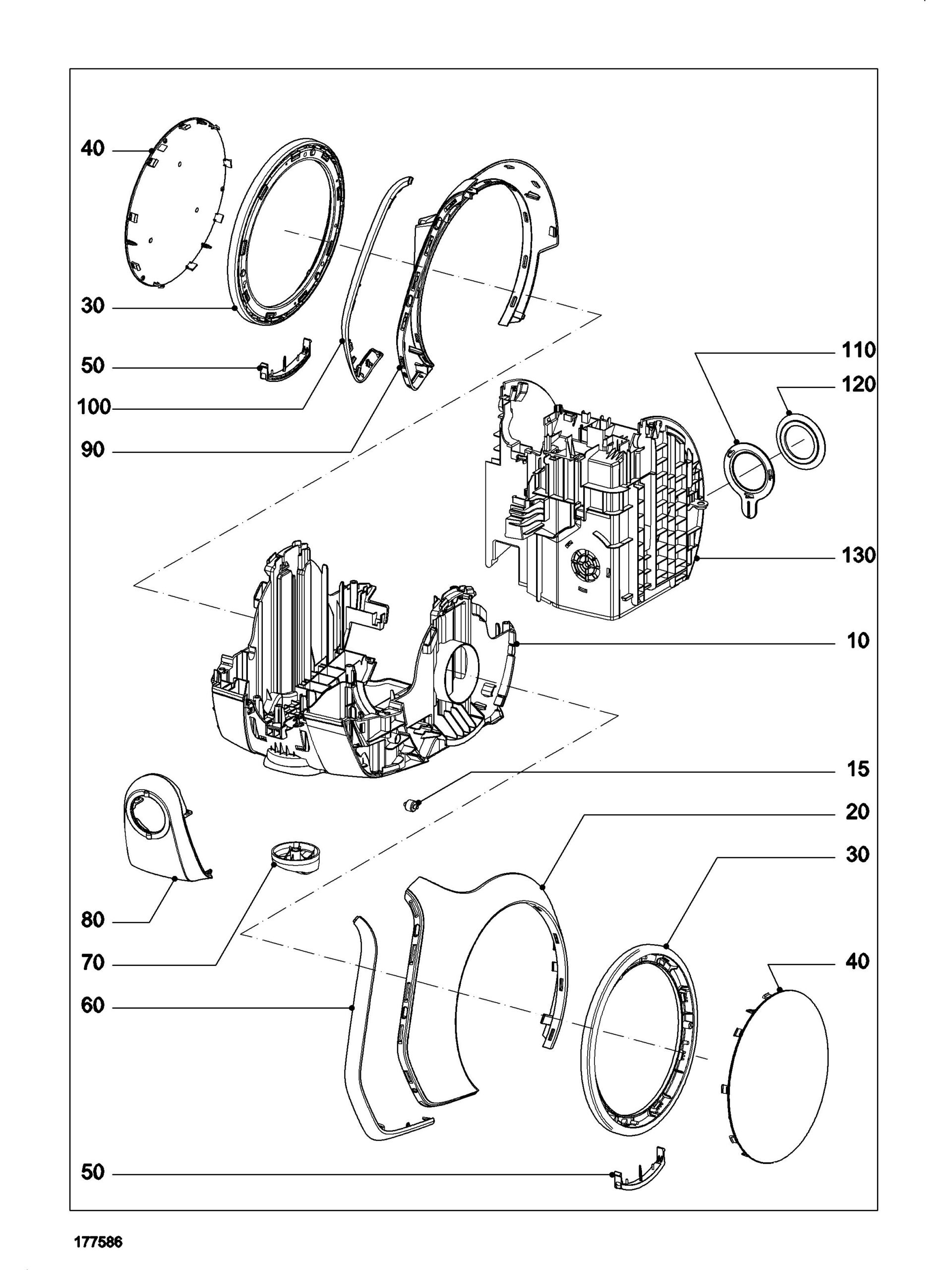

| # | Part image | Description | SKU | Price |
| 10 |  | Genuine Miele Casing bottom | 11168053 | $52.20Read more |
| 15 | | Genuine Miele Support roller B20 | 12536990 | $4.90Read more |
| 20 | No Image | Side Panel Left Lowe | 11168962 | $42.00Read more |
| 20 | No Image | Side Panel Left Grgr | 11510722 | $42.00Read more |
| 20 | No Image | Side Panel Left Obsw | 11510732 | $42.00Read more |
| 20 | No Image | Side Panel Left Kagr | 11895580 | $47.00Read more |
| 30 | | Genuine Miele Wheel (blue) | 11360921 | $39.50Read more |
| 30 | | Genuine Miele Wheel (red) | 11360931 | $39.50Read more |
| 30 | | Genuine Miele Wheel (black) | 11585272 | $52.20Read more |
| 40 | | Genuine Miele Cap Wheel LOWE | 11169041 | $24.70Read more |
| 40 | | Genuine Miele Cap Wheel OBSW | 11510531 | $24.70Read more |
| 40 | | Genuine Miele Cap Wheel KAGR printed | 11996400 | $33.80Read more |
| 40 | No Image | Cap Wheel Grgr | 11510541 | $27.00Read more |
| 50 | No Image | Bearing Wheel | 11689780 | $15.53Read more |
| 60 | | Genuine Miele Buffer left | 11168993 | $15.00Read more |
| 70 |  | Genuine Miele Slide skid assy | 10459340 | $20.00Currently Unavailable Product is special order please allow 2-4 weeks for delivery. |
| 80 | | Genuine Miele Dust channel | 11168111 | $20.60Read more |
| 90 | No Image | Side Panel Right Lowe | 11168972 | $42.00Read more |
| 90 | No Image | Side Panel Right Obsw | 11510762 | $42.00Read more |
| 90 | No Image | Side Panel Right Kagr | 11895590 | $47.00Read more |
| 90 | No Image | Side Panel Right Grgr | 11510772 | $42.00Read more |
| 100 | | Genuine Miele Buffer right | 11169013 | $15.00Read more |
| 110 | | Genuine Miele Seal Holder | 11368950 | $9.70Read more |
| 120 | | Genuine Miele Seal Central filter | 11368960 | $6.60Read more |
| 130 | | Genuine Miele Rear panel | 11168170 | $43.60Read more |

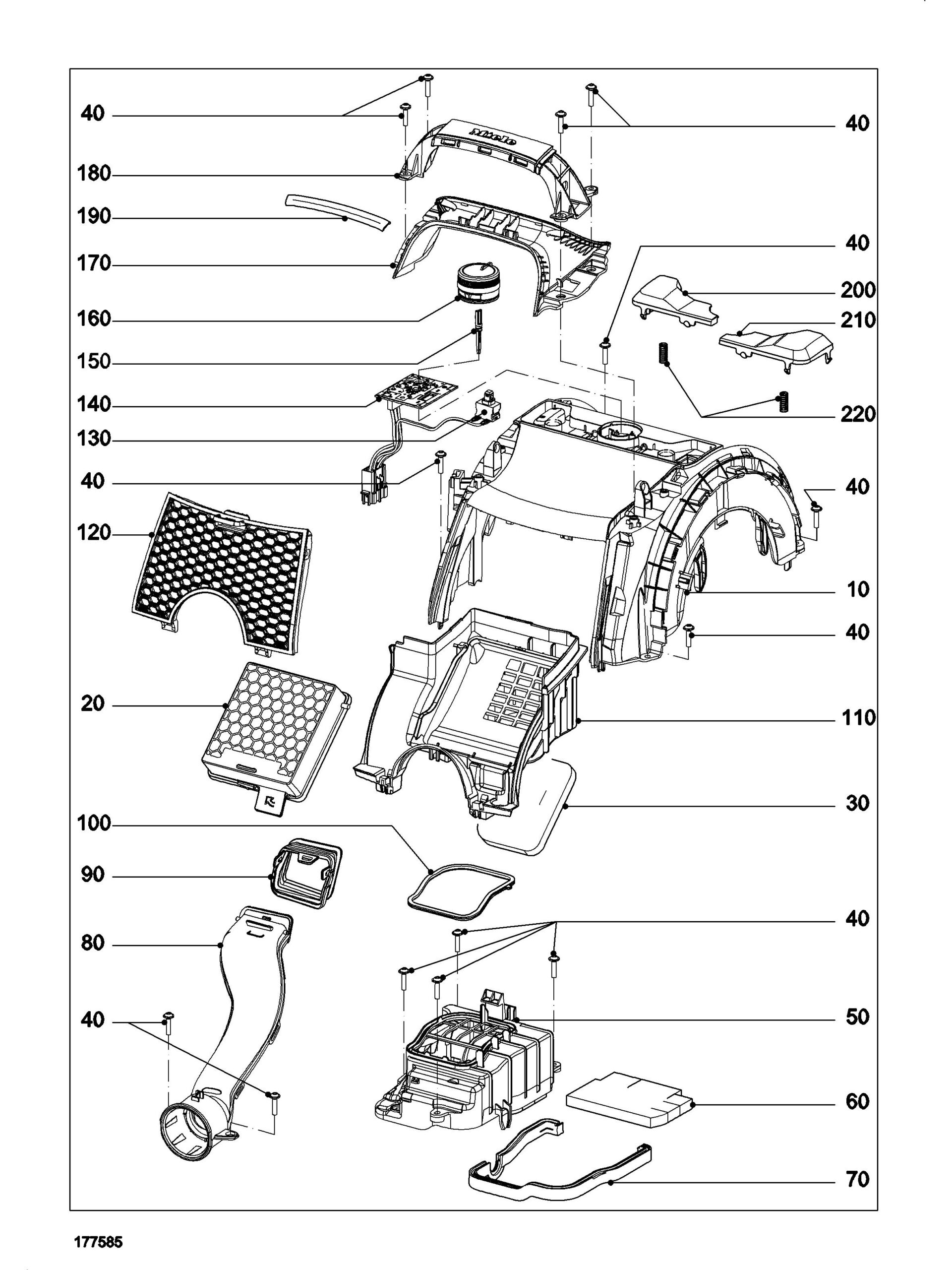

| # | Part image | Description | SKU | Price |
| xx | No Image | Seal Suction Channel | 11168160 | $15.00Read more |
| 10 | | Genuine Miele B20 Casing top | 11168212 | $39.50Read more |
| 20 | | Genuine Miele HEPAAirClean Filter SF-HA60 | 11639210 | $59.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Genuine Miele Foam insert Filter holder | 11508260 | $2.30Read more |
| 40 | No Image | Raised Head Screw 4.0X18 Ejot-Delta-Pt | 10441610 | $2.50Read more |
| 50 | | Genuine Miele Cover | 11168101 | $20.60Read more |
| 60 | No Image | Damping Plate Cover | 11508270 | $2.30Read more |
| 70 |  | Genuine Miele Seal Motor housing | 11168092 | $18.80Read more |
| 80 | | Genuine Miele Suction channel assy USA | 11368930 | $27.90Read more |
| 90 | | Genuine Miele Lip seal | 11168150 | $15.00Read more |
| 100 | | Genuine Miele Seal Filter holder | 11168191 | $13.50Read more |
| 110 | | Genuine Miele Filter holder | 11168183 | $24.70Read more |
| 120 |  | Genuine Miele Grille assy | 11168293 | $33.80Read more |
| 130 |  | Miele On/Off Switch for Canisters 1 Pole PN 09023231 4367102 | WP10439 | Original price was: $18.00.$12.99Current price is: $12.99.Read more |
| 140 | | Genuine Miele Electronic unit EDW S20213/81 assy | 11980740 | $98.00Read more |
| 150 | | Genuine Miele Adapter | 11168251 | $6.60Read more |
| 160 | | Genuine Miele Rotary knob | 11168240 | $20.60Read more |
| 170 | | Genuine Miele Handle B20 | 11168230 | $20.60Read more |
| 180 | No Image | Side Panel Middle White Hot Stamp | 11510570 | $20.00Read more |
| 180 | No Image | Side Panel Middle Obsw Hot Stamp | 11510580 | $21.62Read more |
| 180 | No Image | Side Panel Middle Red Hot Stamp | 11510590 | $21.62Read more |
| 180 | No Image | Side Panel Middle Kagr Hot Stamp | 11895540 | $22.00Read more |
| 190 | | Genuine Miele Buffer middle | 11169000 | $2.30Read more |
| 200 | No Image | Foot Switch Cable Printed | 11168261 | $27.00Read more |
| 210 | No Image | Foot Switch Power Printed | 11168271 | $27.00Read more |
| 220 | No Image | Spring Foot Switch | 11168280 | $2.30Read more |

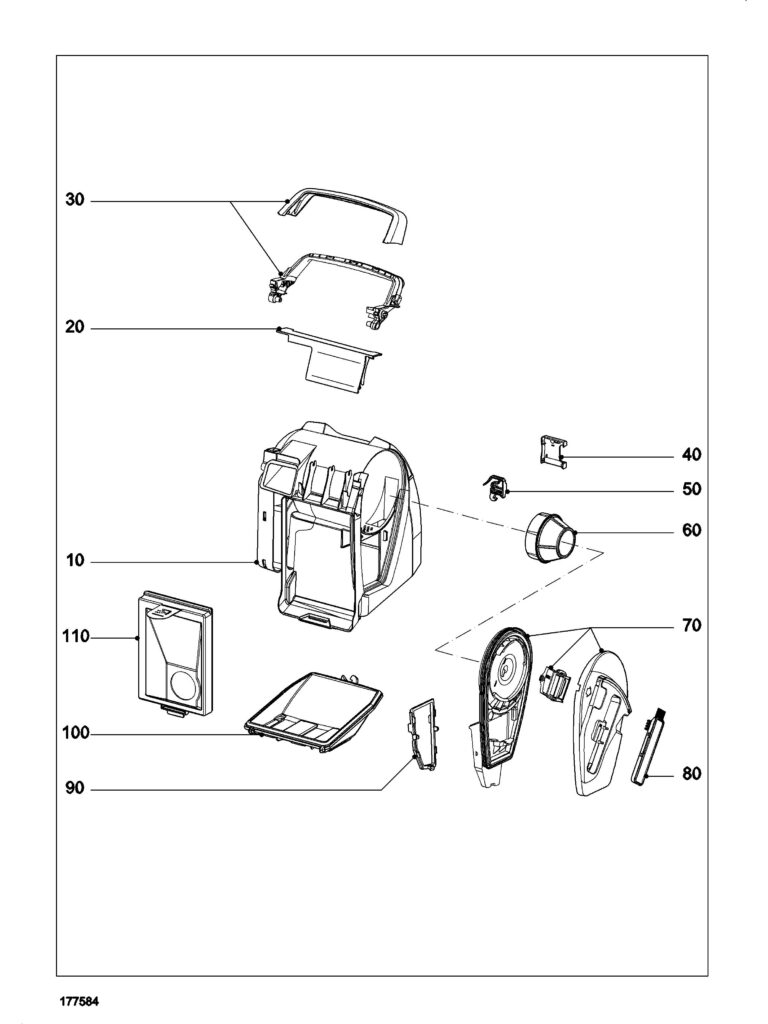

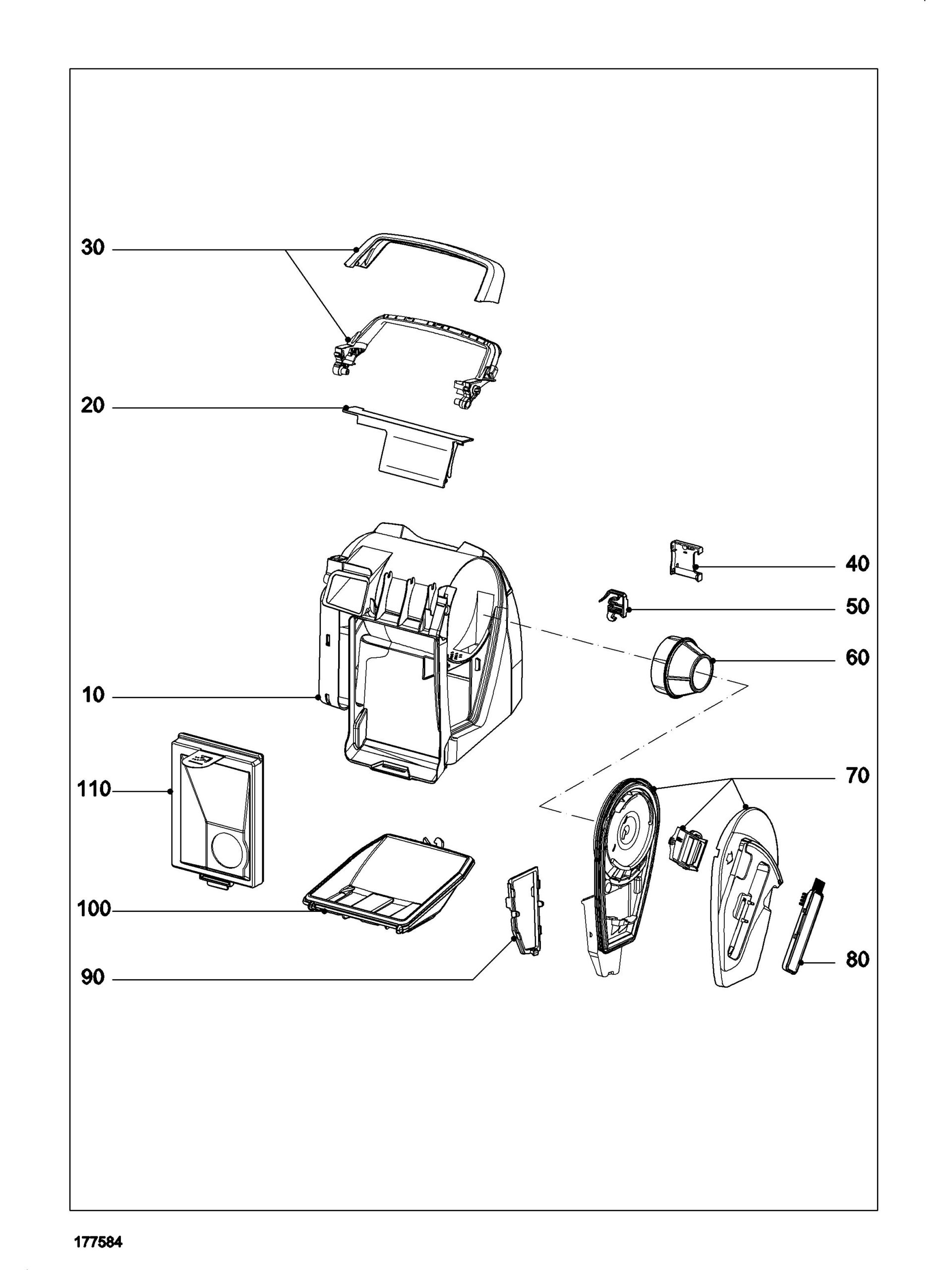

| # | Part image | Description | SKU | Price |
| 10-110 | | Genuine Miele Interceptor assy smoked | 12101891 | $346.70Read more |
| 20 | | Genuine Miele Cover top printed | 11169192 | $20.60Read more |
| 30 | | Genuine Miele Handle Assy | 11689792 | $20.60Read more |
| 40 |  | Genuine Miele Cover interlock | 11169142 | $2.30Read more |
| 50 |  | Genuine Miele interlock Flap | 11169151 | $2.30Read more |
| 60 | | Genuine Miele Pre-filter Separator | 12040490 | $39.50Read more |
| 70 | | Genuine Miele Lid | 11689800 | $43.60Read more |
| 80 | | Genuine Miele Cleaning tool | 11169304 | $27.90Read more |
| 90 |  | Genuine Miele Filter frame Lid | 11169263 | $24.70Read more |
| 100 |  | Genuine Miele Flap assy | 11169214 | $47.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Feinstaub Filter CX FSF | 11639250 | $59.00Read more |
