Parts list and schematic diagram for Miele Models: SMUL1 TRIFLEX HX1R, SMUL1 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
Popular Supplies

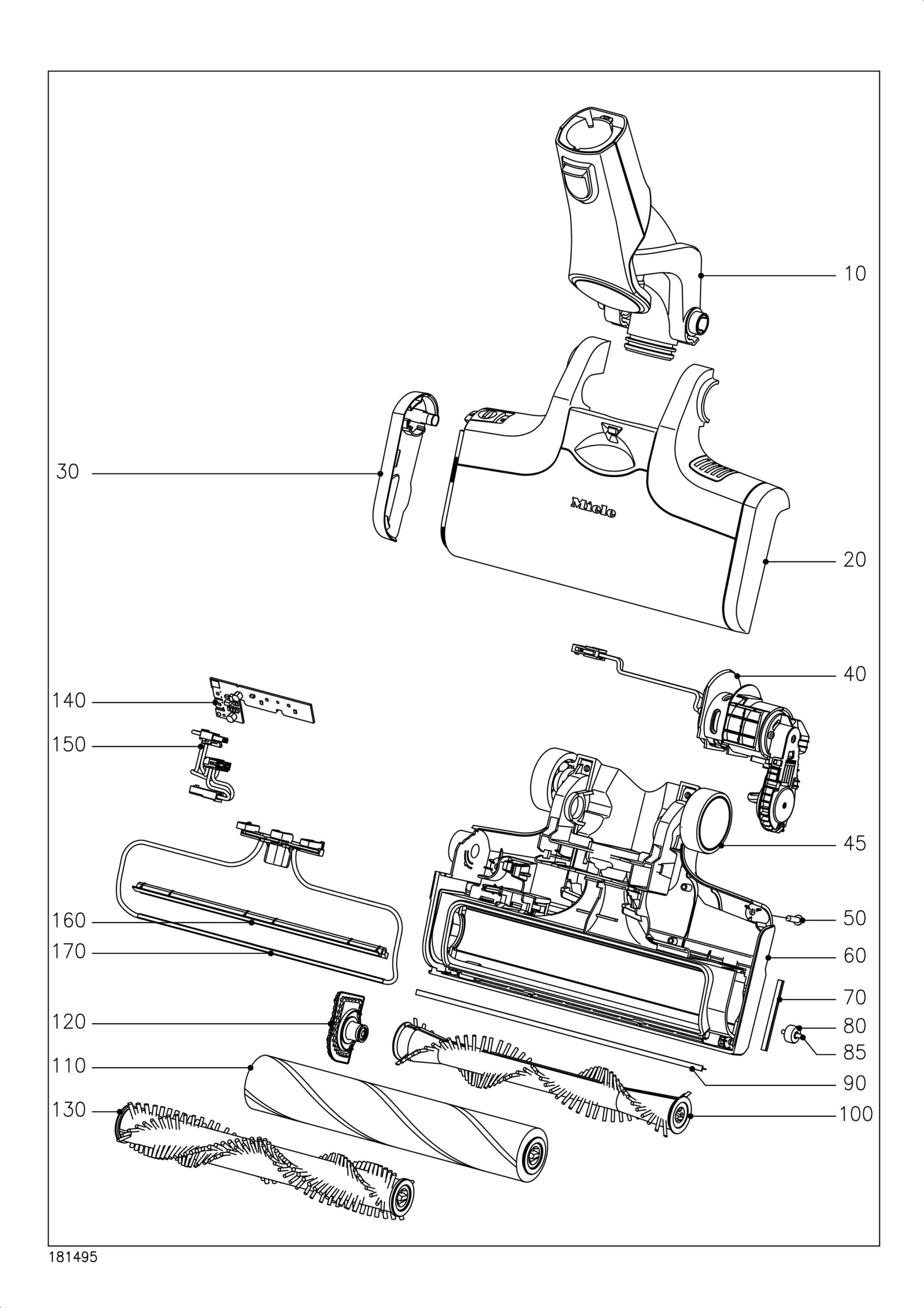

| # | Part image | Description | SKU | Price |
| xx |  | Genuine Miele Casing insert | 10834884 | $24.70Read more |
| xx | | Genuine Miele SEB430 Floor brush LoWe Ro | 11792210 | $309.00Read more |
| xx | | Genuine Miele SEB430 Floor brush GrGr Bl | 11792220 | $329.00Read more |
| xx | | Genuine Miele SEB430 Floor brush Obsw Ro | 11792230 | $309.00Read more |
| xx | Not Available | For Miele SMUL1 TRIFLEX HX1R SMUL1 | noop | Not Available |
| 10 | | Genuine Miele Linkage LOWS/ RT assy | 11684024 | $98.00Read more |
| 10 | | Genuine Miele Linkage GPHGR/ BL assy | 11684084 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Genuine Miele Linkage OBSW/ RT assy | 11684075 | $98.00Read more |
| 10 | | Genuine Miele SEB435 Floor brush InfGr | 11670900 | $249.00Read more |
| 10 | | Genuine Miele SEB435 Floor brush ObSw | 11670890 | $249.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Compatible alternateMiele SEB435 Power Nozzle for Triflex More Product Details | WP11761 | $286.35Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Genuine Miele SEB435 Floor brush RuRo for triflex | 11670880 | $249.00Read more |
| 10 | | Genuine Miele SEB435 Floor brush ObSw Rg | 11792270 | $399.00Read more |
| 20 | | Genuine Miele Casing top assy | 11572090 | $52.20Read more |
| 30 | | Genuine Miele Flap | 10834871 | $6.60Read more |
| 40 | | Genuine Miele Drive Mgb 02 | 11689734 | $189.00Read more |
| 45 | | Genuine Miele Support roller | 10835062 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.30Read more |
| 60-85 | | Genuine Miele KB Casing bottom HX2/HX1R | 12157951 | $78.10Read more |
| 70 | | Genuine Miele Brush Seal 5Stck. | 11564270 | $10.70Read more |
| 80 |  | Genuine Miele Support roller front | 10835083 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 85 |  | Genuine Miele Shaft front | 10835070 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele Sealing lip Short | 11507700 | $18.80Read more |
| 100 |  | Miele triflex HX2 standard brush roller | 11847213 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele HX-HC Hardfloor Care | 11724550 | $76.00Read more |
| 120 | | Genuine Miele Handle Brush roller assy | 10832394 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Brush roller Power assy | 11936221 | $41.00Add to cart Special order: ships in 2 to 4 weeks |

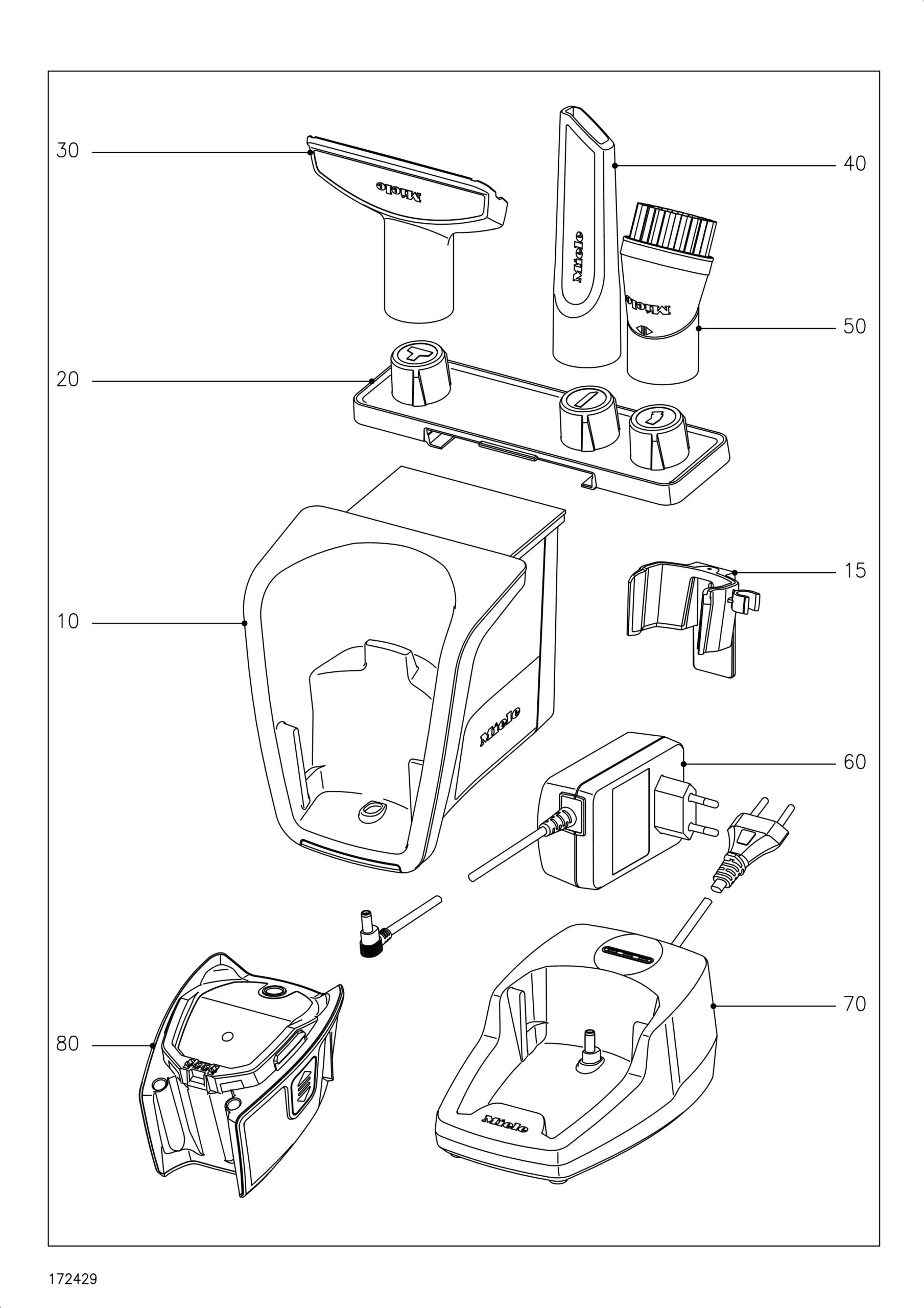

| # | Part image | Description | SKU | Price |
| xx | Not Available | For Miele SMUL1 TRIFLEX HX1R SMUL1 | noop | Not Available |
| 10 | | Genuine Miele Wall bracket Bagged assy | 12014871 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Genuine Miele Wall bracket Bagged XS assy | 12229720 | $10.70Read more |
| 20 | | Genuine Miele Shelf Accessory | 10833651 | $10.70Read more |
| 30 | | Genuine Miele Upholstery nozzle XL SPD20 | 11483910 | $43.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Crevice nozzle 149mm | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 50 |  | Genuine Miele Dusting Brush | 7010301 | $0.00Read more |
| 50 | No Image | Compatible alternateDusting Brush L More Product Details | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Aftermarket Miele Round Dusting Brush - Compatible with Miele Part SSP10 and 7010301 | 32161762 | $7.01Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele Recharger US, JP Type A | 11684361 | $209.00Add to cart |
| 70 | | Genuine Miele HX-LS USA Charger cradle Lithium-ion bat | 11607500 | $145.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele HX-LA Lithium-ion battery | 11384710 | $229.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Available Pre OwnedPre-owned Genuine Miele HX-LA Lithium-Ion Battery for Triflex More Product Details | WP12453 | $175.00Add to cart |

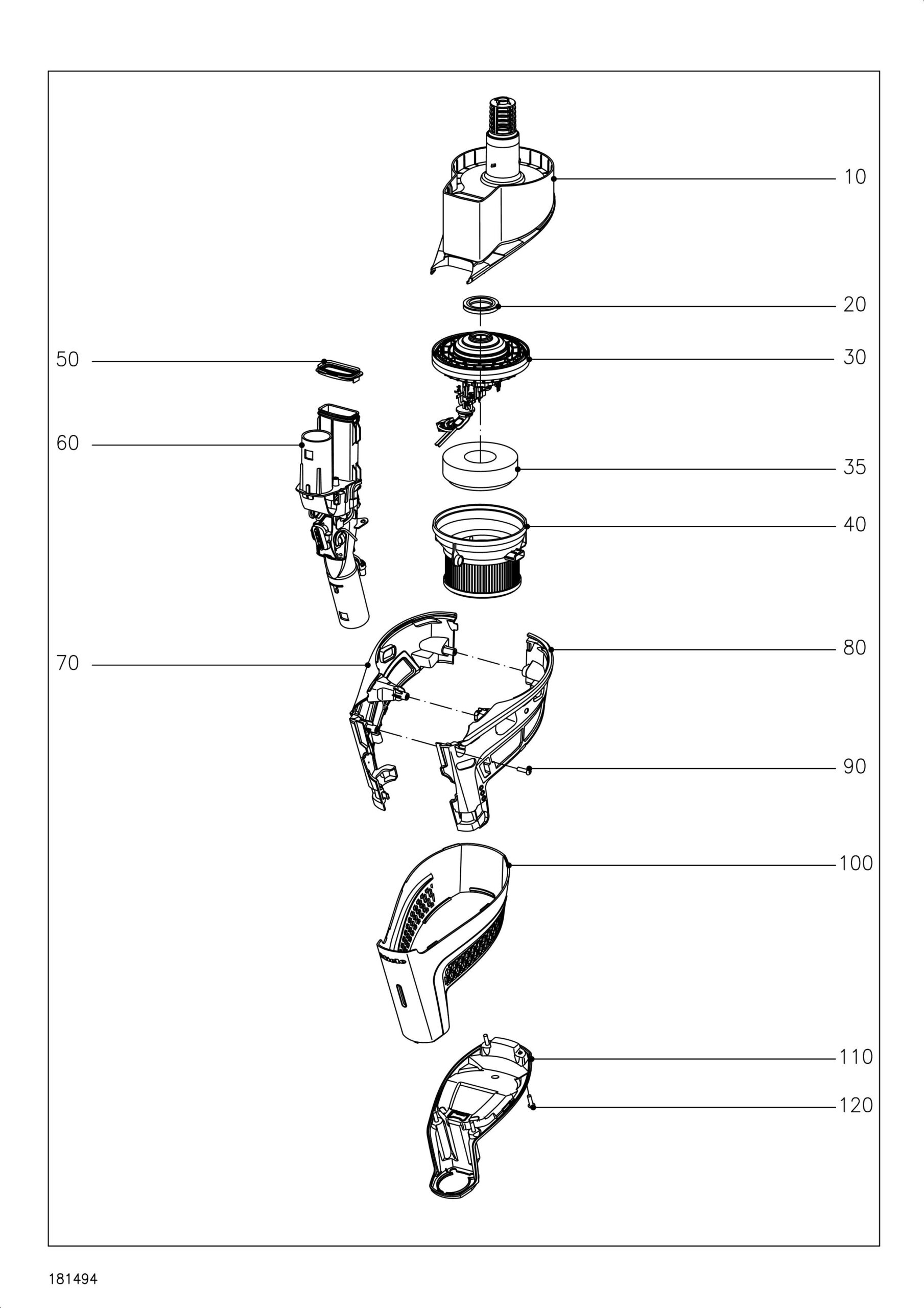

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Cover Motor housing | 11970750 | $98.00Read more |
| 20+35 | | Genuine Miele Ring Set | 11561830 | $10.70Read more |
| 30 | | Genuine Miele Fan Mgg 03 | 11705701 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Air outlet filter Hygiene-Lifetime E10 | 11864681 | $83.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Genuine Miele Seal Suction channel | 11725631 | $6.60Read more |
| 60 | | Genuine Miele Bracket Electric HX1003-B assy | 11748954 | $329.00Read more |
| 70 | | Genuine Miele Casing insert left assy | 10832432 | $59.40Read more |
| 80 | | Genuine Miele Casing insert right assy | 10832422 | $59.40Read more |
| 90 | | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.30Read more |
| 100 | | Genuine Miele Cover frame Printed LOWS/ RG | 12016810 | $33.80Read more |
| 100 | | Genuine Miele Cover frame Printed OBSW/ RG | 12016780 | $33.80Read more |
| 100 | | Genuine Miele Cover frame Printed GPHGR/ RG | 11239591 | $71.70Read more |
| 100 | | Genuine Miele Cover frame Printed IGRPF/ RG | 12016820 | $98.00Read more |
| 100 | | Genuine Miele Cover frame Printed KAGR/ RG | 12016840 | $43.60Read more |
| 100 | | Genuine Miele Cover frame Printed OBSW/ RT | 12016870 | $39.50Read more |
| 100 | No Image | Cover Frame Printed Lows/ Rt Sm | 12016900 | $42.00Read more |
| 100 | No Image | Cover Frame Printed Gphgr/ Bl Sm | 12016890 | $42.00Read more |
| 110 | No Image | Cover Bottom Usa/Cdn/Mex | 11749360 | $27.00Read more |
| 120 | | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.30Read more |

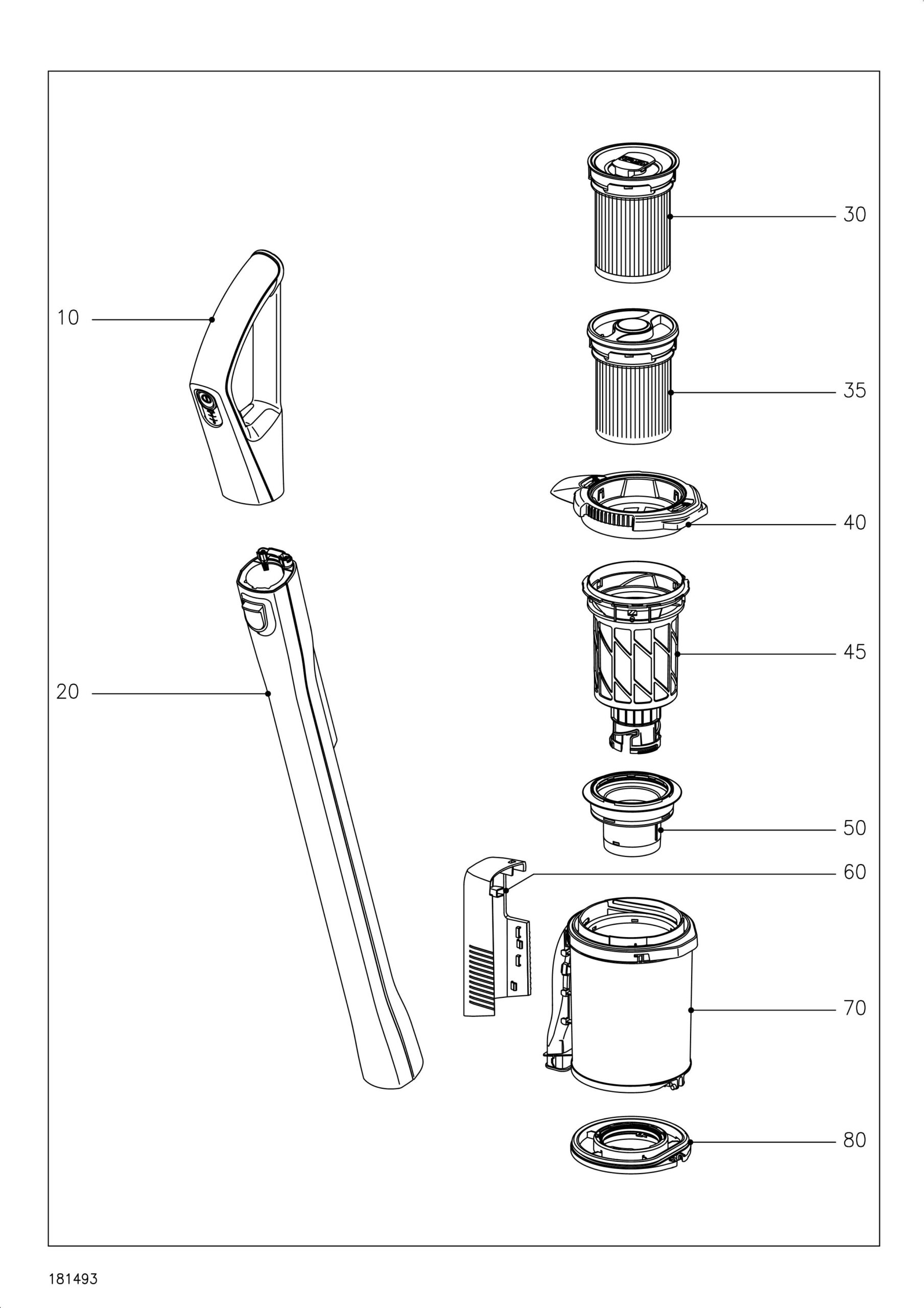

| # | Part image | Description | SKU | Price |
| xx | | Genuine Miele Centering ring | 10833366 | $18.80Read more |
| 10 | | Genuine Miele Handle GPHGR Eco assy | 11844360 | $131.10Read more |
| 10 | | Genuine Miele Handle OBSW Eco assy | 11844343 | $131.10Read more |
| 10 | | Genuine Miele Handle LOWS Eco assy | 11844332 | $129.00Read more |
| 20 | | Genuine Miele Suction pipe LOWS assy | 11062305 | $93.60Read more |
| 20 | | Genuine Miele Suction pipe OBSW assy | 10832126 | $93.60Read more |
| 20 |  | Genuine Miele Suction pipe GPHGR assy | 11256264 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Genuine Miele Suction pipe IGRPF assy | 11062346 | $0.00Read more |
| 20 | | Compatible alternateGenuine Miele Suction pipe IGRPF assy More Product Details | 11062345 | $129.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Genuine Miele Suction pipe KAGR assy | 11636663 | $131.10Read more |
| 35 |  | Genuine Miele HX-FSF-2 Fine dust filter | 11945240 | $49.00Read more |
| 35-80 | | Genuine Miele Separator RTMT assy | 11627048 | $149.00Read more |
| 35-80 | | Genuine Miele Separator BLMT assy | 11685298 | $219.00Read more |
| 40 | No Image | Top Pre-Filter | 11836771 | $21.62Add to cart Special order: ships in 2 to 4 weeks |
| 45 | No Image | Pre-Filter Rtmt Assy | 11682135 | $139.00Read more |
| 45 | | Genuine Miele Pre-filter BLMT assy | 11685285 | $98.00Read more |
| 45+50 | | Genuine Miele Pre-filter | 12431950 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | Not Available | Vent duct For Miele SMUL1 TRIFLEX HX1R SMUL1 | 10833433 | Not Available |
| 60 | | Genuine Miele Cover Air channel | 10833502 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | | Genuine Miele Container Stuck TP assy | 11685260 | $93.60Read more |
| 80 | | Genuine Miele Flap | 11969530 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
