Parts list and schematic diagram for Miele Models: SEB 245, SEB245 Schematics, parts diagrams, and parts list Repairs on Miele vacuum cleaners should be performed only by experienced vacuum technicians.
While we fully support the consumer's right to repair, Miele vacuums are among the more complex machines to service. We are not liable for any damage that may occur as a result of self-repair.
| # | Part image | Description | SKU | Price |

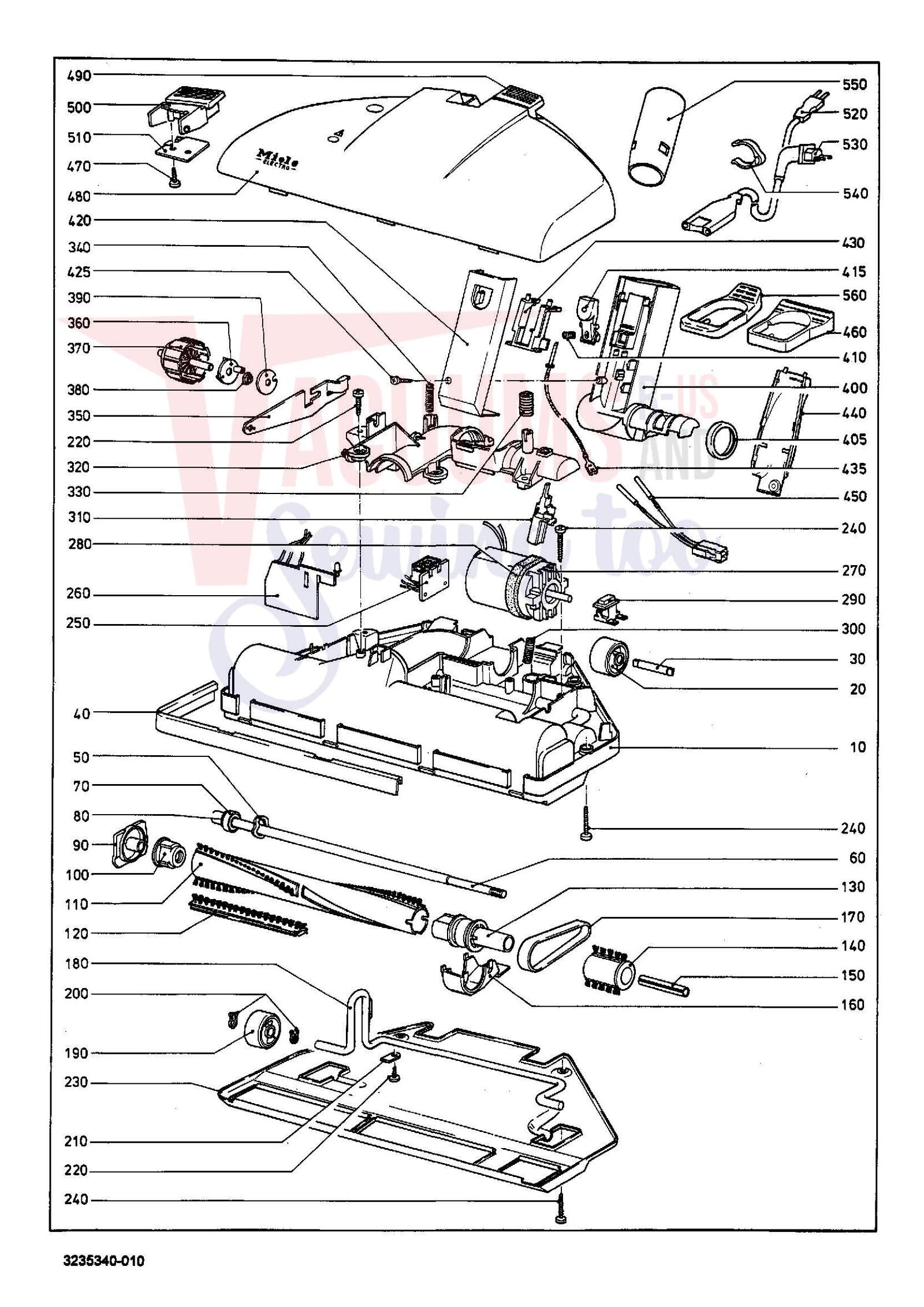

| -435 | Not Available | -Connecting cable 2 pole For Miele SEB 245 SEB245 | 3097430 | Not Available |
| xx | Not Available | Casing bottom anthracite For Miele SEB 245 SEB245 | 3666020 | Not Available |
| xx |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| xx | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.30Read more |
| xx | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.30Read more |
| xx | | Genuine Miele Raised head screw 4,0x14 TORX T20 | 6106980 | $0.00Read more |
| xx | | Genuine Miele Raised head screw 4,0X10 | 3092030 | $2.30Read more |
| xx | | Genuine Miele Raised head screw 4,0X10 | 3092030 | $2.30Read more |
| 20+30 | Not Available | undefined For Miele SEB 245 SEB245 | 3666140 | Not Available |
| 40 | Not Available | Buffer anthracite For Miele SEB 245 SEB245 | 3643200 | Not Available |
| 50-150+ | Not Available | For Miele SEB 245 SEB245 | noop | Not Available |
| 50-150+ | Not Available | For Miele SEB 245 SEB245 | noop | Not Available |
| 50-150+ | Not Available | For Miele SEB 245 SEB245 | noop | Not Available |
| 50-150+ | Not Available | For Miele SEB 245 SEB245 | noop | Not Available |
| 50-80 | Not Available | undefined For Miele SEB 245 SEB245 | 3246420 | Not Available |
| 70 | Not Available | Drive Lava grey For Miele SEB 245 SEB245 | 3246401 | Not Available |
| 90 | Not Available | undefined For Miele SEB 245 SEB245 | 3246412 | Not Available |
| 100 | | Genuine Miele Counter bearing anthracite | 3047711 | $15.00Read more |
| 110+120 | | Genuine Miele Roller | 3246381 | $150.60Read more |
| 120+140 | | Genuine Miele Bristle strip anthracite | 3246391 | $78.10Read more |
| 130+50+ | Not Available | For Miele SEB 245 SEB245 | noop | Not Available |
| 130+50+ | Not Available | For Miele SEB 245 SEB245 | noop | Not Available |
| 150 | | Genuine Miele Sleeve | 3047681 | $6.60Read more |
| 170 | | Genuine Miele Brush roller anthracite | 3647653 | $233.80Read more |
| 180-200 | Not Available | Angle lever anthracite For Miele SEB 245 SEB245 | 3246311 | Not Available |
| 190+200 | Not Available | undefined For Miele SEB 245 SEB245 | 3259211 | Not Available |
| 210 | Not Available | Clamping strip For Miele SEB 245 SEB245 | 3046600 | Not Available |
| 220 | Not Available | undefined For Miele SEB 245 SEB245 | noop | Not Available |
| 230 | Not Available | Floor plate For Miele SEB 245 SEB245 | 3446760 | Not Available |
| 240 | Not Available | undefined For Miele SEB 245 SEB245 | noop | Not Available |
| 250+260 | Not Available | Electronic unit ER201 120V 60HZ For Miele SEB 245 SEB245 | 3121313 | Not Available |
| 270 | | Genuine Miele AC motor 120V 60HZ | 3121410 | $233.80Read more |
| 280 | Not Available | Sealing ring black For Miele SEB 245 SEB245 | 3047540 | Not Available |
| 290 | Not Available | Switch 13A 120V For Miele SEB 245 SEB245 | 3085940 | Not Available |
| 300 | Not Available | Spring For Miele SEB 245 SEB245 | 3092710 | Not Available |
| 310 | Not Available | Feeler For Miele SEB 245 SEB245 | 3042081 | Not Available |
| 320 | Not Available | Cover anthracite For Miele SEB 245 SEB245 | 3643110 | Not Available |
| 330 | | Genuine Miele Spring | 3092700 | $4.90Read more |
| 340 | Not Available | Spring For Miele SEB 245 SEB245 | 3092720 | Not Available |
| 350 | Not Available | Switch lever For Miele SEB 245 SEB245 | 3042100 | Not Available |
| 360-380 | Not Available | Regulator wheel anthracite For Miele SEB 245 SEB245 | 3246321 | Not Available |
| 390 | Not Available | Disc For Miele SEB 245 SEB245 | 3046660 | Not Available |
| 400 | Not Available | undefined For Miele SEB 245 SEB245 | 3046620 | Not Available |
| 400 | Not Available | undefined For Miele SEB 245 SEB245 | 3643220 | Not Available |
| 400-435 | Not Available | Connection socket anthracite For Miele SEB 245 SEB245 | 3643131 | Not Available |
| 405 | Not Available | undefined For Miele SEB 245 SEB245 | 3246360 | Not Available |
| 410+415 | Not Available | undefined For Miele SEB 245 SEB245 | 3246342 | Not Available |
| 420 | Not Available | undefined For Miele SEB 245 SEB245 | 3643030 | Not Available |
| 425 | Not Available | undefined For Miele SEB 245 SEB245 | noop | Not Available |
| 430 | Not Available | undefined For Miele SEB 245 SEB245 | 3663470 | Not Available |
| 435 | Not Available | -Flexible wire 275MM For Miele SEB 245 SEB245 | 3097420 | Not Available |
| 470 | Not Available | undefined For Miele SEB 245 SEB245 | noop | Not Available |
| 470+ | Not Available | For Miele SEB 245 SEB245 | noop | Not Available |
| 470+ | Not Available | For Miele SEB 245 SEB245 | noop | Not Available |
| 480-510 | Not Available | Casing top anthracite For Miele SEB 245 SEB245 | 3676720 | Not Available |
| 490+500 | Not Available | Foot switch anthracite For Miele SEB 245 SEB245 | 3992760 | Not Available |
| 510 | Not Available | undefined For Miele SEB 245 SEB245 | 3042160 | Not Available |
| 520 | No Image | Supply Cable Lava Grey | 3121431 | $68.00Read more |
| 520+540 | | Genuine Miele Supply cable black | 3282574 | $64.00Read more |
| 540 | | Genuine Miele Cable holder anthracite | 2245161 | $9.70Read more |
| 550 | | Genuine Miele Sleeve | 3058721 | $62.00Read more |
| # | Part image | Description | SKU | Price |
| xx | No Image | --Raised Head Screw 7981-St3,5X9,5-F-Z- | 2712350 | $2.50Read more |
| xx | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |

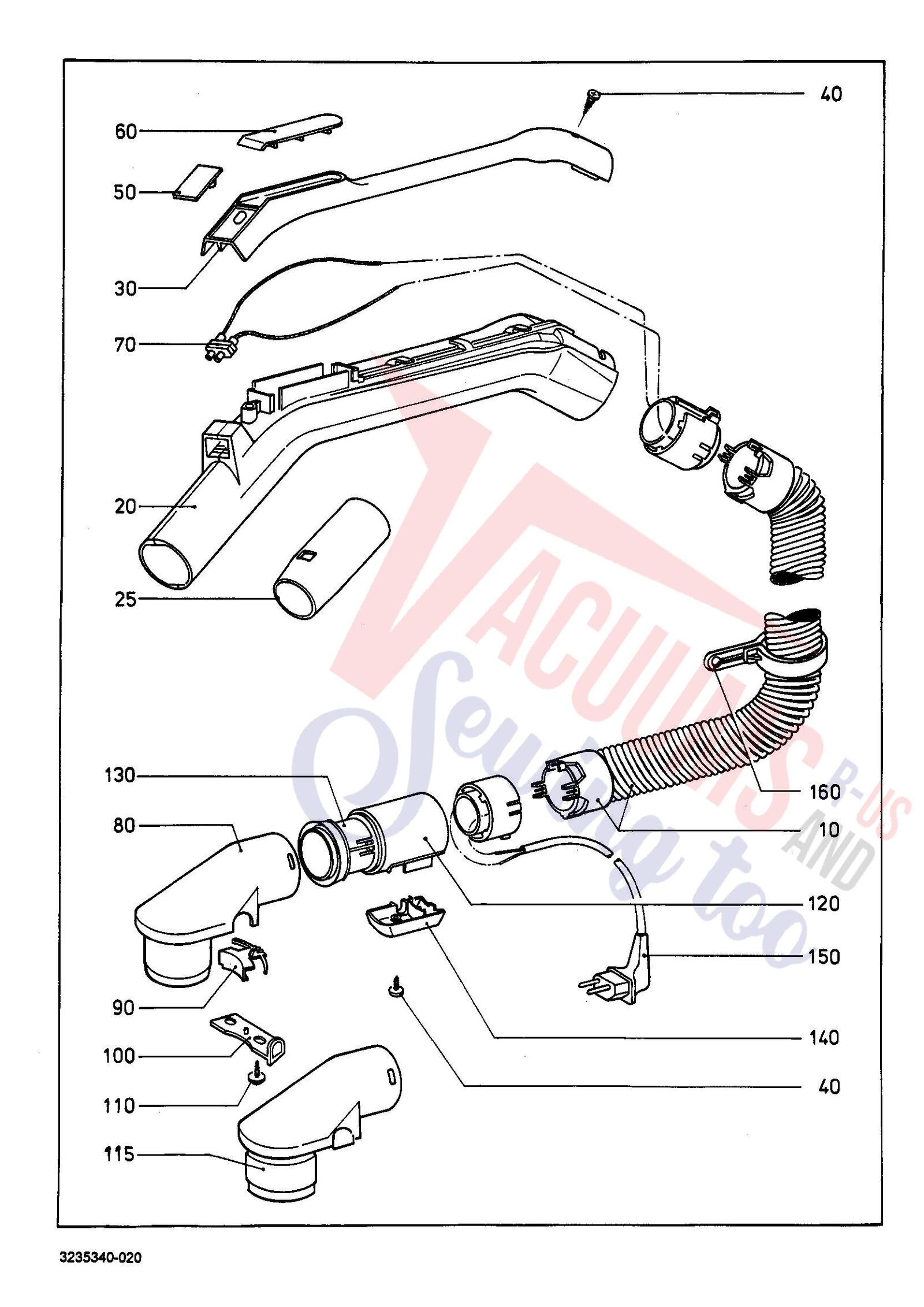

| 10 | Not Available | Elec.suction hose anthracite For Miele SEB 245 SEB245 | 3569720 | Not Available |
| 20+25 | Not Available | Tubular handle anthracite For Miele SEB 245 SEB245 | 3623740 | Not Available |
| 30 | Not Available | Cover anthracite For Miele SEB 245 SEB245 | 3624980 | Not Available |
| 40 | Not Available | undefined For Miele SEB 245 SEB245 | noop | Not Available |
| 50 | Not Available | undefined For Miele SEB 245 SEB245 | 3643700 | Not Available |
| 60 | Not Available | Lid Lava grey For Miele SEB 245 SEB245 | 2245780 | Not Available |
| 60 | Not Available | Lid anthracite For Miele SEB 245 SEB245 | 3643690 | Not Available |
| 70 | Not Available | Flush socket outlet black For Miele SEB 245 SEB245 | 1707671 | Not Available |
| 90 | | Genuine Miele interlock Lava grey | 1963320 | $6.60Read more |
| 100 | | Genuine Miele Slide | 1348550 | $3.60Read more |
| 110 | Not Available | undefined For Miele SEB 245 SEB245 | noop | Not Available |
| 115 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Read more |
| 115 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Read more |
| 120 | Not Available | Sleeve anthracite For Miele SEB 245 SEB245 | 3661300 | Not Available |
| 130 | Not Available | Ring anthracite For Miele SEB 245 SEB245 | 3565860 | Not Available |
| 140 | Not Available | Cover Lava grey For Miele SEB 245 SEB245 | 1998510 | Not Available |
| 140 | Not Available | Cover anthracite For Miele SEB 245 SEB245 | 3565980 | Not Available |
| 150 | Not Available | Supply cable black For Miele SEB 245 SEB245 | 3934350 | Not Available |
| 160 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
